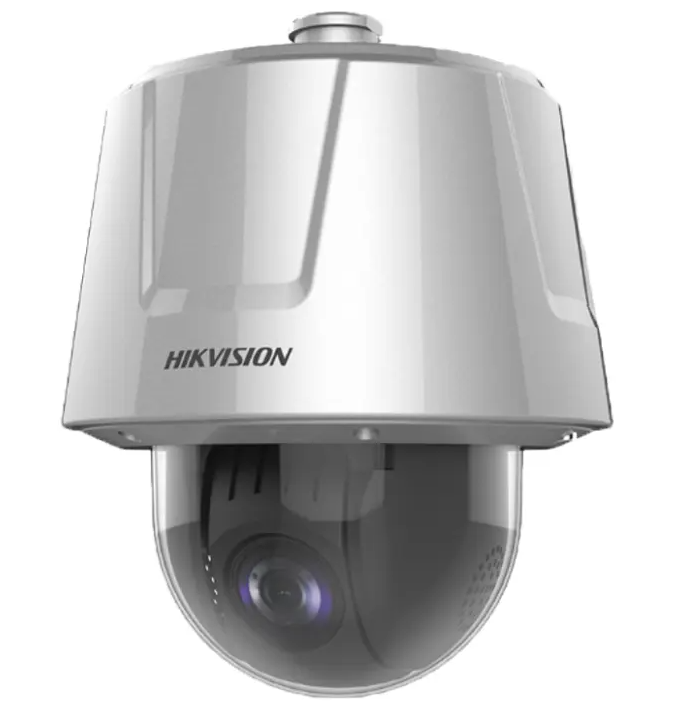

Hikvision DS-2DT6232X-AELY(T5) 6-inch 32x Anti-corrosion Network Speed Dome

  • 1/1.8″ Progressive Scan CMOS
  • Up to 1920 × 1080 resolution
  • 32 × optical zoom, 16 × digital zoom
  • Min. Illumination: Color: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON)
  • 140dB WDR, 3D DNR, HLC
  • 24 VAC Hi-PoE
  • Support H.265+/H.265 video compression
  • Support Rapid focus
  • IK10, IP67
  • Anti-Corrosion

Datasheet-of-DS-2DT6232X-AELYT5_20220409

LEAD TIME 6-7 WEEKS

$4,610.00 $4,620.00 inc GST +3 Year Warranty & Support

Camera

  • Image Sensor1/1.8＂ progressive scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
  • Shutter Speed1/1s ~ 1/30,000s
  • Slow Shutteryes
  • Focusauto;semi-auto;manual
  • Day & NightICR
  • Day/Night Switchday, night, auto, scheduled-switch
  • BLCyes
  • WDR140 dB WDR
  • HLCyes
  • 3D DNRyes
  • Defogyes
  • EISYes. Built-in gyroscope to improve EIS performance.
  • Regional Exposureyes
  • Regional Focusyes
  • White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB;Locked WB
  • Digital Zoom16x
  • Optical Zoom32x
  • Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
  • DORI

    Detect(25px/m): 2604.1 m

    Observe(63px/m): 1033.4 m

    Recognize(125px/m): 520.8 m

    Identify(250px/m): 260.4 m

  • SNR≥52dB
  • General Functionmirror, password protection, watermark, IP address filter
  • Lens
  • Focal Length5.9mm to 188.8mm, 32× Optical
  • Zoom Speedapprox. 4.5 s
  • FOV

    Horizontal field of view: 59.8° to 3.3° (wide-tele),

    Vertical field of view: 33.7° to 1.9° (wide-tele),

    Diagonal field of view: 65° to 3.8° (wide-tele)

  • ApertureF1.5
  • Illuminator
  • Smart IRno

PTZ

  • Movement Range (Pan)360°
  • Movement Range (Tilt)-15° to 90° (auto flip)
  • Pan Speedpan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
  • Tilt Speedtilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
  • Proportional Zoom yes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-Off Memory yes
  • Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
  • 3D Positioningyes
  • PTZ Status Display yes
  • Preset Freezing yes
  • Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Video

  • Max. Resolution1920 × 1080
  • Main Stream

    50Hz:25fps(1920×1080,1280×960,1280×720)；

    60Hz:30fps(1920×1080,1280×960,1280×720)；

  • Sub-Stream

    50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

    60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

  • Third Stream

    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

    60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  • Video CompressionH.265;H.264;MJPEG
  • Video Bit Rate32 Kbps ~ 16384 Kbps
  • H.264 Typebaseline profile;main profile;high profile
  • H.265 Typemain profile
  • H.264+yes
  • H.265+yes
  • SVCyes
  • ROIfixed region
  • Audio
  • Audio CompressionG.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
  • Smart Features
  • Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
  • Road TrafficSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)
  • Basic Eventalarm input and output;motion detection;video tampering alarm;exception
  • Smart Eventobject removal detection;unattended baggage detection;vandal-proof alarm;fast moving detection;parking detection;region entrance detection;region exiting detection;line crossing detection;intrusion detection;loitering detection;people gathering detection;audio exception detection
  • Smart Trackingmanual tracking;auto-tracking;event tracking
  • Smart RecordANR;Dual-VCA
  • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Network

  • Network StorageNAS (NFS, SMB/ CIFS);ANR
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
  • APIISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);Open-ended API;Third-party management platform;ISUP;Ehome
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • Smooth Streamingyes
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • ClientHikcentral;iVMS-4200;Hik-Connect
  • Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
  • Supplement Detection
  • Compassyes

Interface

  • Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
  • On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • Alarm Input7 alarm inputs
  • Alarm Output2 alarm outputs
  • Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output1 audio output, line level, impedance: 600 Ω
  • Video OutputNTSC;PAL;1.0V[p-p]/75Ω;BNC connector
  • RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • Approval
  • EMC

    FCC SDoC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC VoC (ICES-003: Issue 6, 2019);

    KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 62368-1)

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 62368-1:2014+A11:2017),

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

LOA (SANS IEC60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)

  • ProtectionIP67 Standard;IK10;Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5

General

  • Anti-Corrosion NEMA 4X
  • Power24 VAC Hi-PoE
  • Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
  • Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
SKU: DS-2DT6232X-AELY(T5) Categories: , , , , , Tag:
Camera
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: 120dB
Shutter Time: 1/1 s to 1/30,000 s
Day& Night: ICR
Digital Zoom: 16×
Privacy Mask: 24 programmable privacy masks; optional multiple colors and mosaics
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 5.9 mm to 135.7 mm, 23× optical zoom
Zoom Speed: Approx. 7.4 s (Optical Lens, Wide-Tele)
Field of View: 59.8° to 2.0° (Wide-Tele)
Minimum Working Distance: 10 mm to 1500 mm (Wide-Tele)
Aperture Range: F1.5 to F4.5
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Configurable, from 0.1°/s to 300°/s
Preset Speed: 540°/s
Tilt Range: Tilt: 0°~90°
Tilt Speed: Configurable, from 0.1°/s to 240°/s
Preset Speed: 400°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets for each patrol
Pattern: 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: ON/OFF
Smart-tracking: Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger
Smart tracking when patrol between multiple scenarios
Alarm
Alarm Input: 7 Inputs
Alarm Output: 2
Alarm Linkage: Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Input & Output
Monitor Output: 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input: 1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 1920×1080
Main Stream: 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)
60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream: 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
Third Stream: 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288)
60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288)
ROI encoding: Support 24 areas with adjustable levels
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Simultaneous Live View: Up to 20 channels
Three-Stream: Support
Storage: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
Security Measures: User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200
Web Browser: IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
General
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Language: English
Power Consumption: 100 VAC to 240 VAC, Max.: 60 W
Working Temperature/Humidity: -40° C to 60°C (-40° F to 140° F)
Dimensions: Φ 281 mm × 405 mm (11.06″ × 15.94″)
Weight (approx.): Approx. 22 kg (48.5 lb)
Mount Option: DS-1690ZJ-X Wall Mounting Bracket (Included);
DS-1691ZJ-X Pendant Mounting Bracket (Optional)
