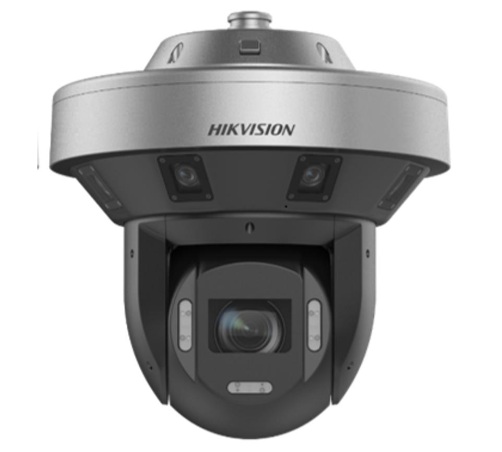

Hikvision DS-2DP8A845IXG1-LF-864-F0 64MP Ultra Series DarkFighter 360° Panoramic PTZ Camera with 45x Optical Zoom 500m Laser IR 2mm & 7.1-320mm

Product SKU: DS-2DP8A845IXG1-LF-864-F0

Product Overview

The Hikvision DS-2DP8A845IXG1-LF/864(F0) is a 64 MP Ultra Series 360° panoramic and PTZ network camera engineered for extremely large surveillance areas where continuous situational awareness and long-range detail are required at the same time. Eight 1/1.8-inch panoramic sensors with 2 mm F1.0 lenses create true stitched 360° coverage with no panoramic blind spots, while a separate 1/1.2-inch PTZ channel uses a 7.1–320 mm motorised lens with 45× optical zoom for detailed investigation of distant activity. DarkFighter 2.0 low-light technology, up to 500 m laser illumination and rapid PTZ movement support demanding day and night monitoring. Advanced tracking links panoramic detection with the PTZ channel, allowing operators to retain the full overview while investigating individual targets across airports, stadiums, transport hubs, public spaces and major industrial sites.

Key Capabilities

Best For

• Airports & Transport Hubs: Continuous 360° awareness and long-range PTZ inspection suit expansive terminals, aprons, depots and station environments.
• Stadiums & Large Venues: Panoramic monitoring, people-density analytics and fast PTZ response support large crowds and wide public spaces.
• Industrial Sites: 500 m laser illumination, smart tracking and high-speed PTZ movement suit large plants, yards and infrastructure facilities.
• Public Squares & Open Areas: True 360° coverage reduces blind spots while allowing operators to zoom into individual events without losing the overall scene.
• Long-Distance Perimeter Monitoring: 45× optical zoom and a 320 mm telephoto focal length provide detailed observation across very large sites.

Why Choose the DS-2DP8A845IXG1-LF/864(F0)

The DS-2DP8A845IXG1-LF/864(F0) is designed for sites where a conventional PTZ alone can create blind spots while zoomed in, and a conventional panoramic camera cannot provide enough long-range detail. By combining eight panoramic sensors with a separate 45× PTZ module, the system preserves full 360° situational awareness while operators inspect distant events in real time. The 500 m laser range, DarkFighter 2.0 performance, advanced tracking, fibre connectivity and 1 TB local storage further position it for enterprise-scale surveillance. Available through Security Wholesalers, it is particularly compelling where one integrated panoramic/PTZ platform can replace a more fragmented combination of multiple fixed cameras and separate speed domes.

Buyer Decision Tips

Key Features & Technical Specifications

Product Type	64 MP 360° panoramic network camera with integrated PTZ.
Model	DS-2DP8A845IXG1-LF/864(F0).
Panoramic Sensors	8 × 1/1.8-inch Progressive Scan CMOS.
PTZ Sensor	1/1.2-inch Progressive Scan CMOS.
Panoramic Resolution	64 MP panoramic imaging, up to 2 × 8160 × 3616 at 30 fps for panoramic channels.
Maximum Resolution	8160 × 3616.
Panoramic Lens	8 × 2 mm fixed lenses.
Panoramic Aperture	Maximum F1.0.
Panoramic Field of View	360° horizontal, 110° vertical.
PTZ Lens	7.1–320 mm motorised zoom.
PTZ Aperture	Maximum F1.5.
Optical Zoom	45×.
Digital Zoom	16×.
PTZ Horizontal Field of View	56.6° to 1.8°.
PTZ Vertical Field of View	33.7° to 1.0°.
Zoom Speed	Approximately 5.6 seconds.
Minimum Illumination – Panorama	Colour: 0.0005 lux at F1.0; B/W: 0.0001 lux at F1.0.
Minimum Illumination – PTZ	Colour: 0.0005 lux at F1.5; B/W: 0.0001 lux at F1.5; 0 lux with IR.
Supplement Light	Laser with Smart Supplement Light.
Laser Range	Up to 500 m.
Wide Dynamic Range	PTZ channel: 120 dB WDR.
Image Stabilisation	EIS with built-in gyroscope and OIS.
Defog	PTZ channel optical defog.
Pan Range	360°.
Tilt Range	-15° to 90° with auto flip.
Pan Speed	0.1° to 500°/s; preset speed 500°/s.
Tilt Speed	0.1° to 350°/s; preset speed 350°/s.
Presets	300.
Patrols	8 patrols with up to 32 presets per patrol.
Patterns	4 pattern scans with more than 10 minutes recording time per pattern.
Smart Tracking	Manual tracking, auto-tracking, panorama tracking and multi-scene patrol tracking.
Smart Events	Line crossing, intrusion, region entrance, region exiting, unattended baggage and object removal detection.
Multi-Target Detection	PTZ channel supports simultaneous detection and capture of human body, face and vehicle targets.
People Analytics	People-density detection and congestion alarm support.
Ethernet	1 × RJ45 10/100/1000 Mbps self-adaptive Ethernet port.
Fibre Interface	1 × FC single-mode fibre interface, 1000 Mbps, TX1310/RX1550 nm, up to 20 km transmission.
On-Board Storage	microSD/microSDHC/microSDXC up to 1 TB.
Alarm I/O	7 alarm inputs and 2 alarm outputs.
Audio I/O	1 line input and 1 line output.
RS-485	1 half-duplex interface with Hikvision, Pelco-P and Pelco-D support.
Power	36 VDC ±20%, maximum 135 W including up to 12 W for IR.
Protection Rating	IP67.
Impact Protection	IK10.
Electrical Protection	Lightning, surge and voltage-transient protection; ±6 kV line-to-ground and ±3 kV line-to-line.
Operating Temperature	-40°C to 70°C.
Operating Humidity	90% or less, non-condensing.
Material	ADC12.
Dimensions	Approximately Ø427.6 × 425.9 mm.
Weight	Approximately 14.6 kg.

Ideal Use Cases

Choosing the Right Model

• Choose this model if: The site requires true 360° panoramic monitoring plus a dedicated 45× PTZ for detailed long-range investigation from the same camera position.
• Choose a conventional PTZ if: Continuous panoramic awareness is unnecessary and a single operator-controlled field of view is sufficient.
• Choose multiple fixed cameras instead if: The site only needs several permanent views and does not require integrated tracking, panoramic-to-PTZ positioning or 500 m night reach.
• Plan infrastructure before purchase if: The project has not yet accounted for the camera’s 14.6 kg weight, 135 W maximum power demand, compatible heavy-duty mounting hardware and high-bandwidth panoramic video streams.

FAQs

1. What resolution does the Hikvision DS-2DP8A845IXG1-LF/864(F0) provide?
   The Hikvision DS-2DP8A845IXG1-LF/864(F0) provides 64 MP panoramic imaging using eight panoramic sensors, with up to two 8160 × 3616 panoramic channels at 30 fps. A separate PTZ channel uses a 1/1.2-inch progressive scan CMOS sensor for detailed close-up views. This combination allows the camera to maintain a full 360-degree overview while operators inspect distant targets with the PTZ module.
2. How much zoom does the DS-2DP8A845IXG1-LF/864(F0) provide?
   The PTZ channel uses a 7.1 mm to 320 mm motorised lens with 45× optical zoom and 16× digital zoom. Its horizontal field of view changes from approximately 56.6 degrees at wide angle to 1.8 degrees at telephoto, allowing operators to move from broad scene awareness to tightly framed long-distance views without losing the panoramic overview.
3. How far can the laser illumination reach?
   The DS-2DP8A845IXG1-LF/864(F0) uses laser supplement lighting with a stated range of up to 500 metres. Smart Supplement Light is supported, helping the PTZ channel maintain night visibility over very large areas. The exact usable detail at distance still depends on target size, weather, atmospheric conditions, camera mounting height and scene reflectivity.
4. What tracking and analytics functions does the DS-2DP8A845IXG1-LF/864(F0) support?
   The camera supports manual tracking, auto-tracking and panorama tracking, including patrol tracking across multiple detection scenes. Smart events include line crossing, intrusion, region entrance, region exiting, unattended baggage and object removal detection. The PTZ channel also supports simultaneous detection and capture of human body, face and vehicle targets, while people-density detection and congestion alarms are available for supported applications.
5. Can the DS-2DP8A845IXG1-LF/864(F0) be used outdoors?
   Yes. The DS-2DP8A845IXG1-LF/864(F0) is rated IP67 and IK10 and is specified for operation from -40°C to 70°C with humidity up to 90% non-condensing. Hikvision also specifies lightning, surge and voltage-transient protection. For Security Wholesalers installations, the mounting structure, 36 VDC power supply, fibre or Ethernet connection and cable protection should still be engineered for the actual site.
6. What network, storage and interface options does the DS-2DP8A845IXG1-LF/864(F0) support?
   The camera includes a 10/100/1000 Mbps RJ45 Ethernet port, a built-in single-mode fibre interface supporting transmission up to 20 km, and local microSD storage up to 1 TB. It also provides seven alarm inputs, two alarm outputs, one audio input, one audio output and RS-485. These interfaces suit large-site surveillance systems requiring resilient connectivity, local storage and integration with external alarm devices.

Additional Information

• Hikvision DS-2DP8A845IXG1-LF_864-F0 6MP PTZ Camera Datasheet
