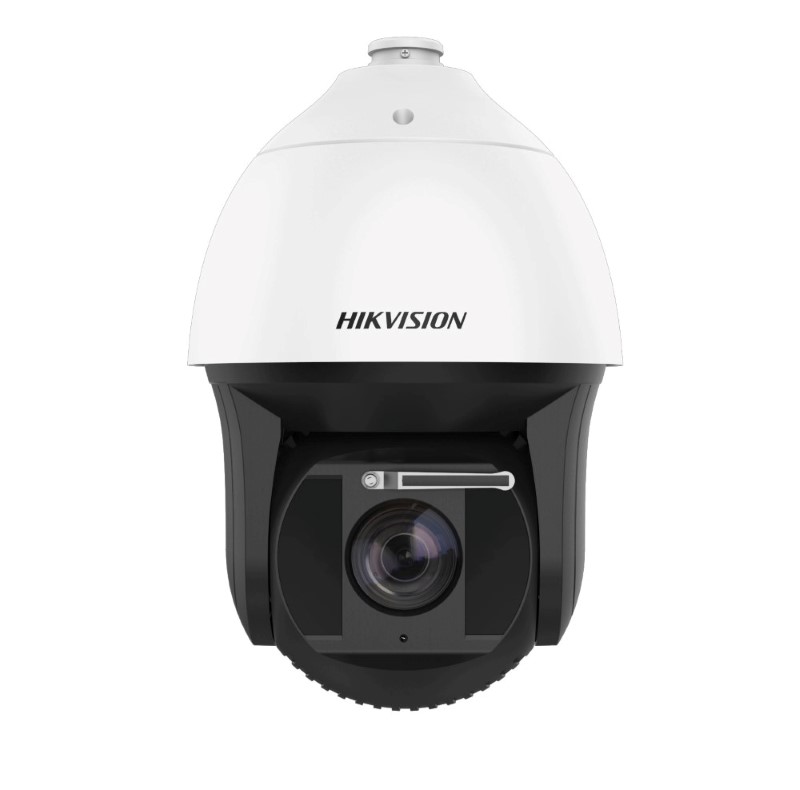

Hikvision DS-2DF8436IX-AEL 4MP Outdoor HFR PTZ Camera, WDR, 36x Zoom, Wiper, IP66, 200m IR, HiPoE


Part of Hikvision’s Pro PTZ series, the DS-2DF8436IX-AEL is smart PTZ Dome Cameras are able to capture high quality images in intense light source environment. Embedded with 1/3″ progressive scan CMOS chip makes ultra WDR (120dB) and 3 megapixel at 60 frames per second possible. With the 36X optical zoom Day/Night lens, the camera offers more details over expansive areas. Built-in high performance infrared led provides unparalleled visibility in zero lux conditions for up to 200m.

Usually 4-5 weeks lead time for this item

$3,647.77 $4,157.00 inc GST +3 Year Warranty & Support

Part of Hikvision’s Pro PTZ series, the DS-2DF8436IX-AEL is smart PTZ Dome Cameras are able to capture high quality images in intense light source environment.

The Hikvision Pro series features cutting edge technologies such as Smart Tracking and can capture high quality 4MP images efficiently with H.265 or H.265+ compression technology. Powered by Hikvision’s Darkfighter technology which can capture crystal clear colour image in ultra-low light conditions and with a 360-degree endless pan range and a -20 to 90 degree tilt range, this versatile and full-featured PTZ dome camera is ideal for monitoring expansive areas whilst also allowing the user to focus in on specific details for further forensic needs.

2MP Variant of this camera:

Camera
Image Sensor: 1/1.8″ progressive scan CMOS
Effective Pixels: 2560(H)×1440(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
0 Lux with IR
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: 120dB
Shutter Time: 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night: ICR
Digital Zoom: 16X
Privacy Mask: 24 programmable privacy masks; optional multiple colors and mosaics
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 5.7 mm to 205.2 mm, 36× Optical
Zoom Speed: Approx. 4.4s (optical lens, wide-tele)
Field of View: Horizontal field of view: 51.1° to 1.7° (wide-tele)
Vertical field of view: 31.3° to 1.0° (wide-tele)
Diagonal field of view: 58.0° to 2.0° (wide-tele)
Minimum Working Distance: 10-1500mm(Wide-Tele)
Aperture Range: F1.5~F4.5
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
Tilt Range: -20°~90°(Auto Flip)
Tilt Speed: Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
Proportional Zoom: Yes
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: ON/OFF
Smart-tracking: Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Wiper: Optional
Infrared
Smart IR: Yes
IR Distance: 200m
Alarm
Alarm Input: 7 Inputs
Alarm Output: 2
Alarm Linkage: Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Main Stream: 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
Third Stream: 50Hz: 25fps(704×576, 640×480, 352×288);
60Hz: 30fps(704×480, 640×480, 352×240)
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding: Eight fixed region for each stream
Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Mode: OFF/Audio input/Audio output
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View: Up to 20 channels
Three-Stream: Support
Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
User/Host: Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures: User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser: IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+
General
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Language: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Consumption: 24 V, 3.0 A, 50/60Hz, AC (Max. 60 W, including max. 18 W for IR and max. 6 W for
heater)
Hi-PoE, 42.5 to 57 V, 1.41 A (Max. 50 W, including max. 18 W for IR and max. 6 W for
heater)
Working Temperature/Humidity: -40°C to 70°C (-40°F to 158°F)
Protection Level: IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions: Φ 266.6 mm × 410 mm (Φ 10.50″ × 16.14″)
Weight (approx.): 8kg (approx.17.64lb)
