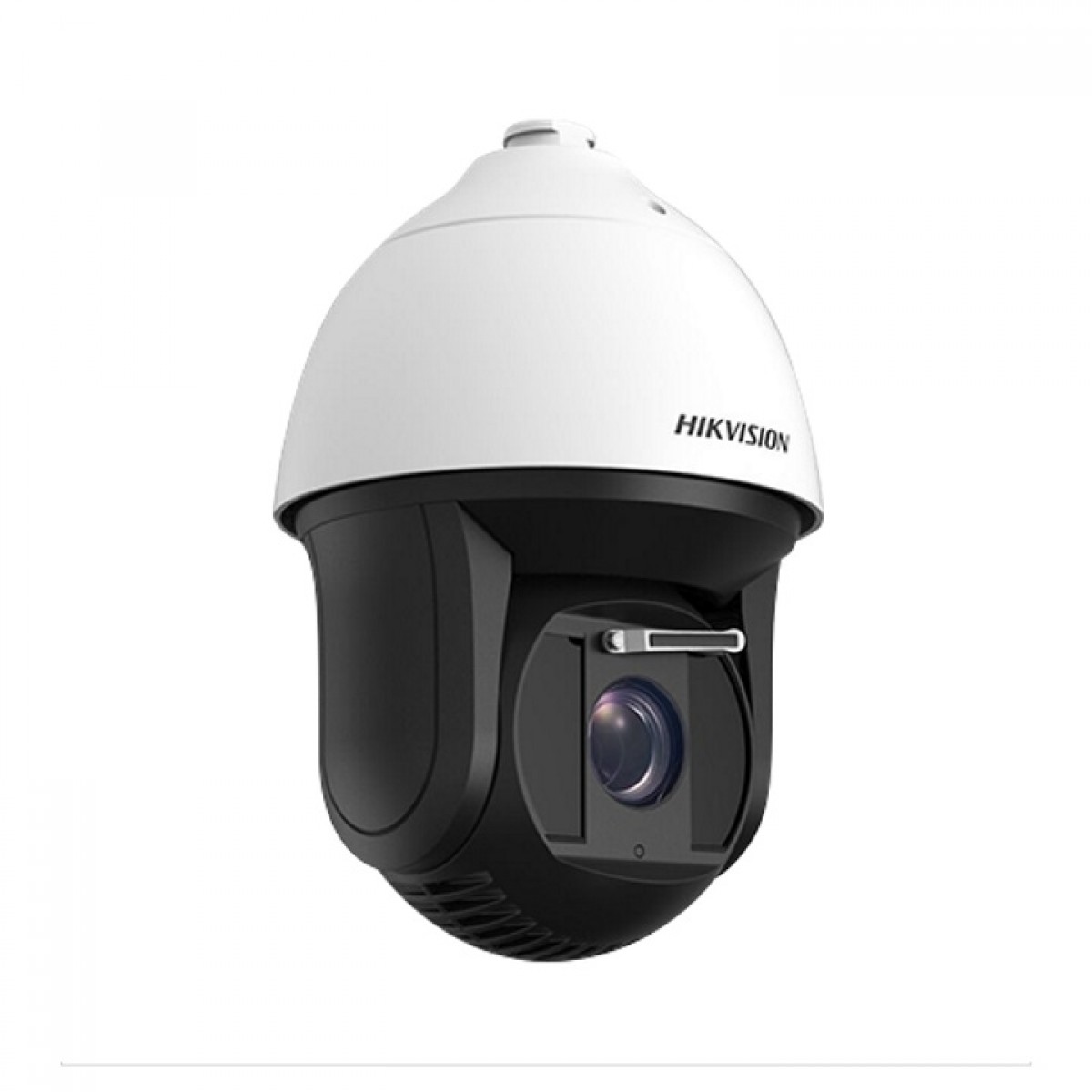

Camera
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
0 Lux with IR
White Balance: Auto / Manual
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: 120dB
Shutter Time: 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night: ICR
Digital Zoom: 16X
Privacy Masking: 24 privacy masks programmable
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 5.7 mm to 142.5 mm, 25× Optical
Zoom Speed: Approx. 3.7 s (optical lens, wide-tele)
Angle of View: Horizontal field of view: 59.8° to 2.8° (wide-tele)
Vertical field of view: 33.6° to 1.6° (wide-tele)
Diagonal field of view: 68.6° to 3.2° (wide-tele)
Minimum Working Distance: 10-1500mm(Wide-Tele)
Aperture Range: F1.5~F3.4
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
Tilt Range: -20°~90°(Auto Flip)
Tilt Speed: Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
Power loss recovery: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: ON/OFF
Freeze Frame: Support
Smart-tracking: Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Wiper: Optional

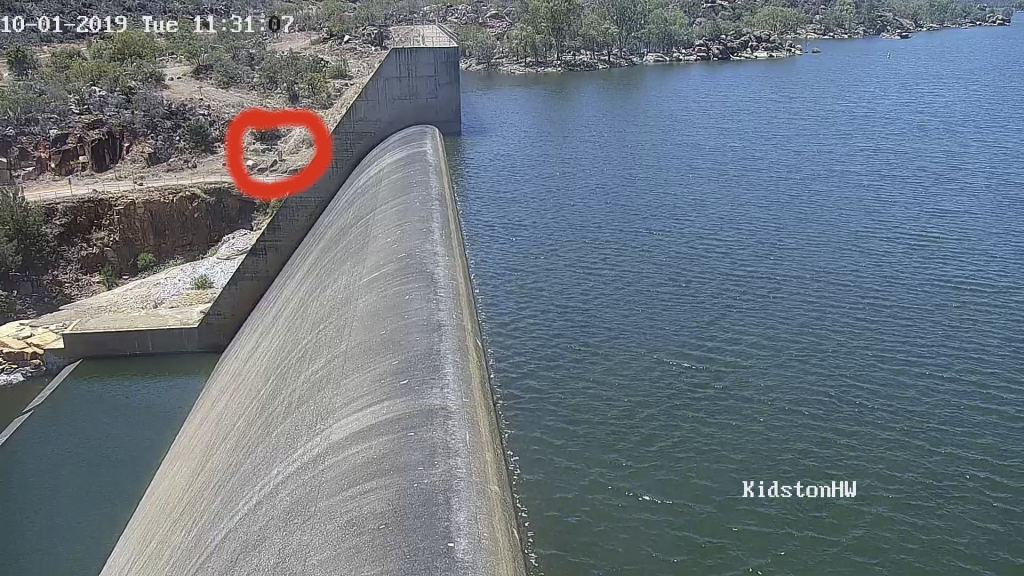

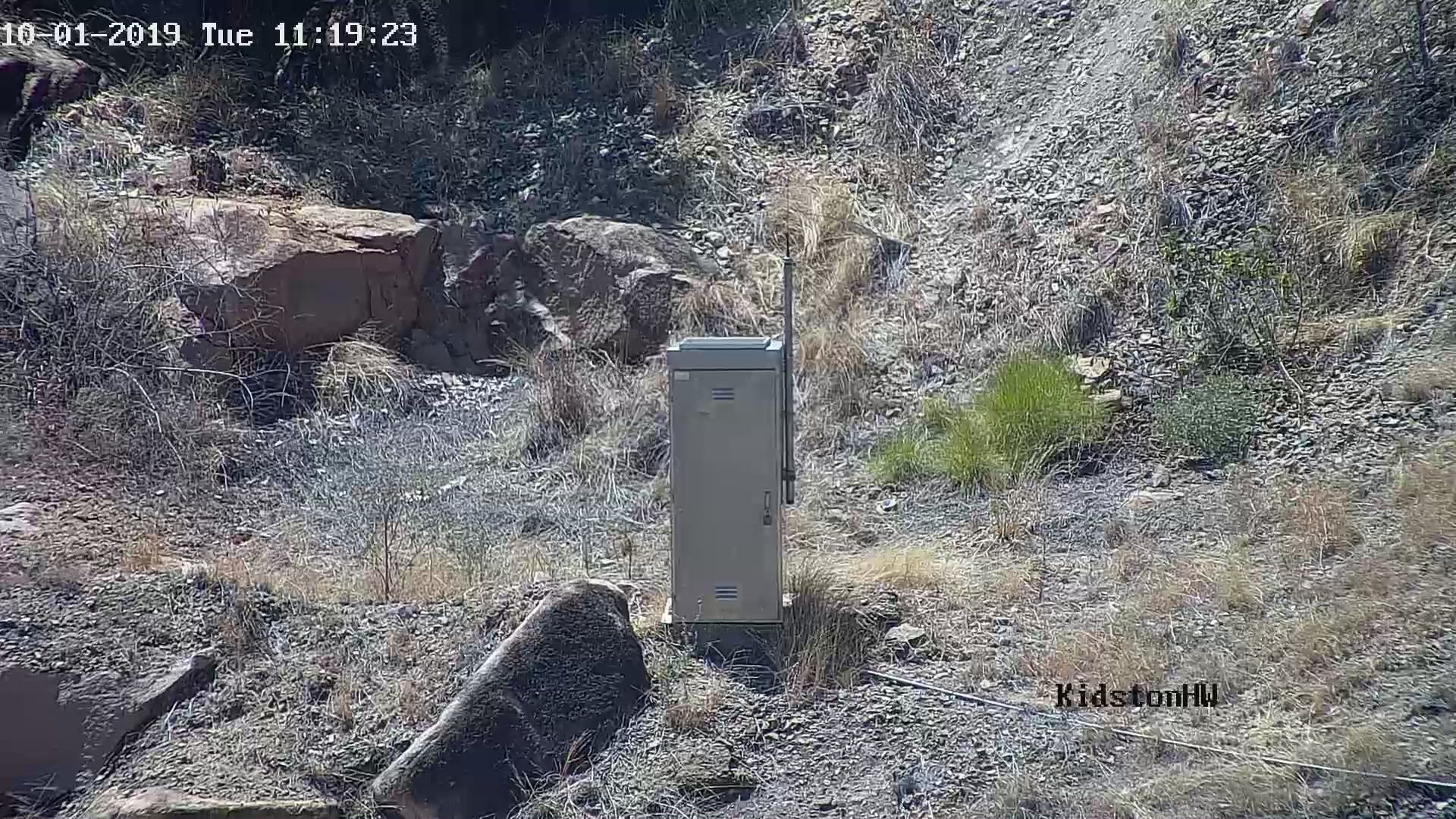

SAMPLE VIDEOS From 23x Zoom model

Infrared
IR irradiation distance: 200m
IR irradiation angle: Adjustable by zoom
Alarm
Alarm Input: 7 Inputs
Alarm Output: 2
Alarm Actions: Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),
50fps (1920 × 1080, 1280 × 960, 1280 × 720);
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
Third Stream: 50Hz: 25fps(704×576, 640×480, 352×288);
60Hz: 30fps(704×480, 640×480, 352×240)
Audio Mode: OFF/Audio input/Audio output
No. of Simultaneous Users: Up to 20 users
Three-Stream: Support
Security Measures: User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200
Web Browser: IE 7+, Chrome 18 – 42, Firefox 5.0 +, Safari 5.02 +
General
Power Consumption: 24 VAC (Max. 60 W)
Hi-PoE (Max. 50 W)
Working Temperature/Humidity: -40°C ~ 65°C (-40°F ~ 149°F)
Dimensions: Φ 266.6 mm × 410 mm (Φ 10.50″ × 16.14″)
Weight (approx.): 8kg (approx.17.64lb)
