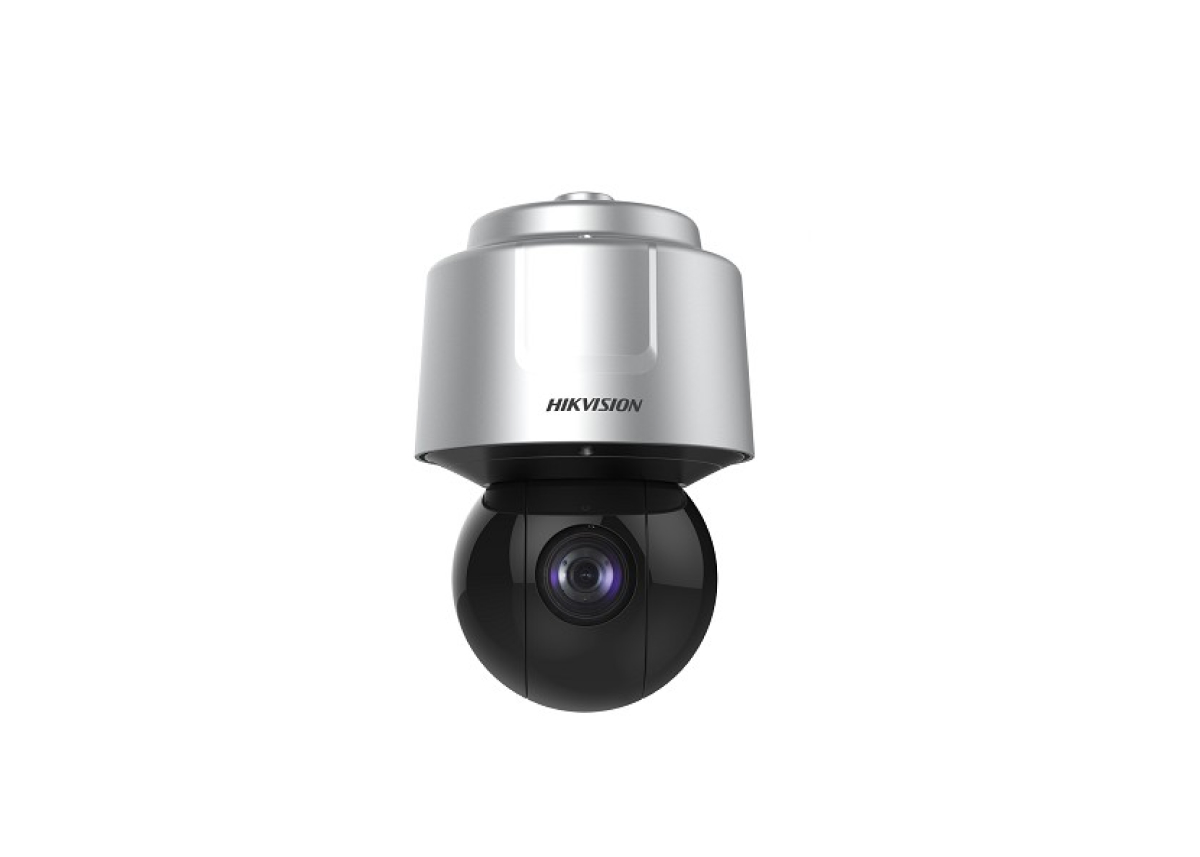

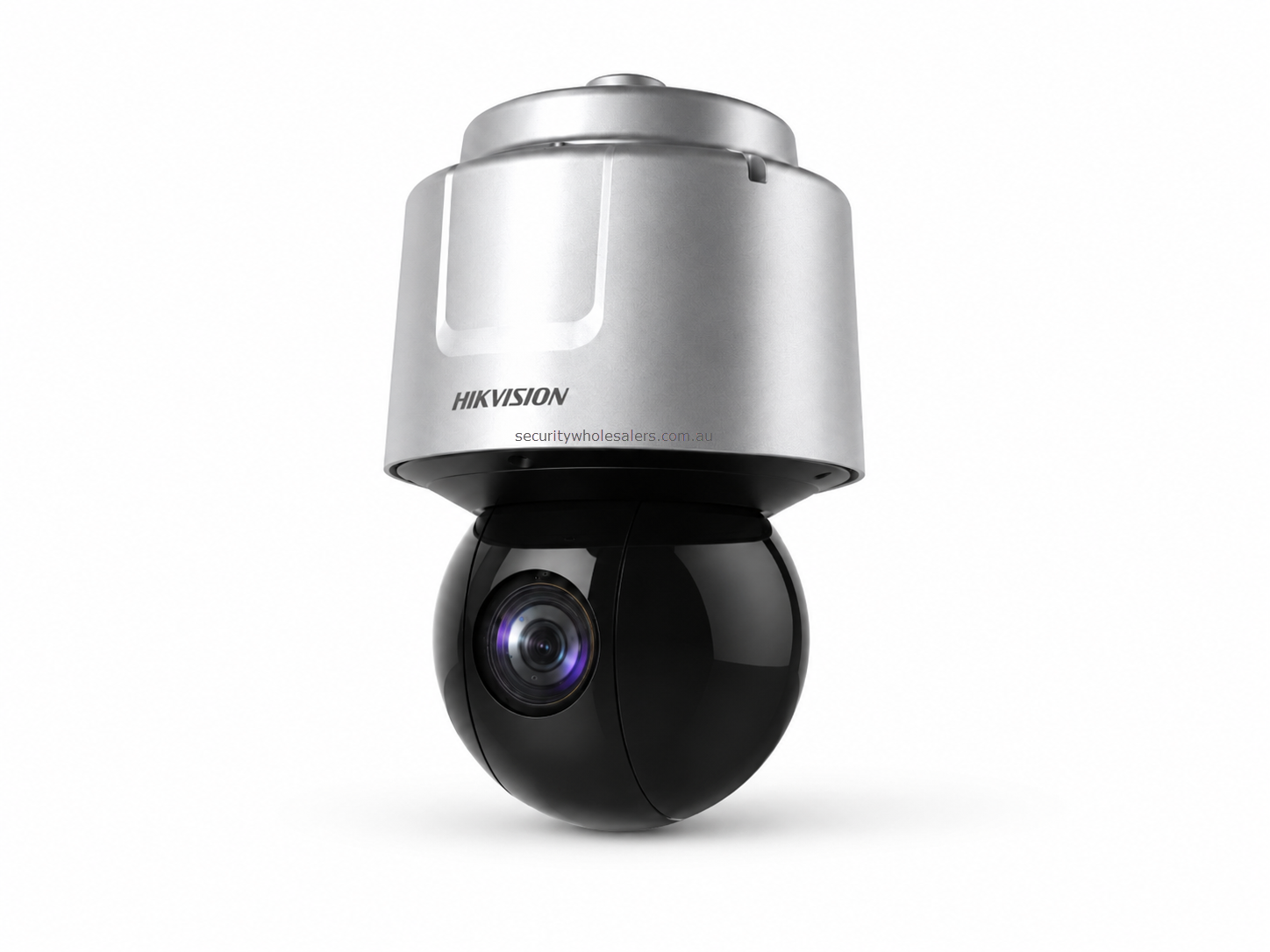

Hikvision DS-2DF6A825X-AEL 8MP 25× Network Speed Dome
,

Hikvision DS-2DF6A825X-AEL 8MP 25× Network Speed Dome

Availability:

Out of stock
*DF-Line* Hikvision 8MP 25X Network IR Speed Dome PTZ
  • 2/3″ progressive scan CMOS
  • Up to 4096 × 2160 resolution
  • Min. illumination:
    Color: 0.005 Lux @(F1.5, AGC ON)
    B/W: 0.0005 Lux @(F1.5, AGC ON)
  • 25× optical zoom, 16× digital zoom
  • 120 dB WDR, 3D DNR, HLC, BLC, Defog, EIS
  • 24 VAC &Hi-PoE
  • Support H.265+/H.265 video compression
  • Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
  • IK10, IP67

$4,235.00 inc GST +3 Year Warranty & Support

Out of stock

Camera
Image Sensor: 2/3″ progressive scan CMOS
Effective Pixels: 4096×2160
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
White Balance: Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: DWDR
Shutter Time: 50Hz: 1/1-1/30,000s
60Hz: 1/1-1/30,000s
Day& Night: ICR
Digital Zoom: 16X
Privacy Masking: 24 privacy masks programmable; optional multiple colors and mosaics
Auto Focus: Auto / Semi-automatic / Manual
Rapid Focus: Support
Lens
Focal Length: 7.5 mm to 187.5 mm, 25× optical zoom
Zoom Speed: Approx.6.4s(Optical Wide-Tele)
Angle of View: Horizontal field of view: 56.1° to 3.0° (wide-tele)
Vertical field of view: 33.4° to 1.7° (wide-tele)
Diagonal field of view: 62.9° to 3.4° (wide-tele)
Minimum Working Distance: 10-1500mm(Wide-Tele)
Aperture Range: F1.5 to F4.0
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Configurable, from 0.1°/s to 350°/s, preset speed: 540°/s
Tilt Range: -20°~90°(Auto Flip)
Tilt Speed: Pan Manual Speed: 0.1° -240°/s,
Pan Preset Speed: 400°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory: Support
Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display: ON/OFF
Smart-tracking: Manual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking
Alarm
Alarm Input: 7 Inputs
Alarm Output: 2
Alarm Actions: Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client
Input & Output
Monitor Output: 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input: Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10%
Audio Output: Line level, impendance: 600Ω
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 4096 × 2160
Main Stream: 50Hz: 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)
60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding: Support 24 areas with adjustable levels
Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
No. of Simultaneous Users: Up to 20 users
Three-Stream: Support
Mini SD Card: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures: User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
General
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language: English
Power Supply: 24 VAC & Hi-PoE
Power Consumption: 24 VAC (Max. 60 W)
Hi-PoE (Max. 50 W)
Working Temperature/Humidity: Outdoor: -40°C to 65°C (-40°F to 149°F)
Protection Level: IP67, IK10, TVS 4,000V lightning protection, surge protection and voltage transient protection
Material: Aluminum alloy
Dimensions: Φ 231.1 mm × 355.6 mm (Φ 9.10″ × 14″)
Weight (approx.): Approx. 6 kg (13.23 lb)
SKU: DS-2DF6A825X-AEL Categories: ,
Camera
Image Sensor: 2/3″ progressive scan CMOS
Effective Pixels: 4096×2160
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.0005 Lux @(F1.5, AGC ON)
White Balance: Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: DWDR
Shutter Time: 50Hz: 1/1-1/30,000s
60Hz: 1/1-1/30,000s
Day& Night: ICR
Digital Zoom: 16X
Privacy Mask: 24 programmable privacy masks; optional multiple colors and mosaics
Auto Focus: Auto / Semi-automatic / Manual
Rapid Focus: Yes
Lens
Focal Length: 7.5 mm to 187.5 mm, 25× optical zoom
Zoom Speed: Approx.6.4s(Optical Wide-Tele)
Field of View: Horizontal field of view: 56.1° to 3.0° (wide-tele)
Vertical field of view: 33.4° to 1.7° (wide-tele)
Diagonal field of view: 62.9° to 3.4° (wide-tele)
Minimum Working Distance: 10-1500mm(Wide-Tele)
Aperture Range: F1.5 to F4.0
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Configurable, from 0.1°/s to 350°/s, preset speed: 540°/s
Tilt Range: -20°~90°(Auto Flip)
Tilt Speed: Pan Manual Speed: 0.1° -240°/s,
Pan Preset Speed: 400°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory: Support
Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display: ON/OFF
Smart-tracking: Manual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking
Alarm
Alarm Input: 7 Inputs
Alarm Output: 2
Alarm Linkage: Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client
Input & Output
Monitor Output: 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input: Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10%
Audio Output: Line level, impendance: 600Ω
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 4096 × 2160
Main Stream: 50Hz: 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)
60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding: Eight fixed region for each stream
Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View: Up to 20 channels
Three-Stream: Support
Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures: User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
General
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Language: English
Power Consumption: 24 V, 2.5 A, 50/60Hz, AC (max. 60 W, including max.10 W for heater)
Hi-PoE, 42.5-57 V, 0.75 A (max. 50 W, including max.10 W for heater)
Working Temperature/Humidity: -40°C to 70°C (-40°F to 158°F)
Protection Level: IP67, IK10, TVS 4,000V lightning protection, surge protection and voltage transient protection
Material: Aluminum alloy
Dimensions: Φ 231.1 mm × 355.6 mm (Φ 9.10″ × 14″)
Weight (approx.): Approx. 6 kg (13.23 lb)
