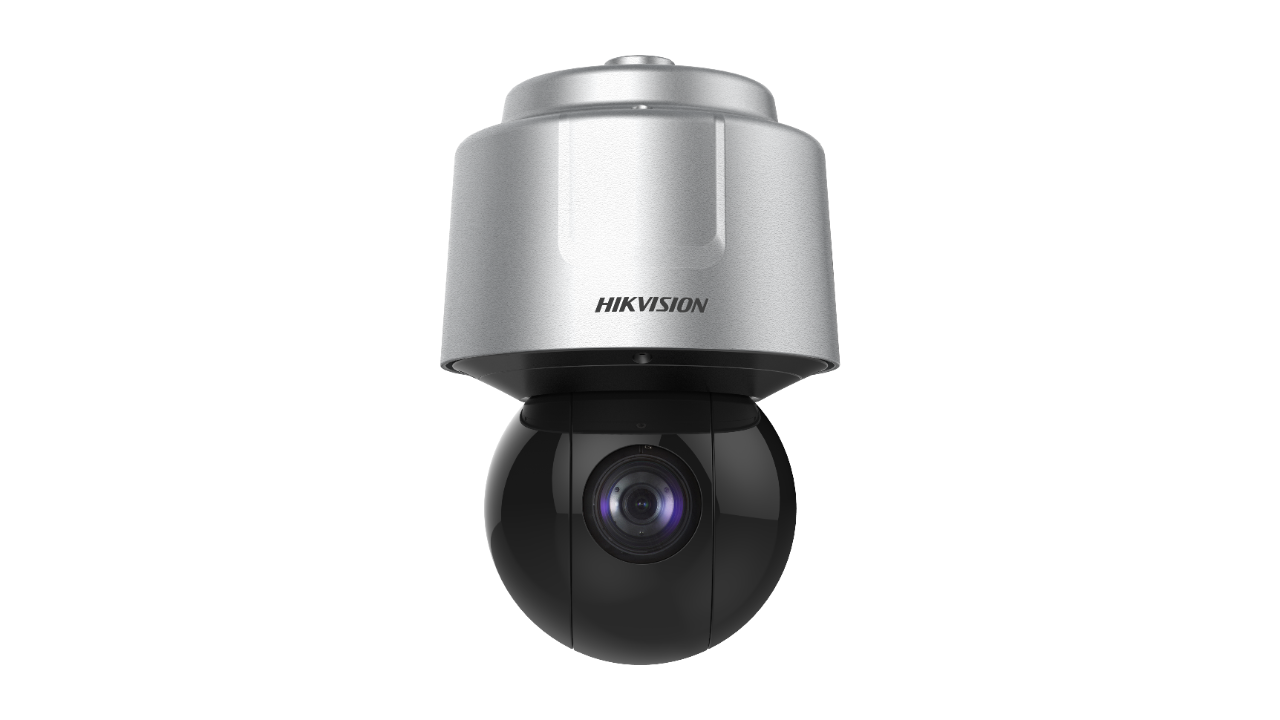

Product Overview
Wide-area surveillance across large outdoor sites demands more than fixed cameras can deliver, and the DS-2DF6A436X-AEL is built to address that gap. This Hikvision 4MP PTZ camera combines a 5.7-305mm varifocal lens with 36x optical zoom and 16x digital zoom, allowing operators to pull in close-up detail across distances that would require multiple fixed cameras to cover. Equipped with a 1/1.8″ progressive scan CMOS sensor and DarkFighter low-light technology, it maintains usable image quality after dark without relying solely on IR illumination. Built with deep-learning algorithms, it supports vehicle and human tracking and face capture, making it suited to high-security environments where automated target following matters. IP67 weather sealing and IK10 vandal resistance ensure the housing withstands exposed rooftop and wall-mount installations. It is well suited to transport hubs, large commercial sites, critical infrastructure perimeters, and high-security monitoring positions.
Key Capabilities
36x Optical Zoom with 16x Digital Extension
The 5.7-305mm motorised lens spans from wide scene overview to tight close-up in a single camera position, removing the need for multiple fixed cameras across large perimeters, yards, or open-air facilities.
Deep-Learning Vehicle and Human Tracking
Onboard deep-learning algorithms classify and follow vehicles and people autonomously, keeping the camera trained on a moving target without operator input. This is critical for sites requiring continuous monitoring of specific subjects across wide coverage zones.
DarkFighter Low-Light Performance
The 1/1.8″ progressive scan CMOS sensor and DarkFighter processing capture recognisable detail in near-dark conditions. This reduces dependence on supplemental lighting in poorly lit outdoor environments such as car parks or industrial yards.
Face Capture
The camera detects, captures, grades and selects the clearest facial image from subjects in motion. This supports post-event review and evidence retrieval at entry points, checkpoints, and access-controlled zones where identity confirmation is required.
Road Traffic Vehicle Detection
Specific deep-learning functions support road traffic and vehicle detection scenarios, making this PTZ suitable for traffic management positions, entry lanes, and road-facing surveillance points that need to distinguish vehicle movement from other scene activity.
IP67 and IK10 Outdoor Protection
Full dust ingress protection and water resistance to IP67 standard, combined with IK10 impact resistance, makes this camera suitable for exposed rooftop mounts, perimeter walls, and outdoor installations subject to weather or deliberate interference.
Best For
- High-Security Perimeter Monitoring: The 36x optical zoom and deep-learning tracking enable a single camera to cover and follow subjects across distances typically requiring several fixed units, reducing infrastructure cost on long fence lines or boundary walls.
- Transport Hubs and Traffic Points: Road traffic vehicle detection and face capture make the DS-2DF6A436X-AEL suited to entry lanes, toll approaches, and multi-lane monitoring positions where vehicle classification and identity capture are both required.
- Critical Infrastructure Sites: IP67 and IK10 ratings combined with intelligent tracking support demanding installations at utilities, ports, data centres, and government facilities where continuous outdoor exposure and physical interference are realistic risks.
- Large Commercial and Industrial Yards: Warehouses, freight depots, and large open yards benefit from the zoom range and automated tracking, allowing operators to follow vehicles or personnel from a single vantage point without manual pan and tilt control.
- Low-Light and Night Monitoring: DarkFighter technology on the 1/1.8″ sensor provides usable colour detail in low ambient light conditions, supporting overnight monitoring at sites where supplemental lighting is limited or unavailable.
Why Choose the DS-2DF6A436X-AEL
The DS-2DF6A436X-AEL sits above standard optical zoom PTZ cameras by pairing its 36x zoom range with onboard deep-learning processing rather than relying on motion-only detection for tracking. A basic PTZ will follow movement but cannot distinguish between a vehicle, a person, and background clutter. This model classifies targets using deep-learning algorithms and maintains tracking focus accordingly, which is a significant operational difference at sites with complex scene movement such as freight yards or busy perimeters. The 1/1.8″ DarkFighter sensor also provides a larger photosensitive area than smaller CMOS sensors used in entry-level PTZ models, translating to better low-light image retention when zoomed in at range. Face capture and road traffic vehicle detection extend the camera’s usefulness beyond general surveillance into targeted event capture. Available through Security Wholesalers, the DS-2DF6A436X-AEL is suited to integrators specifying PTZ positions on high-security or large-scale commercial projects.
Buyer Decision Tips
Zoom Range vs. Coverage Planning: A 36x optical zoom gives exceptional reach but narrows the field of view significantly at maximum zoom. Before specifying this PTZ, map the site to confirm whether a single camera position can cover the intended area at both wide and zoomed angles, or whether 2 units positioned at different vantage points would deliver more consistent coverage across the full site footprint.
Lead Time Consideration: This product currently carries a 4 to 7 week lead time. Factor this into project scheduling, particularly for staged rollouts or time-sensitive installations. Confirm stock availability before submitting final project timelines to clients.
Key Features & Technical Specifications
| Model |
DS-2DF6A436X-AEL |
| Resolution |
4MP |
| Image Sensor |
1/1.8″ progressive scan CMOS |
| Lens |
5.7-305mm motorised varifocal |
| Optical Zoom |
36x |
| Digital Zoom |
16x |
| Low-Light Technology |
DarkFighter |
| Intelligent Features |
Deep-learning vehicle tracking, human tracking, face capture, road traffic vehicle detection |
| Weather Protection |
IP67 |
| Vandal Protection |
IK10 |
| Camera Type |
PTZ Speed Dome |
| Categories |
4MP PTZ, Hikvision DarkFighter, Hikvision PTZ |
| Lead Time |
Currently 4-7 weeks |
Ideal Use Cases
Port and Freight Terminal Monitoring
The 36x optical zoom and vehicle tracking allow a single PTZ position to monitor large vessel berths, container yards, and vehicle marshalling areas, following truck movements across the site without requiring operator input.
Critical Infrastructure Perimeters
Utilities, water treatment facilities, and power stations benefit from the combination of IP67 and IK10 housing with deep-learning human tracking. The camera can autonomously follow intruders across large secured boundaries in challenging weather conditions.
Traffic and Road Monitoring Points
Road traffic vehicle detection combined with 36x zoom supports entry lane monitoring, intersection surveillance, and approach road coverage where vehicle classification and close-up plate-level imaging are needed from a single mounted position.
Stadium and Large Venue Security
Face capture and human tracking make the DS-2DF6A436X-AEL effective for crowd monitoring at large venues where security staff need to maintain visual contact with a specific individual across a wide concourse or open seating area.
Mining and Industrial Site Monitoring
Large open mining sites and industrial compounds require cameras that can cover vast distances reliably in low-light and harsh weather. DarkFighter performance and IP67 protection keep this PTZ operational through dust, rain, and overnight shifts.
Government and High-Security Campuses
Facilities requiring intelligent target monitoring with face capture and deep-learning classification benefit from this model at perimeter gates, building entry points, and wide courtyard positions where both overview coverage and close-up capture are needed from one unit.
Choosing the Right Model
- Choose this model if: Your site requires a PTZ camera with confirmed deep-learning vehicle and human tracking, face capture, and a 36x optical zoom range backed by DarkFighter low-light performance and IK10 vandal resistance for exposed outdoor positioning.
- Choose a different model if: Your application only requires basic preset-based PTZ movement without intelligent tracking, as a simpler PTZ without onboard deep-learning will typically deliver the same coverage outcome at lower cost. If your primary requirement is wide-area overview rather than long-range zoom, a multi-sensor panoramic camera may cover the scene more efficiently from a single mount point.
FAQs
- What is the maximum zoom range of the DS-2DF6A436X-AEL?
The DS-2DF6A436X-AEL provides 36x optical zoom via its 5.7-305mm motorised lens, with an additional 16x digital zoom. The optical zoom retains image quality across the full range, while digital zoom extends reach further for identification at distance. Combined, this allows a single camera position to cover both wide scene overviews and tight close-up detail without repositioning.
- How does deep-learning tracking differ from standard motion-triggered PTZ tracking?
Standard motion-based PTZ tracking responds to any detected movement, including trees, reflections, and passing vehicles, which leads to erratic tracking behaviour in busy scenes. The deep-learning system in the DS-2DF6A436X-AEL classifies detected objects as vehicles or people before committing to a tracking path, significantly reducing false tracking events and keeping the camera focused on legitimate targets.
- What does face capture actually do, and when is it useful?
Face capture detects faces in the scene, grades them for clarity, and saves the best-quality image from a moving subject. This differs from face recognition, which is not a confirmed feature of this model. Face capture is useful for post-event evidence retrieval at entry points and checkpoints, where operators need to review the clearest possible facial image of a subject rather than manually scrubbing through continuous footage.
- Is the DS-2DF6A436X-AEL suitable for permanent outdoor installation in harsh conditions?
Yes. The IP67 rating confirms full protection against dust ingress and immersion in water up to 1 metre, while IK10 impact resistance covers the housing against physical impact. This combination makes it suitable for exposed rooftop mounts, perimeter wall brackets, and outdoor positions subject to weather extremes or deliberate interference.
- What does DarkFighter technology mean for night-time performance?
DarkFighter is Hikvision’s low-light image processing applied to the 1/1.8″ progressive scan CMOS sensor in this model. The larger sensor format captures more light per frame compared to smaller sensors used in standard PTZ cameras. In practical terms, this means the camera retains more usable detail and colour information in low ambient light conditions, which is especially relevant when zoomed in at range where available light is reduced.
- Can this PTZ cover an entire large site from a single mounting point?
The 36x optical zoom and full pan and tilt movement give this camera broad scene flexibility, but coverage planning still matters. At wide angle, the field of view is broad enough for general overview. At maximum zoom, the field of view narrows considerably for close-up detail. For very large sites, 2 PTZ units positioned at opposite vantage points will provide more consistent coverage than a single unit attempting to monitor the full perimeter from one location.
- Where can I obtain the datasheet and quick start guide for this camera?
Both documents are listed in the Additional Information section on this product page at Security Wholesalers, including the full datasheet for the DS-2DF6A436X-AEL and the multilingual network speed dome quick start guide. Note that this product carries a current lead time of 4 to 7 weeks, so confirm availability before finalising project schedules.
