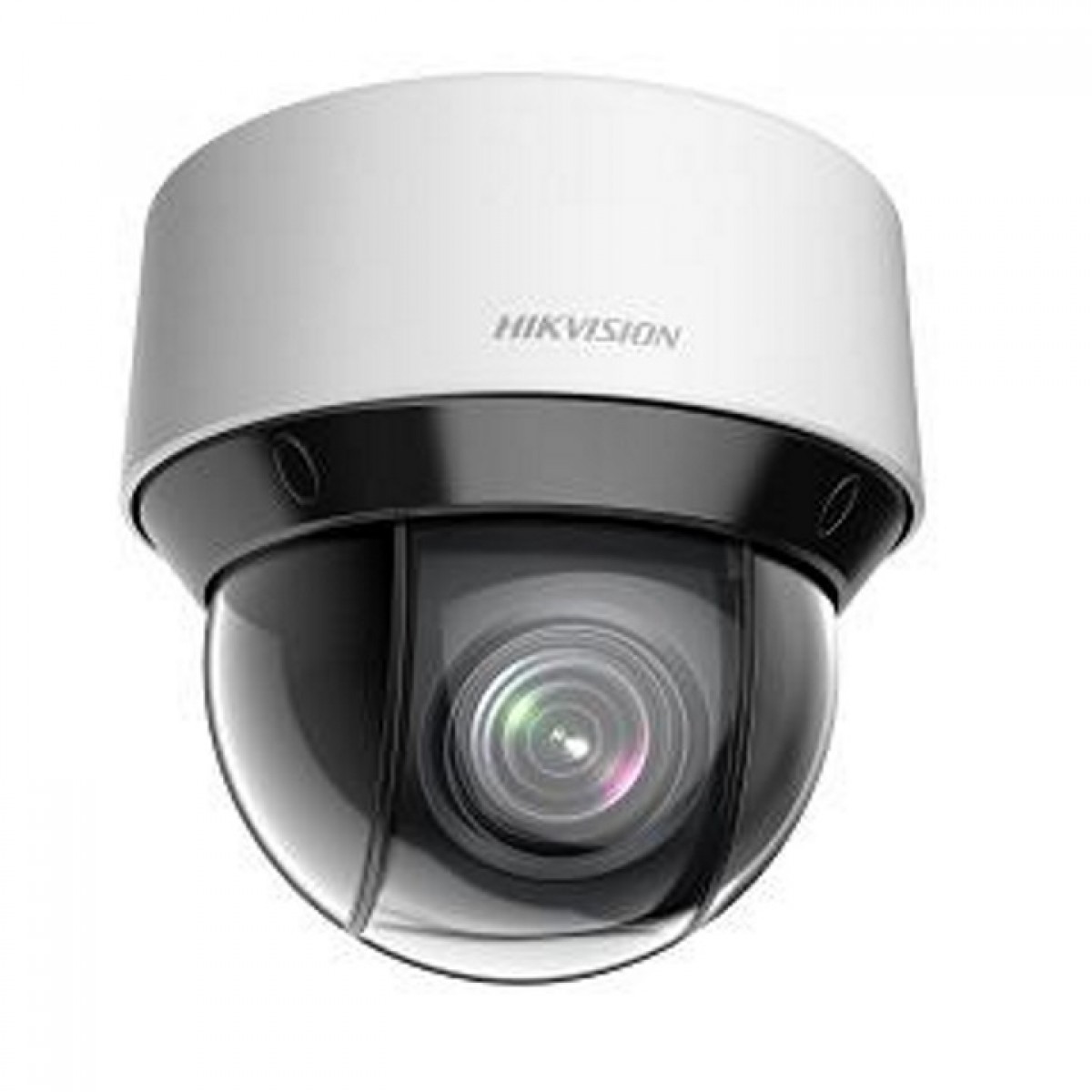

Hikvision DS-2DE4A225IW-DE 2MP Outdoor Mini PTZ, 25x Zoom, 4.8-120mm, 50m IR, IK10, IP66, PoE, 12VD

Part of Hikvision’s E PTZ series, the HIK-2DE4A225IW-DE is an outdoor surface mounted PTZ with 25x optical zoom. The Hikvision E series combines a host of features in a relatively compact size PTZ. It can capture high quality 2-megapixel images efficiently with H.265 or H.265+ compression technology and with a 360 degree endless pan range and a -15 to 90 degree tilt range, this versatile and affordable PTZ dome camera is ideal for monitoring expansive areas whilst also allowing the user to focus in on specific details for further forensic needs.

$869.00 inc GST +3 Year Warranty & Support

Description
Specification

Datasheet of DS-2DE4A225IW-DE

Quick Start Guide of DS-2DE4A225IW-DE

User Manual of DS-2DE4A225IW-DE

Part of Hikvision’s E PTZ series, the HIK-2DE4A225IW-DE is an outdoor surface mounted PTZ with 25x optical zoom. The Hikvision E series combines a host of features in a relatively compact size PTZ. It can capture high quality 2-megapixel images efficiently with H.265 or H.265+ compression technology and with a 360 degree endless pan range and a -15 to 90 degree tilt range, this versatile and affordable PTZ dome camera is ideal for monitoring expansive areas whilst also allowing the user to focus in on specific details for further forensic needs.
1/2.8″ progressive scan CMOS

Up to 1920×1080 at 30fps resolution

25x optical zoom, 16x digital zoom

Pan: 360 deg, Tilt: -15 deg to 90 deg (auto-flip)

Preset, pattern scan, patrol scan

Supports H.265+ and H.265 video compression

120dB WDR, 3D DNR, HLC, BLC

Up to 50m IR

12VDC & PoE+ (802.3 at, class4)

Surface mount

IP66 rated
4MP VERSION (more popular)

Hikvision DS-2DE4A425IW-DE 4MP Outdoor PTZ Camera, 25x Zoom, 50m IR

SAMPLE VIDEOS

SKU: DS-2DE4A225IW-DE Categories: 2 Megapixel PTZ Cameras, CCTV Surveillance, Hikvision PTZ Cameras Tag: Hikvision

Camera
Image Sensor:		1/2.8″ HD progressive scan CMOS
Effective Pixels:		1920(H)x1080(V)
Signal System:		PAL/NTSC
Minimum Illumination:		Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance:		Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC:		Auto/Manual
BLC:		ON/OFF
HLC:		Support
Smart defog:		Support
WDR:		120dB
Shutter Time:		1/1 to 1/30,000s
Day& Night:		ICR
Digital Zoom:		16×
Auto Focus:		Auto / Semi-automatic / Manual

Lens
Focal Length:		4.8 mm to 120 mm, 25× optical
Zoom Speed:		Approx. 3.2 s (optical lens, wide-tele)
Field of View:		Horizontal field of view: 57.6° to 2.5° (wide-tele) Vertical field of view: 34.4° to 1.4° (wide-tele) Diagonal field of view: 64.5° to 2.9° (wide-tele)
Minimum Working Distance:		10 to 1500mm (wide-tele)
Aperture Range:		F1.6 to F3.5

Pan & Tilt
Pan Range:		360°endless
Pan Speed:		Configurable, from 0.1°/s to 300°/s Preset Speed: 350°/s
Tilt Range:		-5°~90° (Auto Flip )
Tilt Speed:		Configurable, from 0.1°/s to 160°/s Preset Speed: 200°/s
Proportional Zoom:		Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:		300
Patrol:		8 patrols, up to 32 presets for each patrol
Pattern:		4 pattern scans, record time over 10 minutes for each scan
Power-off Memory:		Support
Park Action:		Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display:		ON/OFF

Infrared
IR Distance:		50m
IR irradiation angle:		Adjustable by zoom

Alarm
Alarm Input:		2
Alarm Output:		2
Alarm Linkage:		Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel

Input & Output
Audio Input:		1-ch audio input
Audio Output:		1-ch audio output

Network
Ethernet:		10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:		1920×1080
Main Stream:		50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:		50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
Video Compression:		Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
Audio Compression:		G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Simultaneous Live View:		Up to 20 channels
Three-Stream:		Support
Storage:		Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures:		User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering

Client GUI
Client:		iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

General
Power Consumption:		12 VDC, 3.33 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4 Max. 18 W, including max. 5W for IR
Working Temperature/Humidity:		Outdoor: -30°C to 65°C (-22°F to 149°F) Humidity:≤ 90%
Protection Level:		IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions:		Φ 169 mm × 161 mm (Φ 6.65″ × 6.34″)
Weight (approx.):		Approx. 2.45kg (5.40lb)
