Product Overview

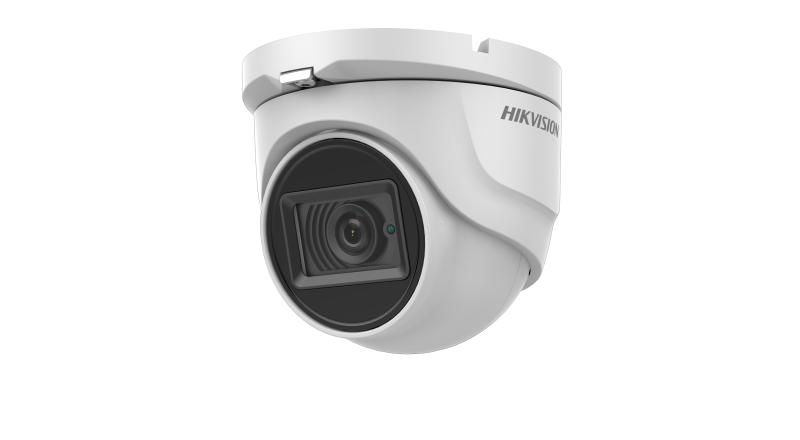

For installers and property owners upgrading an existing coax-based CCTV system, the DS-2CE76U7T-ITMF delivers full 4K imaging without requiring a single metre of new cable. This turret-style analog camera is built around an 8.29MP CMOS sensor producing up to 3840 x 2160 resolution, giving a significant detail advantage over older 1080p and 5MP analog cameras on the same coax run. Featuring ultra-low light sensitivity down to 0.003 lux and EXIR 2.0 infrared reaching 30 metres, it maintains usable video from dusk through to complete darkness. Built with true 130dB WDR, it also handles difficult backlit scenes such as doorways, roller doors, and shaded entrances. It integrates a switchable 4-in-1 output supporting TVI, AHD, CVI, and CVBS, making it broadly compatible with mixed or legacy analog DVR platforms. The IP67-rated metal housing suits both indoor ceiling mounting and outdoor eave or soffit installation.
Key Capabilities
8MP 4K Resolution Over Coax
The 8.29MP CMOS sensor outputs up to 3840 x 2160, bringing genuine 4K detail to existing coax infrastructure. This is a substantial step up from 1080p or 5MP analog cameras, capturing finer detail across wide entry points, yards, and shopfronts without re-cabling.
Ultra-Low Light Sensitivity
Minimum illumination of 0.003 lux at F1.6 with AGC on means the camera picks up ambient light in near-dark scenes before the IR even engages. This is particularly useful in partially lit car parks, stairwells, and undercover areas where other cameras produce noisy or washed-out footage.
EXIR 2.0 Infrared to 30m
EXIR 2.0 technology distributes infrared evenly across the frame, reducing the bright centre hot-spot common in older IR cameras. With a 30m range, it covers driveways, walkways, and gate approaches clearly in complete darkness.
True 130dB Wide Dynamic Range
True WDR at 130dB balances exposure across scenes that mix bright and dark areas simultaneously. Doorways with strong backlight, entry points facing the sky, and shopfronts with window glare are handled without losing either shadow or highlight detail.
4-in-1 Switchable Video Output
On-board support for TVI, AHD, CVI, and CVBS output means this camera can integrate into a wide range of analog DVR platforms, including mixed-brand or legacy systems. Switching is done via the OSD menu, removing the need to stock separate SKUs for different recorder brands.
Best For
- Coax System Upgrades: The 4-in-1 switchable output and coax compatibility make this the natural choice for upgrading resolution on existing analog infrastructure without re-running cable or replacing recorders.
- Eave and Soffit Mounting: The compact turret housing suits low-profile outdoor mounting under eaves, on soffits, or on wall brackets at entry points, garages, and driveways.
- Poorly Lit Locations: With 0.003 lux sensitivity and 30m EXIR 2.0 infrared, it maintains clear footage in dimly lit areas such as undercover car parks, side passages, and rear yards where lighting is minimal.
- High-Contrast Scenes: Locations with strong backlighting or mixed lighting, including shopfronts, roller door entries, and corridor ends, benefit from the true 130dB WDR that handles both bright and dark areas in the same frame.
Why Choose the DS-2CE76U7T-ITMF
The DS-2CE76U7T-ITMF occupies a specific and practical position in the Hikvision Turbo HD range: it brings 4K analog imaging to sites where coax is already installed and a full IP migration is not justified or budgeted. A basic 1080p or 5MP analog turret cannot match the 3840 x 2160 output or the 0.003 lux low-light floor this camera achieves. The true 130dB WDR is not a marketing figure padded by digital processing, and the EXIR 2.0 IR produces a more even frame than single-emitter designs at comparable price points. The metal IP67 housing and -40 to 60 degree Celsius operating range also mean it holds up in harsh outdoor environments without the degradation common in plastic-bodied cameras. Available through Security Wholesalers, the DS-2CE76U7T-ITMF is well positioned for installers who need a genuine resolution upgrade delivered over the existing coax run.
Buyer Decision Tips
Fixed 2.8mm Lens: The DS-2CE76U7T-ITMF is available in 2.8mm only. This lens gives a wide angle of view suitable for most entry points, corridors, and open areas at close to medium range. If your installation requires a narrower field of view to cover a long driveway or distant approach, confirm the 2.8mm field of view suits the scene before ordering, as there is no varifocal option in this model.
8MP Frame Rate at 12.5 or 15fps: At full 8MP resolution, the camera records at 12.5fps on PAL systems or 15fps on NTSC. This is standard for high-resolution analog and is generally acceptable for most fixed surveillance scenarios. If your application involves fast-moving subjects where smoother motion at 25 or 30fps is required, the camera can record at lower resolutions (4MP at 25/30fps, 1080p at 25/30fps via TVI) to achieve that frame rate, but you trade resolution to do so. Confirm your DVR supports the intended resolution and frame rate combination before installation.
Key Features & Technical Specifications
| Image Sensor |
8.29MP CMOS |
| Maximum Resolution |
3840 x 2160 |
| Minimum Illumination |
0.003 Lux @ F1.6, AGC ON; 0 Lux with IR |
| Day/Night |
ICR (mechanical IR cut filter) |
| Infrared |
EXIR 2.0, up to 30m |
| WDR |
True WDR, 130dB |
| Noise Reduction |
3D DNR |
| Image Enhancement |
BLC, HLC |
| White Balance |
Auto / Manual |
| Lens |
2.8mm fixed (only option) |
| Video Output |
Switchable TVI / AHD / CVI / CVBS |
| Frame Rates (TVI) |
8MP @ 12.5fps/15fps; 5MP @ 20fps; 4MP @ 25fps/30fps; 1080p @ 25fps/30fps |
| Frame Rates (AHD/CVI) |
8MP @ 12.5fps/15fps |
| Signal System |
PAL / NTSC |
| Shutter Speed |
PAL: 1/12.5s to 1/50,000s; NTSC: 1/15s to 1/50,000s |
| Weather Rating |
IP67 |
| Housing Material |
Metal |
| Power Supply |
12 VDC, ±25% |
| Power Consumption |
Max. 4.2W |
| Dimensions |
90mm x 79.37mm |
| Weight |
Approx. 310g |
| Operating Temperature |
-40°C to 60°C |
Ideal Use Cases
Home CCTV Upgrades on Existing Coax
The switchable TVI/AHD/CVI/CVBS output and standard 12 VDC power requirement mean this camera can drop into most existing residential analog systems. Homeowners get 4K detail on cameras covering driveways, garages, and entry points without pulling new cable.
Retail and Small Business Premises
The 130dB true WDR manages the mixed lighting common in retail environments, including bright shopfront windows and shadowed interior areas in the same frame. The 4K resolution supports after-the-fact zoom into transaction areas, counters, and entry points for review purposes.
Workshops and Warehouses
With an operating temperature range of -40°C to 60°C and a metal IP67 housing, this turret handles the temperature extremes and dust exposure found in industrial sheds, warehouses, and workshops. The eave or wall-mount turret form factor keeps it out of the way of overhead operations.
Entry Points, Gates, and Perimeter Paths
EXIR 2.0 infrared at 30m covers a full driveway length or perimeter walkway in complete darkness with even illumination across the frame. The 2.8mm wide-angle lens suits positions that need to capture an entire gateway or passage width without missing the edges.
Undercover Car Parks and Stairwells
The 0.003 lux low-light threshold allows the camera to capture usable colour or greyscale video in partially lit areas before switching to IR mode. This reduces overexposed or pitch-black footage in areas with intermittent or low-level artificial lighting.
Choosing the Right Model
- Choose this model if: You are upgrading an existing coax-based analog CCTV system to 4K resolution and your DVR supports TVI, AHD, CVI, or CVBS input at 8MP. The metal IP67 housing and -40 to 60 degree operating range also make it suitable for demanding outdoor environments where a plastic-bodied camera would degrade.
- Choose a different model if: Your installation requires a varifocal or motorised zoom lens to frame a distant or narrow scene, as this camera is only available with a fixed 2.8mm lens. If your site is migrating fully to IP networking and PoE infrastructure, an equivalent resolution IP turret camera would better suit that architecture and provide additional AI and remote management features not available on analog Turbo HD platforms.
FAQs
- Is the DS-2CE76U7T-ITMF an IP camera or an analog camera?
It is an analog Turbo HD camera. It connects via coaxial cable to a compatible DVR and outputs video over one of its 4 switchable signal types: TVI, AHD, CVI, or CVBS. It does not connect to a network switch or NVR and does not use PoE.
- Can I use this camera with my existing coax cable runs?
Yes. The DS-2CE76U7T-ITMF is designed for standard coaxial cable installations. Provided your existing coax cable is in reasonable condition and your DVR supports TVI at 8MP resolution, you can connect this camera directly without re-cabling. Confirm your recorder supports 8MP TVI input before purchasing.
- What DVRs are compatible with this camera?
Any DVR that supports TVI 4.0 at 8MP resolution will work. It also falls back to AHD, CVI, and CVBS output modes, which broadens compatibility with mixed-brand analog systems. Compatibility depends on the recorder’s supported signal types and maximum channel resolution, so check your DVR specifications before purchase.
- Why does the camera only record at 12.5fps or 15fps at 8MP?
At full 8MP (3840 x 2160) resolution, the TVI, AHD, and CVI standards support a maximum of 12.5fps on PAL systems and 15fps on NTSC. This is a bandwidth limitation of the analog signal standard at that resolution, not a fault. For faster frame rates, the camera can be set to record at lower resolutions, such as 4MP at 25/30fps or 1080p at 25/30fps via TVI, at the cost of reduced image detail.
- How does the ultra-low light performance work in practice?
The camera’s minimum illumination of 0.003 lux means it can produce usable video from ambient light sources, including streetlights, security lights at low intensity, or spill from nearby windows, before the IR activates. When light drops to 0 lux, the EXIR 2.0 IR array takes over, covering up to 30m in complete darkness. The ICR mechanical filter switches between colour and monochrome modes automatically.
- Is the DS-2CE76U7T-ITMF suitable for outdoor installation?
Yes. It carries an IP67 weather resistance rating, which means it is protected against dust ingress and sustained water immersion to 1 metre. The metal housing adds physical durability, and the operating temperature range of -40°C to 60°C covers Australian climate extremes from alpine environments through to hot northern regions.
- Is a 4mm or varifocal version of this camera available?
The DS-2CE76U7T-ITMF is confirmed available in a 2.8mm fixed lens only. If your installation requires a different field of view, discuss alternative options with Security Wholesalers before purchasing, as selecting the wrong focal length for a fixed-lens camera cannot be corrected after installation without changing the camera.
