Product Overview

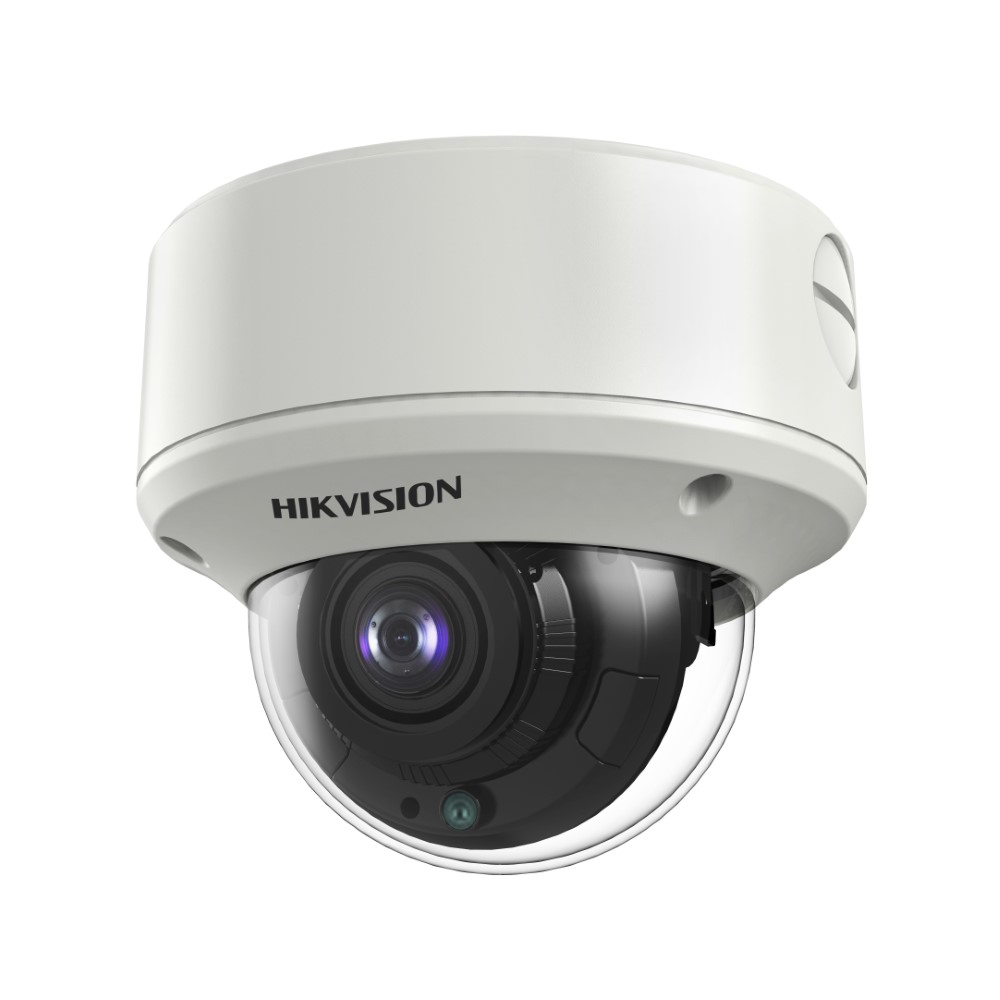

Upgrading an existing coaxial CCTV installation to high-definition does not require re-cabling when the DS-2CE59H8T-AVPIT3ZF is on the job. This outdoor vandal dome camera operates over existing coax infrastructure using Hikvision’s TVI 4.0 protocol, delivering 5MP resolution at 2560 x 1944 across a 2.7 to 13.5mm motorised varifocal lens with autofocus. Featuring EXIR technology with up to 60m IR range, 130dB true wide dynamic range, and ultra-low light sensitivity down to 0.003 Lux, the DS-2CE59H8T-AVPIT3ZF is built for demanding outdoor environments where image quality cannot be compromised. Equipped with IP67 weatherproofing and an IK10 vandal-resistant housing, it suits rooflines, external walls, car parks, and entry points where the dome must withstand both the weather and physical interference. Switchable output between TVI, AHD, CVI, and CVBS adds further flexibility across mixed analogue system environments.
Key Capabilities
Motorised Varifocal Lens with Autofocus
The 2.7 to 13.5mm motorised varifocal lens allows the installer to dial in the exact field of view from the recorder or OSD menu without physically adjusting the camera body. Autofocus ensures the image sharpens automatically after any zoom adjustment, saving time during commissioning on rooftop or elevated wall mounts.
130dB True Wide Dynamic Range
A 130dB WDR rating addresses high-contrast scenes at entry points, driveways, and loading areas where bright daylight and deep shadow exist in the same frame. This level of WDR recovers detail in both overexposed and underexposed areas simultaneously, which matters when monitoring a gate or boom-gate approach.
EXIR Night Vision to 60m
Hikvision’s EXIR technology distributes infrared illumination evenly across the scene, eliminating the bright central hotspot common in standard IR domes. With a 60m effective range, this camera covers long outdoor approaches, car park aisles, and perimeter walls in complete darkness without visible lighting.
Switchable Analogue Output
The H8T series supports switchable output between TVI, AHD, CVI, and CVBS signal formats. This means the DS-2CE59H8T-AVPIT3ZF can operate across different recorder brands without purchasing format-specific cameras, which is valuable on multi-brand or legacy upgrade projects where DVR compatibility varies.
IP67 and IK10 Rated Housing
The IP67 rating confirms full dust ingress protection and submersion resistance, making this dome suitable for exposed outdoor mounting. The IK10 vandal-resistant dome shell withstands direct impacts, which is relevant for external walls, stairwells with outdoor access, and any position reachable by hand.
Ultra-Low Light Performance
With a minimum illumination of 0.003 Lux in colour mode, the DS-2CE59H8T-AVPIT3ZF captures usable detail in near-darkness before switching to IR mode. This extends its usefulness in dimly lit car parks, back-of-house service corridors, and poorly lit perimeter areas where ambient lighting is inconsistent.
Best For
- Coaxial HD Upgrades: Sites with existing RG59 or RG6 coax runs that need a 5MP resolution upgrade without re-cabling benefit directly from TVI 4.0 compatibility and Up the Coax control.
- Outdoor Entry and Gate Monitoring: The 130dB WDR and motorised varifocal lens make this dome effective at driveways, boom gates, and car park entries where lighting contrast is extreme and the scene framing may need refinement after installation.
- Exposed Wall and Roofline Mounting: IP67 weatherproofing and the IK10-rated dome housing suit positions on external building walls, under eaves, and on rooftop parapets where both weather exposure and physical access are concerns.
- Long Outdoor Approaches: A 60m EXIR range paired with the varifocal zoom range makes this camera appropriate for monitoring extended car park aisles, service driveways, and access roads in total darkness.
Why Choose the DS-2CE59H8T-AVPIT3ZF
The DS-2CE59H8T-AVPIT3ZF stands apart from basic fixed-lens analogue domes in three specific ways. First, the motorised varifocal lens covering 2.7 to 13.5mm with autofocus means framing is adjustable post-installation without touching the camera physically, which matters when the dome is wall-mounted at height. Second, the 130dB WDR specification is significantly higher than the 100-120dB range found on entry-level TVI cameras, providing real contrast recovery in challenging lighting. Third, the switchable output between TVI, AHD, CVI, and CVBS means this single model can serve across different DVR brands and coax system types, reducing the need to stock multiple camera variants. The 0.003 Lux sensitivity and 60m EXIR range add night performance that a standard SD analogue dome simply cannot match. Available at Security Wholesalers, the DS-2CE59H8T-AVPIT3ZF is a practical option for integrators managing coax-based upgrades across commercial and industrial sites.
Buyer Decision Tips
Coax Cable Compatibility: TVI 4.0 at 5MP requires good-quality coaxial cable. Existing RG59 runs will typically support TVI 4.0 at standard distances, but very long runs on degraded or thin cable may cause signal quality issues. Test existing cable runs before committing to this resolution tier on a large upgrade, particularly on runs exceeding 400m with RG59 or 500m with RG6.
Recorder Compatibility for Switchable Output: While the DS-2CE59H8T-AVPIT3ZF supports TVI, AHD, CVI, and CVBS output, switching between formats is done via the OSD menu using Up the Coax control. Confirm that your DVR or XVR supports TVI 4.0 at 5MP specifically, as older hybrid recorders may only support 5MP on the TVI channel type and not on AHD or CVI inputs at that resolution.
Key Features & Technical Specifications
| Model |
DS-2CE59H8T-AVPIT3ZF |
| Image Sensor |
5MP high-performance CMOS |
| Resolution |
2560 x 1944 |
| Lens Type |
Motorised varifocal, 2.7-13.5mm |
| Autofocus |
Yes |
| IR Technology |
EXIR |
| IR Range |
Up to 60m |
| Minimum Illumination |
0.003 Lux |
| Wide Dynamic Range |
130dB true WDR |
| Noise Reduction |
3D DNR |
| Video Output |
Switchable: TVI / AHD / CVI / CVBS |
| TVI Protocol |
TVI 4.0 |
| Up the Coax Control |
Yes (HIKVISION-C) |
| OSD Menu |
Yes |
| Weather Rating |
IP67 |
| Vandal Rating |
IK10 |
| Power Supply |
9.6-14.4 VDC / 12VDC / 24VAC |
| Housing |
Outdoor vandal dome |
Ideal Use Cases
Commercial Car Parks
The 60m EXIR range and 2.7-13.5mm varifocal lens allow this dome to cover long parking aisles or monitor entry lanes from a wall-mounted position. The 130dB WDR manages the harsh lighting contrast at boom gate entries and exit ramps.
Analogue System Upgrades
Sites replacing ageing SD analogue cameras on existing coax infrastructure can install the DS-2CE59H8T-AVPIT3ZF without re-cabling. TVI 4.0 delivers 5MP over the same RG59 or RG6 runs already in the walls and ceilings.
External Building Perimeters
The IK10 vandal-resistant shell and IP67 rating make this camera a practical fit for external wall mounting on commercial buildings, warehouses, and industrial facilities where cameras are exposed to both physical interference and weather.
Driveway and Gate Monitoring
True 130dB WDR handles the transition between bright sunlight and shaded gate areas, while the motorised varifocal lens can be zoomed in to capture number plates or faces at a specific distance after installation is complete.
Multi-Brand DVR Environments
Switchable output between TVI, AHD, CVI, and CVBS makes this dome usable across different recorder brands on the same site. Integrators managing mixed DVR environments can standardise on this single camera model rather than stocking format-specific alternatives.
Choosing the Right Model
- Choose this model if: You are upgrading an existing coaxial CCTV system to 5MP and need a motorised varifocal outdoor dome with IK10 vandal resistance, 130dB WDR, and switchable analogue output to suit different DVR types across the same site.
- Choose a different model if: The installation is a new build or greenfield site without existing coax infrastructure – an IP-based PoE camera system will deliver greater flexibility in bandwidth management, remote access, and future scalability than a TVI-based coaxial setup.
- Choose a different model if: The mounting position requires a fixed lens and the zoom range is not needed – a fixed-lens TVI dome at the same resolution will typically be a lower-cost option where scene framing is already determined and will not change.
FAQs
- Does the DS-2CE59H8T-AVPIT3ZF work with non-Hikvision DVRs?
Yes. The switchable output supports TVI, AHD, CVI, and CVBS formats, which covers the major analogue signal standards used by most DVR and XVR brands on the market. The format is switched via the OSD menu using Up the Coax control from the recorder end. Confirm your DVR supports 5MP at the specific format you plan to use before installation.
- Can I reuse existing RG59 cable with this 5MP TVI camera?
In most cases, yes. TVI 4.0 is designed to operate over standard RG59 and RG6 coaxial cable. Practical run lengths will depend on cable condition, connector quality, and the specific DVR used. Degraded or corroded older cable may limit achievable distance or cause signal noise at 5MP, so cable quality should be assessed before committing to longer runs on an upgrade project.
- What does the IK10 rating mean for outdoor dome mounting?
IK10 is the highest level of the IEC 62262 impact protection standard, indicating the dome housing can withstand a 20-joule impact without breaking. In practical terms, this means the camera body resists damage from deliberate strikes with blunt objects, making it appropriate for locations that are reachable by hand, such as external walls, stairwells, and car park columns.
- How does the 130dB WDR compare to standard WDR in a similar camera?
Most entry-level to mid-range analogue cameras offer between 90dB and 120dB WDR. At 130dB, the DS-2CE59H8T-AVPIT3ZF can handle a wider gap between the brightest and darkest areas in the same frame. This matters at driveways, gate entries, and retail shopfronts where direct sunlight and interior shadow exist simultaneously within the camera’s view.
- How is the varifocal lens adjusted on this camera?
The 2.7 to 13.5mm motorised varifocal lens is adjusted via the OSD menu using Up the Coax (HIKVISION-C) control from a compatible DVR. This eliminates the need for a technician to physically access the camera body during setup or after a scene change, which is particularly useful when the dome is mounted at height on an external wall or roof parapet.
- What is the minimum light level this camera can record in before switching to IR mode?
The confirmed minimum illumination is 0.003 Lux in colour mode. This is a very low light threshold, meaning the sensor will produce usable colour video in near-dark conditions before switching to infrared monochrome output. Once EXIR activates, the camera provides up to 60m of night illumination.
- Where can I get the datasheet and user manual for the DS-2CE59H8T-AVPIT3ZF?
The datasheet and user manual are available through Security Wholesalers and are also linked in the Additional Information section of this product page. The user manual covers OSD menu navigation, Up the Coax configuration, output switching, and mounting instructions for the H8T series.
