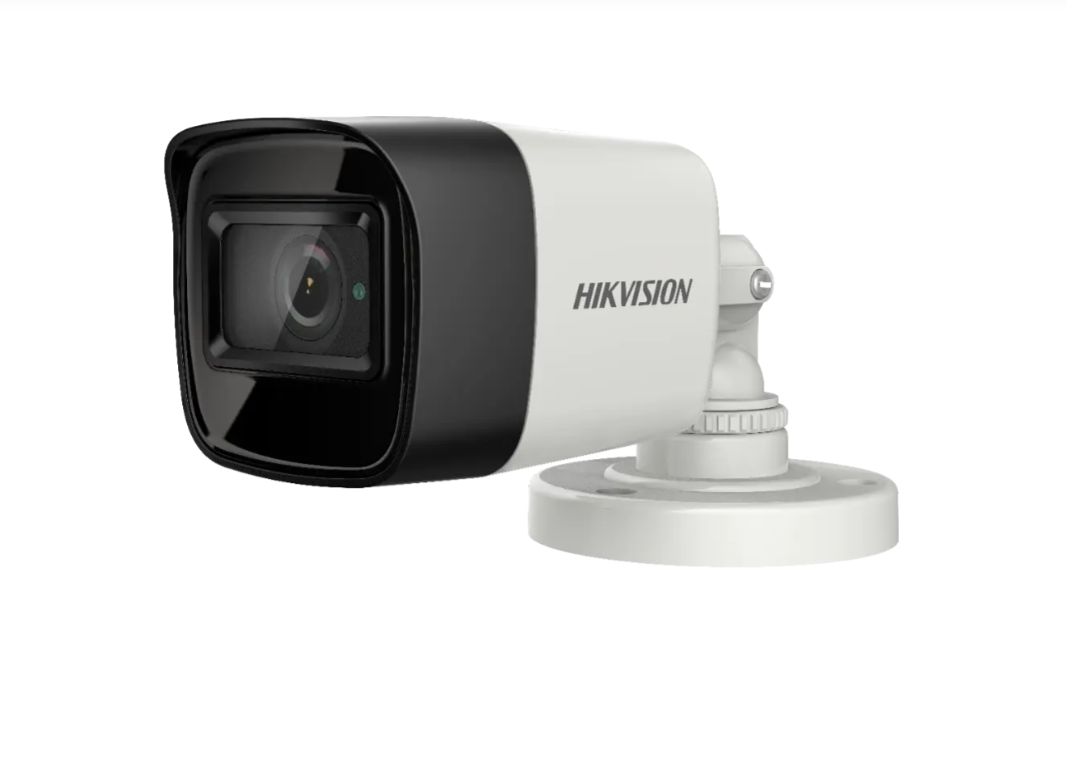

Hikvision DS-2CE16H8T-ITF TVI4.0 5MP Outdoor Mini Bullet, 130dB, WDR, 30m IR, 4 in 1, IP67, 12VDC, 2.8mm

Product Overview

Upgrading an existing coaxial cable installation to high-definition surveillance is straightforward with the DS-2CE16H8T-ITF, a compact outdoor mini bullet camera from Hikvision’s TVI 4.0 range. Delivering 5MP resolution over coax, it eliminates the need to re-run cabling at sites already wired for analogue cameras. Featuring 130dB true Wide Dynamic Range and ultra-low-light sensitivity down to 0.003 lux, it maintains usable image quality across difficult lighting conditions including strong backlight and near-total darkness. Equipped with EXIR 2.0 infrared technology, it extends night-time coverage to 30 metres with even illumination across the frame. The 2.8mm fixed lens provides a wide field of view well suited to covering entry points, driveways, car parks, and building perimeters. It also includes 4-in-1 signal switching across TVI, AHD, CVI, and CVBS formats, and carries an IP67 rating for reliable performance in outdoor Australian conditions.

Key Capabilities

Best For

• Analogue Site Upgrades: The TVI 4.0 output runs over existing coaxial cabling, allowing a site to move from standard-definition analogue to 5MP resolution without infrastructure changes.
• Backlit Entry Points and Gates: The 130dB WDR rating keeps detail visible when vehicles or people are entering from bright outdoor environments into shaded covered areas.
• Outdoor Perimeter Walls and Eaves: The mini bullet form factor mounts directly to walls or eaves and provides directional coverage along fences, driveways, and building approaches, with IP67 protection against rain and dust.
• Wide-Angle Coverage at Close to Medium Range: The 2.8mm fixed lens captures a broad scene at entry points, car parks, and open yard areas without requiring lens adjustment.

Why Choose the DS-2CE16H8T-ITF

The DS-2CE16H8T-ITF stands apart from standard analogue upgrades by combining 5MP resolution with 130dB WDR and 0.003 lux sensitivity in a compact mini bullet body. A basic 2MP or 4MP coaxial camera at a lower price point will not match the level of scene detail this sensor delivers, particularly in challenging lighting. The 4-in-1 signal switching means it is not locked to a single recorder brand, which reduces compatibility risk on retrofit jobs. The EXIR 2.0 IR system provides more consistent night-time coverage than conventional IR bullet cameras at the same price tier. For installers handling analogue upgrade projects across commercial premises, retail sites, and residential properties, the DS-2CE16H8T-ITF is available through Security Wholesalers as a stocked Hikvision TVI 4.0 camera with confirmed local support documentation.

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this model if: You have existing coaxial cabling and want to upgrade to 5MP resolution without re-running cable, and your coverage area suits a wide-angle 2.8mm lens at distances up to 30m at night.
• Choose a different model if: Your site is running Cat5e or Cat6 cabling with PoE switches, in which case an IP network camera would be a better fit and would offer more flexible remote management options.
• Choose a different model if: You need to cover a long narrow corridor or a distant target zone. A varifocal bullet camera would allow you to adjust the focal length to suit the specific depth of the scene, which the fixed 2.8mm lens cannot do.

FAQs

1. Can the DS-2CE16H8T-ITF run over my existing analogue coaxial cable?
   Yes. This is one of the primary reasons to choose this camera. It transmits 5MP video over standard coaxial cable using the TVI 4.0 protocol, making it directly suited to sites already wired for analogue cameras. There is no need to replace the cabling, which significantly reduces the cost of upgrading to HD resolution.
2. What does 4-in-1 signal switching mean for my recorder compatibility?
   The camera can output in TVI, AHD, CVI, or CVBS format, switchable via the OSD menu or UTC control. This means it is not restricted to a single recorder brand and can integrate with most analogue and HD-over-coax recorders available on the market, reducing compatibility risk on mixed-brand upgrade projects.
3. How does the 130dB WDR affect image quality at entry points?
   True 130dB WDR processes bright and shadowed areas of a scene simultaneously, which is particularly useful at entry points where light entering from outside creates strong backlight. Standard cameras without WDR would either blow out the bright area or lose detail in shadow. The DS-2CE16H8T-ITF renders both zones with usable detail in a single frame.
4. Is the camera suitable for outdoor installation in harsh Australian weather?
   Yes. The IP67 rating confirms it is fully protected against dust ingress and against sustained water immersion, which covers rain, hosing, and heavy weather conditions typical in Australian outdoor environments. It is suitable for wall and eave mounting at exposed building perimeters.
5. What field of view does the 2.8mm fixed lens provide?
   A 2.8mm lens produces a wide field of view, typically in the range of 90 to 100 degrees horizontal depending on the sensor size. This makes it well suited to covering broad areas such as driveways, car parks, and building entries from a fixed position. It is not adjustable, so it may not be the right choice for narrow corridors or distant targets requiring a tighter angle.
6. Where can I access technical documentation for this camera?
   The full datasheet for the DS-2CE16H8T-ITF is available through Security Wholesalers. It covers detailed specifications including exact field of view, power consumption, operating temperature range, and OSD menu functions. The link is included in the Additional Information section of this product page.

Product Video Samples

Additional Information

• Datasheet – DS-2CE16H8T-ITF
