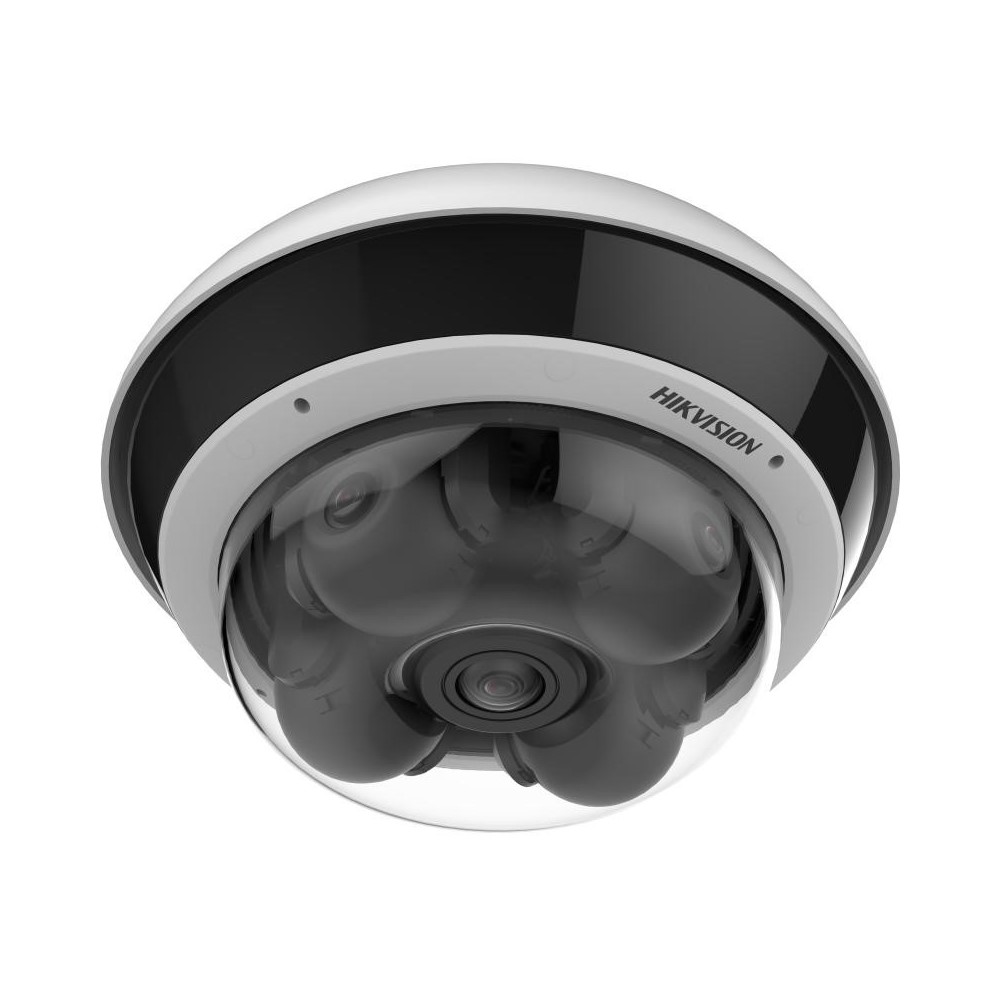

Hikvision DS-2CD6D55G2-IZHS 5-Directional 5MP Multisensor Network Camera

Product Overview

Wide-area monitoring across a car park, building corner or open campus typically demands multiple camera runs, switch ports and mounting points. The DS-2CD6D55G2-IZHS changes that equation by combining 5 directional sensors in a single housing, providing up to 360-degree coverage from one installation position. Four of the five channels use motorised varifocal lenses with a 2.8-8mm adjustment range, allowing installers to fine-tune each viewing direction to the site layout rather than accepting a fixed field of view. Each adjustable sensor delivers 5MP resolution, and the unit includes an additional fixed lens channel for broader situational awareness. AcuSense human and vehicle classification helps filter motion events down to targets that actually matter, while 30m IR illumination, IP67 weather resistance and an IK10-rated housing make it suitable for exposed outdoor positions. H.265+ compression keeps bandwidth and storage demands manageable across all active channels.

Key Capabilities

Best For

• Building Corner Monitoring: The 5-directional layout suits corner-mounted positions where multiple approach paths, driveways or facades need to be watched from a single bracket location.
• Car Parks and Vehicle Entrances: 5MP per channel and motorised varifocal adjustment allow each sensor to be framed toward a lane, entry point or aisle, providing actionable detail across the whole area from one camera mount.
• Open Campus and School Grounds: Wide-area coverage with AcuSense filtering reduces alert fatigue in environments with significant ambient movement, keeping event logs relevant to actual human and vehicle activity.
• Warehouse Perimeters and Loading Docks: IP67 and IK10 ratings suit industrial environments, while the multi-directional coverage handles the complex geometry of service yards, dock bays and access roads without requiring a separate camera for each zone.
• Large Commercial CCTV Systems: H.265+ compression across all channels reduces the bandwidth and storage load that would otherwise accumulate when recording multiple high-resolution streams around the clock.

Why Choose the DS-2CD6D55G2-IZHS

The DS-2CD6D55G2-IZHS is built for situations where a single-lens camera, regardless of its resolution, physically cannot cover the required scene from one mounting point. The combination of 4 motorised varifocal 5MP channels plus a fifth fixed lens allows an installer to address a building corner, courtyard entrance or multi-lane car park approach as a single camera job rather than a 3 or 4 camera run. The motorised 2.8-8mm lens range adds practical value during commissioning: each channel can be dialled in remotely or via the camera interface rather than requiring physical lens adjustment at height. AcuSense classification sits across all channels, so the analytics layer does not become a single-lane bottleneck on a multi-sensor unit. For installers and end users sourcing professional-grade multisensor hardware, this model is available through Security Wholesalers as part of the Hikvision commercial camera range.

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this model if: You need to monitor multiple directions from a single mounting point, your NVR has sufficient channels to accept the multi-sensor streams, and your site involves a corner, intersection, or open area where a single-lens camera would leave coverage gaps.
• Choose a different model if: Your NVR does not have enough free channels for a multi-sensor unit, as the multiple streams will occupy several recorder slots. A standard fixed-lens or turret camera would be more appropriate where only one viewing direction is needed per mounting location, or where the installation budget favours simpler single-channel units at multiple positions.
• Choose a different model if: Your application requires continuous pan, tilt and zoom control from a control room, as this is a fixed multisensor camera with adjustable setup positioning rather than a motorised PTZ unit with operator-controlled movement during live viewing.

FAQs

1. How many NVR channels does the DS-2CD6D55G2-IZHS use?
   The DS-2CD6D55G2-IZHS is a multisensor camera with multiple independent video channels, meaning it will occupy more than one channel on your NVR or VMS. Confirm the exact channel count for your configuration with your installer or system designer before purchasing, and ensure your recorder has enough available inputs and sufficient storage headroom to handle multiple simultaneous high-resolution streams.
2. Can each lens on the DS-2CD6D55G2-IZHS be aimed independently?
   Yes. The 4 adjustable channels each have a motorised varifocal lens with a 2.8-8mm focal range. Each lens can be aimed and zoomed independently to suit the specific directions and distances required at the installation site. The fifth channel uses a fixed lens. This flexibility is particularly useful at building corners and open-yard positions where the required viewing angles differ significantly from one sensor to the next.
3. What does AcuSense do on the DS-2CD6D55G2-IZHS?
   AcuSense is Hikvision’s intelligent classification technology that analyses detected motion and identifies whether it was caused by a human or a vehicle. This helps reduce false alerts from environmental triggers such as wind-blown debris, rain, insects and changing shadows. On a multisensor camera covering a large open area, this filtering is especially valuable because the combined detection zones would otherwise generate a very high volume of irrelevant motion events.
4. Is the DS-2CD6D55G2-IZHS suitable for outdoor installation?
   Yes. The camera carries an IP67 weather-resistance rating, meaning it is protected against dust ingress and can withstand water jets, making it suitable for exposed outdoor positions. The IK10 vandal-resistant rating means the housing is also built to resist impact, which matters for cameras mounted at accessible heights on commercial or public sites.
5. Does the DS-2CD6D55G2-IZHS provide true 360-degree coverage?
   The camera is designed to support up to 360-degree coverage through the combination of its 5 directional sensors. Actual coverage achieved depends on how the adjustable lenses are positioned and aimed during installation. In a corner-mounted configuration, all directions may not require a full 360-degree sweep, so installers can direct each channel to the specific zones that matter at a given site rather than covering a full circle uniformly.
6. How does H.265+ affect storage when running multiple channels?
   H.265+ compression reduces the bitrate of each video stream compared to older codec standards, which is particularly significant on a multisensor camera where several channels run simultaneously. Lower per-channel bitrates translate directly to reduced storage consumption and lower network bandwidth usage, allowing a standard NVR configuration to record all channels continuously without requiring unusually large drive capacity.
7. Where can I purchase the DS-2CD6D55G2-IZHS in Australia?
   The DS-2CD6D55G2-IZHS is part of the Hikvision professional camera range supplied by Security Wholesalers. It is intended for installation by qualified CCTV professionals and system integrators. Contact Security Wholesalers directly for pricing, availability and technical support prior to placing your order.

Additional Information

• DS-2CD6D55G2-IZHS Datasheet
