Product Overview

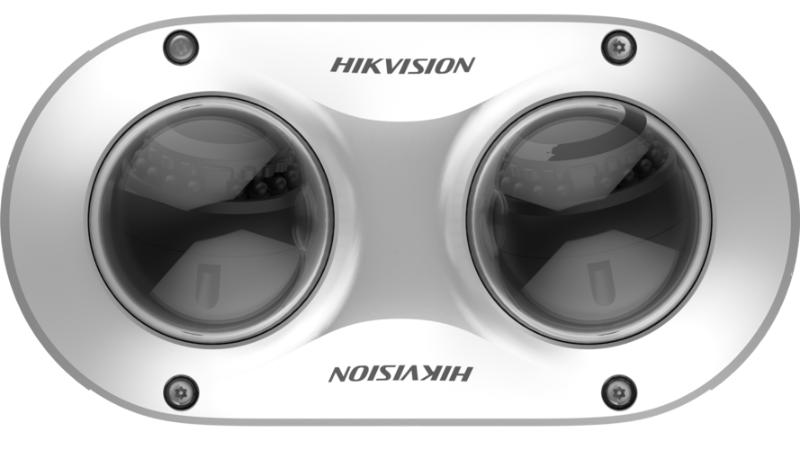

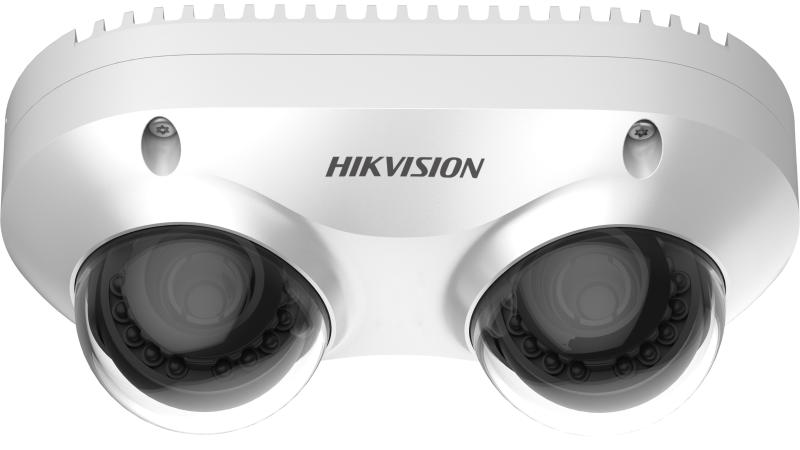

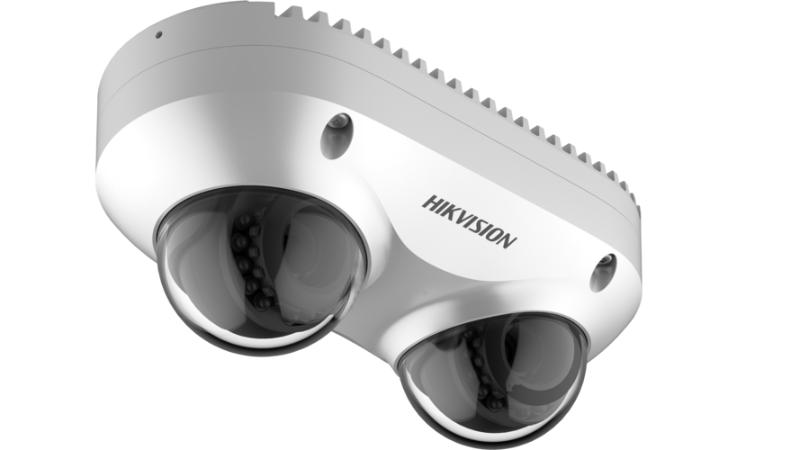

Covering two directions from a single mounting point, the DS-2CD6D42G0-IS is a dual-lens PanoVu network camera from Hikvision designed for intersections, corridors, transport hubs, and open commercial spaces where bidirectional coverage would otherwise require multiple camera installations. Each lens delivers 4MP resolution at up to 2688 x 1520, with DarkFighter low-light performance rated at 0.005 lux colour and 0.001 lux black-and-white, dropping to 0 lux with IR active. Featuring 2-channel WDR and 3D digital noise reduction, both channels maintain usable image quality across mixed lighting conditions. Built to IP67 and IK10 standards, the DS-2CD6D42G0-IS handles harsh outdoor environments and vandal exposure without compromising either sensor. A built-in microphone captures on-site audio alongside the video stream. PoE powering simplifies installation by combining data and power over a single cable run, and H.265 compression keeps storage and bandwidth demands manageable across both channels.
Key Capabilities
Dual-Directional Coverage
Two independent lenses capture separate directions simultaneously from one camera body. This eliminates blind spots at intersections, T-junctions, and corridor branches where a single-lens camera would leave one approach unmonitored, reducing cabling runs and mounting hardware needed on site.
DarkFighter Low-Light Imaging
Rated at 0.005 lux colour and 0.001 lux black-and-white, both sensors maintain usable image quality in near-darkness before switching to IR. In environments with minimal ambient lighting such as underground carparks or poorly lit corridors, this matters significantly for after-hours identification.
IP67 and IK10 Rated Housing
Full dust and water ingress protection to IP67 combines with IK10 vandal resistance, making this camera suitable for exposed outdoor mounting. Transport hubs, retail entrances, and external corridor fixtures benefit from a housing that withstands weather exposure and opportunistic physical interference.
2-Channel WDR with 3D DNR
Wide dynamic range processing runs independently across both channels, preserving detail in scenes where bright outdoor light meets shaded interior areas. Three-dimensional digital noise reduction then sharpens low-light imagery, reducing motion blur and grain without losing subject definition.
H.265 Compression
Supporting H.265, H.264, and MJPEG encoding, the DS-2CD6D42G0-IS keeps dual-stream storage requirements under control. H.265 roughly halves the file size compared with H.264 at equivalent quality, which is particularly relevant here given two simultaneous 4MP streams are being recorded continuously.
Built-In Microphone
An integrated microphone captures on-site audio alongside the video stream, adding situational context to recorded footage. This is useful in high-footfall environments such as transit concourses or retail halls where verbal exchanges and ambient sound form part of incident documentation.
Best For
- Corridor and Junction Monitoring: The dual-lens configuration covers both ends of a corridor or all approaches to an intersection from a single ceiling or wall mount, reducing the camera count needed for full coverage.
- Transport and Transit Hubs: Airports, train stations, and bus interchanges involve high pedestrian throughput from multiple directions. The DS-2CD6D42G0-IS captures both sides of a concourse or entry point simultaneously without requiring back-to-back single-lens units.
- Retail and Commercial Entrances: Entry points where foot traffic flows in and out benefit from directional split coverage. Both the approach and the interior side of an entrance can be monitored from one camera position.
- Low-Light Outdoor Areas: With DarkFighter sensitivity and IR cut-over, the camera continues to return useful imagery in carparks, laneways, and access paths after ambient lighting drops, without relying on supplementary floodlighting.
Why Choose the DS-2CD6D42G0-IS
Where a single-lens camera forces a choice between monitoring one approach or the other, the DS-2CD6D42G0-IS removes that compromise entirely. Both lenses operate independently, each delivering a full 4MP stream at 2688 x 1520, so neither direction receives a degraded or cropped view. The DarkFighter sensor specification, rated down to 0.005 lux in colour, goes beyond standard low-light cameras in this housing class. The IK10-rated enclosure means the camera tolerates the kind of physical interference that occurs in public-facing transit and retail environments. Fixed lens options across 2.8mm, 4mm, and 6mm let installers select the appropriate field of view for the specific separation distance between monitored points. Available at Security Wholesalers, the DS-2CD6D42G0-IS is suited to commercial-scale projects where reducing camera count per zone without sacrificing coverage is a genuine installation priority.
Buyer Decision Tips
Lens Selection: The DS-2CD6D42G0-IS is available with 2.8mm, 4mm, or 6mm fixed lenses. The 2.8mm suits tight indoor corridors and entries where both directions are close to the camera. The 4mm is the most common choice for standard corridor lengths and retail environments. The 6mm is appropriate where both monitored directions are further from the mounting point, such as wide outdoor junctions or long passageways. Because these are fixed lenses, selecting the correct focal length at time of purchase is important – there is no optical zoom adjustment after installation.
Dual-Stream Storage Planning: The DS-2CD6D42G0-IS produces 2 simultaneous 4MP video streams. When calculating NVR storage and channel allocation, both streams must be accounted for independently. Confirm your recorder supports dual-stream input from a single camera device and that your storage estimate reflects 2 channels of continuous 4MP recording at your chosen frame rate, not one. Using H.265 encoding on both channels significantly reduces the storage impact.
Key Features & Technical Specifications
| Model |
DS-2CD6D42G0-IS |
| Camera Type |
Dual-directional PanoVu network camera |
| Image Sensor |
1/3″ Progressive Scan CMOS (per channel) |
| Video Resolution |
2688 x 1520 (4MP) per channel |
| Frame Rate |
Up to 25 fps (50Hz) / 30 fps (60Hz) |
| Minimum Illumination (Colour) |
0.005 Lux @ F1.2, AGC ON |
| Minimum Illumination (B/W) |
0.001 Lux @ F1.2, AGC ON |
| Minimum Illumination (IR) |
0 Lux with IR active |
| Lens Options |
2.8mm, 4mm, 6mm fixed lenses |
| Shutter Speed |
1s to 1/100,000s |
| Wide Dynamic Range |
2-channel WDR |
| Noise Reduction |
3D Digital Noise Reduction (DNR) |
| Video Compression |
H.265, H.264, MJPEG |
| Audio |
Built-in microphone |
| Ingress Protection |
IP67 (dust and water resistance) |
| Vandal Rating |
IK10 |
| Operating Temperature |
-40°C to 60°C |
| Operating Humidity |
95% or below (non-condensing) |
| Power Input |
PoE (Power over Ethernet) |
| Dimensions |
164.3 x 84.6 x 67.4 mm |
| Weight |
Approx. 770g |
Ideal Use Cases
Corridor Junctions and T-Intersections
A single DS-2CD6D42G0-IS mounted at a corridor junction covers both branches simultaneously. This eliminates the blind approach that a single-lens camera would leave unmonitored, which is particularly relevant in hospitals, office buildings, and education campuses where corridor layouts are complex.
Transit Concourses and Station Entries
Airports, train stations, and bus terminals see bidirectional passenger flow through entry and exit points. The dual-lens design captures arrivals and departures from the same mounting position, with the IK10-rated housing standing up to the physical demands of high-traffic public infrastructure.
Retail Store Entrances and Mall Atriums
Entry points in retail environments need coverage of both the approach and the interior threshold. The DS-2CD6D42G0-IS handles this from one unit, and the 2-channel WDR processes the contrast between bright exterior daylight and the shaded interior simultaneously on each lens.
Outdoor Pedestrian Intersections
Urban pedestrian zones and street intersections benefit from the IP67 weatherproof rating combined with DarkFighter sensitivity. The camera continues to deliver usable colour imagery in low-ambient conditions such as dusk and early morning without requiring supplementary lighting infrastructure.
Education Campus Access Points
School and university campuses have multiple pedestrian gates and building entries where monitoring both sides of the threshold is necessary. The dual-lens camera reduces camera count at each access point while the IK10 housing withstands tampering in environments where cameras are sometimes targeted.
Choosing the Right Model
- Choose this model if: Your installation has a specific point where two directions need simultaneous coverage and you want to reduce camera count, cabling runs, and mounting hardware while maintaining 4MP resolution on both views.
- Choose this model if: You need DarkFighter low-light performance across both channels in an outdoor or semi-outdoor environment, combined with IK10 vandal resistance for a public-facing installation.
- Choose a different model if: You need a single wide-angle overview of a broad open area rather than 2 distinct directional views. A fisheye or multi-sensor panoramic camera may be more appropriate for full 180-degree or 360-degree area coverage from a single point.
- Choose a different model if: Your NVR or VMS does not support dual-stream input from a single camera device, as this camera produces 2 independent video streams that must each be allocated a recording channel.
FAQs
- How does the dual-directional lens arrangement work on the DS-2CD6D42G0-IS?
The camera contains 2 independent image sensors and lenses mounted in the same housing, oriented in different directions. Each sensor captures a separate 4MP video stream simultaneously. The 2 streams are output independently, meaning your NVR or VMS treats them as 2 separate camera channels for recording and viewing purposes, even though they originate from one physical unit.
- Does the DS-2CD6D42G0-IS produce 2 separate recording channels?
Yes. Each lens generates its own independent 4MP video stream. Your NVR or recording software will need to allocate 2 channels to this camera, not 1. When planning storage capacity, factor in 2 concurrent streams of 4MP footage at your selected frame rate and bitrate. Using H.265 compression on both channels helps keep storage requirements manageable.
- What lens options are available and how do I choose the right one?
The DS-2CD6D42G0-IS is available with 2.8mm, 4mm, or 6mm fixed lenses. The 2.8mm provides the widest field of view and suits tight indoor spaces such as lift lobbies or short corridors. The 4mm is a practical general-purpose choice for standard corridor lengths and retail entries. The 6mm narrows the field for longer distances, such as wide outdoor junctions. These are fixed lenses, so the selection must be made before purchase.
- Is the DS-2CD6D42G0-IS suitable for outdoor installation?
Yes. The camera carries an IP67 ingress protection rating, confirming full resistance to dust and protection against water immersion up to 1 metre for 30 minutes. The IK10 vandal resistance rating means the housing withstands significant impact force. An operating temperature range of -40°C to 60°C covers Australian outdoor conditions across all climate zones.
- What is the minimum illumination level for the DS-2CD6D42G0-IS?
Both sensors carry DarkFighter-grade sensitivity rated at 0.005 lux for colour imaging and 0.001 lux for black-and-white, both at F1.2 with AGC enabled. When IR is active, the minimum illumination drops to 0 lux. This performance level means both channels continue to return useful imagery in near-dark conditions without requiring additional lighting infrastructure.
- Does the DS-2CD6D42G0-IS support two-way audio?
No. The DS-2CD6D42G0-IS includes a built-in microphone for audio capture alongside the video stream, but there is no built-in speaker confirmed in the product specification. Audio is captured for recording and situational awareness purposes only. Two-way audio communication is not a feature of this camera.
- Where can I purchase the DS-2CD6D42G0-IS in Australia, and is technical support available?
The DS-2CD6D42G0-IS is part of the Security Wholesalers range and is available to trade customers and installers across Australia. Technical product queries, compatibility questions, and purchasing enquiries can be directed through Security Wholesalers directly to ensure the correct lens variant and accessory configuration is selected for your specific site requirements.
Additional Information
No additional downloads available for this product.
