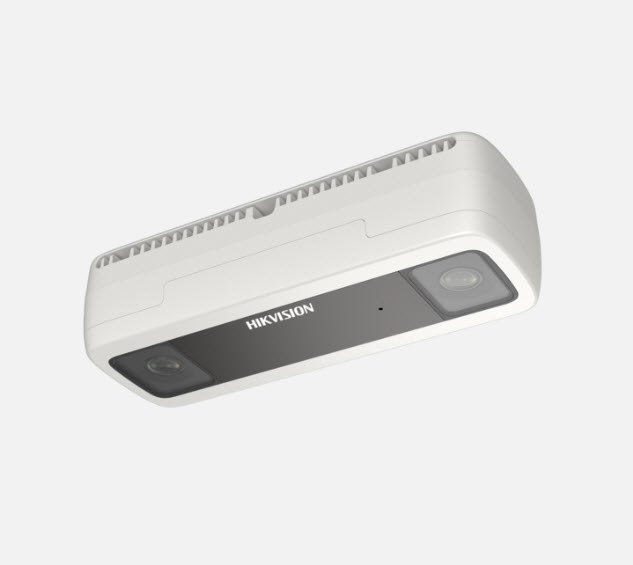

Hikvision 2 MP Dual-Lens People Counting Camera | Binocular Stereo Vision | 3D Tracking | 2 mm Fixed Lens | IP67 (-V Model)
The Hikvision DS-2CD6825G0/C-IVS is a specialised dual-lens people-counting camera using advanced binocular stereo vision to detect, track and analyse 3D movement trajectories with high accuracy. It provides reliable real-time people counting for environments such as retail stores, transport hubs, galleries and tourist sites. With a 2 mm fixed lens, 1920 × 1200 resolution at 30 fps and IP67 protection on the “-V” variant, it delivers precise analytics for traffic flow optimisation and operational insights.
The DS-2CD6825G0/C-IVS is a dual-lens 2 MP network camera from Hikvision specifically built for accurate people counting in high-traffic zones. This model uses binocular stereo vision to deliver 3D head detection and real-time trajectory tracking, offering precise entry/exit counts, filtering by height and automated event reports. With fixed wide-angle lenses, H.265+ compression, IP67 weather-rated housing and PoE support, the DS-2CD6825G0/C-IVS is engineered for environments such as retail stores, transport hubs and galleries where crowd-flow insight is essential.
Why Choose the DS-2CD6825G0/C-IVS
The DS-2CD6825G0/C-IVS stands out as a dedicated people-counting solution rather than a general surveillance camera. Its dual-lens stereo system creates depth perception, allowing true 3D tracking of individuals, not just movement detection. That means greater accuracy in entry/exit figures and fewer false triggers. Combined with its robust IP67 build, efficient H.265+ encoding and flexible power options (12 V DC or PoE), it is ideal for organisations demanding data-driven visitor analytics alongside dependable video capture.
Package / Kit Inclusions
1 × DS-2CD6825G0/C-IVS dual-lens people counting camera
Quick Start Guide
Mounting hardware and installation accessories
Key Capabilities
Dual-Lens Stereo Vision Tracking
The camera uses two synchronized lenses to create a three-dimensional view of the scene, enabling accurate head detection and object trajectories. This capability allows detailed people counting and movement analysis that surpasses 2D motion detection systems.
High-Resolution 2 MP video capture
With full HD resolution (1920 × 1080) the DS-2CD6825G0/C-IVS provides clear, usable video identifying individuals and scenarios. This ensures the system supports both analytic data and visual verification for events and audits.
Advanced People Counting Analytics
Supports entry and exit counts separately, real-time and cyclic uploads, height-filtering to exclude carts or trolleys, and built-in eMMC storage for data resilience. Ideal for retail intelligence, venue crowd control and transport hubs.
Robust Outdoor-Ready Design
With an IP67-rated metal body and PoE support, this model is built to withstand demanding outdoor or indoor harsh environments while simplifying cabling and power requirements.
Efficient Compression & Bandwidth Optimisation
Supports H.265+ and H.265 video codecs, significantly reducing storage and bandwidth demand without compromising image clarity—essential for operations with many cameras or limited network resources.
Key Features
Stereo Vision Dual-Lens System: Two fixed lenses work in tandem to detect depth and movement trajectories, enabling high-precision people counting rather than simple motion detection.
Fixed 2 mm Wide-Angle Lenses: Each lens offers approximately 104.5° horizontal field of view, allowing broad coverage of overhead mounting areas and capturing flows of people entering and exiting zones.
True Wide Dynamic Range (120 dB): Capable of handling scenes with both bright lighting and dark shadows, ensuring clear capture in mixed-lighting conditions such as entrances or lobbies.
Built-In eMMC Storage for Analytics: Provides on-board storage (up to 8 GB) to support people-counting data retention and upload resilience, even during network hiccups.
Power Over Ethernet (PoE) & 12 V DC Support: Simplifies installation by allowing data and power via a single cable, or flexible deployment via 12 V DC when needed.
Weather-Resistant Housing (IP67): Designed for outdoor installation in harsh environments—dust, rain, extreme temperature—while maintaining consistent analytic performance.
Specifications Summary
Feature
Specification
Resolution
2 MP (1920 × 1080)
Lens Type
Fixed focal 2 mm dual-lens
Horizontal Field of View
~104.5°
Wide Dynamic Range (WDR)
120 dB
Compression
H.265+/H.265/H.264+/H.264
On-Board Storage
Built-in eMMC, up to 8 GB for analytics data
Ingress Protection
IP67 weather-resistant
Power Options
12 V DC or PoE (802.3af)
Deep-Learning Function
3D people counting – entry/exit, height filtering, real-time upload
Operating Temperature
-30 °C to +60 °C
Ideal Use Cases
Retail Stores & Supermarkets – Monitor foot-traffic flows at store entry and exit, analyse peak hours and support staff allocation or promotional planning.
Transport Hubs – Manage passenger volumes at train stations, bus terminals or airport gates, delivering accurate entry/exit data and operational insights.
Public Venues & Galleries – Collect crowd analytics in museum foyers, exhibition halls or event spaces to inform occupant safety and visitor behaviour.
Cinemas & Entertainment Centres – Track people flow across entrances and refreshment zones during peaks, helping optimise queue management and staffing.
Facility Management – In office lobbies or co-working spaces, monitor user traffic and occupancy patterns for energy management and security optimisation.
How This Product Works
The DS-2CD6825G0/C-IVS uses a stereo-vision architecture: two matched fixed 2 mm lenses capture slightly different views of the scene. By comparing these views the camera estimates depth and tracks moving objects in real time. Once the sensor detects a person’s head or body within the field of view, it then uses its internal analytics engine to count the person’s movement (entry or exit) and uploads statistics based on pre-configured cycles (real-time, daily, weekly). The on-board eMMC memory retains count data in case of network interruption. Combined with wide-angle dual coverage and advanced compression, the unit delivers visual verification plus analytical intelligence in one integrated device.
FAQs
Can this camera reliably count people in busy areas?
Yes. The DS-2CD6825G0/C-IVS is designed specifically for people counting with stereo vision and depth detection. It distinguishes between people entering and exiting, supports height filters to ignore small objects (e.g., shopping carts), and uploads data in real time or on a schedule, making it highly accurate even in high-traffic zones.
Is it suitable for outdoor installation?
Yes. The camera features an IP67-rated housing, PoE support and rugged metal construction, which makes it suitable for outdoor environments such as station entrances, outdoor retail alfresco areas or transport terminal access points.
Will it integrate with existing NVR or VMS systems?
Yes. It supports ONVIF Profile S and Profile G, ISAPI SDK and standard network protocols, enabling seamless integration with many VMS and NVR platforms. Its H.265+ compression also ensures efficient storage and bandwidth usage.
How does the dual-lens system improve counting accuracy?
The dual-lens stereo setup allows the camera to capture depth information rather than relying on 2D motion detection alone. This means the system can reliably identify human figures, ignore non-relevant objects, and track their trajectory, resulting in more accurate counts and fewer false positives.
What happens if the network link fails?
The device includes built-in eMMC storage (up to 8 GB) which temporarily stores people-count data if the network is interrupted. Once connectivity is restored, the data can be uploaded, ensuring continuity of the analytic record.
