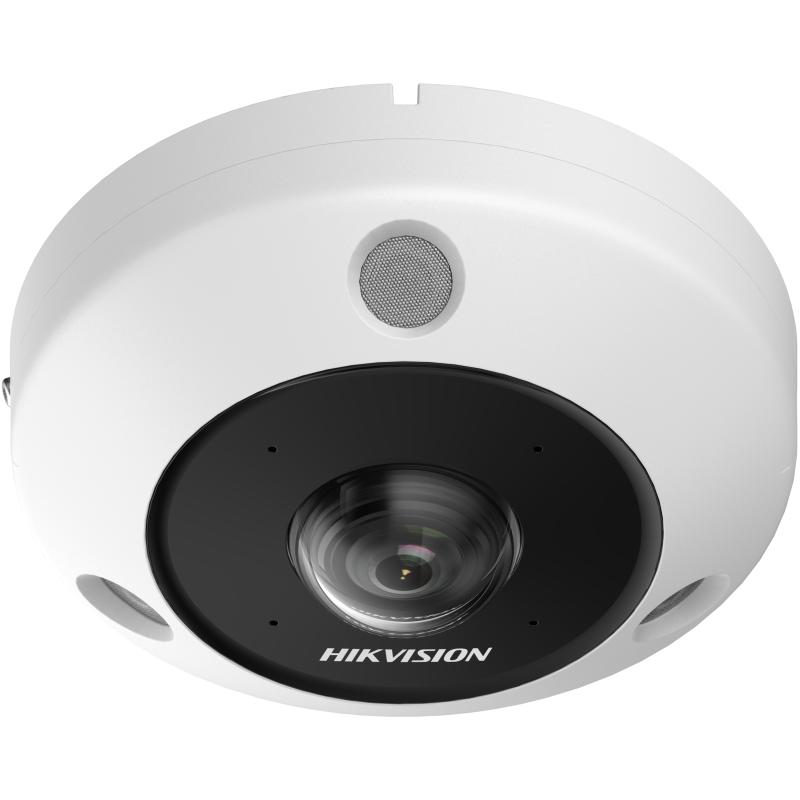

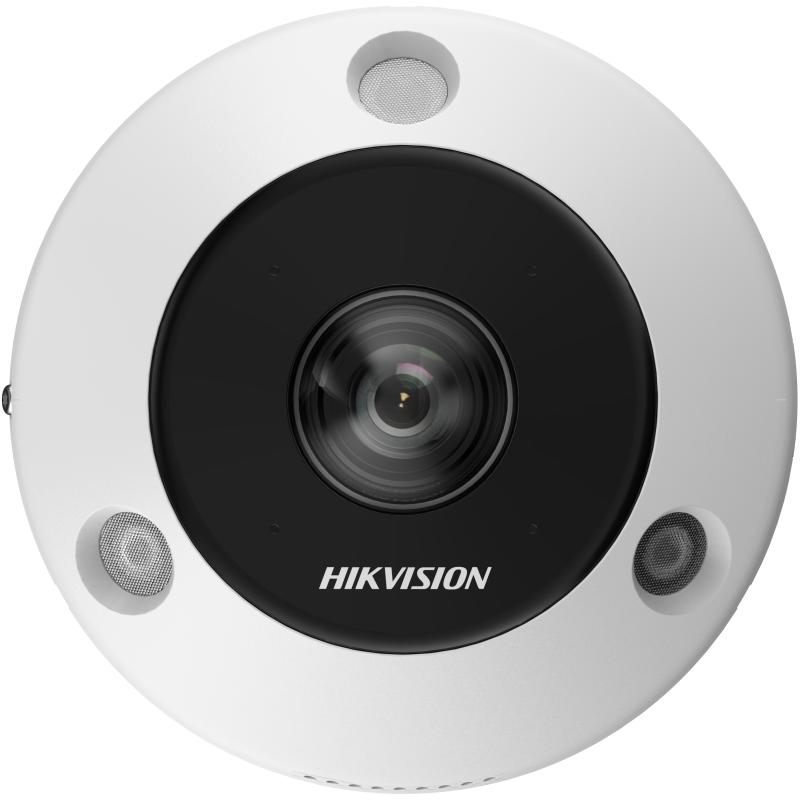

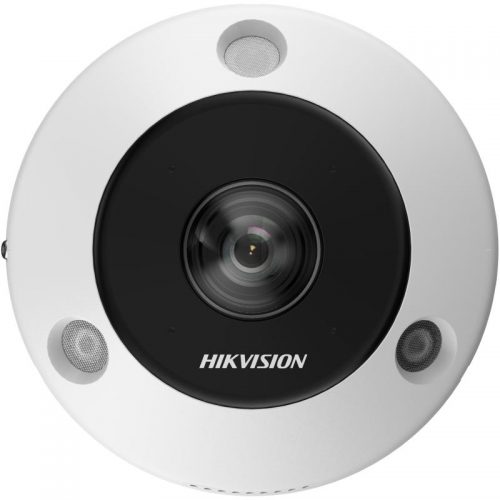

Hikvision DS-2CD63C5G1-IVS 12MP Outdoor Fisheye Camera, Immervision Lens, 15m IR, Built-in Mic, IP66, 1.29mm

Product Overview

Wide-area monitoring from a single ceiling-mounted point is the defining strength of the Hikvision DS-2CD63C5G1-IVS, a 12MP outdoor fisheye camera built around an Immervision 1.29mm lens that delivers full 360-degree scene capture at 4000 x 3000 resolution. Designed for commercial ceilings, large retail floors, public foyers, and covered car parks, the DS-2CD63C5G1-IVS eliminates the segmented coverage gaps that come with deploying multiple fixed-lens cameras across a wide space. Equipped with built-in IR to 15 metres, it maintains usable footage in low-light conditions without external lighting. It integrates intelligent video analytics including heat mapping, line crossing detection, and intrusion detection, giving operators data-driven insight into movement patterns and site activity. Built with IP66 weather resistance and IK10 vandal-rated housing, this model handles both exposed outdoor environments and high-traffic indoor installations. A built-in microphone adds on-site audio capture to the monitoring capability.

Key Capabilities

Best For

• Retail Floor Ceiling Mounts: The 360-degree fisheye view from a single overhead point covers entire aisles, checkout areas, and customer flow paths, with heat mapping identifying high-traffic zones for operational use.
• Public Foyers and Venue Interiors: Wide-scene coverage from one ceiling position is suited to event spaces, transport hubs, and waiting areas where monitoring all directions simultaneously is a priority.
• Covered Car Parks and Warehouse Interiors: The IK10-rated housing and 15-metre IR make this model a practical choice for partially enclosed or roofed sites where impact resistance and low-light performance matter.
• Sites Reducing Camera Count: Organisations consolidating surveillance infrastructure benefit from replacing several fixed-lens cameras with a single fisheye installation, lowering cabling runs, hardware costs, and installation complexity.

Why Choose the DS-2CD63C5G1-IVS

The DS-2CD63C5G1-IVS stands apart from standard fisheye cameras through its combination of a purpose-built Immervision 1.29mm lens and 12MP sensor producing genuine 4000 x 3000 output. Many lower-specification panoramic cameras sacrifice resolution to achieve wide-angle coverage, resulting in footage that cannot support detail review when zooming into a specific zone. This model retains enough pixel density across the full 360-degree scene to allow meaningful post-event analysis. The addition of built-in IVS analytics, including heat mapping, means the camera contributes operational intelligence beyond basic recording. Its IP66 and IK10 ratings give installers the confidence to deploy it in outdoor-covered or high-traffic environments where a standard indoor fisheye would not survive. The built-in microphone adds audio context to captured footage. Available through Security Wholesalers, the DS-2CD63C5G1-IVS is suited to commercial integrators and facility managers who need verifiable wide-area coverage from fewer installation points.

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this model if: You need full 360-degree overhead coverage from a single ceiling point at 12MP resolution, with built-in IVS analytics including heat mapping, and the installation site has a ceiling height suited to 15-metre IR performance.
• Choose a different model if: Your primary requirement is long-range directional coverage of a driveway, perimeter fence line, or external approach, where a bullet-style camera with a longer IR throw and narrower field of view will produce more usable footage than a wide-angle fisheye.
• Choose a different model if: Your NVR or VMS platform does not support fisheye dewarping, as the raw circular output from this lens will require dewarping software to be displayed in a usable format for live monitoring and playback.
• Choose a different model if: The installation site has ceiling heights above 8 metres and requires IR illumination across the full scene footprint, as the 15-metre IR range may not extend to the scene perimeter at greater mounting heights.

FAQs

1. What is the Immervision lens and why does it matter for this camera?
   The Immervision 1.29mm lens used in the DS-2CD63C5G1-IVS is an engineered fisheye optical system designed to maximise resolution distribution across the full 360-degree scene. Standard fisheye lenses often concentrate sharpness at the centre and soften toward the edges. Immervision-certified lenses are optimised to maintain usable image quality across the entire field, which is important when digitally zooming into a specific zone during post-event review.
2. Does this camera need to be ceiling-mounted to work correctly?
   Ceiling mounting is the recommended and most practical installation position for a fisheye camera. When mounted overhead, the lens captures the full 360-degree floor-level scene without obstruction. Wall mounting is possible but produces a hemisphere view rather than a complete circle, which limits coverage to roughly half the scene. For full panoramic benefit, overhead ceiling installation is the standard approach for this type of lens.
3. What dewarping modes does the DS-2CD63C5G1-IVS support?
   The camera supports fisheye, panoramic, corridor, and multi-view dewarping modes. The panoramic mode stretches the circular image into a wide flat strip suitable for overview monitoring. The corridor mode produces a tall vertical view useful for hallway surveillance. Multi-view splits the scene into quadrants for simultaneous monitoring of different zones. These modes are accessible through compatible Hikvision NVRs and ONVIF-compliant VMS platforms with fisheye dewarping support.
4. How does the heat mapping analytic work on this camera?
   Heat mapping on the DS-2CD63C5G1-IVS analyses movement data across the scene over a set period and generates a colour-coded overlay showing where the highest density of movement or dwell time has occurred. Warm colours indicate high-activity zones and cool colours indicate low-activity zones. This data is useful for retail space planning, queue management, and identifying areas of a facility that receive unexpected foot traffic.
5. Is the built-in microphone suitable for recording audio evidence?
   The DS-2CD63C5G1-IVS includes a built-in microphone that captures ambient audio alongside the video stream. This allows audio context to be recorded and reviewed alongside footage, which can be useful for incident investigation. Note that the camera includes a microphone only, and does not include a built-in speaker, so audio is one-directional. Local recording laws regarding audio surveillance should be observed before enabling audio capture.
6. What is the effective IR coverage range at typical commercial ceiling heights?
   The 15-metre IR range is measured along the optical axis. When installed at standard commercial ceiling heights of 3 to 5 metres, the IR illumination covers the floor area beneath and around the camera effectively. At greater heights, the wide fisheye angle means the scene footprint expands significantly, and areas toward the outer edge of the scene may receive less IR light. For sites with ceilings above 6 metres, confirm whether supplementary lighting is available overnight.
7. Is the DS-2CD63C5G1-IVS compatible with third-party NVR and VMS systems?
   Yes. The DS-2CD63C5G1-IVS is ONVIF-compliant, allowing integration with a broad range of third-party NVR and VMS platforms. However, fisheye dewarping functionality depends on the capabilities of the connected platform. Not all ONVIF-compatible systems include built-in fisheye dewarping. Confirm your recording platform supports fisheye dewarping before purchasing. The camera is available through Security Wholesalers, and the included datasheet provides stream and integration details for system planning.

Product Video Samples

Additional Information

• DS-2CD63C5G1-IVS Datasheet
