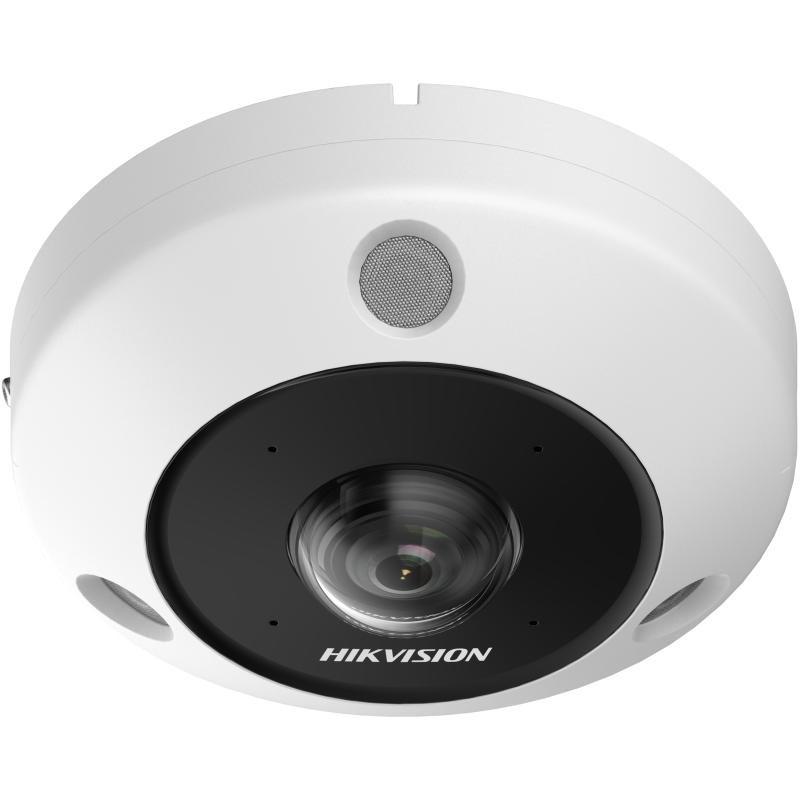

Product Overview
Wide-area monitoring across a retail floor, lobby, or transport concourse typically demands multiple fixed cameras to eliminate blind spots. The DS-2CD6365G1-IVS addresses this with a single fisheye unit delivering a full 360-degree view from one installation point. Built around a 1/1.8-inch progressive-scan CMOS sensor producing 2560 x 2560 resolution at 6 MP, and paired with a 1.16mm fixed lens covering 180 degrees both horizontally and vertically, this camera captures the complete surrounding scene in one frame. Featuring up to 20 live view dewarping modes, 3 independently controlled IR lamps with 15m range, built-in microphone and speaker for two-way audio, and heat-map and people-counting analytics, it supports both security monitoring and operational intelligence. The IP67 and IK10 rated housing extends its use to demanding indoor environments and semi-exposed outdoor locations, operating across a wide temperature range of -40 degrees C to +60 degrees C.
Key Capabilities
6 MP Fisheye Imaging
The 2560 x 2560 resolution across a 180-degree field means that when the image is dewarped into individual zones or PTZ windows, each cropped region retains enough detail for identification rather than just detection. This matters in high-traffic environments where post-incident review is common.
20 Live View Display Modes
Support for up to 20 dewarping and display modes, including fisheye, panoramic, multi-PTZ, and split-screen layouts, gives operators the ability to view the scene in a format suited to the site. Ceiling mount enables full 360-degree room views; wall mount suits corridor panoramas; table mount supports lobby or reception monitoring.
Triple Independent IR Illumination
Three independently controlled IR lamps provide up to 15m of coverage and allow the camera to balance illumination across a wide circular field, reducing overexposure at the centre while maintaining visibility at the edges. Minimum illumination reaches 0 Lux with IR active.
Two-Way Audio
The built-in microphone and speaker enable real-time two-way voice communication, making the DS-2CD6365G1-IVS useful not only for recording but for live management of queues, access points, or incidents. This removes the need for a separate intercom or audio device at monitored locations.
Heat-Map and People-Counting Analytics
Integrated analytics provide heat-mapping to visualise movement patterns and dwell time across a scene, alongside people counting for flow monitoring. These functions support both security operations and retail or facilities management use cases from a single camera installation.
IP67 and IK10 Rated Housing
Full dust and water ingress protection combined with IK10 impact resistance and an operating range of -40 degrees C to +60 degrees C means this camera is suitable for public-facing environments where vandalism, temperature extremes, or moisture exposure are realistic concerns.
Best For
- Ceiling-Mounted Room Coverage: The 1.16mm lens covering 180 degrees both horizontally and vertically delivers a complete view of a room from a single ceiling-mount point, eliminating the corner-to-corner coverage gaps that multiple fixed cameras can still leave.
- Retail Analytics: Heat-mapping and people-counting analytics allow retailers and facilities managers to analyse traffic flow, identify congestion zones, and measure dwell time across the monitored space without separate sensor hardware.
- Transport and Public Area Surveillance: Concourses, station platforms, and airport terminals benefit from the wide-area view and analytics capabilities, where situational awareness across a large open area is critical for both safety and operational management.
- Lobby and Reception Monitoring: Table or wall mounting with multi-PTZ dewarping modes makes this camera suitable for staffed reception areas where operators need to monitor multiple approach angles simultaneously from a single feed.
- Outdoor Plazas and Covered External Areas: The IP67 and IK10 build and wide temperature tolerance support installations in sheltered outdoor locations where a single unit can replace multiple standard cameras covering the same area.
Why Choose the DS-2CD6365G1-IVS
The DS-2CD6365G1-IVS covers ground that a single standard fixed or varifocal camera cannot: a complete 360-degree view of a room or open area from one mounting point, with no need to stitch feeds or manage multiple camera angles. At 6 MP and 2560 x 2560 resolution, the image holds enough detail to support dewarped PTZ windows at useful quality, which a lower-resolution fisheye would not. The combination of heat-map analytics, people counting, and two-way audio in one unit reduces the hardware count and cabling complexity for sites that would otherwise require separate analytics cameras and audio devices. The IK10 and IP67 rated housing with a -40 degrees C to +60 degrees C operating range adds durability for public-facing or outdoor-adjacent installations that cheaper fisheye options do not match. Available at Security Wholesalers, this model suits projects where single-point wide-area coverage with built-in analytics is the design goal.
Buyer Decision Tips
Mounting Position Determines Display Mode Value: Ceiling mount is the optimal position for true 360-degree room coverage using fisheye or full circular view modes. Wall mount shifts the field to a 180-degree panorama useful for corridors and entrances. Table mount suits reception or counter-level deployments with multi-PTZ views active. Decide on the mounting position before installation because the useful display modes differ significantly by mount type, and changing the mount after cabling is in place adds cost and effort.
Storage Requirements Are Higher Than Standard Cameras: A 6 MP fisheye stream at 2560 x 2560 resolution generates substantially more data than a typical 4 MP or 2 MP camera stream. When planning NVR storage, factor in the resolution, frame rate, and compression settings to ensure the recorder and storage allocation are appropriate. Confirm your NVR supports the resolution and dewarping functions of this model before purchase.
Key Features & Technical Specifications
| Model |
DS-2CD6365G1-IVS |
| Resolution |
6 MP (2560 x 2560) |
| Image Sensor |
1/1.8-inch progressive-scan CMOS |
| Lens |
1.16mm fixed, F2.25 |
| Field of View |
180 degrees horizontal x 180 degrees vertical |
| Minimum Illumination |
Colour: 0.01 Lux at F2.25; B/W: 0.005 Lux at F2.25; 0 Lux with IR |
| IR Illumination |
3 independently controlled IR lamps, up to 15m range |
| Display Modes |
Up to 20 live view and dewarping modes |
| Mounting Options |
Ceiling, wall, table |
| Audio |
Built-in microphone and speaker; two-way audio supported |
| Analytics |
Heat-map, people counting |
| Ingress Protection |
IP67 / IK10 |
| Operating Temperature |
-40 degrees C to +60 degrees C |
| Camera Type |
Fisheye / Panoramic network camera |
Ideal Use Cases
Retail Floor Monitoring
A single ceiling-mounted DS-2CD6365G1-IVS replaces several fixed cameras across a retail floor. The built-in heat-map analytics add operational value by identifying high-traffic areas and peak movement times, giving retailers data beyond standard security footage.
Building Lobbies and Reception Areas
The two-way audio, 360-degree view, and multi-PTZ dewarping modes make this camera well suited to lobby deployments where staff need visual and verbal communication with visitors. One device handles both surveillance and intercom functions in a single installation point.
Transport Hubs and Concourses
Ceiling-mounted above a concourse, waiting area, or platform, the 6 MP fisheye captures crowd movement across a wide area in a single frame. People-counting analytics support flow management alongside security monitoring, which is useful for transit operators managing passenger loads.
Car Parks and Parking Structures
Parking levels with low ambient light benefit from the 15m IR range and 0 Lux minimum illumination. The 360-degree view from a central ceiling position reduces the number of camera positions needed to cover an open parking bay area, lowering installation and cabling costs.
Outdoor Plazas and Covered Walkways
The IP67 and IK10 rated housing with a -40 to +60 degree C operating range supports installation in covered outdoor locations such as undercover walkways, transport shelters, and public plazas where exposure to dust, moisture, or vandalism is expected.
Choosing the Right Model
- Choose this model if: Your site requires complete 360-degree room or area coverage from a single camera point, with analytics such as heat-mapping and people counting included, and where two-way audio from the same device is operationally useful.
- Choose a different model if: Your application requires coverage of a long outdoor perimeter, a specific narrow corridor target, or detailed long-range zoom of a distant subject. A fisheye lens captures a wide shallow scene and is not suited to long-distance directional monitoring where a varifocal or telephoto lens would perform better.
- Choose a different model if: Your NVR or VMS does not support fisheye dewarping at 2560 x 2560 resolution. The value of this camera depends on the ability to dewarp and display multiple zones simultaneously. Without compatible dewarping support, the wide-angle distorted view significantly limits usability.
FAQs
- What does the 1.16mm lens actually capture compared to a standard camera lens?
A 1.16mm ultra-wide lens captures a full 180 degrees both horizontally and vertically, producing a circular fisheye image of the entire surrounding scene. A standard 2.8mm or 4mm lens covers roughly 90 to 100 degrees horizontally. The tradeoff is that the fisheye image is distorted and must be dewarped by the NVR or VMS software to produce usable straight-line views of specific zones.
- Does the DS-2CD6365G1-IVS genuinely support two-way audio out of the box?
Yes. The camera has a built-in microphone and a built-in speaker confirmed in the product specification, which means two-way audio is available without any additional accessories. Both components are integrated into the housing, and voice communication in both directions is supported directly through the camera.
- How do the 20 display modes work and which ones are most useful?
The display modes are dewarping layouts applied to the fisheye image by the NVR or VMS. Ceiling mount unlocks modes such as full 360-degree fisheye, panoramic split, and multiple PTZ windows. Wall mount activates 180-degree panorama and dual-channel views suited to corridors. The most useful mode depends on the mount position and whether the operator needs an overview or zone-specific focus.
- Can the camera be used outdoors given its IP67 and IK10 rating?
The IP67 rating provides full dust and water ingress protection, and IK10 covers resistance to impact. The operating temperature range of -40 degrees C to +60 degrees C means it handles Australian climate conditions. It is suited to sheltered outdoor locations such as undercover walkways, covered plazas, and building overhangs. Direct lens exposure to sustained rain or high-pressure water should be avoided in any outdoor installation.
- What analytics does this camera include and do they require additional licences?
The DS-2CD6365G1-IVS includes heat-map and people-counting analytics built into the camera firmware. Whether these require activation or licencing depends on the connected NVR or VMS platform. Confirm with your recorder or software vendor whether the analytics outputs from this camera are supported natively or require an additional analytics licence to display and record.
- What storage and NVR bandwidth should be planned for this camera?
At 6 MP and 2560 x 2560 resolution, this camera generates significantly more data than a 2 MP or 4 MP stream. The actual bitrate depends on compression settings, frame rate, and scene complexity, but storage planning should account for a higher-than-average bitrate compared to standard fixed cameras. Confirm that the NVR has sufficient bandwidth per channel and total storage for the required retention period before finalising the installation design.
- Where can I source the DS-2CD6365G1-IVS in Australia?
The DS-2CD6365G1-IVS is available through Security Wholesalers as part of the Hikvision fisheye and panoramic camera range. Note that a lead time applies to this model, so factor delivery timing into project scheduling, particularly for larger installations where the camera count requires pre-ordering.
