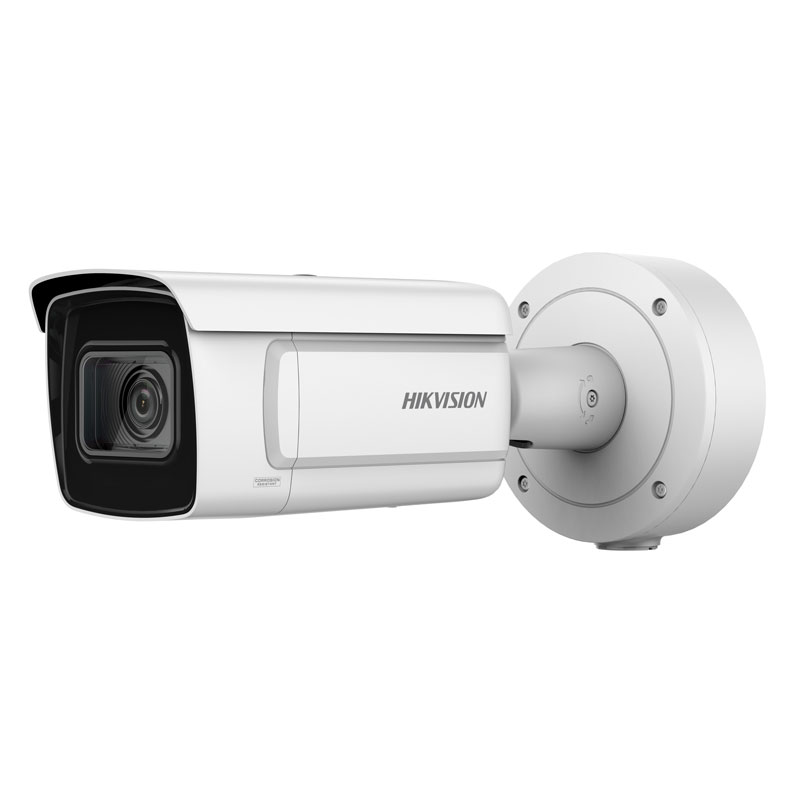

Hikvision DS-2CD5A46G0-IZHSY 4MP Outdoor Bullet Camera, Anti Corrosion, Heater, IR, WDR, IP67, 2.8-12m

  • 1/1.8″ progressive scan CMOS
  • 2560 x 1440 at 30 fps, MJPEG up to 1920 x 1080 at 30 fps
  • 2.8 to 12mm motor-driven lens
  • Color: 0.002 lux at (F1.2, AGC ON)
  • H.265, H.265+, H.264, H.264+
  • 140dB WDR
  • 3D DNR
  • IR range up to 50m
  • Five defined streams and up to five custom streams
  • 6 behavior analyses, 2 exception detection, and
  • face detection
  • Built-in microSD/SDHC/SDXC card slot, up to 256GB
  • Alarm I/O
  • IP67, IK10
  • Anti-corrosion: NEMA 4X
  • THIS ITEM MAY NOT BE IN STOCK and may require 4-5 week lead time.

$1,124.80 $1,406.00 inc GST +3 Year Warranty & Support

  • 1/1.8″ progressive scan CMOS
  • 2560 x 1440 at 30 fps, MJPEG up to 1920 x 1080 at 30 fps
  • 2.8 to 12mm motor-driven lens
  • Color: 0.002 lux at (F1.2, AGC ON)
  • H.265, H.265+, H.264, H.264+
  • 140dB WDR
  • 3D DNR
  • IR range up to 50m
  • Five defined streams and up to five custom streams
  • 6 behavior analyses, 2 exception detection, and
  • face detection
  • Built-in microSD/SDHC/SDXC card slot, up to 256GB
  • Alarm I/O
  • IP67, IK10
  • Anti-corrosion: NEMA 4X
SKU: HIK-2CD5A46IZHSY Categories: , , , , Tag:
Image Sensor: 1/1.8″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter time: 1 s to 1/100,000 s
Slow shutter: Yes
Lens: 2.8 to 12 mm
Lens Mount: Integrated
Auto Iris: DC drive, P-iris
Adjustment Range: Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night: IR Cut Filter
Wide Dynamic Range: 140dB
Focus: Auto, semi-auto, manual
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile: Baseline Profile/Main Profile/High Profile
Video bit rate: 256Kbps~16Mbps
Dual Stream: Yes
Triple Streams: Yes
Max. Image Resolution: 2560 × 1440
Sub Stream: 50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping: Yes
BLC: Support
HLC: Support
Smart Defog: Support
EIS: Support
3D DNR: Support
Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1
Network Storage: Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function: Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
System Compatibility: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Intelligent
Behavior analysis: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Interface
Communication Interface: 1 RJ45 10M/100M/1000M Ethernet port
Alarm: 2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
Alarm Input: 2
Alarm Output: 2
Video Output: 1Vp-p composite output (75 Ω/CVBS)
On-board storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Button: Yes
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Region Entrance: Enter a pre-defined virtual region from the outside place
Region Exiting: Exit from a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection, defocus detection
Recognition: Face Detection
Statistics: Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
IR Range: Up to 50 m
Operation Condition: -30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 V DC ± 20%, PoE (802.3at, class 4)
Power Consumption: -IZS: 12 VDC, 1.08 A, max. 13 W; PoE (802.3at, 42.5 V to 57 V), 0.31 A to 0.23 A, max. 13 W
-IZHS: 12 VDC, 1.13 A, max. 13.5 W; PoE (802.3at, 42.5 V to 57 V), 0.42 A to 0.32 A, max. 18 W
Impact Protection: IK10
Weather Proof: IP67
Dimensions: Camera: Φ144 × 347 mm (Φ5.7″ × 13.7″)
With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
Weight: Camera: approx. 2.45 kg (5.40 lb.)
With package: approx. 2.7 kg (5.95 lb.)
