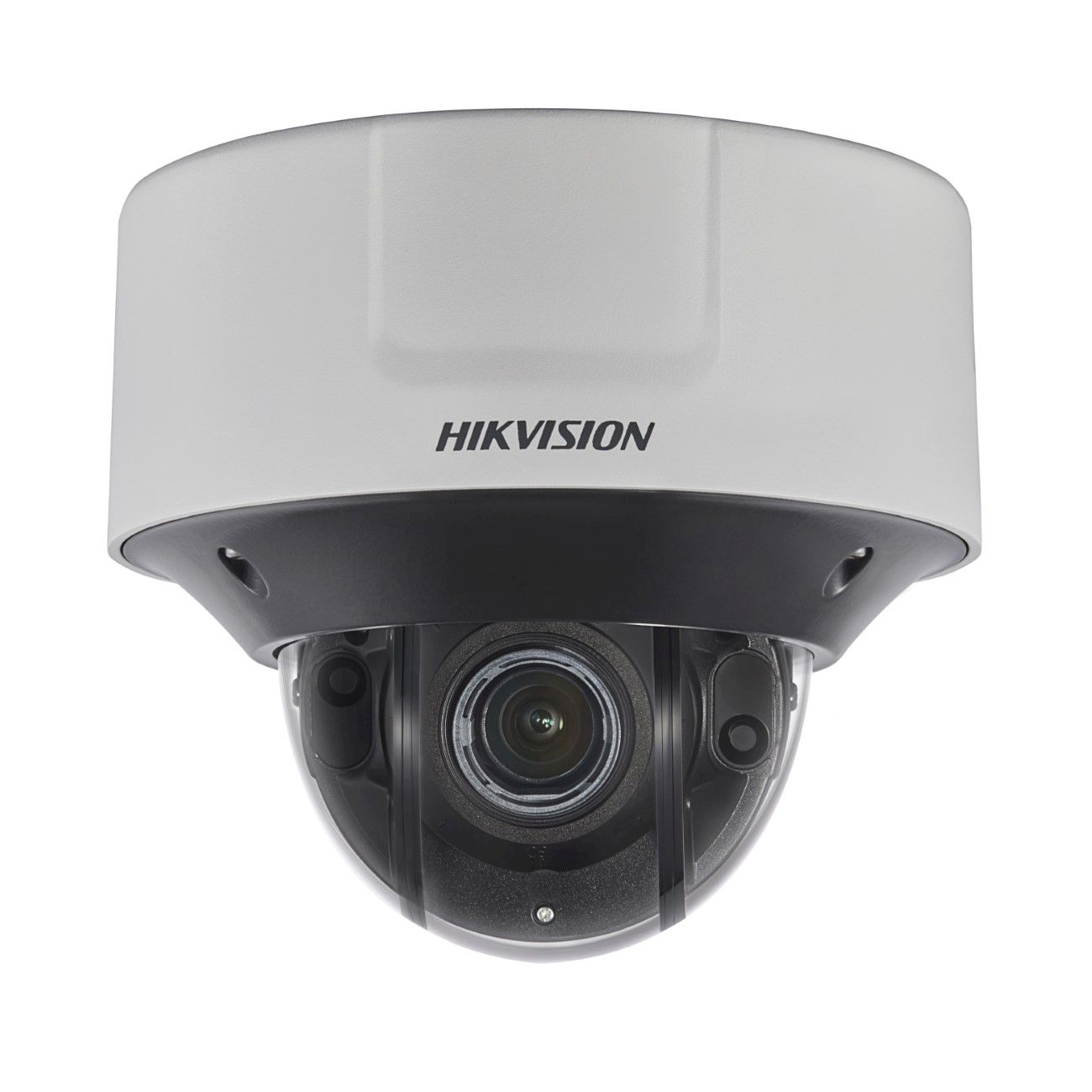

Hikvision DS-2CD5585G0-IZS 8MP Motorised DarkFighter / Lightfighter Dome Network Camera

Part of Hikvision’s enterprise range of network cameras, the DS-2CD5585G0-IZS is an outdoor motorised varifocal IR dome camera that produces an exceptional 8MP high-resolution video. Powered by Darkfighter technology, this camera can produce clear and crisp images in ultra-low light situations. The HIK-2CD5586G0IZS includes an ideal combination of smart features for its affordable price such as 120dB true wide dynamic range (WDR), image sensor technology, a high definition image processing chipset, audio/alarm IO, smart video content analytics (VCA) and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. Additionally, this camera supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50 percent and 80 percent, respectively.

SPECIAL ORDER ITEM – 6-8 weeks lead time. Once order is placed, you cannot cancel it.

$1,249.60 $1,562.00 inc GST +3 Year Warranty & Support

Part of Hikvision’s enterprise range of network cameras, the DS-2CD5585G0-IZS is an outdoor motorised varifocal IR dome camera that produces an exceptional 8MP high-resolution video. Powered by Darkfighter technology, this camera can produce clear and crisp images in ultra-low light situations. The HIK-2CD5586G0IZS includes an ideal combination of smart features for its affordable price such as 120dB true wide dynamic range (WDR), image sensor technology, a high definition image processing chipset, audio/alarm IO, smart video content analytics (VCA) and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. Additionally, this camera supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50 percent and 80 percent, respectively.

Features

  • 1/1.8 inch progressive scan CMOS
  • 3840 x 2160 at 30fps
  • Colour: 0.009 lux at (F1.2, AGC ON)
  • 2.8-12mm motorised varifocal lens
  • H.265, H.265+, H.264+, H.264
  • 120dB wide dynamic range (WDR)
  • Up to 30m IR
  • Video content analytics (VCA) including face detection and object counting
  • 5 defined streams and up to 5 custom streams supported
  • Supports on-board storage up to 256 GB
  • IK10 & IP67 rating
  • 12VDC or PoE





SKU: DS-2CD5585G0-IZS Categories: , , , , , , Tag:
Image Sensor: 1/1.8″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.007 Lux @ (F1.2, AGC ON), 0.016 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter time: 1 s to 1/100,000 s
Slow shutter: Yes
Lens: Motorized lens , 2.8 to 12 mm, 8 to 32 mm
Lens Mount: Integrated
Auto Iris: DC drive, P-iris
Adjustment Range: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night: IR Cut Filter
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Auto, semi-auto, manual
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile: Baseline Profile/Main Profile/High Profile
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/ 8-320Kbps(MP3)
Dual Stream: Yes
Triple Streams: Yes
Max. Image Resolution: 3840 × 2160
Frame Rate: 50Hz: 25fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1080 × 720)
60Hz: 30fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1080 × 720)
Sub Stream: 50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS, distortion correction
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping: Yes
BLC: Support
HLC: Support
Smart Defog: Support
EIS: Support
3D DNR: Support
ROI: Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed region for each stream and dynamic face tracking
Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch: Auto/Schedule/Day/Night/Triggered by Alarm In
Network
Network Storage: Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
General Function: One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Interface
Communication Interface: 1 RJ45 10M/100M/1000M Ethernet port
Audio: 1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono
Alarm: 1 input, 1 output (max. 24 VDC/VAC, 1A max.)
Alarm Input: 1
Alarm Output: 1
Video Output: 1Vp-p composite output (75 Ω/BNC) (For adjustment only)
On-board storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Linkage Method: Trigger recording：memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output, Email
Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event: Line crossing detection, up to 4 lines configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable
Face detection: detects faces and upload images
Scene change detection, audio exception detection, defocus detection
Statistics: Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
IR Range: 2.8 to 12 mm: up to 30 m; 8 to 32 mm: up to 50 m
Operation Condition:
Power Supply: 12 VDC is recommended, 10 to 48 VDC, two-core terminal block, reverse polarity protection,PoE (802.3at, class 4)
Power Consumption: -IZS:
With extra load: 12 VDC, 1.1 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4
Without extra load: 12 VDC, 0.95 A, max. 10 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4
-IZHS:
With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
“with extra load” means that an extra device is connected to and powered by the camera.
Impact Protection: IK10
Weather Proof: IP67
Dimensions: Camera: Φ162 × 140.3 mm (Φ6.4″ × 5.5″)
With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″)
Weight: Camera: 1450 g (3.20 lb.)
With package: 1950 g (4.30 lb.)
