Product Overview

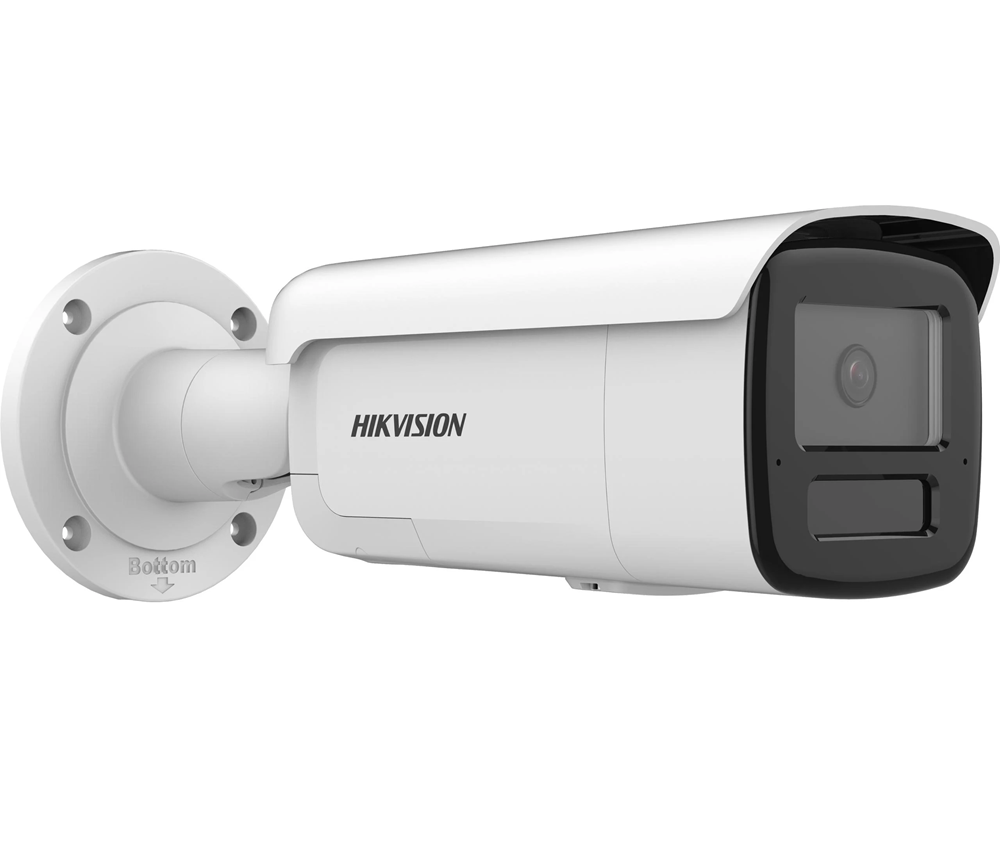

Built for outdoor perimeter and boundary monitoring, the Hikvision DS-2CD2T86G2H-IS2U/SL is an 8MP bullet camera that combines active deterrence with AcuSense deep learning classification in a rugged IP67-rated metal housing. Capturing footage at 3840 x 2160 resolution through a wide 2.8mm fixed lens, it delivers a horizontal field of view of approximately 105 degrees, making it suited to driveways, car parks, loading areas, and building perimeters where broad coverage is needed. Equipped with a built-in strobe light and audible siren, it can be configured to trigger automatically when a human or vehicle target is detected, responding to intrusions before a monitoring centre needs to act. The smart IR illuminator reaches 60 metres for night coverage, while 120dB Wide Dynamic Range maintains clarity in scenes with strong backlighting. It also includes built-in two-way audio with both a microphone and speaker, H.265+ compression, and a microSD card slot supporting up to 512GB of local storage.
Key Capabilities
Active Deterrence: Strobe and Siren
The built-in strobe light and audible alarm can be triggered automatically upon detection of a confirmed human or vehicle target. This allows the camera to respond to an intrusion in real time, alerting or discouraging the intruder without requiring a monitoring operator to intervene first.
AcuSense Human and Vehicle Classification
Deep learning algorithms classify targets as human or vehicle, filtering out motion from animals, trees, and passing headlights. This reduces nuisance alerts on perimeter installations and means alarms that do fire are far more likely to correspond to a genuine intrusion event.
8MP Ultra HD Resolution at 2.8mm
The 3840 x 2160 sensor paired with a wide 2.8mm lens covers broad approaches at a detail level that supports after-the-fact review of clothing, vehicle type, and movement direction. The approximately 105-degree horizontal field of view reduces the number of cameras needed to cover a wide frontage or gate entry.
60m Smart IR Night Vision
The smart IR illuminator adjusts intensity based on subject distance to avoid overexposure at close range while still reaching objects up to 60 metres away. This makes it suitable for long driveways, open yards, and perimeter fence lines where IR wash-out is a common problem with fixed-intensity illuminators.
Two-Way Audio with Built-In Mic and Speaker
With both a built-in microphone and speaker confirmed, the DS-2CD2T86G2H-IS2U/SL supports real-time two-way voice communication through the camera. This allows an operator or business owner to speak directly to a person at the camera location, useful for entry points, loading docks, and after-hours access scenarios.
120dB WDR and H.265+ Compression
A 120dB Wide Dynamic Range handles challenging lighting conditions such as direct sun behind a subject at a gate or a vehicle entering a shadowed undercover area. H.265+ compression reduces the storage and bandwidth footprint of 8MP footage, which matters when running multiple cameras or relying on the 512GB onboard microSD for local retention.
Best For
- Perimeter and Boundary Monitoring: The 2.8mm lens delivers a wide ~105-degree horizontal view suited to fence lines, entry gates, and open yard approaches where a single camera needs to cover a broad front.
- Active Deterrence Deployments: Sites that need more than passive recording benefit from the integrated strobe and siren, which can fire automatically on confirmed human or vehicle detection without requiring manual operator input.
- Outdoor Installations in Demanding Environments: The metal housing with IP67 weatherproofing is appropriate for coastal, industrial, or exposed roof-line positions where cheaper plastic housings degrade under UV and moisture over time.
- Sites Requiring Local Storage Backup: The microSD slot supporting up to 512GB provides a local failover recording option for locations with unreliable network connectivity or where redundant storage is required alongside an NVR.
Why Choose the DS-2CD2T86G2H-IS2U/SL
What separates the DS-2CD2T86G2H-IS2U/SL from a standard 8MP bullet camera is the combination of AcuSense classification and on-camera active deterrence. A basic bullet camera records events after they occur. This model can respond to a confirmed human or vehicle detection by triggering a strobe and siren directly at the camera, without a VMS rule, without a monitoring centre call, and without delay. That distinction matters at unmanned perimeter positions, remote yards, or after-hours retail entries where response time is critical. The 2.8mm lens in 8MP format provides usable subject detail across the wide field of view, and the 120dB WDR handles gate entries and loading dock lighting challenges that routinely defeat lower-spec sensors. Available at Security Wholesalers, the DS-2CD2T86G2H-IS2U/SL is an appropriate choice when the brief calls for a camera that actively deters rather than passively records.
Buyer Decision Tips
Lens and Coverage Range: The fixed 2.8mm lens is optimised for wide coverage rather than distance. At 60m of IR reach, the wide field of view means subjects at that distance will appear relatively small in frame. If your priority is identifying individuals or vehicles approaching along a narrow corridor or long driveway at 30-50m, a 4mm or 6mm version of this camera line may deliver better subject detail at range. The 2.8mm is the right choice when you need maximum angular coverage at medium depth, such as across a car park frontage or wide building entry.
Active Deterrence Placement: The strobe and siren are most effective when the camera is mounted at a height and angle where the light and sound output reach the intruder directly. Mounting too high reduces the psychological impact of the strobe. Hikvision recommends wall mounting at 2.5 to 4 metres for optimal deterrence effect. Also confirm that your NVR or VMS supports AcuSense event-triggered outputs if you intend to automate the deterrence response rather than trigger it manually.
Key Features & Technical Specifications
| Model |
DS-2CD2T86G2H-IS2U/SL |
| Resolution |
8MP – 3840 x 2160 Ultra HD |
| Lens |
2.8mm fixed |
| Horizontal Field of View |
Approximately 105 degrees |
| IR Range |
Up to 60m (smart IR) |
| Active Deterrence |
Built-in strobe light and audible alarm |
| AI / Detection |
AcuSense – human and vehicle classification via deep learning |
| Wide Dynamic Range |
120dB |
| Audio |
Built-in microphone and speaker (two-way audio) |
| Compression |
H.265+ |
| Local Storage |
MicroSD card slot, up to 512GB |
| Weather Rating |
IP67 |
| Housing |
Metal bullet housing, white finish |
| Camera Series |
Hikvision AcuSense / DarkFighter |
Ideal Use Cases
Car Parks and Open Yards
The approximately 105-degree horizontal field of view from the 2.8mm lens covers wide open areas with fewer camera positions. AcuSense filters vehicle and pedestrian movements, and the strobe and siren can fire automatically when a human target is detected after hours.
Building Entry Points and Gate Posts
Two-way audio with built-in mic and speaker allows voice interaction with visitors or delivery personnel at a gate or entry door. The 120dB WDR manages the backlit conditions common at gate entries where daylight sits behind approaching subjects.
Retail and Commercial After-Hours Perimeters
On commercial sites where staff leave after dark, the active deterrence capability means the camera can respond to a confirmed intrusion attempt with a visible and audible response, without relying on a monitoring centre to act first.
Industrial and Warehouse Exteriors
The IP67-rated metal bullet housing is suited to wall mounting on warehouse exteriors, loading dock entries, and industrial shed perimeters where the camera is exposed to dust, moisture, and temperature variation. The 60m IR supports night coverage across large exterior surfaces.
Remote Sites with Limited Network Access
The microSD slot supporting up to 512GB provides local recording capability at sites where NVR connectivity is intermittent or where a standalone recording backup is required. AcuSense event filtering also reduces the volume of recorded footage that needs to be reviewed.
Choosing the Right Model
- Choose this model if: Your installation requires a wide-coverage outdoor bullet camera with confirmed active deterrence capability – specifically a built-in strobe and siren triggered by AcuSense human or vehicle detection – combined with 8MP resolution, two-way audio, and robust IP67 metal construction for an exposed outdoor position.
- Choose a different model if: Your primary requirement is long-distance subject identification at range rather than wide area coverage. A bullet camera with a longer focal length (4mm, 6mm, or varifocal) will deliver better detail on subjects at 30-60m. Alternatively, if active deterrence is not a requirement and budget is the primary driver, a standard AcuSense bullet without the strobe and siren will cover the same scene at a lower cost.
FAQs
- What does the “IS2U/SL” suffix mean on this Hikvision model?
The “IS2U” indicates the camera includes a built-in microphone and speaker for two-way audio, and the “SL” refers to the integrated strobe light and audible siren for active deterrence. Together these suffixes confirm the camera can both communicate and physically respond to detected targets, distinguishing it from standard fixed bullet models in the same resolution range.
- How does the strobe and siren deterrence actually trigger?
The deterrence output is linked to the AcuSense detection engine. When a human or vehicle target is confirmed by the deep learning classifier, the camera can be configured to fire the strobe and alarm automatically as an immediate response. This can be set up through Hikvision’s VMS or NVR interface, including scheduling the deterrence to operate only during defined hours such as after-hours perimeter coverage.
- Is the 2.8mm lens suitable for a long driveway or narrow approach?
The 2.8mm lens produces an approximately 105-degree horizontal field of view, which is optimised for wide coverage at moderate depth rather than tight framing at long range. For a driveway narrower than 8-10 metres wide at 20-30m distance, a 4mm lens may provide better subject framing. The 2.8mm suits wide frontages, open car parks, and broad entry areas where lateral coverage is more important than reach.
- Does this camera record locally if the NVR goes offline?
Yes. The DS-2CD2T86G2H-IS2U/SL includes a microSD card slot that supports cards up to 512GB. This allows the camera to continue recording to local storage if network connectivity to the NVR is interrupted. It can also be configured to record continuously or on event to the card as a primary or failover storage destination.
- Is two-way audio functional out of the box, or does it require additional hardware?
Two-way audio is supported natively. The camera has a confirmed built-in microphone and a built-in speaker, so no external mic or amplifier is required. Access to the two-way audio function is provided through compatible Hikvision NVRs, the iVMS-4200 client software, or the Hik-Connect mobile app when the camera is connected to the network.
- What IP rating does this camera carry, and is it suitable for coastal installations?
The camera is rated IP67, confirming full dust ingress protection and resistance to temporary immersion in water. The metal bullet housing provides better long-term durability in coastal and high-humidity environments compared to plastic-bodied alternatives. Hikvision also notes optional anti-corrosion accessories are available for extreme coastal conditions where salt spray is a consistent factor.
- Where can I access the datasheet and technical documentation for this camera?
The official Hikvision datasheet for the DS-2CD2T86G2H-IS2U/SL is linked in the Additional Information section below. Technical documentation, firmware, and compatibility guides are also available through Security Wholesalers and the Hikvision Australia support portal. Always confirm NVR firmware compatibility before deployment on an existing system.
