Product Overview
Combining Smart Hybrid Light with a motorised varifocal lens in a robust turret housing, the DS-2CD2H87G3-LIZSY is built for outdoor installations where both field-of-view flexibility and full-colour night imaging are required. Delivering 8MP (3840×2160) resolution from a 1/1.8″ progressive scan CMOS sensor, this camera records at up to 30fps with 130dB WDR, 3D DNR, electronic image stabilisation, and defog for consistent detail in high-contrast or adverse conditions. The 2.8-12mm motorised varifocal lens covers a horizontal field of view from 112.3° down to 41.2°, allowing installers to frame coverage precisely without physical repositioning. Smart Hybrid Light automatically switches between IR and white LEDs to maintain full-colour imaging in low-light or zero-light scenes at up to 40m. Deep-learning human and vehicle classification, combined with IP67, IK10, and NEMA 4X anti-corrosion protection, make this turret camera suitable for demanding commercial, industrial, and coastal outdoor environments.
Key Capabilities
8MP 4K Resolution on 1/1.8″ Sensor
The large-format 1/1.8″ progressive scan CMOS sensor captures 3840×2160 footage at up to 30fps, providing the detail needed to identify individuals and vehicles across wide outdoor scenes at full resolution.
Smart Hybrid Light with Full-Colour Imaging
Integrated IR and white LEDs work together automatically, switching modes based on scene conditions to deliver full-colour imaging up to 40m in low-light and zero-light environments without manual intervention.
Motorised Varifocal 2.8-12mm Lens
The motorised 2.8-12mm lens provides a horizontal FOV range from 112.3° to 41.2°, letting installers dial in coverage angle remotely or via the camera menu rather than physically adjusting the optic at height.
Deep-Learning Human and Vehicle Detection
On-board deep-learning algorithms classify moving objects as humans or vehicles, filtering out irrelevant motion events from animals, foliage, or environmental movement and triggering alerts only for genuine intrusions.
130dB WDR, EIS, and Defog
Wide dynamic range of 130dB manages high-contrast lighting at entrances and gates, while electronic image stabilisation and defog maintain usable footage in vibration-prone or low-visibility outdoor conditions.
IP67, IK10, and NEMA 4X Anti-Corrosion Housing
The metal turret housing is fully weatherproofed to IP67, impact-rated to IK10, and certified NEMA 4X for corrosion resistance, covering coastal, industrial, and chemical-exposure environments other housings would not withstand.
Best For
- Commercial Perimeter Monitoring: The motorised varifocal lens and deep-learning detection make this camera well suited to fence lines, gates, and property boundaries where accurate human and vehicle alerts are needed across varied distances.
- Industrial and Coastal Sites: NEMA 4X anti-corrosion certification alongside IP67 and IK10 ratings allows installation at marine facilities, chemical plants, and coastal properties where standard outdoor cameras degrade prematurely.
- Retail and Commercial Exteriors at Night: Smart Hybrid Light with full-colour ColorVu imaging captures colour-accurate footage of carparks, loading areas, and shopfronts throughout the night rather than switching to monochrome IR.
- Installations Requiring Adjustable Coverage: Sites where camera mounting positions are fixed but scene framing needs to change over time benefit from the 2.8-12mm motorised varifocal rather than a fixed-lens alternative that would require physical remounting.
Why Choose the DS-2CD2H87G3-LIZSY
The DS-2CD2H87G3-LIZSY brings together capabilities that a standard fixed-lens outdoor turret camera at a lower price point would not provide. The combination of a 1/1.8″ sensor, 130dB WDR, and Smart Hybrid Light places this camera above entry-level 8MP options when colour fidelity and scene latitude under difficult lighting matter. The motorised varifocal lens removes the need to source different fixed-lens variants for different site layouts, reducing stock complexity for installers. NEMA 4X anti-corrosion certification is a specific addition beyond the IK10 and IP67 ratings most outdoor turrets carry, making this the appropriate choice for harsh or chemically exposed environments where housing integrity is critical. Built-in microSD support up to 512GB adds edge storage as a backup to NVR recording. Available through Security Wholesalers, this camera is stocked in white for immediate dispatch.
Buyer Decision Tips
Lens Range and Scene Distance: The 2.8-12mm motorised varifocal covers a wide span of coverage angles, but at the 12mm end the 40° horizontal FOV narrows the scene considerably. Before ordering, confirm whether you need broad coverage of a wide area (use the wider end) or a tighter view down a corridor, driveway, or entrance approach (use the longer end). The motorised adjustment makes it easy to fine-tune on-site, but understanding the approximate scene width and camera mounting height will help you confirm this focal range is the right fit.

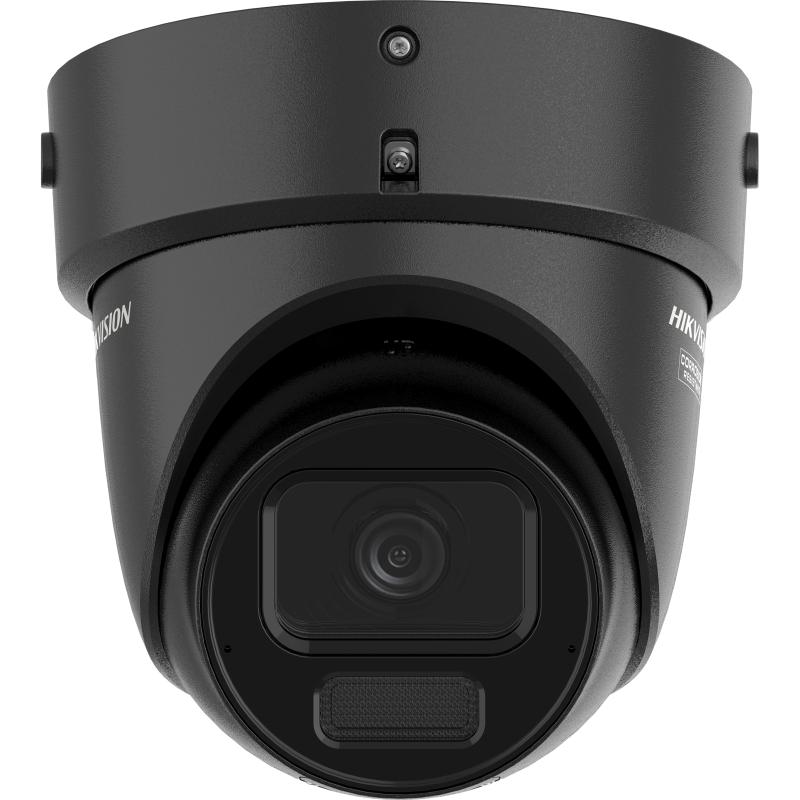

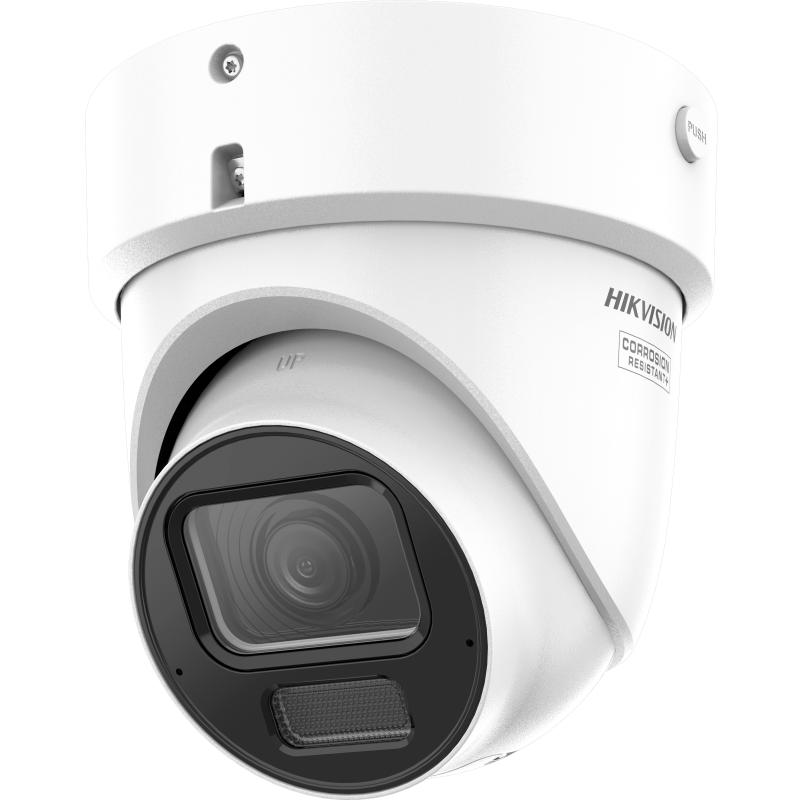

Colour Finish and Lead Time: This model is available in both white and black finishes. White units are currently in stock for immediate fulfilment. The black finish has an estimated 6-8 week lead time. If the installation schedule is time-sensitive, confirm finish requirements early or consider whether the white finish suits the mounting environment before ordering the black variant.
Key Features & Technical Specifications
| Model | DS-2CD2H87G3-LIZSY |
| Resolution | 8MP (3840×2160) |
| Image Sensor | 1/1.8″ progressive scan CMOS |
| Frame Rate | Up to 30fps at 8MP |
| Lens Type | Motorised varifocal, 2.8-12mm |
| Horizontal Field of View | 112.3° (at 2.8mm) to 41.2° (at 12mm) |
| Illumination Technology | Smart Hybrid Light (IR + white LEDs) |
| IR Range | Up to 40m |
| Colour Night Vision | Full-colour imaging in low-light via white LEDs (ColorVu) |
| Wide Dynamic Range | 130dB |
| Image Enhancements | 3D DNR, EIS, defog |
| Video Analytics | Deep-learning human and vehicle detection and classification |
| Weather Rating | IP67 |
| Vandal Resistance | IK10 |
| Corrosion Protection | NEMA 4X anti-corrosion |
| Power Input | PoE (IEEE 802.3af/at) or 12V DC |
| Local Storage | Built-in microSD slot, up to 512GB |
| Platform Compatibility | Hikvision iVMS, Hik-Connect, Hik-Central |
| Standards | ONVIF, HTTPS encryption |
| Housing Type | Turret (metal) |
Ideal Use Cases
Commercial Property Perimeters
Deep-learning human and vehicle detection filters alarm events accurately along fence lines, access roads, and gate approaches, ensuring event notifications are relevant rather than triggered by passing animals or wind-blown foliage.
Industrial Yards and Loading Docks
IK10 impact resistance and NEMA 4X anti-corrosion protection make this turret camera suitable for heavy industrial yard environments where equipment movement, dust, and corrosive agents put conventional outdoor cameras at risk.
Coastal and Marine Installations
NEMA 4X certification specifically addresses salt-air and chemical corrosion, making the DS-2CD2H87G3-LIZSY a practical choice for marinas, waterfront facilities, and coastal properties where salt exposure shortens camera lifespan.
Retail Carparks and After-Hours Monitoring
Smart Hybrid Light maintains full-colour footage throughout the night in carparks and service areas, providing colour-accurate vehicle and clothing identification that monochrome IR footage cannot deliver during after-hours incidents.
Multi-Site Installer Projects
The motorised varifocal 2.8-12mm lens allows a single camera model to be deployed across multiple sites with differing layout requirements. Installers can adjust framing at each location without stocking separate fixed-focal-length variants.
Choosing the Right Model
- Choose this model if: Your installation is outdoors in a harsh, coastal, or industrially exposed environment and you need motorised focal-length adjustment, full-colour night imaging via Smart Hybrid Light, and deep-learning human and vehicle detection in an IK10 and NEMA 4X rated turret housing.
- Choose a different model if: Your site is purely indoor and does not require weatherproofing, vandal resistance, or anti-corrosion protection. A fixed-lens indoor dome camera would reduce cost and complexity for internal ceiling installations where the varifocal capability and rugged housing add no practical benefit.
- Choose a different model if: You need continuous pan and tilt control across a large open area such as a yard, car park, or playing field. This is a fixed-position turret camera. A PTZ camera with motorised pan-tilt-zoom would cover dynamic tracking requirements that a varifocal turret cannot.
FAQs
- What is the difference between the IR and white light modes on the Smart Hybrid Light system?
The DS-2CD2H87G3-LIZSY uses both IR LEDs and white LEDs. IR mode produces monochrome night footage and is invisible to the human eye. White light mode illuminates the scene visibly and produces full-colour footage. Smart Hybrid Light automatically selects between these modes based on ambient light levels and scene conditions, so colour imaging is maintained when the white LEDs activate. - Does the motorised varifocal lens mean this camera can pan and tilt?
No. The motorised varifocal lens adjusts the optical zoom level (focal length between 2.8mm and 12mm), which changes the horizontal field of view from 112.3° to 41.2°. This is a lens framing adjustment only. The turret head can be physically angled during installation, but the camera does not pan or tilt automatically during operation. It is a fixed-position camera once installed. - What does NEMA 4X anti-corrosion protection mean for this camera?
NEMA 4X is a US enclosure standard that specifies resistance to corrosion from salt water, chemicals, and other corrosive environments. For the DS-2CD2H87G3-LIZSY, this means the housing has been treated and tested to withstand corrosive outdoor exposure beyond standard IP67 weatherproofing, making it appropriate for coastal, marine, and industrial chemical environments. - How does the deep-learning detection reduce unwanted alerts on this camera?
The camera’s on-board deep-learning processor analyses moving objects in the frame and classifies them as humans or vehicles rather than responding to any motion. This means events caused by animals, trees, rain, or shadows are filtered out at the camera level before an alert is generated, resulting in fewer notifications that require a response from site operators. - Can the DS-2CD2H87G3-LIZSY record locally without an NVR?
Yes. The camera includes a built-in microSD card slot supporting cards up to 512GB, allowing edge recording directly to the card. This provides continuous local recording as a standalone backup or as the primary storage method for smaller installations that do not require a centralised NVR. - Is this camera available in both white and black finishes, and are both in stock?
The DS-2CD2H87G3-LIZSY is available in white and black. The white finish is currently in stock for immediate supply. The black finish carries an estimated 6-8 week lead time. Check with Security Wholesalers for current availability before committing to the black finish on a time-sensitive project. - What power options does this camera support?
The DS-2CD2H87G3-LIZSY supports Power over Ethernet (PoE) to IEEE 802.3af/at standards, allowing a single Cat5e or Cat6 cable to carry both data and power from a PoE switch or injector. It also accepts 12V DC power from a separate supply if PoE infrastructure is not available at the installation site.
Additional Information
- DS-2CD2H87G3-LIZSY Datasheet
- 6-8 weeks lead time for BLACK. WHITE in stock.
