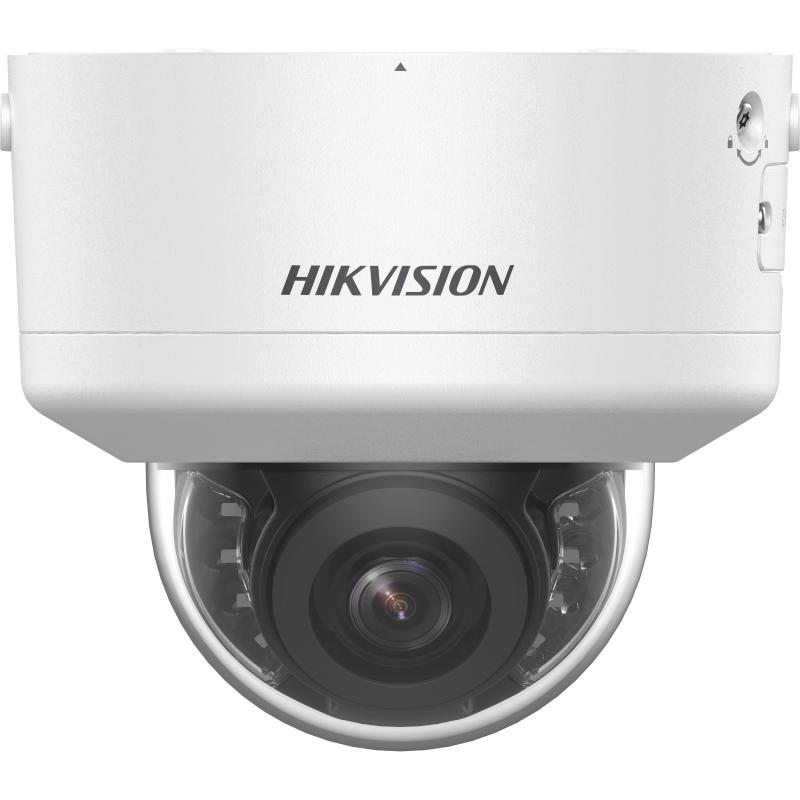

Product Overview
Combining motorised angle adjustment with 8MP ColorVu imaging, the DS-2CD2787G2H-LIPTRZS addresses one of the most common challenges on professional ceiling-mount installations: getting the dome aimed precisely where it needs to be after the housing is fixed. This camera supports motorised pan (0° to 350°), tilt (0° to 85°) and rotate (0° to 350°) alongside a 2.8-12mm motorised varifocal lens, allowing installers to frame the scene remotely without repositioning the housing. Equipped with Hikvision’s Smart Hybrid Light system, it switches between IR and white light illumination to a range of up to 40m, maintaining colour or monochrome imaging depending on the environment. Built with a 1/1.8″ CMOS sensor and 130dB WDR, it handles strong backlight at entrances, foyers and covered car parks. It also integrates deep learning perimeter protection with human and vehicle classification, face capture, and onboard microSD storage up to 512GB. IP66 and IK10 ratings make it suitable for exposed outdoor and public-facing positions.
Key Capabilities
Motorised PTRZ Adjustment
Pan up to 350°, tilt up to 85° and rotate up to 350°, all motorised and adjustable remotely via software. Installers can correct the viewing angle after the camera is mounted to the ceiling without physically repositioning the dome housing, saving time on commercial projects with high or awkward mounting locations.
8MP ColorVu Imaging
The 1/1.8″ progressive scan CMOS sensor delivers 3840 x 2160 resolution with a maximum aperture of F1.2, capturing fine scene detail across a wide frame. ColorVu technology provides colourful imaging around the clock, giving footage genuine identification value rather than monochrome silhouettes.
Smart Hybrid Light
The camera carries both 850nm IR and white light illuminators, each with up to 40m range. Smart Hybrid Light mode automatically manages which illuminator is active based on scene conditions, allowing the system to switch between covert IR and colour-producing white light without manual reconfiguration.
130dB Wide Dynamic Range
With 130dB WDR, the DS-2CD2787G2H-LIPTRZS maintains usable detail in scenes with intense backlight, such as entry points facing outdoor daylight or foyers with mixed artificial and natural light sources. BLC, HLC and 3D DNR complement WDR for consistent image quality across lighting transitions.
Deep Learning Perimeter Protection
On-camera deep learning classifies detected objects as human or vehicle, filtering out irrelevant triggers from animals, foliage or lighting changes. Line crossing, intrusion, region entrance and region exiting rules can each be set to respond only to the target types relevant to the monitored zone, including face capture capability.
IP66 / IK10 Construction
The metal housing carries IP66 dust and water resistance alongside IK10 vandal resistance, making it suitable for ceiling mounting in covered car parks, building entrances and external corridors subject to weather exposure and deliberate impact. Operating temperature range extends from -30°C to 60°C.
Best For
- Commercial Building Entrances: The 130dB WDR and 8MP sensor handle the strong backlight typical at glazed entrance doors and foyers, while PTRZ adjustment allows precise coverage of the entry zone from a ceiling-mount position.
- Covered Car Parks and Loading Areas: Smart Hybrid Light delivers colour imaging in low-ambient environments without relying solely on existing site lighting, and IK10 construction handles the physical demands of vehicular environments.
- Perimeter Corridors and Walkways: The 2.8-12mm motorised varifocal lens (DORI tele: detection to 220m) and deep learning perimeter rules allow the camera to cover long approaches and generate alerts specific to human or vehicle movement.
- Professional Multi-Camera Installations: Remote PTRZ angle correction reduces the need for scaffolding returns or ceiling re-access during commissioning, making this model practical for larger projects where time on-site matters.
Why Choose the DS-2CD2787G2H-LIPTRZS
The DS-2CD2787G2H-LIPTRZS occupies a specific position in ceiling-mount dome cameras: it combines the framing flexibility of a motorised PTRZ mechanism with the imaging capability of an 8MP ColorVu sensor on a large 1/1.8″ chip. A fixed-lens dome at the same resolution gives you no post-mount angle correction; a motorised varifocal without PTRZ still requires physical repositioning if pan or tilt is wrong. This model solves both problems through remote adjustment across all four axes, up to 1,000 adjustment cycles. The F1.2 maximum aperture supports a minimum illumination of 0.0028 Lux in colour, and with white light active that drops to 0 Lux. H.265+ compression, onboard microSD up to 512GB and a 1-input/1-output alarm interface add operational depth that simpler domes do not carry. Available through Security Wholesalers, this camera is suited to installers who need precise ceiling coverage without compromise on image quality or night performance.
Buyer Decision Tips
PTRZ vs. Live PTZ: The motorised pan, tilt and rotate on the DS-2CD2787G2H-LIPTRZS are designed for installation-time scene alignment, not continuous live tracking. Adjustment is remote and supports up to 1,000 cycles. If your application requires an operator to actively pan and tilt the camera in real time to track movement across a large open area, this camera is not a substitute for a full motorised PTZ unit. If your need is to frame a fixed scene accurately from a ceiling position without repeated physical access, the PTRZ mechanism on this model is the appropriate tool.
Choosing the Right Light Mode: Smart Hybrid Light automatically manages IR and white light, but the correct mode depends on the site. For locations where white light activation at night is acceptable or preferred (such as car parks where the illumination is also a deterrent), white light mode delivers full-colour footage. For sites where covert monitoring is required and visible illumination would be intrusive (such as indoor corridors shared with residents), IR-only mode provides monochrome coverage without announcing the camera’s activity. Set the light mode deliberately during commissioning rather than leaving it on automatic if the site has specific requirements.
Key Features & Technical Specifications
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Max. Resolution |
3840 x 2160 (8MP) |
| Lens Type |
Motorised varifocal, 2.8-12mm |
| Aperture |
Max. F1.2 |
| Horizontal FOV |
112.3° (wide) to 41.2° (tele) |
| PTRZ Adjustment |
Pan: 0°-350°, Tilt: 0°-85°, Rotate: 0°-350°, remote motorised (max. 1,000 cycles) |
| Min. Illumination (Colour) |
0.0028 Lux @ F1.2, AGC ON; 0 Lux with light |
| Supplement Light |
IR (850nm) and White Light, up to 40m; Smart Hybrid Light supported |
| Wide Dynamic Range |
130 dB |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| Frame Rate |
Up to 25fps @ 3840 x 2160 (50Hz); up to 24fps @ 3840 x 2160 (60Hz) |
| Deep Learning Functions |
Human and vehicle classification, face capture, perimeter protection (line crossing, intrusion, region entrance, region exiting) |
| Onboard Storage |
MicroSD/SDHC/SDXC up to 512GB |
| Audio Interface |
1 x line input, 1 x line output (two-core terminal block) |
| Alarm Interface |
1 input, 1 output (max. 24VDC/24VAC, 1A) |
| Power |
12VDC (max. 12.6W) or PoE IEEE 802.3at Class 4 (max. 15W) |
| Protection Rating |
IP66, IK10 |
| Operating Temperature |
-30°C to 60°C |
| Dimensions |
Ø155mm x 140.4mm |
| Weight |
Approx. 820g |
Ideal Use Cases
Commercial Building Entrances
Glazed doors and entrance lobbies create severe backlight challenges. The 130dB WDR and 8MP sensor on the DS-2CD2787G2H-LIPTRZS maintain detail on faces and clothing even when subjects are silhouetted against bright outdoor light, and the motorised varifocal lens frames the entry zone precisely.
Covered Car Parks
Ceiling-mounted positions in car parks benefit directly from PTRZ angle correction, which removes the need to re-access high fixing points after initial installation. White light mode produces colour footage of vehicle movements and pedestrian activity at 0 Lux, useful where existing ambient light is minimal.
External Perimeter Corridors
The DORI tele detection range of 220m and deep learning line crossing and intrusion rules make this dome suitable for monitoring long outdoor corridors and covered walkways. Human and vehicle classification limits alerts to relevant events rather than general motion.
Retail and Hospitality Foyers
The dome housing suits ceiling-mounted positions in public-facing spaces where a discreet form factor is preferred. IK10 construction resists tampering, and the 8MP resolution supports wide-angle framing of a full foyer at 2.8mm while retaining the detail needed for identification at tighter zoom settings.
Multi-Site Commercial Rollouts
Installers commissioning multiple sites benefit from the remote motorised framing on the DS-2CD2787G2H-LIPTRZS: once the housing is fixed, pan, tilt, rotate and zoom can all be finalised from a laptop without returning to the ceiling. H.265+ compression keeps storage and bandwidth demands manageable across large channel counts.
Choosing the Right Model
- Choose this model if: you need an 8MP ceiling-mount dome with motorised pan, tilt, rotate and zoom for post-installation scene alignment, combined with ColorVu full-colour night imaging, Smart Hybrid Light and on-camera deep learning perimeter protection with human and vehicle classification.
- Choose a different model if: your application requires a live operator to pan and tilt the camera in real time to actively track subjects across a large open area – a full motorised PTZ unit is the appropriate choice for continuous remote tracking. Similarly, if PTRZ and Smart Hybrid Light are not required and budget is the primary consideration, a fixed-lens dome with standard IR will cover straightforward indoor ceilings at lower cost.
FAQs
- What does PTRZ mean on the DS-2CD2787G2H-LIPTRZS and how is it used?
PTRZ stands for Pan, Tilt, Rotate and Zoom. On this camera, all four axes are motorised and can be adjusted remotely through Hikvision’s client software or web interface after the housing is physically fixed to the ceiling. This allows installers to correct the framing without returning to the mount point. The mechanism supports up to 1,000 adjustment cycles and is intended for installation-time commissioning, not continuous live tracking.
- Does this camera record in colour at night without external lighting?
Yes. ColorVu technology combined with the F1.2 aperture and 1/1.8″ sensor achieves a minimum colour illumination of 0.0028 Lux, which captures colour footage in very low ambient light. When the built-in white light illuminator is active, minimum illumination drops to 0 Lux, producing full-colour footage in complete darkness within the 40m illumination range.
- What is the difference between IR mode, white light mode and Smart Hybrid Light mode?
IR mode activates the 850nm infrared illuminator for covert monochrome coverage up to 40m, suitable where visible light would disturb occupants or reveal camera positions. White light mode activates the visible illuminator, producing colour footage and also acting as a visible deterrent. Smart Hybrid Light mode lets the camera automatically manage which illuminator is used based on scene conditions, switching between IR and white light as required.
- Can the 2.8-12mm motorised zoom be adjusted after the camera is installed and live?
Yes. The motorised varifocal lens can be adjusted remotely at any time through the camera’s web interface or Hikvision management software, independently of the PTRZ adjustment. This means the field of view can be tightened or widened to accommodate scene changes – such as adding a queue barrier or repositioning signage – without physical access to the camera.
- What perimeter detection rules does this camera support?
The DS-2CD2787G2H-LIPTRZS supports line crossing detection, intrusion, region entrance and region exiting. Each rule can be configured to trigger only on human targets, only on vehicle targets, or both, using on-camera deep learning classification. Face capture is also supported. This reduces nuisance alerts from animals, environmental movement and lighting changes that would otherwise trigger general motion detection.
- What are the power and storage options for this camera?
The camera accepts 12VDC (max. 12.6W) or PoE via IEEE 802.3at Class 4 (max. 15W), making it compatible with standard PoE+ switches and NVRs. For local edge storage, the built-in microSD slot accepts cards up to 512GB. Network storage via NAS (NFS, SMB/CIFS) and Auto Network Replenishment (ANR) are also supported for redundancy. This model is available through Security Wholesalers as a special order item with a 6-7 week lead time.
- Is the DS-2CD2787G2H-LIPTRZS compatible with third-party VMS and NVR platforms?
The camera supports ONVIF Profile S, Profile G and Profile T, providing compatibility with third-party VMS and NVR systems that support these profiles. It is natively compatible with Hikvision platforms including iVMS-4200, Hik-Connect and Hik-Central. The ISAPI and SDK interfaces are also available for custom integrations. Up to 6 simultaneous live view channels are supported.
