Product SKU: DS-2272ZJ-KL
Product Overview

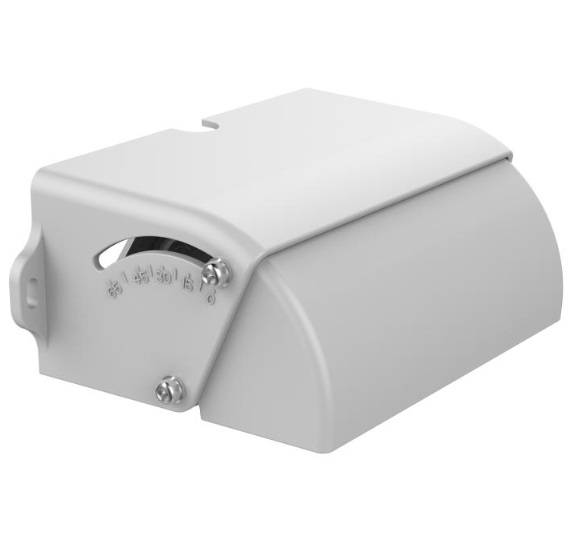

The Hikvision DS-2272ZJ-KL is an adjustable wall and ceiling mounting bracket designed for selected Hikvision people-counting cameras, including the DS-2CD6825G0/C family. Rather than functioning as a fixed building-corner bracket, it allows the installed camera to tilt from 0° to 65°, giving installers control over the camera angle required for entrance, doorway and counting-zone applications. Manufactured from aluminium alloy and finished in white, the bracket measures approximately 157.4 × 99 × 62 mm and weighs around 285.8 g. It supports a maximum stated load of 1.36 kg and should be installed on a suitable flat surface with fixings capable of supporting the complete camera and bracket assembly.
Key Capabilities
0° to 65° Adjustable Tilt
The bracket allows a compatible people-counting camera to be tilted from 0° to 65°, helping installers achieve the required viewing geometry over doors, entrances and defined counting areas.
Wall or Ceiling Mounting
Hikvision specifies the DS-2272ZJ-KL for both wall and ceiling mounting, giving installers flexibility when positioning supported people-counting cameras.
People-Counting Camera Support
The mount is specifically intended for compatible Hikvision people-counting cameras, including the DS-2CD6825G0/C family, rather than general-purpose dome, turret or bullet cameras.
1.36 kg Maximum Load
The bracket has a maximum stated load capacity of 1.36 kg when installed on a suitable supporting surface using fixings appropriate for the complete camera-and-mount assembly.
Best For
- People-Counting Entrances: Suitable where a compatible dual-lens counting camera must be angled accurately over an entrance or doorway.
- Retail Stores: Useful for supported people-counting installations above customer entry and exit points.
- Wall or Ceiling Installations: Provides flexibility when the preferred camera position cannot be achieved using direct surface mounting.
- Adjustable Counting Zones: The 0°–65° tilt range allows the camera angle to be matched more closely to the physical layout of the monitored area.
Why Choose the DS-2272ZJ-KL
The DS-2272ZJ-KL is designed for a specialised application where camera angle directly affects people-counting performance. Its adjustable 0°–65° tilt range gives installers much greater control over the positioning of compatible counting cameras than a fixed mounting plate, while wall and ceiling mounting support allows the bracket to suit different entrance layouts. The lightweight aluminium-alloy construction keeps the mount compact while still supporting cameras up to the stated 1.36 kg maximum load. Available through Security Wholesalers, the DS-2272ZJ-KL should be selected specifically for compatible people-counting camera models rather than treated as a universal CCTV corner bracket.
Buyer Decision Tips
Buyer Tip: Despite some reseller descriptions referring to it as a corner bracket, Hikvision documents the DS-2272ZJ-KL as a wall mount that also supports ceiling installation. Choose it for adjustable people-counting camera positioning rather than building-corner mounting.
Buyer Tip: Confirm the exact camera model before purchase. Hikvision specifically associates this mount with compatible people-counting cameras such as the DS-2CD6825G0/C family, so it should not be assumed to fit standard dome, turret or bullet cameras.
Key Features & Technical Specifications
| Product Type |
Adjustable wall and ceiling mount for compatible people-counting cameras. |
| Model |
DS-2272ZJ-KL. |
| Mounting Type |
Wall mount with ceiling-mount support. |
| Camera Application |
Compatible Hikvision people-counting cameras, including the DS-2CD6825G0/C family. |
| Adjustable Tilt |
0° to 65°. |
| Material |
Aluminium alloy. |
| Colour |
White. |
| Dimensions |
157.4 × 99 × 62 mm. |
| Weight |
Approximately 285.8 g. |
| Maximum Load Capacity |
1.36 kg. |
| Camera Connection |
1/4 UNC mounting interface shown in the bracket dimensional drawing. |
| Mounting Surface |
Install on a suitable flat surface. |
| Structural Requirement |
Supporting surface should carry at least three times the combined weight of the camera and mount. |
Ideal Use Cases
Retail Entrances
Allows a compatible people-counting camera to be positioned above customer entry and exit points at the required viewing angle.
Shopping Centres
Useful where supported people-counting cameras need adjustable mounting over high-traffic entrances or passageways.
Ceiling-Mounted Counting Zones
Supports installations where the camera must be tilted after ceiling mounting to align correctly with the counting area below.
Wall-Mounted Counting Cameras
Provides adjustable wall mounting when direct camera installation does not provide the required downward viewing angle.
Choosing the Right Model
- Choose this model if: Your compatible Hikvision people-counting camera supports the DS-2272ZJ-KL and requires adjustable wall or ceiling mounting.
- Choose a true corner mount if: The camera must attach to the external or internal corner of a building rather than a flat wall or ceiling.
- Check camera weight if: The selected camera approaches the bracket’s 1.36 kg maximum load capacity.
FAQs
- What is the Hikvision DS-2272ZJ-KL used for?
The Hikvision DS-2272ZJ-KL is an adjustable mounting bracket for compatible Hikvision people-counting cameras. It supports both wall and ceiling installation and allows the camera angle to be adjusted from 0° to 65°. Hikvision specifically identifies it for the DS-2CD6825G0/C people-counting camera family, so it should be selected by camera compatibility rather than treated as a universal CCTV corner bracket.
- Is the DS-2272ZJ-KL a corner mount?
No. Hikvision documentation identifies the DS-2272ZJ-KL as a wall mount that also supports ceiling mounting. Its key purpose is to provide adjustable tilt from 0° to 65° for compatible people-counting cameras. It should not be confused with a fixed corner-mount bracket used to attach cameras to the corner of a building.
- What cameras is the DS-2272ZJ-KL designed for?
Hikvision identifies the DS-2272ZJ-KL for compatible people-counting cameras, including the DS-2CD6825G0/C family. Because mounting interfaces can vary between camera models, buyers should confirm the exact camera model before purchase rather than assuming the bracket will fit other Hikvision dome, turret or bullet cameras.
- What are the dimensions and weight of the DS-2272ZJ-KL?
The DS-2272ZJ-KL measures approximately 157.4 mm × 99 mm × 62 mm and weighs about 285.8 g. These measurements apply to the bracket itself. Additional clearance should be allowed for the compatible camera, cabling and fixing hardware when planning the finished wall- or ceiling-mounted installation.
- What is the maximum load capacity of the DS-2272ZJ-KL?
The DS-2272ZJ-KL has a maximum stated load capacity of 1.36 kg. Hikvision also specifies that the supporting wall or mounting surface should be capable of carrying at least three times the combined weight of the camera and mount. For Security Wholesalers installations, the substrate and fixings should therefore be assessed for the complete installed assembly.
- Can the DS-2272ZJ-KL be adjusted after mounting?
Yes. The DS-2272ZJ-KL provides an adjustable tilt angle from 0° to 65°, allowing a compatible people-counting camera to be aimed for the required installation geometry. This adjustability is particularly useful where the camera must be positioned carefully over entrances or counting zones to achieve the intended view.
