Product Overview

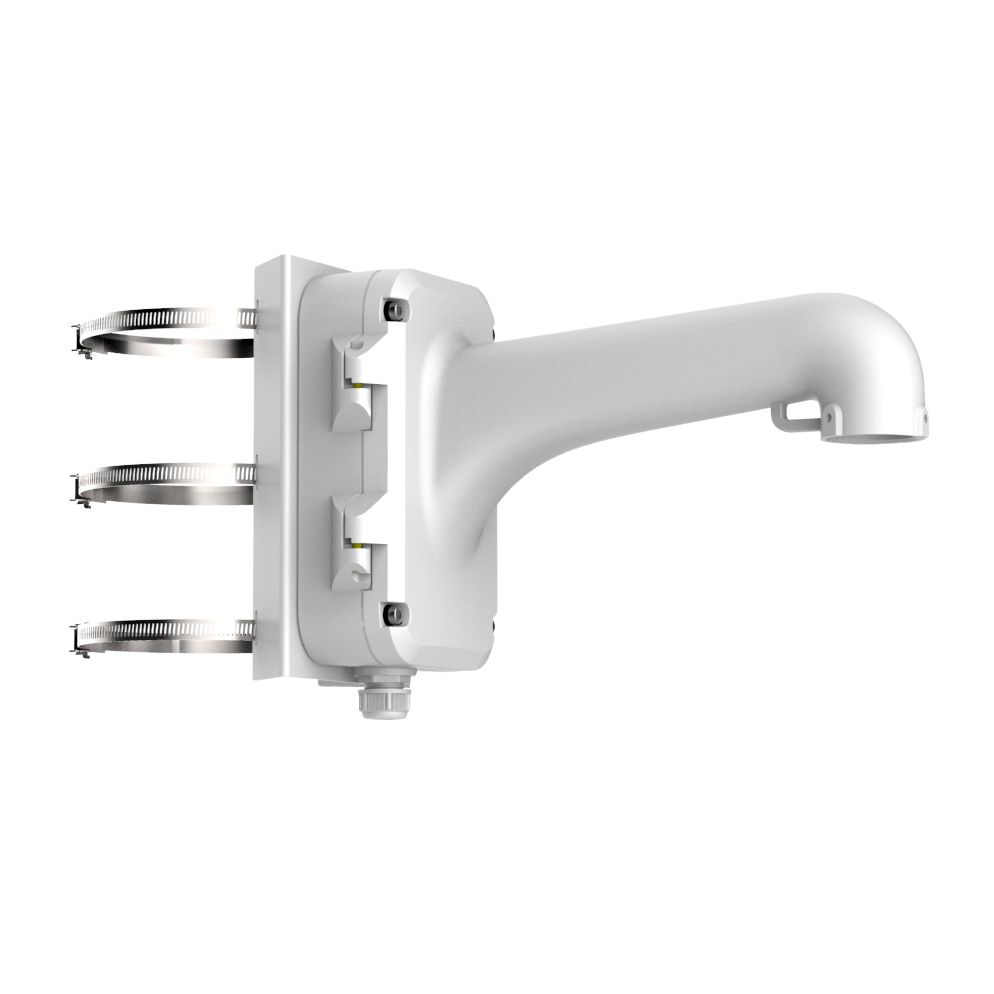

Built for vertical pole installations, the DS-1604ZJ-pole is a dedicated mounting bracket designed to position Hikvision HIK-2DFxxxx series speed dome PTZ cameras on poles in outdoor environments. Constructed from aluminium alloy and steel, the bracket delivers a solid and corrosion-resistant platform that can support the weight and movement demands of a full-size speed dome unit. Featuring an integrated junction box, it provides a clean cable management solution directly at the mounting point, reducing exposed cabling runs and simplifying the installation process. Finished in Hikvision White, the DS-1604ZJ-pole maintains a consistent appearance alongside matching Hikvision camera housings. With a total weight of 3.8 kg and overall dimensions of 355.5 mm x 261.8 mm x 170.7 mm, it is engineered to fit standard pole mount setups at locations where wall or ceiling fixing is not viable, including perimeter poles, car park columns, and standalone mast installations.
Key Capabilities
Vertical Pole Mounting
Designed specifically for pole installation, this bracket provides a stable fixing point for speed dome PTZ cameras at locations where wall or ceiling mounting is not available, such as car park poles, perimeter masts, and standalone posts.
Integrated Junction Box
The built-in junction box allows cabling to be routed and terminated neatly at the bracket itself, keeping wiring contained and protected from the elements, which is particularly useful on exposed outdoor poles.
Aluminium Alloy and Steel Construction
The combination of aluminium alloy and steel gives the bracket the structural rigidity needed to hold a speed dome camera securely, while keeping overall weight manageable at 3.8 kg for easier handling during installation.
Hikvision White Finish
Finished in standard Hikvision White, the DS-1604ZJ-pole matches the housing colour of compatible HIK-2DFxxxx series PTZ cameras, ensuring a consistent and professional appearance at the installation site.
Best For
- Pole-Mounted PTZ Deployments: Sites where speed dome cameras need to be positioned on vertical poles, including car parks, perimeter fencing posts, and roadside masts, where no solid wall or ceiling is available for fixing.
- Outdoor Perimeter Monitoring: Locations requiring wide-area PTZ coverage at height, where a stable and weatherproof bracket with integrated cable management improves installation quality and reduces long-term maintenance issues.
- Hikvision HIK-2DFxxxx Series Installations: Any project specifying HIK-2DFxxxx series speed dome cameras that requires a manufacturer-matched pole bracket to ensure mechanical compatibility and a uniform appearance.
Why Choose the DS-1604ZJ-pole
Generic pole brackets sourced from third parties carry real compatibility risks when used with full-size speed dome PTZ cameras. The DS-1604ZJ-pole is engineered by Hikvision specifically for the HIK-2DFxxxx speed dome series, meaning the mounting interface, load rating, and junction box routing are designed to work with these cameras from the outset. The aluminium alloy and steel build provides long-term structural integrity in outdoor environments, and the integrated junction box removes the need for a separate weatherproof enclosure at the cable entry point. At 355.5 mm x 261.8 mm x 170.7 mm, the bracket is compact enough for typical pole diameters without being unwieldy during installation. Available at Security Wholesalers, the DS-1604ZJ-pole is a straightforward specification choice for installers who want a confirmed, manufacturer-approved mounting solution rather than an untested aftermarket alternative.
Buyer Decision Tips
Buyer Tip: Before ordering, confirm the diameter of the pole at your installation site. The DS-1604ZJ-pole is sized at 355.5 mm x 261.8 mm x 170.7 mm and is designed for use with HIK-2DFxxxx series speed dome cameras. If your project uses a different Hikvision PTZ series or a non-standard pole size, verify compatibility against the datasheet before purchasing to avoid remounting or return freight costs.
Key Features & Technical Specifications
| Model |
DS-1604ZJ-pole |
| Bracket Type |
Vertical pole mounting bracket for speed dome PTZ cameras |
| Compatible Camera Series |
HIK-2DFxxxx series PTZ speed dome cameras |
| Material |
Aluminium alloy and steel |
| Colour / Finish |
Hikvision White |
| Dimensions |
355.5 mm x 261.8 mm x 170.7 mm (14″ x 10.31″ x 6.72″) |
| Weight |
3.8 kg (8.38 lb) |
| Junction Box |
Integrated |
| Mounting Style |
Vertical pole |
| Brand |
Hikvision |
Ideal Use Cases
Car Park Perimeter Poles
Car parks often rely on freestanding poles for lighting and camera placement. The DS-1604ZJ-pole provides a secure fixing point for HIK-2DFxxxx speed domes on these poles, with the integrated junction box keeping cabling protected at the connection point.
Industrial Yard and Facility Masts
Warehouses, logistics yards, and industrial facilities frequently use tall masts for wide-area PTZ coverage. The aluminium alloy and steel construction handles outdoor exposure, and the bracket dimensions suit typical mast installations.
Roadside and Precinct Monitoring
Public space and precinct monitoring projects that mount speed dome cameras on existing street or lighting poles benefit from the DS-1604ZJ-pole’s pole-specific design, which avoids the need to adapt a wall bracket to an unsuitable surface.
Sports Fields and Open Sites
Open-area sites such as sports grounds and recreation parks commonly use pole-mounted cameras where no building structure is nearby. The HIK-2DFxxxx compatibility makes the DS-1604ZJ-pole a direct-fit solution for these installations.
Choosing the Right Model
- Choose this model if: Your installation requires a HIK-2DFxxxx series speed dome camera to be mounted on a vertical pole outdoors, and you want an integrated junction box for clean cable management at the bracket.
- Choose a different model if: Your PTZ camera is from a different Hikvision series not listed as compatible with this bracket, or if your installation is a wall or ceiling surface rather than a vertical pole. Hikvision produces a range of speed dome mounting brackets suited to different surfaces and camera families.
FAQs
- Which cameras is the DS-1604ZJ-pole compatible with?
The DS-1604ZJ-pole is designed for use with Hikvision HIK-2DFxxxx series speed dome PTZ cameras. If you are working with a different Hikvision PTZ series, check the datasheet for that camera to confirm the correct bracket model before purchasing.
- Does this bracket include a junction box, or is it sold separately?
The junction box is integrated into the DS-1604ZJ-pole bracket. No separate enclosure is required for cable termination at the mounting point, which simplifies the installation and reduces the number of components needed on site.
- What is the weight and size of this bracket?
The DS-1604ZJ-pole weighs 3.8 kg (8.38 lb) and measures 355.5 mm x 261.8 mm x 170.7 mm (14″ x 10.31″ x 6.72″). These dimensions make it suitable for standard outdoor pole diameters, though you should verify the fit against your specific pole before installation.
- Can this bracket be used on a wall rather than a pole?
The DS-1604ZJ-pole is specifically described as a vertical pole mounting bracket. While the aluminium alloy and steel construction is solid, the bracket geometry is optimised for pole clamping. For wall surface installations, a different Hikvision bracket designed for wall mounting would be the appropriate choice.
- Where can I get the datasheet for the DS-1604ZJ-pole?
The full datasheet is available through Security Wholesalers and is linked in the Additional Information section below. It covers the complete dimensional drawing and parameter specifications for the bracket.
