Product Overview

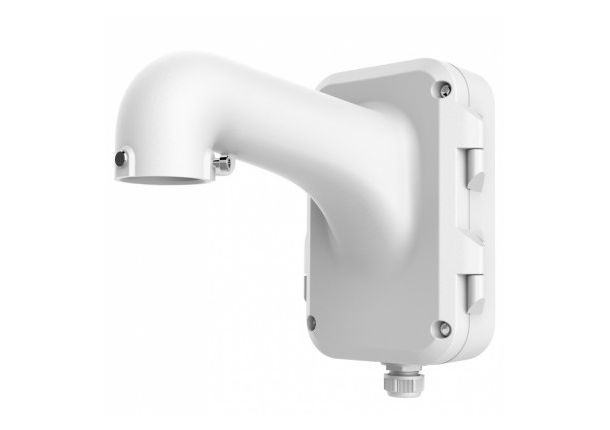

Built specifically for wall-mounting PTZ cameras in the HIK-2DF8836xx series, the DS-1604ZJ is a white aluminium alloy bracket that integrates a junction box to keep cabling enclosed and protected at the mount point. Featuring a substantial aluminium alloy construction at 355.5 mm x 255.3 mm x 170.7 mm and a 2150g weight, the bracket is designed to carry the load of a full-size network PTZ camera securely against a wall surface. The built-in junction box simplifies cable entry and termination directly behind the camera head, reducing exposed wiring runs and giving installations a tidy, professional finish. The white finish is matched to the HIK-2DF8836xx camera housings, keeping the overall installation visually consistent on light-coloured walls, eaves, or building facades.
Key Capabilities
Series-Specific Compatibility
Designed exclusively to suit the HIK-2DF8836xx PTZ camera series, the DS-1604ZJ provides a mount that matches the camera’s weight load, bolt pattern, and cabling requirements without requiring adaptor plates or custom modifications.
Integrated Junction Box
The combined bracket and junction box design brings cable termination to the point of mount. Power, network, and signal cables enter and terminate inside the enclosure, minimising exposed cabling along the wall surface and simplifying the final connection to the PTZ camera.
Aluminium Alloy Construction
Cast from aluminium alloy, the bracket combines low weight with the structural rigidity needed to hold a full-size PTZ unit steady. At 2150g, the bracket itself adds minimal load to the mounting surface while providing a stable, vibration-resistant base.
White Colour Match
The white finish aligns with the HIK-2DF8836xx series camera housing colour. Installations on light-coloured walls, rendered facades, or painted concrete present a coordinated appearance rather than a mismatched bracket-and-camera combination.
Best For
- HIK-2DF8836xx PTZ Installations: Purpose-built to suit cameras in the HIK-2DF8836xx series, ensuring correct fitment without improvised mounting solutions.
- Neat Commercial and Industrial Wall Mounts: The integrated junction box allows cabling to terminate cleanly at the bracket, which is practical for public-facing walls, building exteriors, and locations where tidy cable management is expected.
- White Housing Installations: Sites where the camera and bracket need to blend with a light-coloured building surface benefit from the matched white aluminium finish.
Why Choose the DS-1604ZJ
The DS-1604ZJ is not a generic PTZ bracket. It is dimensioned and rated to work specifically with the HIK-2DF8836xx camera series, which means installers are not guessing at bolt spacing, load ratings, or cable entry positions. The junction box integration is a practical advantage over bracket-only alternatives: cable management happens at the mount point rather than as an afterthought, which matters on exposed exterior walls where loose cable runs attract weathering and look unfinished. The white aluminium alloy construction keeps the installation visually consistent with white-finished PTZ cameras. At 355.5 mm x 255.3 mm x 170.7 mm and 2150g, the bracket provides the physical presence and stability a full-size PTZ camera demands. Available at Security Wholesalers, the DS-1604ZJ is the correct pairing bracket for anyone installing a HIK-2DF8836xx series PTZ camera on a wall surface.
Buyer Decision Tips
Buyer Tip: This bracket is specific to the HIK-2DF8836xx PTZ camera series. Before ordering, confirm your PTZ camera model is within this series. If you are installing a different Hikvision PTZ model, this bracket may not align correctly with the camera’s mounting interface or cable entry points. Check the camera model number against the HIK-2DF8836xx series designation before purchase.
Key Features & Technical Specifications
| Product Name |
Hikvision DS-1604ZJ Wall Mount Bracket with Junction Box – WHITE |
| SKU |
DS-1604ZJ |
| Compatible Camera Series |
HIK-2DF8836xx Series PTZ Cameras |
| Material |
Aluminium alloy |
| Colour |
White |
| Dimensions |
355.5 mm x 255.3 mm x 170.7 mm |
| Weight |
2150 g |
| Bracket Type |
Wall mount with integrated junction box |
| Product Category |
PTZ Camera Bracket / Hikvision Peripheral |
Ideal Use Cases
Exterior Building Walls
Mounting a HIK-2DF8836xx PTZ on an exterior brick or concrete wall is the primary scenario this bracket addresses. The aluminium alloy construction and integrated junction box suit permanent outdoor wall installations where cable management matters.
Commercial Perimeter Monitoring
PTZ cameras mounted at building corners or along perimeter walls for wide-area pan and tilt coverage benefit from a bracket with the rigidity and load support the DS-1604ZJ provides at 2150g construction weight.
Car Parks and Yard Entrances
Wall-mounted PTZ cameras overseeing vehicle access points and open yard areas require a stable, fixed mount. The DS-1604ZJ keeps the camera position consistent and the cabling enclosed at the wall surface.
Light-Coloured Facade Installations
Buildings with white or light-coloured rendered, painted, or clad surfaces benefit from the white aluminium finish, which keeps the bracket and camera combination visually matched to the building exterior.
Choosing the Right Model
- Choose this model if: You are installing a HIK-2DF8836xx series PTZ camera on a wall surface and need a white aluminium bracket with an integrated junction box for clean cable management.
- Choose a different model if: Your PTZ camera is outside the HIK-2DF8836xx series, in which case a bracket designed for your specific camera model will be required to ensure correct mounting fitment. If you need a pendant or ceiling mount rather than a wall mount, a different bracket type will be necessary.
FAQs
- Which cameras is the DS-1604ZJ compatible with?
The DS-1604ZJ is designed specifically to suit cameras in the Hikvision HIK-2DF8836xx PTZ series. It is not a universal bracket. If your PTZ camera model number does not fall within the HIK-2DF8836xx series, this bracket should not be assumed to be compatible without confirming the mounting interface specifications.
- What does the integrated junction box do?
The junction box is built into the bracket body and provides an enclosed space for cable termination at the point of wall mount. Rather than running cables exposed along the wall to a separate enclosure, power, network, and signal cables are fed through the wall and terminated inside the junction box before connecting to the PTZ camera above.
- What material is the bracket made from and how heavy is it?
The DS-1604ZJ is constructed from aluminium alloy and weighs 2150g. The aluminium alloy build provides structural strength without excessive weight, making it suitable for standard masonry and concrete wall fixing without requiring heavy-duty anchoring hardware in most cases.
- Is the white version the only colour option listed?
The DS-1604ZJ product listed here is the WHITE version specifically. If you require a bracket in a different colour to suit a different camera housing finish or building surface, check with Security Wholesalers for any available alternative colour variants within this bracket family.
- Can this bracket be used for ceiling or pole mounting?
The DS-1604ZJ is a wall mount bracket. It is designed to fix against a flat vertical wall surface. It is not described as a ceiling mount or pole mount bracket. For overhead or pole-mounted PTZ installations, a different bracket type matched to the HIK-2DF8836xx series should be selected.
