Product Overview

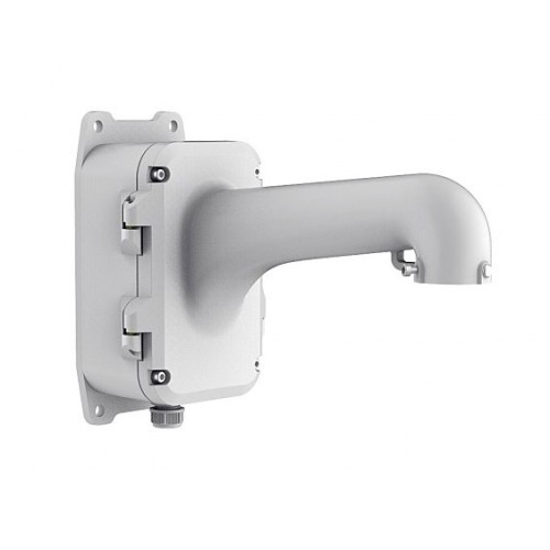

Built for wall-mounted speed dome and PTZ camera installations, the DS-1604ZJ-box is a dedicated wall bracket with an integrated junction box, finished in white. Constructed from aluminium alloy with a surface spray treatment, it provides a durable and corrosion-resistant mounting platform suited to both indoor and outdoor wall surfaces. Featuring support for both bottom outlet and back outlet cable routing, the bracket accommodates different site cabling configurations without forcing exposed runs. A built-in safety rope hook is included to secure the speed dome during installation, reducing handling risk when positioning heavier PTZ units at height. This makes it a practical choice for installers fitting Hikvision speed domes onto rendered walls, concrete columns, or building facades where a neat, secure, and cable-managed finish is required.
Key Capabilities
Integrated Junction Box
The built-in junction box keeps cable terminations enclosed and protected at the wall, eliminating the need for a separate back box and providing a cleaner finish on exposed wall surfaces.
Dual Cable Outlet Options
Support for both bottom outlet and back outlet cable routing gives installers flexibility to match the bracket to existing conduit or in-wall cabling on any site without compromise.
Safety Rope Hook
The dedicated hook for a safety rope allows the speed dome to be suspended securely during the installation process, reducing the risk of accidental drops when working at height.
Aluminium Alloy Construction
The aluminium alloy body with surface spray treatment resists corrosion and provides structural rigidity, keeping the speed dome securely positioned on the wall over extended periods.
Best For
- PTZ Wall Installations: Designed specifically for Hikvision speed dome cameras, the bracket provides a secure and purpose-built mounting point on vertical wall surfaces.
- Cable-Managed Installations: The integrated junction box and dual outlet options suit sites where concealed or conduit cabling must terminate neatly at the mount point.
- Installer Efficiency: The safety rope hook streamlines single-person or two-person installations by holding the camera securely while connections are made.
Why Choose the DS-1604ZJ-box
The DS-1604ZJ-box is purpose-designed for Hikvision speed dome and PTZ camera wall mounting, combining a junction box and bracket in a single aluminium alloy unit rather than requiring separate components. The white finish suits installations on light-coloured building facades where a discreet, matched appearance matters. The inclusion of both bottom and back cable outlet options means the bracket can be installed on walls with different cabling configurations without modification. For installers, the safety rope hook is a practical detail that larger PTZ units genuinely benefit from during fitting. Available through Security Wholesalers, this bracket is a straightforward accessory choice for any project specifying Hikvision speed dome cameras on wall-mounted positions.
Buyer Decision Tips
Buyer Tip: Confirm your speed dome camera is compatible with the DS-1604ZJ-box before ordering. This bracket is listed under Hikvision PTZ camera bracket accessories and is designed for speed dome units. If your camera requires a ceiling pendant mount, pole mount, or corner mount configuration, a different bracket model will be required for the installation.
Key Features & Technical Specifications
| Product Name |
Hikvision DS-1604ZJ-box Wall Mount Bracket with Junction Box |
| SKU |
DS-1604ZJ-box |
| Colour |
White |
| Mount Type |
Wall mount bracket with integrated junction box |
| Compatible Camera Type |
Speed dome / PTZ cameras |
| Material |
Aluminium alloy with surface spray treatment |
| Cable Outlet Options |
Bottom outlet and back outlet supported |
| Safety Feature |
Hook for safety rope included |
| Brand |
Hikvision |
| Category |
PTZ Camera Brackets, Hikvision Mounts and Brackets |
Ideal Use Cases
Commercial Building Facades
The white aluminium finish and junction box integration suit external wall installations on commercial buildings where a tidy, corrosion-resistant mounting point is required for a PTZ camera.
Car Parks and Perimeter Walls
Wall-mounting a speed dome on a perimeter wall or car park structure is a common PTZ deployment. The dual cable outlet options accommodate surface conduit or in-wall cabling runs on these sites.
Retail and Warehouse Exteriors
For speed domes covering loading docks, entry points, or yard areas mounted on a rendered or masonry wall, the bracket provides a stable, enclosed mounting solution without a separate back box.
Installer Multi-Site Projects
The safety rope hook simplifies speed dome positioning during installation on multi-site rollouts where consistent, safe, and efficient fitting of PTZ cameras to wall positions is required.
Choosing the Right Model
- Choose this model if: You are installing a Hikvision speed dome or PTZ camera on a wall surface and require an integrated junction box, cable outlet flexibility, and a white finish to match the installation environment.
- Choose a different model if: Your installation requires a ceiling pendant mount, pole mount, corner mount, or parapet mount configuration, as the DS-1604ZJ-box is designed specifically for flat wall surface mounting.
FAQs
- What camera types is the DS-1604ZJ-box designed for?
The DS-1604ZJ-box is designed for Hikvision speed dome and PTZ cameras. It is listed under Hikvision PTZ camera brackets and is not intended for use with fixed dome, turret, or bullet camera types. Confirm your specific speed dome model is compatible before purchasing.
- Does the bracket include a junction box or is that a separate item?
The junction box is integrated into the DS-1604ZJ-box bracket assembly. You do not need to purchase or fit a separate back box, which simplifies the installation and keeps cable terminations enclosed within the bracket unit itself.
- What cable routing options does this bracket support?
The bracket supports both bottom outlet and back outlet cable routing. This means you can run cabling out through the base of the bracket or through the rear into the wall, depending on whether your site uses surface conduit or in-wall cabling.
- What is the safety rope hook used for?
The safety rope hook allows a safety rope or lanyard to be attached to the speed dome camera during installation. This keeps the camera secured to the bracket while the installer makes cable connections, reducing the risk of the camera falling during fitting, particularly when working at height.
- Is this bracket available in colours other than white?
This listing is for the white version of the DS-1604ZJ-box bracket. If your installation requires a different colour finish to match the mounting surface, check the Security Wholesalers catalogue for alternative colour options in the Hikvision bracket range before ordering.
