Product Overview

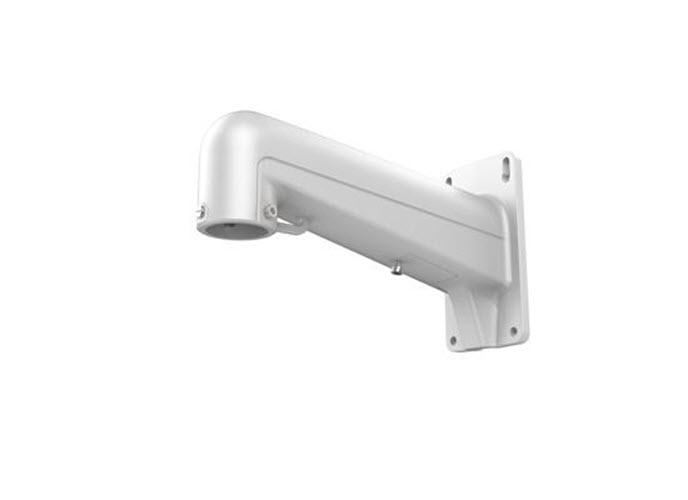

Wall-mounted PTZ installations demand a bracket that can handle the weight and movement of a speed dome without flex or vibration affecting image quality. The DS-1602ZJ is a vertical wall mount bracket from Hikvision, designed specifically to support speed dome cameras in outdoor and indoor wall-mounted positions. Constructed from aluminium alloy, it keeps the overall assembly lightweight while maintaining the structural integrity required for a constantly moving PTZ head. Measuring 97 x 182 x 305mm and weighing 1050g, the DS-1602ZJ provides a compact yet rigid mounting platform. It is well suited to installations where a speed dome needs to be positioned at height on a wall surface, offering a clean and direct mounting solution within the Hikvision peripheral and accessory range.
Key Capabilities
Aluminium Alloy Construction
The aluminium alloy body keeps the bracket lightweight at 1050g while providing a rigid platform for speed dome cameras. This material choice resists corrosion and reduces load on the mounting surface compared to heavier steel alternatives.
Compact Wall-Mount Profile
At 97 x 182 x 305mm, the DS-1602ZJ offers a compact footprint that suits a range of wall surfaces. The vertical orientation positions the speed dome camera at the correct angle for maximum pan, tilt, and zoom coverage from a wall-mounted location.
Speed Dome Compatibility
Designed specifically for speed dome wall mounting, the DS-1602ZJ provides the correct interface geometry for Hikvision PTZ and speed dome cameras. Using a purpose-matched bracket avoids fitment issues and ensures the camera sits securely during operation.
Hikvision Peripheral Integration
As part of the Hikvision peripherals range, the DS-1602ZJ is designed to complement Hikvision speed dome cameras directly. Sourcing a manufacturer-matched bracket simplifies installation planning and avoids compatibility uncertainty with third-party mounting hardware.
Best For
- PTZ Wall Installations: Installers mounting Hikvision speed dome cameras to walls where a direct vertical bracket is needed to achieve the correct camera orientation and clearance.
- Commercial and Industrial Sites: Locations such as warehouses, car parks, and building exteriors where a speed dome needs to be elevated on a wall surface for wide-area PTZ coverage.
- Hikvision System Builds: Projects where bracket-to-camera compatibility is a priority and a manufacturer-supplied mounting solution is preferred over a generic alternative.
Why Choose the DS-1602ZJ
Generic PTZ brackets can introduce fitment gaps, inadequate load ratings, or misaligned mounting interfaces that affect long-term camera stability. The DS-1602ZJ is engineered by Hikvision as a dedicated speed dome wall mount, meaning the interface dimensions and structural ratings are matched to their PTZ camera line. The aluminium alloy body keeps installation weight down at 1050g while the 97 x 182 x 305mm form factor suits standard commercial wall surfaces. For installers completing a Hikvision PTZ deployment, using the DS-1602ZJ eliminates guesswork around compatibility and keeps the installation within a single manufacturer’s ecosystem. Available at Security Wholesalers, the DS-1602ZJ is a straightforward accessory choice when the camera already calls for a Hikvision-supplied wall mount.
Buyer Decision Tips
Confirm camera compatibility before ordering: The DS-1602ZJ is designed for Hikvision speed dome wall mounting. Before purchasing, verify that your specific Hikvision PTZ or speed dome camera model is rated for this bracket by checking the camera’s datasheet for compatible mounting accessories. Not all PTZ cameras share the same base interface, and using an incompatible bracket can create alignment or load-bearing issues.
Key Features & Technical Specifications
| Model |
DS-1602ZJ |
| Bracket Type |
Vertical wall mount |
| Suitable For |
Speed dome / PTZ camera wall mounting |
| Material |
Aluminium alloy |
| Dimensions |
97 x 182 x 305mm |
| Weight |
1050g |
| Brand |
Hikvision |
| Product Category |
PTZ Camera Bracket / Mounting Accessory |
Ideal Use Cases
Car Park Perimeter Walls
Mounting a speed dome on a perimeter wall in a car park requires a bracket that holds the camera at height and angle for unobstructed PTZ sweep. The DS-1602ZJ’s vertical wall-mount design suits this positioning directly.
Warehouse and Industrial Facilities
Internal or external warehouse walls often require a compact, rigid mounting point for a speed dome covering large floor areas. The aluminium alloy construction of the DS-1602ZJ keeps the install lightweight while maintaining the stability a PTZ camera needs.
Building Exterior Corners
Speed domes positioned at building corners for wide-area outdoor coverage benefit from the DS-1602ZJ’s vertical wall-mount orientation, which positions the camera body clear of the wall surface for full pan and tilt range.
Hikvision PTZ System Completions
Integrators finalising a Hikvision PTZ deployment who require a manufacturer-supplied wall bracket will find the DS-1602ZJ fits directly into the Hikvision peripheral ecosystem without the need for custom or third-party mounting adaptors.
Choosing the Right Model
- Choose this model if: You are installing a Hikvision speed dome or PTZ camera to a wall surface and need a compact, aluminium alloy vertical wall mount with a manufacturer-matched interface and a 97 x 182 x 305mm footprint.
- Choose a different model if: Your installation requires a ceiling mount, pole mount, corner mount, or pendant configuration. Hikvision offers dedicated bracket models for each of these mounting scenarios, and using the correct bracket type for the installation method is important for camera alignment and structural security.
FAQs
- What type of cameras is the DS-1602ZJ designed to support?
The DS-1602ZJ is designed for speed dome and PTZ camera wall mounting. It is a Hikvision peripheral accessory, so it is intended to be used with compatible Hikvision speed dome camera models. Always check your specific camera’s datasheet for the confirmed compatible bracket list before purchasing.
- What material is the DS-1602ZJ made from, and why does that matter?
The bracket is constructed from aluminium alloy. This keeps the total bracket weight at 1050g, which reduces cumulative load on the mounting surface compared to heavier steel brackets. Aluminium alloy also resists corrosion, which is relevant for outdoor or semi-exposed wall installations where the bracket may be subject to moisture.
- What are the dimensions of the DS-1602ZJ?
The DS-1602ZJ measures 97 x 182 x 305mm. This compact footprint suits standard commercial and industrial wall surfaces and provides sufficient clearance for the speed dome camera body to achieve its full pan and tilt range without obstruction from the wall.
- Can the DS-1602ZJ be used for ceiling or pole mounting?
No. The DS-1602ZJ is specifically a vertical wall mount bracket. It is not designed for ceiling, pole, or corner mounting configurations. If your installation requires a different mounting orientation, a different Hikvision bracket model suited to that configuration should be selected. Check the Hikvision peripherals range for the appropriate mounting type, or contact Security Wholesalers for guidance on the correct bracket for your installation.
- Is the DS-1602ZJ suitable for outdoor installations?
The aluminium alloy construction makes the DS-1602ZJ suitable for outdoor wall-mount positions. However, the weather protection of the overall installation will depend on the camera itself and how the cabling entry point is sealed at the wall. The bracket does not carry its own IP rating in the confirmed product data, so appropriate cable management and weatherproofing of the wall penetration remains the installer’s responsibility.
