Product Overview

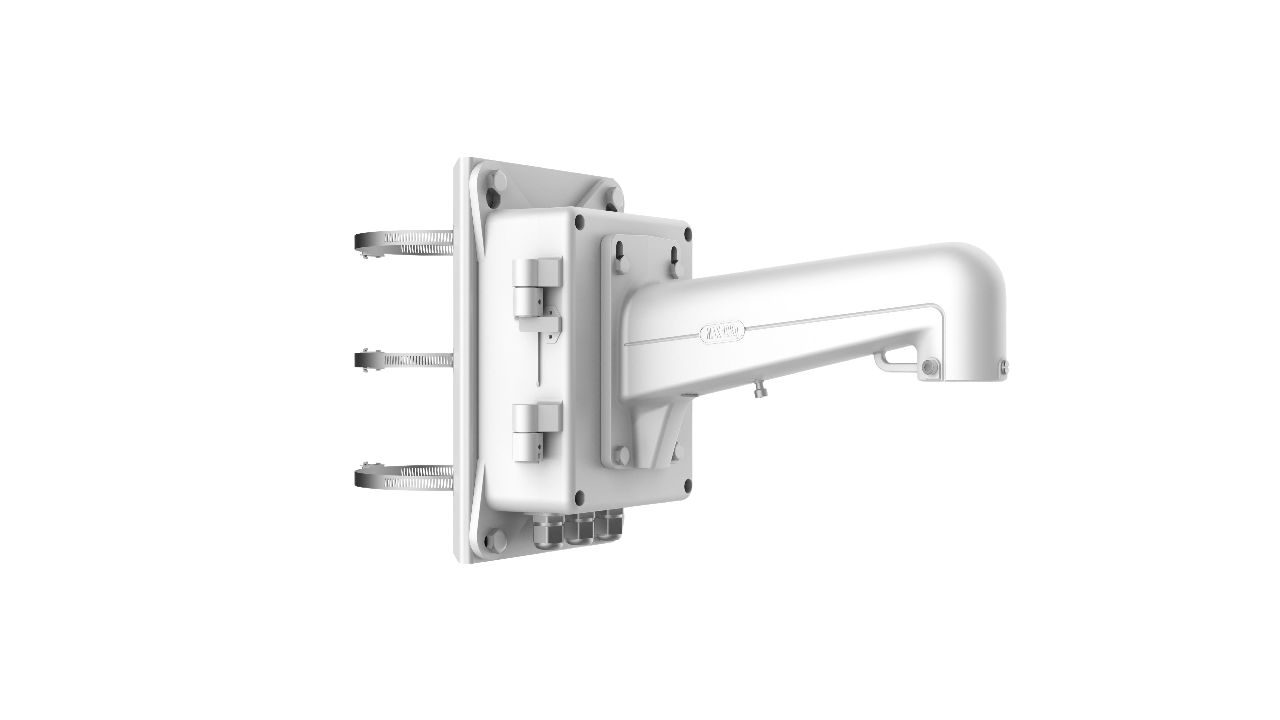

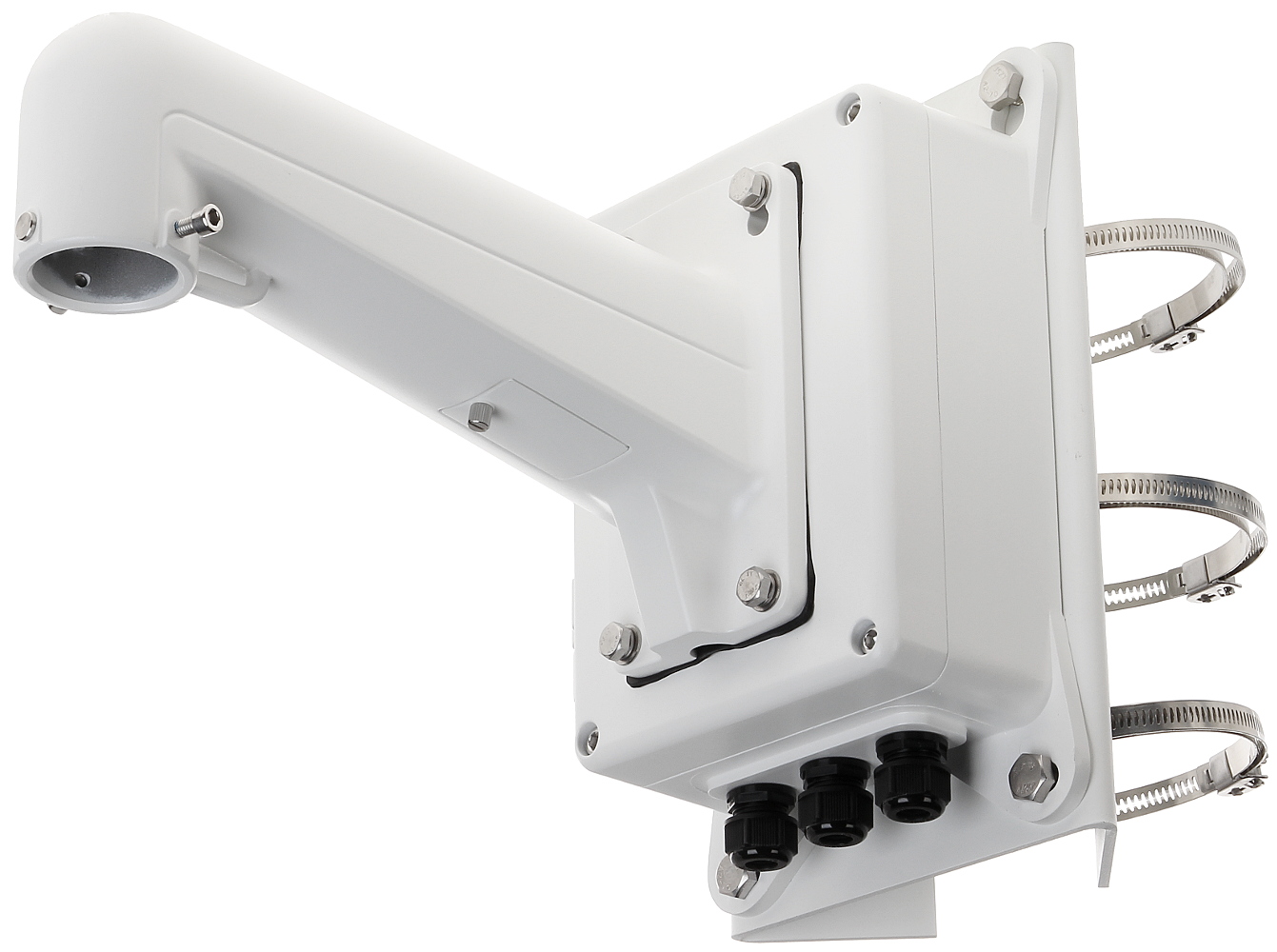

Mounting a PTZ camera to a vertical pole demands a bracket that can handle the weight of the unit, provide a secure and weatherproof cable entry point, and hold its position under continuous outdoor stress. The DS-1602ZJ-BOX-POLE is a vertical pole mount bracket with integrated junction box, purpose-built for Hikvision speed dome and PTZ camera installations. Constructed from a combination of aluminium alloy and steel, it weighs 6,840g and is finished in Hikvision white to complement installed PTZ units. With overall dimensions of 209.7 x 314 x 600.8mm, the bracket provides a solid mounting arm and depth to suit pole-mounted deployments at car parks, intersections, perimeter fences, and other outdoor positions where a wall mount is not practical. It is designed specifically for speed dome pendant mounting and pairs with compatible Hikvision PTZ camera housing configurations.
Key Capabilities
Vertical Pole Mounting
Designed to mount directly to vertical poles in locations where wall mounting is unavailable. This makes it suitable for perimeter poles, streetlight columns, and dedicated camera poles at car parks, intersections, and open outdoor areas.
Integrated Junction Box
The built-in junction box provides a protected cable management point at the bracket, keeping cabling organised and shielded from exposure at the mounting location. This is particularly important for outdoor PTZ installs where weatherproofing cable entries matters.
Aluminium Alloy and Steel Construction
The combination of aluminium alloy and steel gives the bracket a strong structural frame capable of supporting the load of a PTZ camera, while keeping overall weight manageable at 6,840g for installation handling.
Speed Dome Pendant Compatibility
Specifically rated for speed dome pendant mounting, this bracket provides the correct mechanical interface for Hikvision PTZ speed dome units, maintaining the pendant orientation that delivers full pan and tilt range without obstruction.
Best For
- Pole-Mounted PTZ Installations: Suited to outdoor locations where no wall surface is available, such as dedicated camera poles in car parks, open yards, or along perimeter fence lines.
- Speed Dome Pendant Deployments: Specifically designed for speed dome pendant mounting, making it the correct choice when installing Hikvision PTZ cameras in pendant orientation on a vertical pole.
- Installations Requiring Integrated Cable Management: The junction box eliminates the need for a separate weatherproof enclosure at the cable entry point, simplifying outdoor PTZ pole installs.
Why Choose the DS-1602ZJ-BOX-POLE
Not all PTZ brackets include a junction box, and the DS-1602ZJ-BOX-POLE addresses a practical installation gap by combining both the mounting arm and the cable enclosure into a single unit. For outdoor pole-mounted PTZ deployments, this reduces the number of separate components required on site and keeps the installation neat and weatherproof without additional enclosures. The aluminium alloy and steel construction supports the physical demands of a full-size PTZ camera, and the 209.7 x 314 x 600.8mm profile provides appropriate arm extension for speed dome pendant positioning. Finished in Hikvision white, it presents a consistent appearance with installed Hikvision PTZ units. Available at Security Wholesalers, the DS-1602ZJ-BOX-POLE is a purpose-specific bracket for installers who need a vertical pole solution with integrated cable management already built in.
Buyer Decision Tips
Buyer Tip: Before purchasing, confirm that your PTZ camera model supports pendant mounting and is compatible with this bracket. The DS-1602ZJ-BOX-POLE is designed for speed dome pendant mounting specifically. If your installation is on a wall rather than a pole, a different bracket configuration will be required. Also confirm the pole diameter at your installation point is within the bracket’s mounting range before arriving on site.
Key Features & Technical Specifications
| Model |
DS-1602ZJ-BOX-POLE |
| Bracket Type |
Vertical Pole Mount Bracket with Junction Box |
| Material |
Aluminium Alloy and Steel |
| Colour / Finish |
Hikvision White |
| Dimensions |
209.7 x 314 x 600.8mm |
| Weight |
6,840g |
| Mounting Style |
Vertical pole mount |
| Camera Compatibility |
Suitable for speed dome pendant mounting |
| Junction Box |
Integrated |
| Brand |
Hikvision |
| Product Category |
PTZ Camera Bracket / Peripheral |
Ideal Use Cases
Car Park Pole Positions
Car parks frequently use dedicated vertical poles for camera placement. The DS-1602ZJ-BOX-POLE provides a stable pendant mount at height, with the junction box managing cable entry at the bracket rather than leaving exposed runs down the pole.
Perimeter and Boundary Monitoring
At industrial sites and commercial properties where PTZ cameras are installed on perimeter poles to pan across fence lines or large open areas, this bracket provides the correct pole-mount interface for speed dome pendant installation.
Outdoor Intersections and Thoroughfares
Where PTZ cameras monitor vehicle or pedestrian flow at intersections or access roads, mounting on a vertical pole with this bracket positions the camera at the correct height and orientation for maximum coverage range.
Construction Sites and Open Yards
Sites without permanent wall structures rely on pole-mounted cameras. The aluminium alloy and steel build of the DS-1602ZJ-BOX-POLE suits the structural demands of an exposed outdoor pole install where the bracket must remain secure under wind load.
Choosing the Right Model
- Choose this model if: You are mounting a Hikvision PTZ speed dome in pendant configuration on a vertical pole and need an integrated junction box to manage cabling at the bracket point without additional enclosures.
- Choose a different model if: Your installation surface is a wall rather than a pole, or if your PTZ camera requires a different mounting orientation such as a wall arm or ceiling mount. A pole mount bracket is specific to vertical pole structures and will not suit flat surface mounting applications.
FAQs
- What type of cameras is the DS-1602ZJ-BOX-POLE designed for?
This bracket is designed for Hikvision speed dome PTZ cameras in pendant mounting configuration. It is not intended for fixed cameras, dome cameras, or cameras that mount in a different orientation. Confirm your PTZ model supports pendant mounting before selecting this bracket.
- What is the purpose of the integrated junction box?
The junction box provides a weatherproof cable management point built directly into the bracket. Rather than leaving cable connections exposed at the pole or requiring a separate enclosure, the integrated box keeps cabling organised and protected at the mounting location, which is particularly important in outdoor pole installations.
- What are the dimensions and weight of this bracket?
The DS-1602ZJ-BOX-POLE measures 209.7 x 314 x 600.8mm and weighs 6,840g. These dimensions suit the arm extension needed to position a speed dome in pendant orientation away from the pole structure, while the weight reflects the solid aluminium alloy and steel construction.
- Can this bracket be used on any pole diameter?
The product data does not specify a maximum or minimum pole diameter. Before purchasing, check the bracket’s mounting band or clamp specifications against the pole diameter at your installation point to confirm compatibility. This information is available in the product datasheet, which can be found in the Additional Information section below.
- Is this bracket suitable for indoor pole mounting?
While the bracket is constructed for outdoor-grade structural performance, it can be used on indoor poles where a PTZ camera needs to be pole-mounted rather than ceiling or wall-mounted. The Hikvision white finish and aluminium and steel construction work in either environment. Available through Security Wholesalers, this bracket is primarily specified for outdoor commercial and industrial pole positions.
