Product Overview

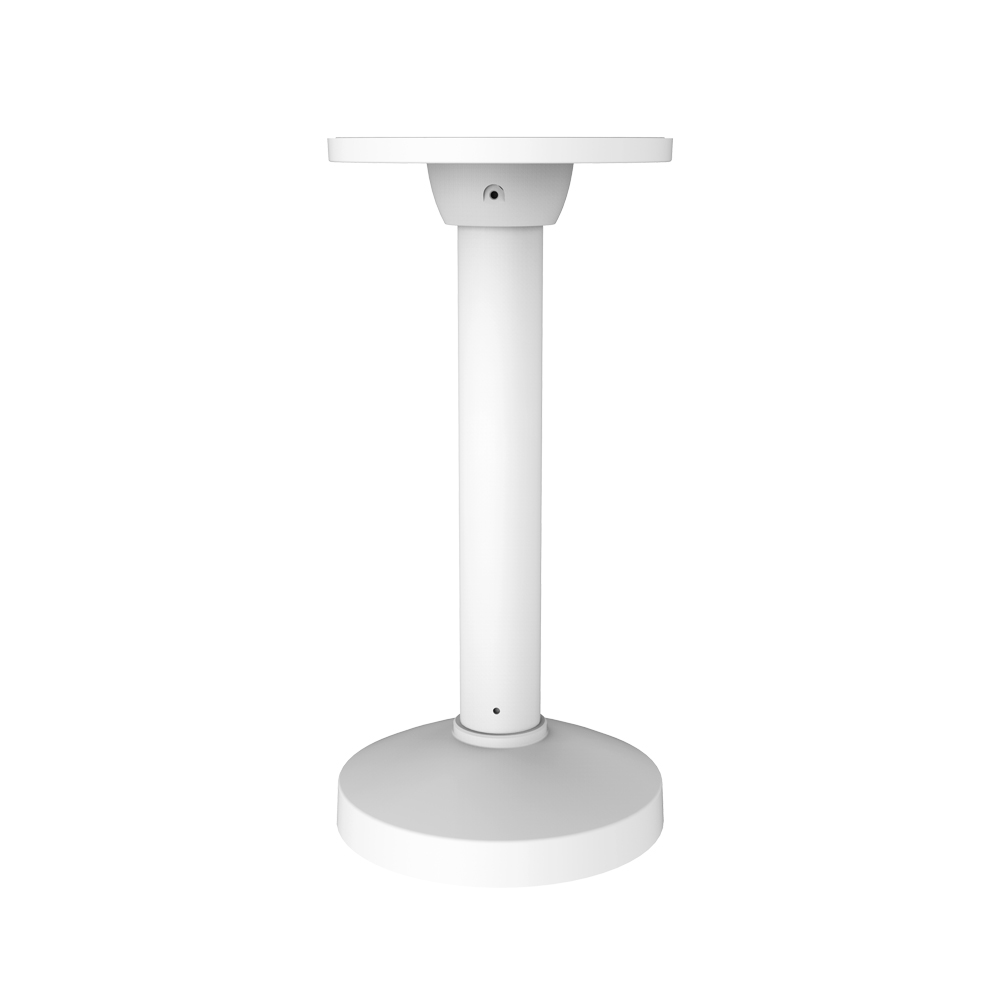

Designed for installations where a dome camera needs to be suspended below a ceiling rather than flush-mounted to it, the DS-1471ZJ-155 is a pendant mount bracket built specifically for Hikvision dome cameras. Constructed from aluminium alloy in Hikvision White, this bracket provides a rigid and durable mounting solution suited to high ceilings, soffits, open-plan areas, and spaces where direct surface mounting is not practical. Measuring 155 mm in diameter and 546 mm in length, the bracket positions the camera at a suitable drop height to achieve the correct viewing angle in environments such as retail floors, atriums, warehouses, stairwells, and commercial lobbies. Weighing approximately 1400 g, the bracket is solidly built while remaining manageable during installation. The matched white finish maintains a consistent appearance alongside Hikvision dome cameras for a professional result in customer-facing locations.
Key Capabilities
Pendant Drop Design
At 546 mm in length, this bracket suspends a dome camera below the mounting surface, making it suitable for high ceilings and open spaces where direct flush mounting would place the camera too far from the subject area to capture useful footage.
Aluminium Alloy Construction
The bracket body is manufactured from aluminium alloy, providing a strong and lightweight structure capable of supporting a dome camera securely over extended periods without sagging or flex at the mounting joint.
Matched Finish for Dome Cameras
Finished in Hikvision White, the DS-1471ZJ-155 is colour-matched to complement Hikvision dome cameras, maintaining a consistent and professional appearance in customer-facing or public indoor environments.
155 mm Diameter Base
The 155 mm diameter base provides a stable footprint for overhead attachment, distributing the load of the camera and bracket across a wider surface area to support a secure and level installation on standard ceiling mounting points.
Best For
- High Ceiling Installations: The 546 mm drop length makes this bracket suited to spaces with elevated ceilings where a dome camera mounted directly to the surface would be positioned too high to capture usable detail at ground level.
- Open-Plan Commercial Spaces: Retail floors, atriums, lobbies, and warehouses benefit from pendant-mounted cameras that can be positioned centrally to cover wide floor areas without relying on a wall or low ceiling nearby.
- Installations Requiring a Matched Appearance: The Hikvision White finish suits projects where camera hardware is visible to the public or tenants and a consistent, branded appearance is expected across the installation.
Why Choose the DS-1471ZJ-155
The DS-1471ZJ-155 addresses a specific installation challenge that standard surface mounts cannot solve: getting a dome camera positioned at the right height below an elevated or exposed ceiling. At 546 mm in length with a 155 mm diameter base, this bracket provides a precise pendant drop that brings the camera into a practical working range without improvised hardware or non-matched brackets that compromise the finished look. The aluminium alloy body keeps the assembly rigid and durable without adding unnecessary weight, and the Hikvision White finish ensures the bracket integrates cleanly with compatible dome cameras rather than standing out as a mismatched component. For installers and site managers who need a purpose-built, manufacturer-matched solution for pendant dome camera placement, the DS-1471ZJ-155 is available at Security Wholesalers as part of the Hikvision mounts and peripherals range.
Buyer Decision Tips
Confirm Camera Compatibility Before Ordering: The DS-1471ZJ-155 is designed for use with Hikvision dome cameras, but not every dome model uses the same mounting thread or base diameter. Check the mounting specifications for your specific Hikvision dome camera model against this bracket before purchasing to confirm the connection type is compatible. If your camera requires a junction box or surface base adapter, factor that into your installation plan alongside this pendant bracket.
Key Features & Technical Specifications
| Model |
DS-1471ZJ-155 |
| Type |
Pendant Mount for Dome Camera |
| Material |
Aluminium Alloy |
| Colour / Finish |
Hikvision White |
| Dimensions |
Ø 155 mm x 546 mm (6.1″ x 21.50″) |
| Weight |
Approx. 1400 g (3.1 lb.) |
| Compatible Camera Type |
Dome Camera |
| Brand |
Hikvision |
Ideal Use Cases
Retail Showrooms and Shop Floors
Large retail spaces with high ceilings benefit from pendant-mounted dome cameras that can be dropped to an appropriate height, allowing the camera to monitor aisles and checkout areas without being positioned so high that footage becomes unusable.
Building Atriums and Lobbies
The 546 mm drop length suits double-height foyers and atriums where the ceiling is well above standard height. Pendant mounting brings the camera into a functional position to monitor entry points and reception areas.
Warehouses and Storage Facilities
Exposed warehouse ceilings are often too high for wall mounting to cover floor-level activity. The aluminium alloy pendant bracket allows dome cameras to be suspended from roof structures to monitor racking aisles and loading zones.
Stairwells and Open Vertical Spaces
Stairwells with landings above standard floor height can be covered by pendant-mounted dome cameras attached to the upper ceiling, with the 546 mm drop positioning the camera to capture the staircase and landing approach.
Choosing the Right Model
- Choose this model if: You are mounting a Hikvision dome camera below a high or exposed ceiling where a standard flush or surface mount would leave the camera too elevated to capture ground-level detail, and you need a 546 mm pendant drop with a 155 mm base diameter.
- Choose a different model if: Your ceiling height is standard and a flush or surface mount would position the camera correctly without a pendant drop, or if your dome camera requires a different base diameter or mounting interface than this bracket provides. A shorter pendant bracket or a direct ceiling mount may be more appropriate in those cases.
FAQs
- What is the drop length of the DS-1471ZJ-155 bracket?
The DS-1471ZJ-155 has an overall length of 546 mm (21.50 inches), which represents the pendant drop from the ceiling mount point to the base where the dome camera attaches. This makes it suited to high ceilings where a standard surface mount would leave the camera too far from the monitored area.
- What material is the bracket made from, and how does that affect durability?
The bracket is constructed from aluminium alloy, which provides a strong and rigid structure without the weight of a steel equivalent. Aluminium alloy resists corrosion and maintains its shape under the sustained load of a dome camera, making it suitable for long-term indoor pendant installations.
- Is the DS-1471ZJ-155 suitable for outdoor use?
The product data confirms this bracket is a pendant mount designed for dome cameras, but no weather rating or outdoor suitability is specified in the confirmed specifications. This bracket should be considered for indoor use unless you have separately verified its suitability for your specific outdoor environment with Hikvision technical documentation.
- Which Hikvision dome cameras is this bracket compatible with?
The DS-1471ZJ-155 is designed for use with Hikvision dome cameras, but compatibility depends on the mounting thread and base interface of the specific camera model. Before purchasing, confirm that your dome camera’s mounting base matches the connection type of this pendant bracket. The Hikvision datasheet linked below provides dimensional references to assist with this check. Security Wholesalers can also assist with compatibility queries for Hikvision dome camera and bracket combinations.
- What does the 155 mm diameter measurement refer to?
The 155 mm diameter refers to the outer diameter of the bracket base, which is the section that interfaces with the ceiling mount point. This dimension is relevant when planning the ceiling cutout or backplate size and when confirming the bracket will fit within the available mounting area at the installation site.
