Product Overview

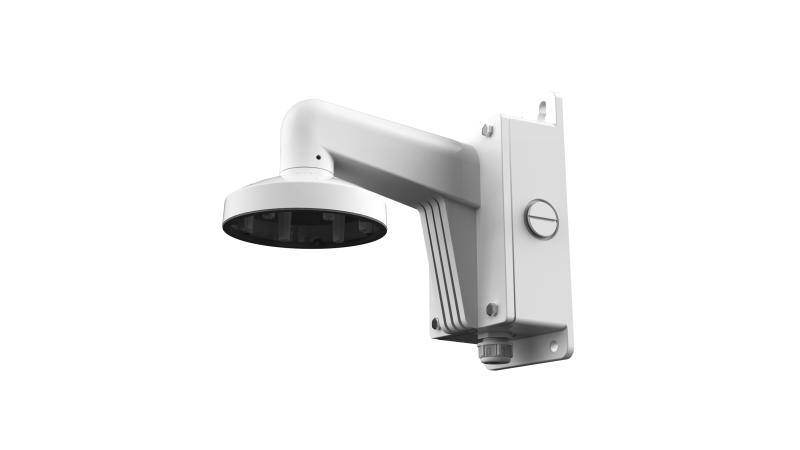

For installers mounting compatible Hikvision dome cameras on a wall surface, the DS-1273ZJ-140B-Y provides a purpose-built bracket with an integrated junction box in a single unit. Rather than relying on a separate back box or surface conduit to manage cabling, this bracket consolidates both functions, allowing cable entry to be concealed within the housing before terminating at the camera. Built from metal and finished in Hikvision white, the DS-1273ZJ-140B-Y is sized at Ø140 × 242.9 × 292.7 mm and supports a maximum load of approximately 3 kg. It is suited to professional CCTV installations where a tidy, finished appearance on the wall is required alongside secure camera support. Compatibility with Hikvision dome cameras should be confirmed prior to ordering, as not all dome models are supported by this bracket.
Key Capabilities
Integrated Junction Box
The built-in junction box eliminates the need for a separate surface back box, keeping cable runs enclosed within the bracket itself for a clean, professional finish on any wall surface.
Metal Construction
The all-metal build provides structural rigidity for secure camera support, reducing flex or movement at the mounting point that can affect camera aim over time.
3 kg Load Capacity
With an approximate maximum load of 3 kg, the bracket accommodates the weight of compatible Hikvision dome cameras without placing stress on the mounting fasteners or wall surface.
Hikvision White Finish
Matched to the standard Hikvision white colour, the bracket blends with compatible dome cameras for a consistent appearance in commercial, retail, or institutional settings.
Best For
- Wall-Mounted Dome Installations: Provides the correct standoff height and cable management for compatible Hikvision dome cameras mounted on a vertical wall surface.
- Installations Requiring Tidy Cabling: The integrated junction box keeps cable terminations enclosed within the bracket, avoiding exposed surface conduit or visible cabling at the mount point.
- Professional Commercial Fit-Outs: The metal construction and Hikvision white finish suit sites where a neat, uniform presentation is expected across multiple camera positions.
Why Choose the DS-1273ZJ-140B-Y
A basic surface mount plate can support a dome camera on a wall, but it does nothing to manage the cable entry point or create a sealed junction. The DS-1273ZJ-140B-Y addresses both requirements in one bracket, combining the wall mount function with a built-in junction box rated for up to 3 kg load. The metal body resists flex, and the Hikvision white colour matches compatible dome cameras directly without requiring painting or colour-matching. At Ø140 × 242.9 × 292.7 mm, the footprint is appropriate for standard dome installations without appearing oversized on the wall. This bracket is available through Security Wholesalers as part of the Hikvision mounting accessories range, suited to installers who want a factory-matched, purpose-built solution rather than a generic third-party bracket.
Buyer Decision Tips
Compatibility Check: The DS-1273ZJ-140B-Y is designed for specific compatible Hikvision dome camera models, not all Hikvision domes. Before ordering, confirm that the camera’s base diameter and mounting pattern match the Ø140 mm bracket interface. Ordering without this check can result in a bracket that cannot be paired with the intended camera.
Key Features & Technical Specifications
| Model |
DS-1273ZJ-140B-Y |
| Type |
Wall Mount with Junction Box |
| Colour |
Hikvision White |
| Material |
Metal |
| Dimensions |
Ø140 × 242.9 × 292.7 mm |
| Weight |
Approx. 1488 g |
| Max Load Capacity |
Approx. 3 kg |
| Application |
Wall mounting for compatible Hikvision dome cameras |
| Cable Management |
Built-in junction box for enclosed cable termination |
| Brand |
Hikvision |
Ideal Use Cases
Retail and Commercial Interiors
The Hikvision white finish and enclosed junction box suit retail fit-outs where cable management and a clean bracket appearance are expected as part of the installation standard.
Corridor and Hallway Mounting
Wall mounting in corridors benefits from the bracket’s junction box, which keeps terminations tidy where surface conduit would otherwise be visible along a wall run.
Multi-Camera Commercial Projects
Installers running multiple dome cameras across a site benefit from using a factory-matched Hikvision bracket that maintains a consistent look and confirmed load rating at each position.
Brick or Masonry Wall Surfaces
The metal construction and 3 kg load capacity make this bracket suitable for fixed wall surfaces including masonry, where a rigid mount is needed to keep the camera correctly aimed.
Choosing the Right Model
- Choose this model if: You are mounting a compatible Hikvision dome camera on a wall and want a single bracket that also handles cable termination via a built-in junction box, without installing a separate surface back box.
- Choose a different model if: Your camera is not compatible with the Ø140 mm mounting interface, or if you require a ceiling mount, pendant mount, or a bracket rated for a heavier camera load above 3 kg. A different Hikvision mounting accessory sized for your specific camera model should be selected instead.
FAQs
- What is the purpose of the junction box on the DS-1273ZJ-140B-Y?
The built-in junction box provides an enclosed space within the bracket body where cable connections can be made and protected. This removes the need to install a separate surface back box beneath the camera, keeping the wall mounting point tidy and the cabling concealed from view.
- Which Hikvision dome cameras is this bracket compatible with?
The DS-1273ZJ-140B-Y is designed for compatible Hikvision dome cameras that match the Ø140 mm base interface. Compatibility varies across Hikvision dome ranges, so you should confirm the bracket is listed as a supported accessory for your specific camera model before purchasing.
- Can this bracket be used on a ceiling as well as a wall?
The DS-1273ZJ-140B-Y is designed as a wall mount bracket. If you need to mount a compatible dome camera on a ceiling, a separate ceiling mount accessory suited to that installation type should be selected.
- What is the maximum camera weight this bracket will support?
The bracket has a maximum load capacity of approximately 3 kg. Most compact Hikvision dome cameras fall well within this limit, but you should verify the weight of your specific camera model to ensure it does not exceed this rating.
- Is this bracket available as part of the Security Wholesalers Hikvision accessories range?
Yes, the DS-1273ZJ-140B-Y is part of the Security Wholesalers Hikvision mounting accessories range. It is stocked as a standalone accessory for use with compatible dome cameras on professional CCTV installations where integrated cable management is required.
