Product Overview

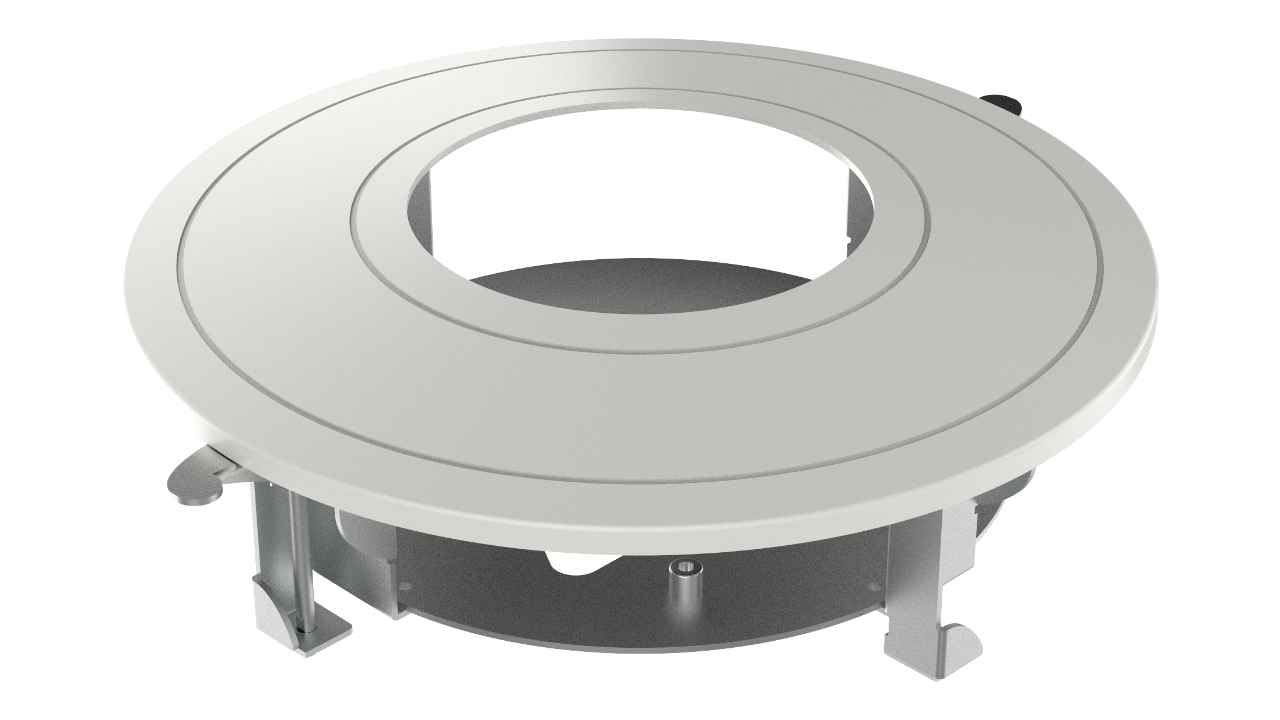

Ceiling-mounted installations demand a bracket that keeps the camera flush, stable, and visually unobtrusive. The DS-1227ZJ-DM44 is an in-ceiling mount designed specifically for the Hikvision DS-2CD2786G2T-IZS, allowing the camera to sit recessed into a ceiling cavity for a clean, professional finish in commercial and institutional environments. Built from SECC steel and a PC and ABS plastic combination with a surface spray treatment, the mount is finished in Hikvision White to blend naturally against standard ceiling surfaces. A magnetism-based attachment mechanism simplifies camera installation and repositioning without additional fasteners at the camera interface. The compact profile, measuring 256.1 mm in diameter and 75.9 mm in depth, minimises the footprint above the ceiling line and reduces the space consumed inside the ceiling void. It is well suited to suspended ceiling environments where a surface-mounted bracket is not appropriate or where a flush appearance is required.
Key Capabilities
In-Ceiling Flush Mounting
The recessed in-ceiling design positions the DS-2CD2786G2T-IZS flush with the ceiling surface, avoiding the protruding profile of a surface-mount bracket and producing a tidy result suited to offices, retail spaces, and public-facing areas.
Magnetic Camera Attachment
A magnetism-based design secures the camera to the mount without requiring additional fasteners at the camera interface. This simplifies the final installation step and allows the camera to be detached and reattached cleanly during servicing or cable adjustments.
SECC Steel and PC/ABS Construction
The combination of SECC cold-rolled steel and a PC and ABS polymer body with a surface spray finish provides a mount that is structurally sound and resistant to surface wear, appropriate for permanent installation in commercial ceiling environments.
Space-Saving Profile
At 75.9 mm depth and 256.1 mm in diameter, the mount is designed to minimise the void space required above the ceiling line, making it practical in environments where ceiling cavity depth is limited, such as suspended tile grid systems.
Best For
- Commercial Interiors Requiring a Flush Finish: The in-ceiling recessed design is suited to offices, retail floors, hotel lobbies, and corridors where a surface-mounted bracket would look out of place or create an obstruction.
- Suspended Ceiling Grid Installations: The compact 75.9 mm depth and space-saving profile make this mount practical in environments with limited ceiling void clearance, such as standard commercial tile grid ceilings.
- Installers Pairing with the DS-2CD2786G2T-IZS: This mount is purpose-built for the DS-2CD2786G2T-IZS and provides a mechanically matched, manufacturer-specified installation solution for that camera model.
Why Choose the DS-1227ZJ-DM44
The DS-1227ZJ-DM44 is a manufacturer-specified in-ceiling mount designed for the DS-2CD2786G2T-IZS, meaning the fit, finish, and attachment mechanism are matched to that camera by design rather than adapted from a generic bracket. The magnetic camera attachment simplifies the installation process and keeps the final finish clean, which matters in high-visibility commercial environments where bracket hardware should not be visible from below. The SECC and PC/ABS construction with surface spray treatment ensures the mount holds up in permanent installations without degrading the appearance over time. Generic or third-party ceiling brackets may not align correctly with the camera body or replicate the magnetic attachment, potentially compromising both the installation quality and camera positioning. Available at Security Wholesalers, the DS-1227ZJ-DM44 is the correct accessory for integrators and installers specifying the DS-2CD2786G2T-IZS in ceiling-recessed configurations. Note that this item carries a 4-6 week lead time and should be ordered ahead of installation scheduling.
Buyer Decision Tips
Confirm Ceiling Void Depth Before Ordering: The DS-1227ZJ-DM44 extends 75.9 mm above the ceiling line when installed. Before specifying this mount, measure the available cavity depth above the intended tile or ceiling board position. If the void depth is insufficient to accommodate the mount body and the camera body sitting above it, a surface-mount bracket may be required instead. Given the 4-6 week lead time on this item, confirm the site conditions early in the project timeline.
Key Features & Technical Specifications
| Model |
DS-1227ZJ-DM44 |
| Mount Type |
In-ceiling mount |
| Compatible Camera |
DS-2CD2786G2T-IZS |
| Material |
SECC (cold-rolled electro-galvanised steel), PC and ABS polymer |
| Surface Treatment |
Spray finish |
| Colour |
Hikvision White |
| Dimensions |
Phi 256.1 mm x 75.9 mm (Phi 10.08″ x 2.99″) |
| Weight |
Approx. 608.5 g (1.34 lb.) |
| Attachment Mechanism |
Magnetic camera attachment design |
| Lead Time |
4-6 weeks |
Ideal Use Cases
Corporate Office Ceilings
Open-plan offices benefit from a flush-mounted camera that does not disrupt the ceiling aesthetic. The Hikvision White finish and recessed profile of the DS-1227ZJ-DM44 allow the DS-2CD2786G2T-IZS to blend into standard office ceiling tile grids.
Retail Showrooms and Shopping Centres
Retail environments where ceiling appearance is a design consideration are well served by in-ceiling mounting. The magnetic attachment mechanism also simplifies camera access for repositioning when floor layouts or display configurations change.
Hotel Lobbies and Hospitality Venues
Hospitality environments require camera installations that minimise visual intrusion. Recessing the DS-2CD2786G2T-IZS into the ceiling using the DS-1227ZJ-DM44 maintains a clean overhead appearance appropriate for guest-facing spaces.
Healthcare and Institutional Facilities
Hospitals, clinics, and institutional buildings often specify flush ceiling hardware to reduce ligature and obstruction risks. The compact profile of the DS-1227ZJ-DM44 at 75.9 mm depth supports installations in environments with these requirements.
Choosing the Right Model
- Choose this model if: You are installing the DS-2CD2786G2T-IZS in a suspended or recessed ceiling environment where a flush finish is required and the ceiling void provides at least 75.9 mm of clearance above the mounting position.
- Choose a different model if: Your installation surface is a solid concrete or plaster ceiling without a void, where an in-ceiling recessed mount cannot be used and a surface-mount or pendant bracket would be the appropriate alternative. Also consider a different bracket if you are mounting a different camera model, as this mount is specified for the DS-2CD2786G2T-IZS only.
FAQs
- Which camera is the DS-1227ZJ-DM44 designed for?
The DS-1227ZJ-DM44 is designed specifically for the Hikvision DS-2CD2786G2T-IZS. It is a purpose-built in-ceiling mount matched to that camera’s body dimensions and attachment interface. Using it with a different camera model is not recommended as the fit and magnetic attachment are not guaranteed to align correctly.
- How much ceiling void depth is needed to install this mount?
The DS-1227ZJ-DM44 has a depth of 75.9 mm. This is the dimension that will sit above the ceiling line once installed. You will also need to account for the height of the camera body sitting within and above the mount. Measure the available cavity depth at the installation point before ordering, particularly in suspended tile grid ceilings where void clearance can vary.
- How does the magnetic attachment mechanism work?
The mount uses a magnetism-based design to secure the camera to the bracket body. This allows the camera to be attached and detached without requiring additional fasteners at the camera-to-mount interface. It simplifies the final step of the installation and makes it straightforward to remove the camera for maintenance, cable adjustments, or repositioning without disturbing the mount itself.
- Is this mount suitable for concrete or plaster ceilings?
The DS-1227ZJ-DM44 is an in-ceiling recessed mount, which requires a ceiling void or cavity to sit into. It is not designed for solid concrete or solid plaster ceiling surfaces where no void exists. For solid ceiling installations, a surface-mount bracket designed for the DS-2CD2786G2T-IZS would be the appropriate choice.
- What is the lead time for the DS-1227ZJ-DM44 and where can I order it?
The DS-1227ZJ-DM44 carries a 4-6 week lead time and should be factored into project scheduling well ahead of the installation date. It is part of the Security Wholesalers range and can be ordered through their platform. Ordering early ensures the bracket arrives in time to align with the camera installation schedule, particularly on commercial fit-out projects with fixed completion dates.
