Product Overview

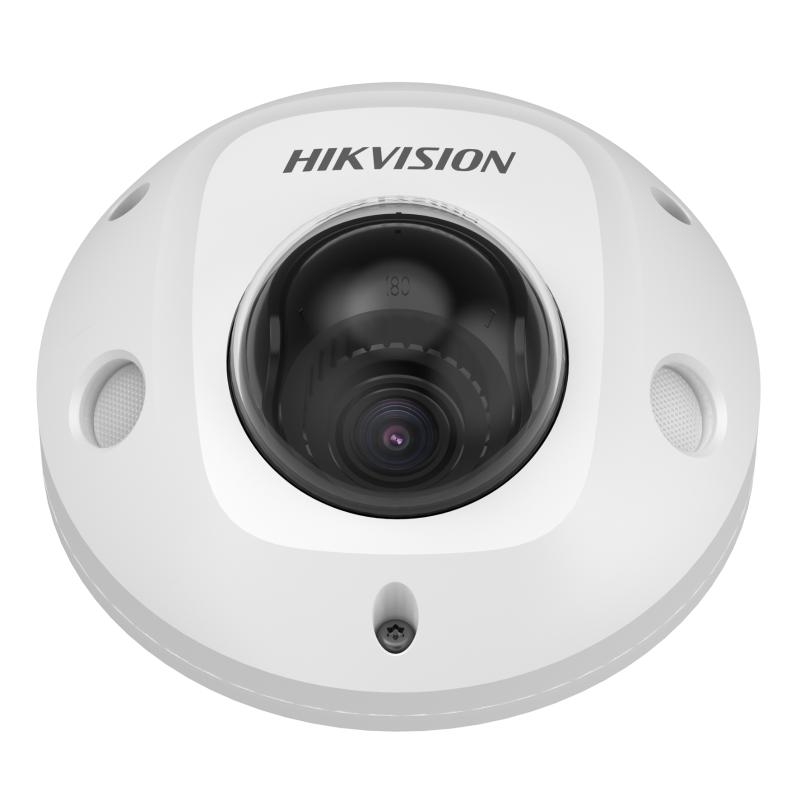

Built for onboard deployment in transport, fleet, and rail environments, the Hikvision DS-2XM6756G1-IDM/ND is a 5 MP mobile dome camera certified to some of the most demanding industry standards in the world. Featuring fixed lens options of 2 mm, 2.8 mm, or 4 mm, it covers everything from wide cabin interiors to tighter corridor views without repositioning. Equipped with 120 dB WDR, the camera handles the sharp contrast between a bright exterior and a dim vehicle interior, keeping footage legible under conditions that trip up standard surveillance cameras. With an IK10 housing and IP67 sealing, it resists both passenger impact and moisture ingress across external and internal mounting positions. It also supports infrared night vision up to 30 m, H.265+ efficient encoding, and triple-stream output for flexible integration with mobile NVR systems. This makes it a strong candidate for operators specifying cameras for bus fleets, rail carriages, service vehicles, and construction equipment where compliance and build quality are non-negotiable.
Key Capabilities
Transport Industry Compliance
Certified to EN 50155 for railway use, E-MARK for automotive applications, EN 45545 for fire safety, and EN 61373 for shock and vibration resistance. These certifications are mandatory for many fleet and rail tenders and cannot be substituted with standard CCTV cameras.
120 dB Wide Dynamic Range
Vehicle environments regularly produce extreme lighting contrasts, such as bright doorway openings against a dark cabin. The 120 dB WDR engine compresses this range into a balanced, usable image, ensuring faces and activity remain readable rather than blown out or silhouetted.
5 MP Resolution with IR to 30 m
A 5 megapixel sensor delivers 2560×1920 imaging at 25/30 fps, capturing detail useful for identifying individuals and reading signage. Built-in infrared illumination extends coverage to 30 m, supporting external vehicle mounting for low-light carpark and docking scenarios.
IK10 and IP67 Rated Housing
IK10 impact resistance protects the dome against passenger contact, luggage, or debris on moving vehicles. IP67 weatherproofing handles washdown and rain exposure on external mounts, making this housing suitable for positions that a standard IP66 indoor dome cannot reliably cover.
Multiple Fixed Lens Options
Choose from 2 mm (122 degrees horizontal), 2.8 mm (95 degrees horizontal), or 4 mm (78 degrees horizontal) to match the specific coverage requirement of each camera position on the vehicle, from wide-angle passenger cabin overviews to more directional external monitoring.
H.265+ Encoding and Triple Streams
H.265+ compression reduces the bitrate demand on mobile NVR storage, extending recording time without sacrificing image quality. Triple-stream support allows simultaneous high-resolution local recording, a reduced stream for live transmission, and a sub-stream for mobile viewing.
Best For
- Rail and Tram Operators: EN 50155, EN 45545, and EN 61373 compliance satisfies onboard safety requirements for passenger rail and light rail systems where standard IP cameras do not qualify.
- Bus and Coach Fleet Managers: IK10 vandal resistance and 120 dB WDR address the two most common failure points in passenger transport cameras: physical damage and glare from windows and doorways.
- Commercial Vehicle and Delivery Fleet Operators: The 5 MP sensor and IR night vision support exterior mounting for monitoring loading areas, docking positions, and vehicle surroundings during overnight or low-light operations.
- Mining and Construction Vehicle Applications: IK10 housing and vibration compliance under EN 61373 give this camera the structural tolerance to operate on heavy plant and off-road equipment where standard dome cameras would not survive.
Why Choose the DS-2XM6756G1-IDM/ND
The DS-2XM6756G1-IDM/ND is not a general-purpose dome camera adapted for mobile use. It is a purpose-engineered mobile camera that satisfies the EN 50155 railway, E-MARK automotive, EN 45545 fire-safety, and EN 61373 shock and vibration standards that operators in transport and heavy industry are required to meet. A standard IP dome with IP66 and IK09 ratings will not clear these compliance requirements regardless of image quality. Beyond certification, the 120 dB WDR performance directly addresses the lighting challenge that defeats conventional cameras in cabin and vehicle environments. The choice of three fixed focal lengths allows system designers to specify the right angle per position rather than accepting a compromise. Offered through Security Wholesalers, the DS-2XM6756G1-IDM/ND is stocked as part of the Hikvision mobile camera range for integrators specifying compliant onboard surveillance systems.
Buyer Tip: The DS-2XM6756G1-IDM/ND is available with 2 mm, 2.8 mm, and 4 mm lens variants. Confirm the field-of-view requirement for each mounting position before ordering, as the fixed lens cannot be changed post-installation. The 2 mm variant suits wide cabin overviews; the 4 mm variant is better suited to external positions or corridor applications where a tighter angle is needed. Check with your supplier which lens variant the listed SKU corresponds to.
Buyer Tip: This product carries a typical lead time of 6 to 10 weeks. For project planning on fleet rollouts, rail contracts, or staged vehicle installations, factor this into procurement timelines and avoid specifying it as a last-minute substitution. Ordering ahead of installation milestones is strongly recommended.
Key Features & Technical Specifications
| Resolution |
5 MP (2560×1920) |
| Frame Rate |
25/30 fps at maximum resolution |
| Lens Options |
Fixed 2 mm / 2.8 mm / 4 mm |
| Field of View (Horizontal) |
2 mm: 122 degrees | 2.8 mm: 95 degrees | 4 mm: 78 degrees |
| Field of View (Vertical) |
2 mm: 93 degrees | 2.8 mm: 69 degrees | 4 mm: 55 degrees |
| Wide Dynamic Range |
120 dB |
| Minimum Illumination |
0.01 Lux (colour, F1.6, AGC on); 0 Lux with IR |
| IR Range |
Up to 30 m |
| Video Compression |
H.265, H.265+, H.264, H.264+ |
| Video Streams |
Triple stream |
| Pan / Tilt / Rotation |
Pan: plus or minus 30 degrees | Tilt: 0-75 degrees | Rotation: 0-360 degrees |
| Ingress Protection |
IP67 |
| Impact Resistance |
IK10 |
| Compliance Standards |
EN 50155 (railway), E-MARK (automotive), EN 45545 (fire safety), EN 61373 (shock and vibration) |
| Audio Codecs |
G.711U/A, G.726, AAC, G.722, PCM (16 kHz) |
| Network Protocols |
TCP/IP, HTTP/HTTPS, RTSP, FTP, SNMP, IPv6, SSL/TLS, ONVIF S/G/T, Hikvision SDK |
| Image Features |
BLC, HLC, 2D/3D noise reduction, ROI, privacy masks (up to 4 zones), brightness/contrast/saturation/sharpness control |
| Typical Lead Time |
6-10 weeks |
Ideal Use Cases
Passenger Rail and Light Rail
EN 50155, EN 45545, and EN 61373 compliance directly satisfies the certification requirements that apply to cameras installed on rolling stock. The IK10 dome housing withstands the vibration and passenger contact typical in rail carriage environments.
Bus and Public Transport Cabins
The 2 mm wide-angle lens variant can cover an entire bus cabin interior from a single forward-mounted position. 120 dB WDR manages the contrast between bright exterior windows and darker seating areas without requiring manual exposure compensation.
Fleet Vehicle Exterior Monitoring
IP67 sealing and up to 30 m IR range support external mounting on delivery vans and service vehicles. The 5 MP sensor captures sufficient detail for identifying individuals and reading number plates at loading bays and overnight parking areas.
Mining and Heavy Equipment
EN 61373 shock and vibration compliance and IK10 housing give this camera the physical durability to operate on earthmoving equipment, haul trucks, and other heavy machinery where road vibration and impact from debris are continuous factors.
Tram and Ferry Applications
The combination of fire-safety compliance under EN 45545, waterproof IP67 rating, and vandal-resistant IK10 construction suits tram systems and passenger ferries where cameras must meet both transport safety codes and marine moisture exposure requirements.
Choosing the Right Model
- Choose this model if: Your application requires certified compliance with EN 50155, E-MARK, EN 45545, or EN 61373, and you need a 5 MP dome camera that can withstand the vibration, impact, and environmental exposure of a mobile vehicle environment.
- Choose a different model if: Your installation is a fixed indoor or outdoor site rather than a mobile vehicle. Standard IP dome cameras with IP66 and IK09 ratings offer comparable image quality at lower cost for non-mobile applications, and the mobile compliance certifications of this camera add no value in a stationary deployment.
- Consider lens selection carefully: The fixed focal length cannot be changed after installation. If coverage requirements vary across multiple camera positions on the same vehicle, you may need to order more than one lens variant of this SKU to match each position correctly.
FAQs
- What makes the DS-2XM6756G1-IDM/ND different from a standard Hikvision IP dome camera?
The key difference lies in its mobile-specific certifications. The DS-2XM6756G1-IDM/ND is certified to EN 50155 for railway environments, E-MARK for road vehicles, EN 45545 for fire safety, and EN 61373 for shock and vibration. Standard IP dome cameras do not carry these certifications and cannot be used in applications where transport authority compliance is required.
- Can this camera be mounted externally on a vehicle?
Yes. The IP67 weatherproof rating confirms protection against dust ingress and temporary water submersion, making it suitable for external mounting on vehicle bodies. The IK10 housing also protects against impact from road debris and other external hazards. The built-in IR illumination provides up to 30 m range for coverage of areas around the vehicle in low-light conditions.
- Which lens variant should I choose for a bus cabin interior?
The 2 mm lens offers a 122-degree horizontal field of view, which is the widest option available and the most practical for covering a passenger cabin from a single ceiling or front-of-vehicle mounting point. The 2.8 mm and 4 mm variants offer progressively narrower angles and are better suited to corridor, doorway, or external monitoring positions where a more directional view is needed.
- How does the 120 dB WDR benefit a vehicle camera installation specifically?
Vehicle interiors experience some of the most challenging lighting contrasts in surveillance, with bright windows and doorways alongside darker seating areas. At 120 dB, the WDR engine compresses this range well beyond what standard 100-110 dB cameras can manage, keeping detail visible in both the brightest and darkest parts of the frame simultaneously during peak daylight hours.
- What video compression formats does this camera support?
The DS-2XM6756G1-IDM/ND supports H.265+, H.265, H.264+, and H.264 encoding. H.265+ provides the most efficient compression for mobile NVR applications, reducing the storage footprint and transmission bandwidth required without a corresponding reduction in image quality at a given resolution.
- Is this camera available off the shelf or does it need to be ordered?
The DS-2XM6756G1-IDM/ND carries a typical lead time of 6 to 10 weeks. It is not a standard shelf stock item. Project managers and fleet operators should account for this lead time when planning installation schedules. The camera is part of the Security Wholesalers range of Hikvision mobile cameras and can be ordered through your account with expected delivery timelines confirmed at point of order.
- Does the camera support pan, tilt, and rotation adjustment after mounting?
Yes. The camera housing allows pan adjustment of plus or minus 30 degrees, tilt from 0 to 75 degrees, and full 360-degree rotation. This range of physical adjustment is important in vehicle installations where mounting surfaces may not always be perfectly aligned to the intended viewing direction.
Additional Information
No additional downloads available for this product.
