Product Overview

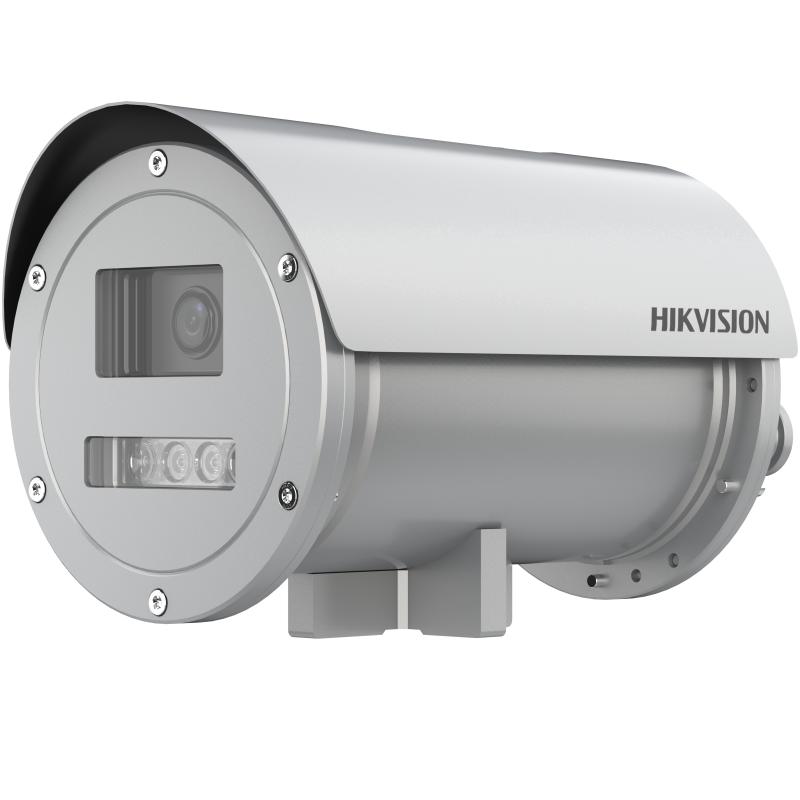

Engineered for hazardous industrial environments where standard cameras cannot be deployed, the DS-2XE6845G0-IZHS(B) is a 4 MP explosion-proof bullet camera built for Zone 1/2 gas and Zone 21/22 dust classified areas. Its 316L stainless steel enclosure carries both ATEX and IECEx certification, ensuring the housing can contain any internal ignition source and prevent propagation into surrounding flammable atmospheres. Featuring Hikvision DarkFighter technology, it achieves colour imaging down to 0.0009 lux and 0 lux operation with IR active, keeping critical areas visible even in near-total darkness. Two motorised varifocal lens configurations are available – 2.8-12 mm for broader field coverage and 8-32 mm for long-range monitoring up to 400 m DORI detection range. Rated IP68 and NEMA 4X for full water submersion resistance and corrosion protection, and accepting 100-240 VAC directly, the DS-2XE6845G0-IZHS(B) is purpose-built for oil and gas, chemical, marine, and processing facility installations. Lead time is 70 days.
Key Capabilities
ATEX and IECEx Explosion-Proof Certification
Certified for Zone 1/2 gas and Zone 21/22 dust hazardous areas, the 316L stainless steel enclosure is designed to contain any internal fault and prevent ignition of flammable or combustible surrounding atmospheres – a mandatory requirement for safe camera deployment in classified hazardous zones.
DarkFighter Ultra-Low-Light Imaging
The 1/1.8″ progressive scan CMOS sensor delivers colour detail down to 0.0009 lux, with full IR-assisted operation at 0 lux. In poorly lit industrial sites – pipelines, processing halls, or offshore decks – this ensures usable footage without relying on auxiliary lighting.
Dual Motorised Varifocal Lens Options
Choose the 2.8-12 mm (F1.4) lens for wide-area coverage with IR up to 60 m, or the 8-32 mm (F1.7) for long-range monitoring with IR up to 100 m and DORI detection reaching 400 m. Both allow remote focal adjustment without entering the hazardous zone.
IP68 and NEMA 4X Corrosion Resistance
The IP68 rating allows continuous submersion beyond 1 m, while NEMA 4X classification adds resistance to corrosive agents including salt spray. This makes the camera suitable for marine platforms, chemical plant exteriors, and wash-down environments where standard outdoor ratings are insufficient.
Wide-Range AC Power Input
Accepting 100-240 VAC directly, the DS-2XE6845G0-IZHS(B) integrates into standard industrial power infrastructure without requiring a separate external adapter or dedicated power supply unit, simplifying deployment in remote or fixed plant installations.
Multi-Profile Network Integration
Supporting ONVIF Profiles S, G, and T alongside Hikvision SDK and open API access, the camera integrates with a wide range of NVRs and VMS platforms. Up to 5 concurrent streams, ROI controls, and H.265+ compression reduce bandwidth and storage demands across multi-camera industrial networks.
Best For
- Hazardous Area Compliance: Sites requiring Zone 1/2 or Zone 21/22 certified equipment benefit from the ATEX and IECEx certification, which meets international standards for camera deployment in explosive atmospheres.
- Long-Range Industrial Monitoring: With the 8-32 mm lens, the camera covers extended distances across refineries, storage yards, or offshore decks – DORI detection reaches up to 400 m, enabling identification-level imaging at significant range.
- Corrosive and Marine Environments: The 316L stainless steel body and NEMA 4X rating resist chloride attack and salt spray, making this camera appropriate for coastal installations, offshore platforms, and chemical plant perimeters.
- Low-Light Industrial Sites: DarkFighter sensitivity at 0.0009 lux delivers colour imaging in dimly lit plant areas without requiring additional lighting infrastructure, reducing both installation complexity and ongoing maintenance.
Why Choose the DS-2XE6845G0-IZHS(B)
The DS-2XE6845G0-IZHS(B) addresses a requirement that standard IP cameras fundamentally cannot meet: certified safe operation inside classified explosive atmospheres. A conventional bullet camera – regardless of its IP rating or image quality – cannot be installed in a Zone 1 gas environment without posing an ignition risk. This model carries dual ATEX and IECEx certification along with UL Class I Zone 1 recognition, satisfying the specific regulatory requirements that industrial site safety managers and certifying authorities will demand. Beyond its hazardous area credentials, it combines DarkFighter low-light performance with a choice of motorised varifocal lenses, so the same platform serves both wide-area plant coverage and long-range perimeter monitoring. H.265+ compression reduces storage overhead across multi-camera networks, and the 100-240 VAC input removes the need for separate power conditioning. Available through Security Wholesalers, the DS-2XE6845G0-IZHS(B) is supplied with a 70-day lead time – factor this into project scheduling at the procurement stage.
Buyer Decision Tips
Lens Selection: The 2.8-12 mm lens covers wider scenes with IR up to 60 m and suits monitoring of plant walkways, loading bays, or entry points where a broad view is the priority. The 8-32 mm lens is the correct choice when the monitoring objective requires identification or detection at distance – perimeter fence lines, pipeline approaches, or storage areas where DORI detection at 400 m is needed. Specify the lens variant before ordering as the 70-day lead time applies from order confirmation.
Procurement and Lead Time Planning: With a 70-day lead time from order confirmation, this camera must be included in project schedules well ahead of installation dates. For capital works, shutdown projects, or new facility commissions, confirm quantity and lens specification at the earliest opportunity to avoid delays to site completion or operational handover.
Key Features & Technical Specifications
| Model |
DS-2XE6845G0-IZHS(B) |
| Resolution |
4 MP (2688 x 1520) |
| Image Sensor |
1/1.8″ progressive scan CMOS |
| Minimum Illumination |
0.0009 lux (colour), 0 lux (IR active) |
| Lens Options |
Motorised varifocal 2.8-12 mm (F1.4) or 8-32 mm (F1.7) |
| IR Illumination Range |
Up to 60 m (2.8-12 mm lens), up to 100 m (8-32 mm lens) at 850 nm |
| DORI Detection Range |
Up to 400 m (8-32 mm lens) |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| Concurrent Streams |
Up to 5 |
| Housing Material |
316L stainless steel |
| Ingress Protection |
IP68, NEMA 4X |
| Hazardous Area Certification |
ATEX, IECEx – Zone 1/2 (gas), Zone 21/22 (dust) |
| UL Classification |
UL Class I Zone 1 AEx db IIC T6 / Zone 21 Ex tb IIIC T80°C Db |
| Additional Certifications |
CB, CE, BIS |
| Power Input |
100-240 VAC |
| Audio |
1 x mono audio input, 1 x mono audio output (G.711, AAC-LC, MP3) |
| Network Protocols |
TCP/IP, HTTPS, FTP, SNMP, 802.1X, IPv6, QoS |
| ONVIF Support |
Profile S, G, T |
| Lead Time |
70 days from order confirmation |
Ideal Use Cases
Oil and Gas Platforms
ATEX and IECEx certification allows deployment near flare stacks, wellheads, and gasoline storage areas. The IP68 and NEMA 4X ratings handle salt spray and high-pressure wash-down, while the 8-32 mm lens option covers extended distances across open platform decks.
Chemical and Petrochemical Plants
Zone 1/2 gas certification permits installation within process areas containing flammable vapours. DarkFighter performance at 0.0009 lux ensures imaging quality in poorly lit process buildings without additional explosion-rated lighting.
Grain Silos and Cement Facilities
Zone 21/22 dust certification addresses combustible dust hazards in grain handling, flour milling, and cement processing environments where standard IP-rated cameras fail to meet safety regulations for classified dust zones.
Marine and Offshore Installations
The 316L stainless steel body resists chloride-induced corrosion in salt-air environments. NEMA 4X rating confirms protection against corrosive sprays, making this camera suitable for vessel monitoring, jetty infrastructure, and offshore platform perimeters.
Refineries and Fuel Storage Depots
4 MP resolution at 2688 x 1520 combined with the motorised varifocal lens provides usable detail for incident review across large tank farms and loading areas. H.265+ compression reduces storage requirements across multi-camera refinery networks.
Choosing the Right Model
- Choose this model if: Your installation site is classified as a hazardous area under Zone 1/2 gas or Zone 21/22 dust designations and requires ATEX and IECEx certified equipment. This is the defining use case for the DS-2XE6845G0-IZHS(B) and cannot be substituted with a standard IP camera regardless of its IP rating.
- Choose the 2.8-12 mm lens variant if: Your monitoring objective covers a broader scene at closer range – plant entry points, walkways, or equipment bays – where IR coverage up to 60 m is sufficient and a wider field of view is preferable.
- Choose the 8-32 mm lens variant if: Your site requires long-range monitoring of perimeters, pipelines, or extended open areas where the DORI detection range of up to 400 m and IR coverage to 100 m are operationally necessary.
- Choose a different model if: Your installation is in a non-classified environment with standard outdoor conditions. A conventional IP67 or IP66 bullet camera will deliver equivalent or greater feature sets at significantly lower cost and without the 70-day lead time associated with explosion-proof hardware.
FAQs
- What does ATEX and IECEx certification mean for this camera?
ATEX and IECEx are international certification frameworks that define equipment safe for use in explosive atmospheres. For the DS-2XE6845G0-IZHS(B), these certifications confirm the 316L stainless steel enclosure is designed to contain any internal ignition source and prevent propagation into surrounding flammable gas or combustible dust atmospheres – a mandatory requirement for Zone 1/2 and Zone 21/22 classified sites.
- Which hazardous zones is this camera certified for?
The DS-2XE6845G0-IZHS(B) is certified for Zone 1 and Zone 2 gas hazardous areas, and Zone 21 and Zone 22 dust hazardous areas under both ATEX and IECEx frameworks. It also holds UL Class I Zone 1 certification (AEx db IIC T6) and Zone 21 (Ex tb IIIC T80°C Db), covering North American compliance requirements alongside international standards.
- How do I choose between the 2.8-12 mm and 8-32 mm lens options?
The 2.8-12 mm (F1.4) lens suits sites where a broader field of view is required at shorter range – plant access points, equipment yards, or internal monitoring with IR coverage up to 60 m. The 8-32 mm (F1.7) lens is suited to long-range applications where DORI detection at up to 400 m is needed, such as pipeline monitoring or extended perimeter surveillance, with IR reaching 100 m. Both use motorised varifocal adjustment for remote framing without entering the hazardous zone.
- What is the lead time and how should I plan for it?
The DS-2XE6845G0-IZHS(B) has a standard lead time of 70 days from order confirmation. This is typical for explosion-proof certified hardware and should be factored into project procurement schedules well ahead of planned installation dates. Confirm your lens variant and quantity at the earliest possible stage to avoid programme delays. Security Wholesalers can advise on current availability and order timelines.
- Does this camera need a separate power supply?
No. The DS-2XE6845G0-IZHS(B) accepts 100-240 VAC directly, covering the full range of standard mains power supplies used in industrial facilities globally. No separate voltage converter or external adapter is required, which simplifies installation in remote plant locations where additional power conditioning equipment may not be available.
- Is the camera suitable for marine environments with salt spray exposure?
Yes. The IP68 rating permits continuous water submersion, and the NEMA 4X classification specifically addresses corrosive chemical and salt spray exposure. Combined with the 316L stainless steel body – a grade selected for its superior chloride corrosion resistance – the camera is well suited for jetty infrastructure, offshore platforms, and coastal industrial installations where standard stainless steel grades would corrode prematurely.
- Does the camera support integration with existing VMS or NVR systems?
Yes. The DS-2XE6845G0-IZHS(B) supports ONVIF Profiles S, G, and T for broad third-party VMS compatibility, alongside Hikvision SDK and open API access for tighter platform integration. Standard network protocols including TCP/IP, HTTPS, SNMP, FTP, 802.1X, IPv6, and QoS are supported, allowing deployment into existing industrial network infrastructure with up to 5 concurrent video streams.
Additional Information
No additional downloads available for this product.
