Product Overview
For traffic monitoring, access control entry points, and perimeter installations in coastal or chemically aggressive environments, the DS-2XC6686G0/P-IZH(R)S is one of the few bullet cameras that combines active licence plate recognition with a 316L stainless steel enclosure rated to C5-M anti-corrosion standards. Equipped with an 8MP 1/1.8″ sensor and Hikvision DarkFighter technology, it reaches a colour minimum illumination of 0.002 lux and delivers full 4K resolution at up to 30 fps. The varifocal 2.8-12mm lens covers a horizontal field of view from 40.2° to 100.8°, with smart IR extending to 60m. It integrates deep learning-based LPR, vehicle detection, and vehicle attribute metadata directly on-board. The built-in wiper on the -R variant actively clears water and debris from the lens, making it suited to car park entry lanes, industrial gate checkpoints, port facilities, and foreshore installations where lens contamination would otherwise compromise plate reads.
Key Capabilities
On-Board Licence Plate Recognition
Deep learning LPR runs directly on the camera, extracting plate data, vehicle attributes, and metadata without requiring a separate analytics server. This makes the DS-2XC6686G0/P-IZH(R)S a standalone ANPR node suitable for gate triggers, access control integration via Wiegand, and event-based recording.
316L Stainless Steel Anti-Corrosion Housing
The enclosure uses 316L grade stainless steel with an additional anti-corrosion coating, certified to C5-M and NEMA 4X standards. This level of protection is specifically suited to salt-air coastal sites, chemical processing facilities, and port or marine environments where standard aluminium housings corrode within months.
Built-In Wiper for Continuous Clear Imaging

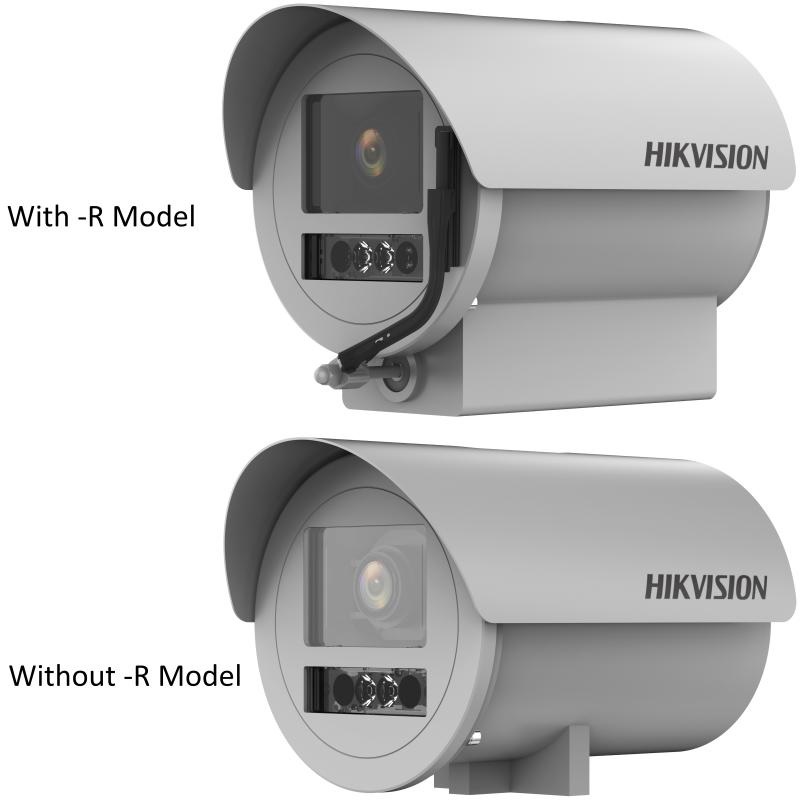

The -R variant includes a motorised wiper that automatically removes water, dust, and contaminants from the front glass. In high-rainfall or dusty outdoor environments such as loading dock entries and mining access gates, this directly prevents plate read failures caused by lens obstruction.
DarkFighter Low-Light Performance
With a minimum colour illumination of 0.002 lux and a 1/1.8″ CMOS sensor, the camera maintains usable colour images at near-darkness. Combined with 120 dB WDR, it handles the high-contrast conditions typical of car park entry points at night, where headlight glare directly conflicts with plate capture.
Varifocal Lens with Flexible Framing
The 2.8-12mm motorised varifocal lens allows installers to adjust the framing angle from a wide 100.8° horizontal view down to a tighter 40.2° without changing the camera position. Auto, semi-auto, and manual focus modes support precise plate capture across variable lane widths and approach distances.
5-Stream Output with H.265+ Compression
Up to 5 simultaneous video streams allow separate feeds for full-resolution recording, LPR analytics, remote monitoring, and lower-bandwidth sub-streams. H.265+ compression reduces storage and bandwidth consumption compared to standard H.264, which is important when archiving 8MP footage continuously at a busy access point.
Best For
- Coastal and Marine Installations: The 316L stainless steel enclosure with C5-M anti-corrosion certification directly addresses salt-air degradation that eliminates standard bullet cameras within 1-2 seasons in foreshore environments.
- Car Park and Gate Entry ANPR: On-board deep learning LPR combined with Wiegand output enables direct integration with access control hardware at vehicle entry and exit lanes without an external analytics server.
- Industrial and Chemical Facility Perimeters: NEMA 4X and C5-M ratings alongside IP67 protection make the camera appropriate for chemical plants, refineries, and processing facilities where airborne corrosives are present.
- High-Rainfall or Dusty Outdoor Entry Points: The built-in wiper on the -R model maintains clear lens visibility in environments where rain, dust, or debris accumulation would interrupt consistent plate reads at monitored entry points.
Why Choose the DS-2XC6686G0/P-IZH(R)S
Most ANPR bullet cameras use standard aluminium housings that are adequate for sheltered or inland installations but deteriorate rapidly in aggressive outdoor conditions. The DS-2XC6686G0/P-IZH(R)S specifically addresses this gap with a 316L stainless steel body, anti-corrosion coating, C5-M certification, and NEMA 4X compliance, all validated for long-term deployment in coastal, marine, and industrial chemical environments. On top of that physical durability, the camera runs on-board LPR through deep learning, supports Wiegand output for direct access control integration, captures 8MP at up to 30 fps with DarkFighter low-light performance, and includes electronic image stabilisation for pole-mounted deployments. A simpler outdoor ANPR camera would not carry the corrosion certifications, and a standard corrosion-resistant camera would not carry on-board LPR. This model combines both in a single unit, available at Security Wholesalers with an approximate 8-week lead time for this specialised product.
Buyer Decision Tips
Wiper Model (-R) vs. Standard: The -R suffix denotes the built-in wiper variant. The non-R model retains IK10 vandal resistance and RS-485 connectivity, which the -R model does not support. If your installation is in a sheltered undercover car park or requires RS-485 for PTZ or third-party device control, the non-R variant is more appropriate. For open-air or high-contamination environments, the -R wiper model is the better choice even at the cost of IK10 and RS-485.
Lens Range and DORI Distance: The 2.8-12mm varifocal provides a recognition distance of up to 21.6m at tele-end. If your lane approach requires plate recognition beyond that range, confirm whether the 8-32mm variant (with up to 58m recognition distance) better matches your site geometry before ordering, as this is a made-to-order product with an 8-week lead time.
Key Features & Technical Specifications
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Max. Resolution |
3840 x 2160 (8MP / 4K) |
| Min. Illumination |
Colour: 0.002 lux (F1.2, AGC ON), B/W: 0.0002 lux (F1.2, AGC ON), 0 lux with IR |
| Focal Length |
2.8-12mm varifocal (H FOV 100.8° to 40.2°) |
| IR Range |
Up to 60m (2.8-12mm), smart supplement light |
| WDR |
120 dB |
| ANPR / LPR |
On-board deep learning licence plate recognition with vehicle detection and attribute metadata |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Frame Rate |
Up to 25 fps (50 Hz) / 30 fps (60 Hz) at 3840 x 2160 |
| Streams |
5 simultaneous streams |
| Image Enhancements |
BLC, HLC, Defog, 3D DNR, EIS, ROI (5 regions per stream), target cropping |
| Smart Events |
Line crossing, intrusion detection, audio exception, defocus detection |
| Housing Material |
316L stainless steel with anti-corrosion coating |
| Protection Rating |
IP67, IK10 (non-R model), NEMA 4X, C5-M |
| Built-In Wiper |
Yes (-R variant only) |
| Power |
12V DC or PoE (802.3at) |
| Local Storage |
MicroSD up to 256GB |
| Interfaces |
RJ45 Gigabit, audio in/out, alarm in/out, Wiegand (/P), RS-485 (non-R only), reset key |
| Operating Temperature |
-40°C to 60°C, up to 95% RH |
| Certifications |
FCC, CE, RCM, UL, CB, RoHS, WEEE, Reach |
Ideal Use Cases
Coastal Car Park Entry Lanes
Salt-air environments accelerate corrosion on standard camera housings. The 316L stainless steel enclosure with C5-M rating allows the DS-2XC6686G0/P-IZH(R)S to operate reliably at foreshore car parks and marina facilities where plate capture and long-term hardware durability are both required.
Industrial Facility Gate Control
On-board LPR combined with Wiegand output allows the camera to trigger gate controllers or barriers directly based on plate reads. At chemical plants, refineries, or processing sites, the NEMA 4X and C5-M ratings address the aggressive airborne environment without requiring a separate enclosure.
Port and Waterfront Security
Port perimeters combine salt-laden air, heavy vehicle traffic, and demanding access control requirements. The corrosion-resistant bullet housing, ANPR capability, and IP67 water resistance make this camera suitable for container terminal entry points and wharf access roads.
High-Rainfall Outdoor Entry Points
The built-in wiper on the -R variant clears rain and debris from the lens automatically, preventing the plate read failures that occur when water sheets across an unprotected lens. This is particularly relevant at exposed boom gate entries and open-air loading dock approaches.
Nighttime Traffic Monitoring
DarkFighter technology with 0.002 lux colour sensitivity and 120 dB WDR allows the camera to capture readable plates in low-light entry points where vehicle headlights create severe backlight. The 60m smart IR supports clear night imaging without relying on external lighting infrastructure.
Choosing the Right Model
- Choose this model if: Your site is in a coastal, marine, chemical, or high-humidity industrial environment that would degrade a standard aluminium-housed camera, and you need on-board ANPR with Wiegand output for access control integration alongside 8MP 4K imaging.
- Choose the -R (wiper) variant if: Your installation is exposed to rain, dust, or lens contamination that would interrupt plate reads. Note that the -R variant does not include RS-485 or IK10 vandal resistance, so it is better suited to pole or wall-mounted positions that are not subject to deliberate impact.
- Choose a different model if: Your site is a standard sheltered inland location without corrosive conditions. A conventional outdoor ANPR bullet camera without stainless steel housing would deliver equivalent LPR performance at a lower cost and shorter lead time in those conditions.
- Choose a different model if: You need recognition distances beyond 21.6m at the 2.8-12mm tele-end. A longer focal length varifocal or telephoto bullet camera would provide the DORI reach required for wider lane approaches or greater standoff distances before investing in this specialised housing variant.
FAQs
- What does the C5-M anti-corrosion certification mean for this camera?
C5-M is an ISO 12944 corrosion protection category specifically covering marine and offshore industrial environments with very high humidity and salt exposure. The DS-2XC6686G0/P-IZH(R)S achieves this through its 316L stainless steel body combined with an additional anti-corrosion surface coating, making it one of the few ANPR cameras certified for long-term use directly in coastal salt-air conditions.
- How does the on-board ANPR work and what data does it output?
The camera uses a deep learning engine built into the hardware to detect vehicles, read licence plates, and capture vehicle attributes such as type and direction. This data is available as metadata over ISAPI and ISUP protocols and can be used to trigger alarms, upload to a VMS, or activate Wiegand-based access control outputs directly at the camera without a separate analytics server.
- Does the wiper operate automatically or does it need to be triggered manually?
The wiper on the -R variant can be configured to operate automatically based on schedule or triggered via the camera’s alarm linkage or management software. It is designed to activate when lens contamination is detected or at preset intervals, ensuring ongoing plate read accuracy without manual intervention on site.
- What is the recognition distance of the 2.8-12mm lens at its tele setting?
Using the DORI standard at the tele end of the 2.8-12mm range, the camera achieves an identification distance of 21.6m. This is the distance at which facial-level detail can be resolved, which broadly corresponds to the range at which a full plate is readable. For longer lane approaches, confirm whether the 8-32mm variant with a 58m identification distance is a better match for your site geometry.
- Can this camera integrate with third-party access control systems via Wiegand?
Yes. The /P designation in the model number confirms Wiegand output support in multiple formats. This allows plate read results to be passed directly to compatible access control panels, barrier controllers, or gate systems without intermediate software, which simplifies wiring at entry points where a dedicated ANPR server is not practical.
- What local storage options does the DS-2XC6686G0/P-IZH(R)S support?
The camera supports a microSD card up to 256GB for on-board recording. It also supports NAS storage over NFS and SMB protocols, and includes ANR (Automatic Network Replenishment), which buffers footage to the SD card during network interruptions and synchronises it to the NVR once connectivity is restored. This is useful for remote gate installations with intermittent network links.
- Is this camera available from stock or is there a lead time?
The DS-2XC6686G0/P-IZH(R)S is a specialised anti-corrosion ANPR camera and carries approximately an 8-week lead time through Security Wholesalers. It is advisable to confirm availability and plan project timelines accordingly before finalising installation schedules, particularly for time-sensitive access control or compliance-driven projects.
