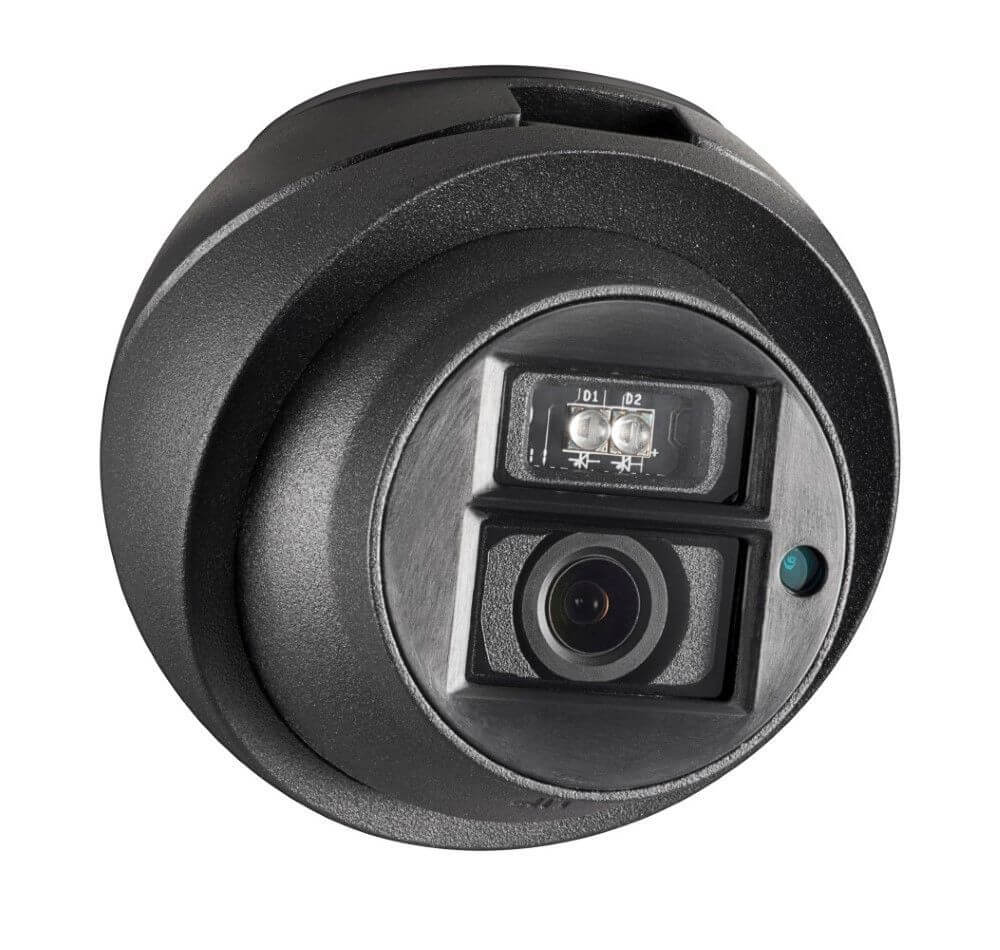

Hikvision AE-VC222T-ITS Vehicle-Mounted 1080P Analog IR Camera — Shock-Proof and HD Coaxial Output

The Hikvision AE-VC222T-ITS is a rugged analog, vehicle-mounted camera engineered for use in mobile environments. Designed to deliver high-definition surveillance even under vibration, shock, heat, or cold, it supports 1080P HD coaxial output, infrared night vision, wide viewing angles, and sound capture, all in a compact, durable package.

Key Features & Specifications

• Image Sensor: 1/2.9-inch Progressive Scan CMOS for smooth video and reduced motion blur.

• Resolution / Frame Rate: Full HD 1080P (1920×1080) at 25 fps.

• Minimum Illumination: Colour at ~0.1 Lux (F1.2, AGC on); black & white with IR at 0 Lux.

• Lens / Field of View: Available with 2.1 mm (117° HFoV), 2.8 mm (96° HFoV), or 3.6 mm (75° HFoV) fixed lenses.

• IR / Night Vision: Infrared illumination up to 10 m, enabling 0 Lux capture in darkness.

• Day/Night & Shutter: Automatic day/night switching, electronic shutter from 1/25 s to 1/50,000 s.

• Audio: Built-in microphone and audio input; audio output via aviation plug.

• Connector / Mounting: Aviation output plug, M12 lens mount.

• Power: 9–16 V DC, consumption up to ~2.2 W.

• Physical & Environmental: Operating temperature –40 °C to +75 °C, humidity up to 90%. Compact size (74 × 64.5 × 71.1 mm), weight ~200 g. Shock-proof design.

---

Use Cases

1. Fleet Vehicles
   Used in buses, trucks, and vans to monitor drivers, passengers, or blind spots. Wide FOV and shock resistance make it ideal for mobile use.

2. Law Enforcement / Emergency Vehicles
   Captures internal or external activity in patrol cars or ambulances, including low-light/night scenes.

3. Public Transport
   Provides monitoring inside buses or trams, with both video and audio for safety and incident recording.

4. Mining, Agriculture, & Heavy Machinery
   Withstands dust, vibration, and extreme temperature ranges, making it suitable for demanding work vehicles.

5. Mobile Security Units
   Installed in patrol vans or mobile security vehicles, operating reliably under constant movement and changing light.

6. Forklifts & Industrial Vehicles
   Ideal for warehouses, loading docks, and logistics operations where wide-angle visibility is needed in tight spaces.

---

Frequently Asked Questions (FAQs)

Q: Does this camera work in complete darkness?
A: Yes. With its built-in IR illumination, it captures clear black-and-white video at 0 Lux.

Q: Which lens option should I choose?
A: 2.1 mm for very wide coverage, 2.8 mm for balanced wide coverage, or 3.6 mm for narrower, more detailed views.

Q: Is it designed for use in vehicles with vibration?
A: Yes. It is shock-proof and specifically built for vehicle environments.

Q: Can it capture audio?
A: Yes. It includes a built-in microphone and supports audio input/output via aviation plug.

Q: What type of video output does it use?
A: HD coaxial video output through an aviation plug connector.

Q: What is the power requirement?
A: Operates on 9–16 V DC, with max consumption of about 2.2 W.

Q: Can it handle extreme weather?
A: Yes. Rated for operation between –40 °C and +75 °C, and up to 90% humidity.
