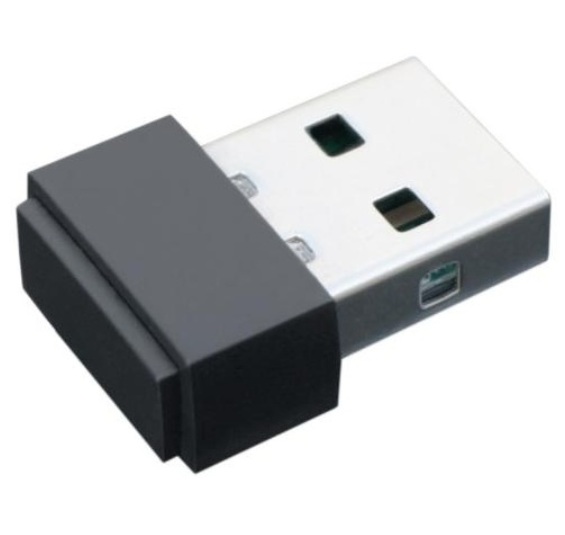

Hikvision AE-MW5500 2.4GHz USB WiFi Adapter with 150Mbps IEEE 802.11b/g/n USB Type-A 2.0 for ADAS & MDVR

Name: Hikvision AE-MW5500 2.4GHz USB WiFi Adapter with 150Mbps IEEE 802.11b/g/n USB Type-A 2.0 for ADAS &amp; MDVR
Brand: Hikvision
SKU: AE-MW5500
Price: 47.52 AUD
Availability: InStock

$47.52

WARRANTY GUARANTEED

✓ Trade-Price Verified✓ Priority Hikvision Product Support✓ Authorised Warranty & Returns

The Hikvision AE-MW5500 provides a compact USB WiFi adapter designed to add wireless network connectivity to compatible Hikvision vehicle surveillance equipment, including ADAS controllers and mobile DVR systems. Operating on the 2.4GHz wireless band, it supports IEEE 802.11b/g/n standards with wireless transmission speeds of up to 150Mbps through a USB Type-A 2.0 interface.

Its QSS quick-setting function assists with straightforward wireless security configuration, with the AE-MW5500 available through Security Wholesalers for compatible onboard surveillance deployments. Powered by 5V DC and measuring approximately 22 × 16 × 7mm, the compact adapter operates across a -20°C to 50°C temperature range for supported vehicle installations.

Key Features

2.4GHz WiFi: Provides wireless connectivity over the 2.4GHz frequency band for compatible onboard equipment.
Up to 150Mbps: Supports wireless transmission speeds of up to 150Mbps.
IEEE 802.11b/g/n: Compatible with common 2.4GHz wireless networking standards.
USB Type-A 2.0: Uses a standard USB Type-A interface for connection to compatible Hikvision vehicle equipment.
ADAS & MDVR Compatibility: Designed for supported ADAS controllers and mobile digital video recorder applications.
Compact Vehicle Design: Measures approximately 22 × 16 × 7mm and operates from -20°C to 50°C.

STANDARD LEAD TIME: 70 DAYS

$47.52 inc GST +3 Year Warranty & Support

Description

Product SKU: AE-MW5500

Product Overview

The Hikvision AE-MW5500 is a compact 2.4 GHz USB Wi-Fi adapter designed for compatible Hikvision vehicle surveillance products, including ADAS controllers and mobile DVR systems. It supports IEEE 802.11b/g/n wireless networking with a maximum stated transmission rate of 150 Mbps, providing a simple way to add supported 2.4 GHz wireless connectivity to suitable onboard equipment. The adapter connects through a USB Type-A interface and supports USB 2.0 and USB 1.1, with a nominal operating voltage of DC 5 V. Its compact 22 × 16 × 7 mm dimensions make it practical where space around the host device is limited. The AE-MW5500 should be selected only after confirming that the intended ADAS controller or MDVR supports this specific adapter and that a 2.4 GHz wireless network meets the installation requirements.

Key Capabilities

2.4 GHz Wi-Fi Connectivity

The AE-MW5500 operates on the 2.4 GHz wireless band, allowing compatible Hikvision vehicle equipment to connect to supported 2.4 GHz Wi-Fi networks.

Up to 150 Mbps Wireless Rate

A maximum stated wireless transmission rate of 150 Mbps provides suitable connectivity for compatible onboard devices designed to operate with this adapter.

IEEE 802.11b/g/n Support

Support for IEEE 802.11b/g/n provides compatibility with established 2.4 GHz wireless networking standards used by suitable Hikvision mobile surveillance equipment.

USB Type-A Interface

The adapter uses a standard USB Type-A connection and supports USB 2.0 and USB 1.1 for connection to compatible vehicle host devices.

QSS Quick Setup

The supplied QSS quick-setting function is designed to simplify supported wireless security setup when configuring the adapter with compatible equipment.

Compact Vehicle Accessory

Measuring approximately 22 × 16 × 7 mm, the AE-MW5500 adds supported Wi-Fi capability without requiring a large external networking accessory.

Best For

Compatible Hikvision ADAS Controllers: Suitable where a supported ADAS host product requires 2.4 GHz Wi-Fi connectivity through its USB interface.
Mobile DVR Systems: Designed for compatible Hikvision MDVR products that support the AE-MW5500 wireless adapter.
Vehicle Surveillance Installations: Useful where supported onboard recording equipment needs wireless network access without a separate external router connection at the host device.
Compact Equipment Locations: The small physical footprint suits installations where there is limited clearance around the compatible USB port.

Why Choose the AE-MW5500

The AE-MW5500 is designed specifically for compatible Hikvision vehicle host products rather than as a general-purpose Wi-Fi adapter for every USB device. Its 2.4 GHz IEEE 802.11b/g/n support, maximum 150 Mbps wireless transmission rate and compact USB Type-A format make it a straightforward option when a supported ADAS controller or MDVR needs wireless connectivity. The main buying consideration is compatibility: the presence of a USB port alone does not mean a recorder will recognise the adapter. Available through Security Wholesalers, the AE-MW5500 is best selected when the host device is confirmed to support it and the installation requires 2.4 GHz Wi-Fi rather than 5 GHz wireless networking.

Buyer Decision Tips

Buyer Tip: Confirm host-device compatibility before ordering. The AE-MW5500 is intended for supported Hikvision ADAS controllers and MDVR products, so a USB Type-A port by itself does not guarantee that a particular recorder or controller will support the adapter.

Buyer Tip: This adapter operates on 2.4 GHz only. If the intended wireless network requires 5 GHz connectivity, choose a compatible wireless solution that specifically supports that frequency band.

Key Features & Technical Specifications

Product Type	USB Wi-Fi adapter for compatible vehicle surveillance equipment.
Model	AE-MW5500.
Wireless Band	2.4 GHz.
Maximum Wireless Rate	Up to 150 Mbps.
Wireless Standards	IEEE 802.11b/g/n.
USB Interface	USB Type-A.
USB Support	USB 2.0 and USB 1.1.
Quick Setup	QSS quick-setting function.
Nominal Voltage	DC 5 V.
Operating Temperature	-20°C to 50°C.
Application	Compatible ADAS controller and MDVR products.
Dimensions	22 × 16 × 7 mm.

Ideal Use Cases

ADAS Controller Connectivity

Adds supported 2.4 GHz wireless connectivity to compatible Hikvision ADAS controller installations.

Mobile DVR Installations

Suitable for supported MDVR equipment that requires the AE-MW5500 to connect to a compatible 2.4 GHz Wi-Fi network.

Fleet Surveillance Systems

Useful where compatible onboard recorders require wireless network access as part of a vehicle surveillance deployment.

Compact USB Installations

The small 22 × 16 × 7 mm format suits compatible equipment where available space around the USB interface is limited.

Choosing the Right Model

Choose this model if: Your compatible Hikvision ADAS controller or MDVR specifically supports the AE-MW5500 and requires 2.4 GHz IEEE 802.11b/g/n Wi-Fi connectivity.
Choose a different wireless option if: The installation requires 5 GHz Wi-Fi, a different wireless standard or a host device that does not support the AE-MW5500.
Check compatibility first if: You are selecting the adapter only because the host device has a USB port. USB connector compatibility and device support are separate requirements.

FAQs

What is the Hikvision AE-MW5500 used for?
The Hikvision AE-MW5500 is a 2.4 GHz USB Wi-Fi adapter designed for compatible Hikvision vehicle products such as ADAS controllers and mobile DVRs. It connects through a USB Type-A interface and supports wireless transmission rates up to 150 Mbps using IEEE 802.11b/g/n. Before purchase, confirm that the intended host device supports this adapter and that 2.4 GHz Wi-Fi suits the installation.
What wireless standards does the AE-MW5500 support?
The AE-MW5500 supports IEEE 802.11b/g/n wireless networking on the 2.4 GHz band. Its maximum stated wireless transmission rate is 150 Mbps. This makes it suitable for compatible vehicle surveillance equipment that requires 2.4 GHz Wi-Fi connectivity rather than newer 5 GHz-only networking.
What USB connection does the AE-MW5500 use?
The AE-MW5500 uses a USB Type-A interface and supports USB 2.0 and USB 1.1. This allows it to connect directly to compatible Hikvision vehicle host equipment with a supported USB port. Compatibility should still be checked against the exact ADAS controller or MDVR before ordering, because not every USB-equipped device supports every wireless adapter.
Does the AE-MW5500 support 5 GHz Wi-Fi?
No. The AE-MW5500 operates on the 2.4 GHz wireless band and supports IEEE 802.11b/g/n. Buyers who specifically require 5 GHz Wi-Fi should choose equipment designed for that band instead. This distinction matters when matching the adapter to an existing wireless network or a compatible Hikvision vehicle recorder.
What power does the AE-MW5500 require?
The AE-MW5500 has a nominal voltage of DC 5 V and is powered through its USB connection when used with compatible host equipment. When selecting the adapter through Security Wholesalers, confirm that the intended Hikvision ADAS controller or MDVR provides the required supported USB interface and is compatible with the adapter.
What temperature range is the AE-MW5500 designed to operate in?
The AE-MW5500 has a stated operating temperature range of -20°C to 50°C. This range should be considered when choosing the adapter for vehicle and mobile surveillance environments, particularly where equipment may be exposed to significant cabin or enclosure temperature changes.
How large is the AE-MW5500?
The AE-MW5500 measures approximately 22 mm × 16 mm × 7 mm. Its compact dimensions make it suitable for compatible vehicle equipment where space around the USB interface is limited. Even with a small adapter, the installation should leave enough clearance to avoid accidental knocks or strain on the USB port.
