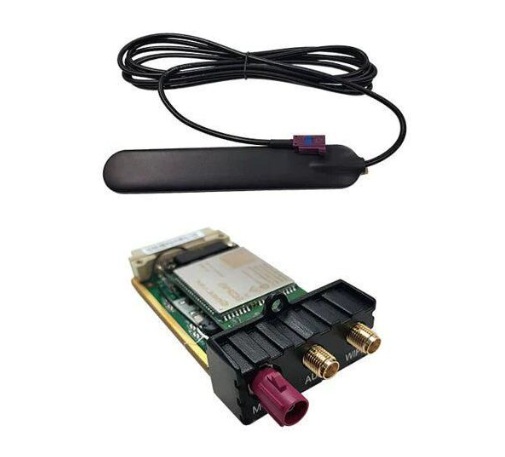

Hikvision AE-MP1460-GLF-WI58-S Mobile Wireless Module with 3G/4G, 2.4GHz & 5GHz Wi-Fi Connectivity

Product SKU: AE-MP1460-GLF-WI58-S

Product Overview

The Hikvision AE-MP1460-GLF-WI58-S Mobile Wireless Module is designed to add cellular and Wi-Fi data connectivity to compatible Hikvision onboard video recorders. It combines 3G/4G mobile communication with dual-band Wi-Fi support across 2.4GHz and 5GHz frequency ranges, providing flexible data transmission options for vehicle surveillance systems. The module supports IEEE 802.11 a/b/g/n/ac wireless standards and uses dedicated cellular and Wi-Fi antenna connections. With a compact 45mm × 96.5mm × 25.5mm housing, 5V DC input and compatibility with multiple Hikvision mobile DVR and NVR models, the AE-MP1460-GLF-WI58-S is suited to fleet monitoring, public transport, logistics and other mobile security installations requiring network connectivity.

Key Capabilities

Best For

• Fleet Surveillance: Suitable for compatible mobile recorders installed in trucks, vans and commercial fleet vehicles.
• Public Transport: Supports network connectivity for onboard surveillance systems in buses, coaches and similar vehicles.
• Logistics Operations: Useful where compatible vehicle recorders require cellular or Wi-Fi communication for system access and data transmission.
• Emergency and Service Vehicles: Suitable for supported mobile video systems installed in field service and response vehicles.
• Mobile Recorder Upgrades: Provides a connectivity option for compatible Hikvision recorders that support the AE-MP1460 series module.

Why Choose the AE-MP1460-GLF-WI58-S

Choose the Hikvision AE-MP1460-GLF-WI58-S when a compatible onboard video recorder requires integrated cellular and Wi-Fi communication. The module supports 3G/4G connectivity together with 2.4GHz and 5GHz Wi-Fi, giving system designers multiple transmission options for different operating environments. Support for IEEE 802.11 a/b/g/n/ac standards enables connection to compatible wireless networks, while dedicated antenna interfaces help provide the required cellular and Wi-Fi signal paths. Its compact form and 5V DC input are designed for supported Hikvision mobile recorder installations. Supplied by Security Wholesalers, the module offers a purpose-built alternative to using generic wireless hardware with uncertain compatibility.

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this model if: The mobile recorder documentation specifically lists the AE-MP1460-GLF-WI58-S as a compatible wireless module.
• Check cellular compatibility: Confirm that the listed 3G and 4G bands match the selected carrier and deployment region.
• Check Wi-Fi requirements: Confirm whether the system will connect to 2.4GHz, 5GHz or both network types.
• Confirm antenna requirements: Suitable cellular and Wi-Fi antennas must be correctly positioned and connected for reliable communication.
• Plan the data service: A compatible SIM card and active mobile data plan may be required for cellular communication.

FAQs

1. What is the Hikvision AE-MP1460-GLF-WI58-S used for?
   The AE-MP1460-GLF-WI58-S is a mobile wireless module for compatible Hikvision onboard video recorders. It adds supported 3G/4G cellular and dual-band Wi-Fi communication for flexible data transmission in vehicle surveillance systems.
2. Does the module support both 2.4GHz and 5GHz Wi-Fi?
   Yes. The module supports Wi-Fi frequency ranges from 2.4GHz to 2.5GHz and from 5.15GHz to 5.825GHz. It supports IEEE 802.11 a/b/g/n/ac wireless standards.
3. Does it support 4G mobile data?
   Yes. The module supports 3G WCDMA and 4G FDD LTE communication across the listed frequency bands. Carrier compatibility and local network availability should be confirmed before deployment.
4. Is a SIM card included?
   A SIM card and mobile data service should not be assumed to be included. A compatible SIM and active service plan may be required, depending on how the cellular connection will be configured.
5. Does the module include antennas?
   The module uses one Rosenberger cellular antenna connection and two SMA Wi-Fi antenna connections. Confirm the package contents and obtain compatible antennas separately when they are not included.
6. Is it compatible with every Hikvision recorder?
   No. It is designed for selected Hikvision mobile DVR and NVR models. Compatibility must be checked against the exact recorder model, hardware revision and current product documentation before installation.
7. How is the module powered?
   The AE-MP1460-GLF-WI58-S operates from a 5V DC supply provided through the supported installation arrangement. Its power consumption is less than 0.5W in standby and less than 5W at maximum load.
8. What should I check before buying the AE-MP1460-GLF-WI58-S?
   Confirm recorder compatibility, cellular frequency support, Wi-Fi requirements, antenna connections, SIM provisioning, installation space and firmware requirements. Security Wholesalers can supply the module for confirmed compatible Hikvision onboard surveillance systems.

Additional Information

Hikvision AE-MP1460 Series Mobile Wireless Component Datasheet
