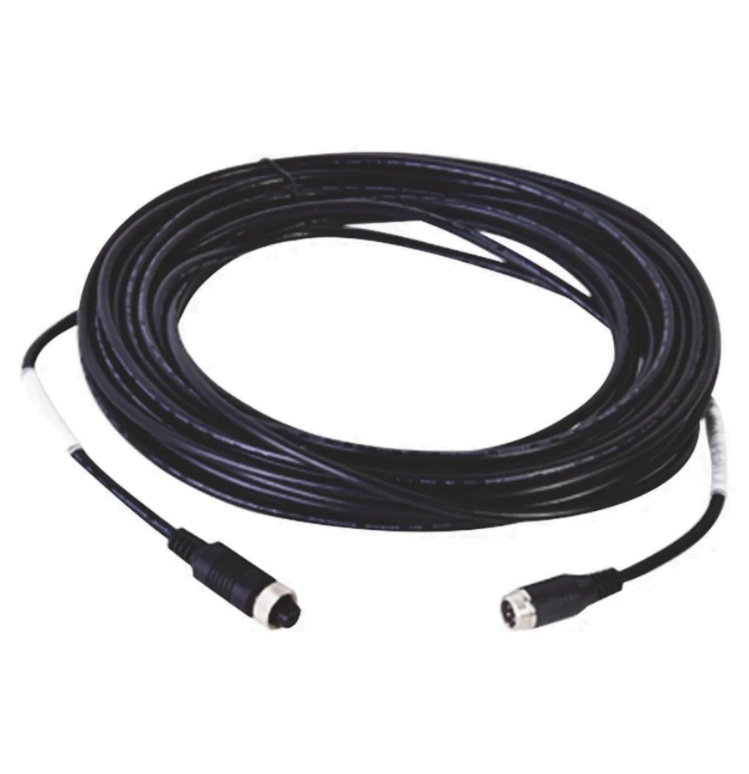

Hikvision AE-MC0201-6 6m MVR Extended Analog Aviation Cable

Product SKU: AE-MC0201-6

Product Overview

The Hikvision AE-MC0201-6 is a 6 metre analogue camera extension cable designed for compatible Hikvision mobile video recorder and onboard camera installations. It uses the specified 12M4A_B input and 12M4B_B output interfaces, providing additional cable reach while maintaining the required 4-pin aviation-style connection between compatible equipment. The cable is rated at 30 V with a maximum current of 1 A and features PVC insulation with a tinned copper conductor. Its IP5X protection rating and stated -40°C to 105°C working temperature range make it suitable for demanding onboard environments when correctly installed. The AE-MC0201-6 is best chosen when approximately 6 metres of additional reach is required and the exact camera and recorder interfaces have been confirmed as compatible.

Key Capabilities

Best For

• Mobile Video Recorder Installations: Useful where compatible Hikvision MVR equipment needs additional cable reach to an analogue onboard camera.
• Vehicle Camera Systems: Designed for compatible analogue camera installations using the specified 4-pin aviation interfaces.
• Medium-Length Cable Routes: The 6 metre length suits installations where only moderate additional distance is required and a much longer extension would create unnecessary excess cable.
• Protected Onboard Routing: Provides extra length for routing cable around vehicle structures while avoiding moving components and unsuitable installation areas.

Why Choose the AE-MC0201-6

The AE-MC0201-6 is a purpose-specific extension cable for compatible Hikvision onboard analogue camera systems rather than a generic 4-pin lead. Its 6 metre length provides a practical middle ground when the existing camera connection is too short but a substantially longer extension is unnecessary. The specified aviation-style interfaces, 30 V and 1 A electrical ratings, IP5X protection and broad operating temperature range are important considerations for vehicle installations. Available through Security Wholesalers, the AE-MC0201-6 should be selected by confirming both connector compatibility and the required cable length before installation, as other Hikvision mobile products may use different interfaces.

Buyer Decision Tips

Key Features & Technical Specifications

Product Type	Analogue onboard camera extension cable.
Model	AE-MC0201-6.
Cable Length	6 metres.
Connector Type	4-pin aviation-style connection.
Input Interface	12M4A_B.
Output Interface	12M4B_B.
Nominal Voltage	30 V.
Rated Current	≤ 1 A.
Protection Rating	IP5X.
Working Temperature	-40°C to 105°C.
Insulation	PVC.
Conductor	Tinned copper.
Application	Analogue camera extension cable with B signal definition.
Specified Standards	UL20789, IPC620-3 and QC/T 29106-2014.

Ideal Use Cases

Choosing the Right Model

• Choose this model if: Your compatible onboard analogue camera installation requires approximately 6 metres of extension and uses the specified 12M4A_B to 12M4B_B interface.
• Choose a different cable length if: Six metres is either too short for the planned route or would leave excessive unused cable. The AE-MC0201 range includes other cable lengths for different installation requirements.
• Choose a different cable type if: The intended equipment does not use the specified interfaces or falls outside the cable’s stated electrical requirements.

FAQs

1. Is the Hikvision AE-MC0201-6 suitable for extending an analogue onboard camera connection?
   Yes. The Hikvision AE-MC0201-6 is a 6 metre analogue camera extension cable designed for compatible onboard camera installations using the specified 12M4A_B to 12M4B_B interface. It is intended to extend an existing compatible connection where extra cable length is needed. Confirm the exact camera and recorder interfaces before purchase rather than assuming compatibility from the Hikvision brand alone.
2. What connectors are used on the AE-MC0201-6?
   The AE-MC0201-6 uses a 12M4A_B input interface and a 12M4B_B output interface. These are 4-pin aviation-style connectors used for compatible onboard analogue camera connections. The connector arrangement should be checked against the exact camera and mobile recorder or onboard equipment before installation, because other Hikvision mobile products may use different interfaces.
3. How long is the Hikvision AE-MC0201-6 cable?
   The AE-MC0201-6 is the 6 metre version in the AE-MC0201 extension-cable range. This length is useful when a compatible camera needs additional reach to the recorder but a much longer cable would create unnecessary excess. Plan the cable path before installation so it can be secured away from sharp edges, moving parts and concentrated heat sources.
4. What are the electrical ratings of the AE-MC0201-6?
   The Hikvision AE-MC0201-6 has a nominal voltage rating of 30 V and a rated current of up to 1 A. These ratings should be matched to the connected equipment before installation. When selecting the cable through Security Wholesalers, confirm that both the interface and the electrical requirements of the intended onboard camera system are suitable.
5. Is the AE-MC0201-6 dust resistant?
   Yes. The AE-MC0201-6 carries an IP5X protection rating, providing specified resistance to dust ingress. This is useful in vehicle and mobile installations where cabling may pass through less controlled spaces. IP5X does not mean the cable is waterproof, so the connectors and cable route should still be protected from unsuitable moisture exposure.
6. What temperature range is the AE-MC0201-6 designed to operate in?
   The AE-MC0201-6 has a stated working temperature range of -40°C to 105°C. This broad range suits the temperature variation that can occur in vehicle and onboard environments. Correct installation is still important, so keep the cable away from sharp edges, moving components and concentrated heat sources that could damage the insulation or strain the connectors.
