Hikvision AE-IFC00 2.5m Wired Alarm Button Cable with Push-Type Key for Onboard Security Systems

Name: Hikvision AE-IFC00 2.5m Wired Alarm Button Cable with Push-Type Key for Onboard Security Systems
Brand: Hikvision
SKU: AE-IFC00
Price: 14.73 AUD
Availability: InStock

$14.73

WARRANTY GUARANTEED

✔ Dedicated 5★ Customer Care Team ✔ Fast & Responsive Tech Support

Hikvision Wired Alarm Button Cable | AE-IFC00 | 2.5m Cable Length | Push-Type Key | Onboard Security System Accessory

The Hikvision AE-IFC00 provides a 2.5m wired alarm button cable designed for compatible onboard security systems requiring a direct manual alert control. Featuring a push-type key and wired connection, it offers a straightforward accessory for activating an alarm or emergency input from an accessible position within the vehicle or monitored area.

Its extended cable length supports flexible installation placement, making this accessory available at Security Wholesalers practical for professional onboard security integrations. With its compact button format and dedicated cable assembly, the AE-IFC00 suits compatible mobile surveillance and vehicle security installations requiring a simple, reliable method for manual alarm activation.

Key Features

2.5m Cable Length: Provides flexible routing and placement within compatible onboard security installations.
Push-Type Key: Enables straightforward manual alarm or emergency input activation.
Wired Connection: Supports a direct physical connection to compatible onboard security equipment.
Onboard Security Accessory: Designed for compatible vehicle and mobile surveillance system applications.
Compact Button Design: Allows convenient installation in an accessible operating position.
Professional Integration: Suits new installations, system upgrades and replacement accessory requirements.

Additional Information

Hikvision AE-IFC00 Mobile Cable Alarm Datasheet

$14.73 inc GST +3 Year Warranty & Support

Description

Product SKU: AE-IFC00

Product Overview

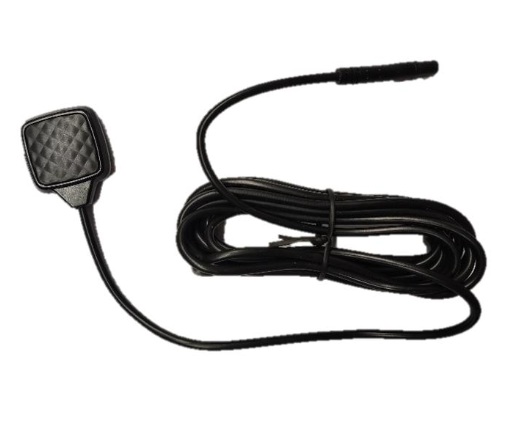

The Hikvision AE-IFC00 2.5m Wired Alarm Button Cable with Push-Type Key is an onboard security accessory designed to provide a direct physical alarm input for compatible Hikvision vehicle surveillance products. The cable combines a tactile push-button key with a 2.5-metre lead and a stable BM connection interface for straightforward integration with supported onboard devices. Its compact, self-adhesive button housing can be positioned within convenient reach of the driver or authorised operator. With a maximum electrical rating of 12V DC at 50mA, operating temperatures from -20°C to 60°C and factory testing for open circuits, short circuits and connection errors, the AE-IFC00 provides a practical wired alarm trigger for compatible mobile security installations.

Key Capabilities

Physical Alarm Trigger

Provides a push-type button for manually triggering a supported alarm input on compatible onboard Hikvision equipment.

2.5-Metre Cable

The supplied cable length supports flexible button positioning within the vehicle cabin or equipment area.

Tactile Feedback

The push-type key provides physical feedback to help the operator confirm button actuation.

BM Connection Interface

The dedicated interface is designed to support stable connection and reduce incorrect installation with compatible devices.

Self-Adhesive Mounting

The compact button housing can be mounted on a suitable clean surface within convenient operator reach.

Electrical Fault Testing

Units are tested for open circuits, short circuits and connection displacement before supply.

Best For

Commercial Vehicles: Suitable for compatible mobile surveillance systems installed in trucks, vans and service vehicles.
Public Transport: Provides a physical alarm trigger for supported onboard equipment in buses, coaches and similar vehicles.
Fleet Security: Useful where drivers or operators require a discreet, manually activated alarm input.
Taxi and Rideshare Installations: Supports compatible onboard security systems requiring a wired emergency or event button.
Mobile Video Systems: Designed for integration with supported Hikvision dash cameras and onboard recording equipment.

Why Choose the AE-IFC00

Choose the Hikvision AE-IFC00 when a compatible onboard security system requires a simple physical alarm button with a dedicated wired connection. Its 2.5-metre lead provides practical flexibility when positioning the button, while the compact self-adhesive housing helps minimise installation complexity. The tactile switch gives the operator physical actuation feedback, and the BM interface is designed to support stable, error-resistant connection with compatible equipment. The cable also complies with RoHS 2.0 requirements and is tested for common wiring faults. Supplied by Security Wholesalers, the AE-IFC00 is a purpose-built alternative to adapting a generic switch with uncertain electrical or connector compatibility.

Buyer Decision Tips

Buyer Tip: Confirm that the AE-IFC00 is listed as a compatible alarm button accessory for the exact Hikvision onboard device before ordering.

Buyer Tip: Check that the 2.5-metre cable is long enough for the planned route between the button position and the connected recording or dash camera device.

Installation Note: Route the cable securely away from vehicle controls, pedals, airbags, moving components, sharp edges and high-temperature areas.

Key Features & Technical Specifications

Product Type	Wired alarm button cable for compatible onboard security equipment.
Model	AE-IFC00.
Brand	Hikvision.
Product Category	Onboard security electronic accessory.
Cable Length	2.5m.
Button Type	Push-type key.
Actuation	Tactile feedback.
Connection Interface	BM interface.
Maximum Electrical Rating	12V DC, 50mA.
On Resistance	2Ω maximum.
Off Resistance	2MΩ minimum.
Operating Temperature	-20°C to 60°C.
Storage Temperature	-20°C to 80°C.
Button Dimensions	Approximately 26.5mm × 33mm × 8.1mm.
Mounting Method	Self-adhesive mounting on a suitable prepared surface.
Compliance	RoHS 2.0 compliant.
Factory Testing	Tested for open circuit, short circuit and connection displacement.
Compatibility	Compatible Hikvision onboard security products that specifically support the AE-IFC00 alarm button cable.
Included Product	One 2.5m wired alarm button cable with push-type key.

Ideal Use Cases

Driver Alarm Button

Position the push button within safe reach of the driver for supported manual alarm activation.

Bus and Coach Security

Suitable for compatible onboard systems requiring a physical alarm input near the operator position.

Fleet Vehicles

Provides a consistent wired alarm button accessory across supported fleet surveillance installations.

Taxi Security

Supports compatible mobile recording systems where the driver requires a discreet manual trigger.

Service and Delivery Vehicles

Useful for supported onboard camera systems installed in delivery vans and field service vehicles.

Replacement Alarm Cable

Suitable when replacing an existing AE-IFC00 cable in a confirmed compatible Hikvision installation.

Choosing the Right Model

Choose this model if: The onboard camera or recorder documentation specifically lists the Hikvision AE-IFC00 as a supported alarm button.
Check cable length: Confirm that 2.5m is sufficient for concealed routing without stretching or placing strain on the connectors.
Check connector compatibility: Do not assume compatibility based only on appearance; confirm the required BM interface and supported accessory model.
Choose the mounting position carefully: The button should be reachable without obstructing controls, displays, airbags or normal vehicle operation.
Plan the alarm function: Confirm how the connected device records, reports or processes the button event before deployment.

FAQs

What is the Hikvision AE-IFC00 used for?
The Hikvision AE-IFC00 is a wired push-button alarm accessory for compatible onboard surveillance devices. It allows a driver or authorised operator to manually trigger a supported alarm input through a physical button.
How long is the AE-IFC00 cable?
The cable is 2.5 metres long. Before installation, measure the intended route from the button location to the compatible onboard device and allow enough length for secure, concealed routing.
Does the button provide tactile feedback?
Yes. The push-type key uses tactile actuation, giving the operator physical feedback when the button is pressed. The resulting alarm action depends on the configuration and capabilities of the connected device.
How is the button mounted?
The button housing is designed for self-adhesive mounting on a suitable clean surface. The selected position should remain accessible while avoiding airbags, controls, moving parts and areas exposed to excessive heat or moisture.
Is the AE-IFC00 compatible with every Hikvision recorder?
No. It is intended for compatible Hikvision onboard security products that specifically support this alarm cable and its BM interface. Compatibility should be confirmed from the device documentation before purchase.
What is the electrical rating of the cable?
The AE-IFC00 has a maximum rating of 12V DC at 50mA. It should only be connected to the supported alarm interface and installed according to the relevant onboard device instructions.
Can it be used as a replacement alarm button?
Yes, when replacing an existing AE-IFC00 in a confirmed compatible installation. Check the connector, cable route, button position and device configuration before removing or replacing the original cable.
What should I check before buying the AE-IFC00?
Confirm the exact onboard device model, AE-IFC00 compatibility, required cable length, button position and planned alarm behaviour. Security Wholesalers can supply the cable for compatible Hikvision mobile surveillance installations.

Additional Information

Hikvision AE-IFC00 Mobile Cable Alarm Datasheet
