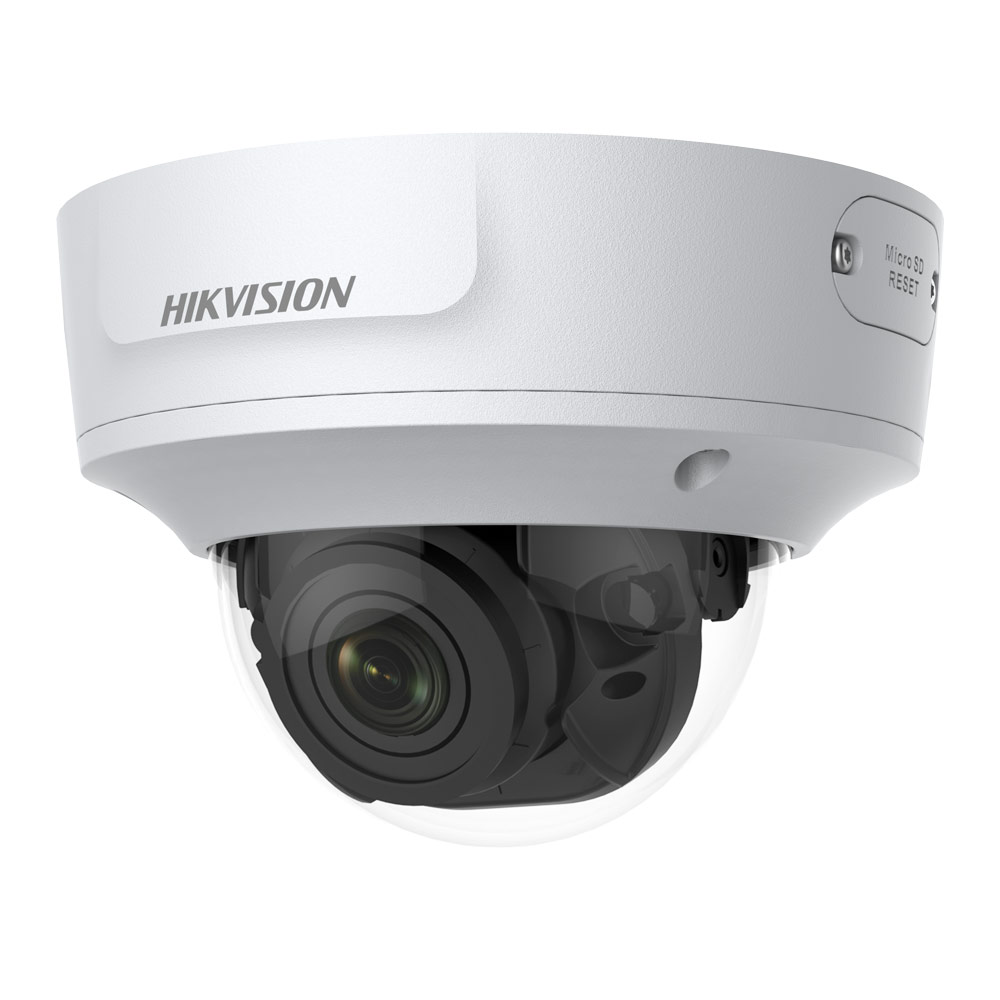

Hikvision AcuSense DS-2CD2746G1-IZS 4MP Outdoor Dome Camera, H.265, 30m IR Motorised Lens


Part of Hikvision’s AcuSense Series, the DS-2CD2746G1-IZS / HIK-2CD2746G1IZS is an outdoor-ready dome camera. Powered by Darkfighter and with an IR rating of 30m, this camera is ready for any environment, day or night, where security is a must.













$462.00 $525.80 inc GST +3 Year Warranty & Support

Part of Hikvision’s AcuSense Series, the DS-2CD2746G1-IZS / HIK-2CD2746G1IZS is an outdoor-ready dome camera. Powered by Darkfighter and with an IR rating of 30m, this camera is ready for any environment, day or night, where security is a must.

  • Max. 2688 x 1520 resolution at 30fps
  • 2.8 to 12mm lens
  • H.265+, H.264+, H.265, H.264
  • 120dB WDR
  • 12 VDC and PoE (802.3af, class 3)
  • 30m IR
  • Supports on board storage, up to 128 GB
  • IP66
  • BLC/3D DNR/ROI
  • Colour: 0.007 Lux at (F1.2, AGC ON), 0.012 Lux at (F1.6, AGC ON)



Camera
Image Sensor: 1/2.7” Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: Horizontal FOV: 101° to 29°, vertical FOV: 54° to 16°, diagonal FOV: 121° to 34°
Lens Mount: φ14
Adjustment Range: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Motorized VF lens(-Z model)
Compression Standard
Video Compression: H.265/H.264/MJPEG
Video bit rate: 32Kbps~16Mbps
Max. Image Resolution: 2688 × 1520
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Frame Rate: 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Image Enhancement: BLC/3D DNR
ROI: Support 1 fixed region for main stream and sub stream separately
Day/Night Switch: Day/Night/Auto/Schedule
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G),ISAPI
Intelligent
Behavior analysis: Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification
Interface
Alarm: 1 alarm input, 1 alarm output
Alarm Input: 1
Alarm Output: 1
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Smart Feature-set
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Region Entrance: Enter a pre-defined virtual region from the outside place
Region Exiting: Exit from a pre-defined virtual region
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Consumption: 12 VDC, 0.9 A, max. 11 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max. 12.9 W
IR Range: Up to 30m
Dimensions: Camera: Φ 153.3 × 111.6 mm (Φ 6″ × 4.4″)
Weight: Camera: 890 g (2 lb.)
With package: 1300 g (2.9 lb.)
