Product Overview

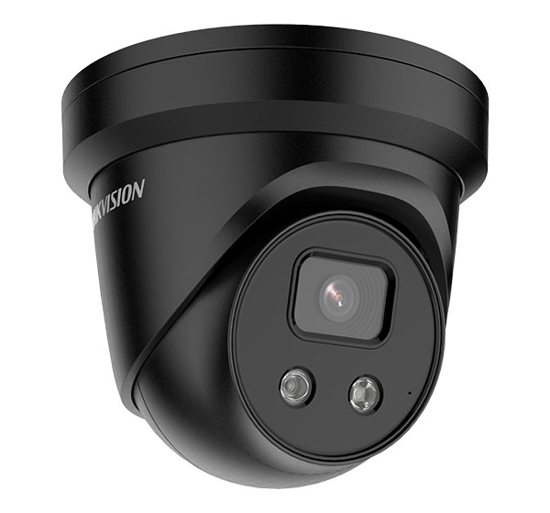

Combining active deterrence with second-generation AcuSense deep learning, the DS-2CD2366G2-ISU/SL delivers 6MP turret-style outdoor monitoring with the ability to respond to confirmed human and vehicle detections in real time. Built in a compact black turret housing suited to eave, soffit, and wall mounting, this camera goes beyond passive recording by triggering a built-in strobe light and audible siren when an intrusion event is detected. Equipped with Hikvision’s DarkFighter technology and a large 1/1.8″ progressive scan CMOS sensor, it achieves colour imaging at 0.003 Lux, maintaining usable footage in near-darkness without relying solely on infrared. With up to 30 m IR range, 120 dB wide dynamic range, IP67 weather resistance, and confirmed two-way audio for real-time voice communication, the DS-2CD2366G2-ISU/SL suits driveways, shopfronts, warehouses, and small commercial premises where active deterrence and analytical accuracy are both priorities.
Key Capabilities
AcuSense Gen 2 Human and Vehicle Classification
Second-generation AcuSense uses deep learning to distinguish people and vehicles from irrelevant motion such as animals or foliage. This means alarm events are tied to actual targets, reducing the time spent reviewing footage and ensuring responses are triggered by genuine detections rather than background movement.
Active Strobe and Audible Warning
When a classified detection event occurs, the DS-2CD2366G2-ISU/SL can automatically trigger its built-in visual strobe and audio alarm. This active deterrence function targets intruders before an incident escalates, making it especially effective at entry points, driveways, and perimeter boundaries where an immediate on-site response is valuable.
DarkFighter Low-Light Performance
The 1/1.8″ progressive scan CMOS sensor combined with DarkFighter technology enables colour imaging at a minimum illumination of 0.003 Lux. In poorly lit outdoor environments such as unlit driveways or side access paths, the camera retains colour detail that standard cameras would lose, supporting more accurate event review and classification.
Two-Way Audio
With both a built-in microphone and speaker confirmed, the DS-2CD2366G2-ISU/SL supports real-time two-way voice communication. Operators can speak directly through the camera to warn individuals or verify a situation, and customisable audio warnings can also be set to play automatically when a detection event is triggered.
120 dB Wide Dynamic Range
True 120 dB WDR allows the camera to manage scenes with extreme contrast, such as a shopfront entrance backlit by outdoor sunlight or a car park with mixed light sources. Both bright and shadowed areas of the frame are rendered usably, without sacrificing detail in either direction.
IP67 Outdoor Weather Resistance
An IP67 rating confirms full dust exclusion and protection against water immersion, making the DS-2CD2366G2-ISU/SL suitable for exposed outdoor mounting positions including eaves, soffits, and external walls. The black housing blends with dark fascias and architectural surfaces where a white camera would stand out.
Best For
- Residential Driveways and Entry Points: The active strobe and audible warning respond automatically to confirmed human detections, addressing intrusions at the gate or front approach before they progress further onto the property.
- Shopfronts and Small Commercial Premises: 6MP resolution combined with 120 dB WDR handles high-contrast lighting at glass-fronted entries, and the AcuSense analytics generate searchable alarm events that simplify incident review without staff needing to scrub through irrelevant recordings.
- Warehouses and Yard Perimeters: Where lighting is inconsistent or absent, DarkFighter and the 30 m IR illuminator provide coverage after hours. The audible warning function adds an on-site deterrence layer in locations that may not be staffed overnight.
- Dark-Fascia Architectural Installations: The black housing version suits properties where a white camera would contrast visually against dark eaves, cladding, or rendered walls, providing the same full feature set while matching the building aesthetics.
Why Choose the DS-2CD2366G2-ISU/SL
Standard 6MP turret cameras record what happens. The DS-2CD2366G2-ISU/SL goes further by using AcuSense Gen 2 classification to determine whether what is happening involves a person or vehicle, then responding with an on-site strobe and audio alarm before the event is over. A basic camera with motion detection alone cannot make that distinction, which means sites either receive constant false alerts from leaves and animals, or they disable alerts entirely. The confirmed two-way audio adds voice interaction capability that most cameras at this specification level do not include without an external speaker. DarkFighter sensitivity at 0.003 Lux and a large 1/1.8″ sensor ensure colour footage is retained in very low ambient light. The IP67 rating covers exposed outdoor positions, and the full 360-degree pan and 75-degree tilt range gives installers flexibility when aiming the camera at commissioning. Available at Security Wholesalers, the DS-2CD2366G2-ISU/SL is the black housing variant of this model, suited to properties where finish and aesthetics are a consideration.
Buyer Decision Tips
Active Deterrence vs. Recording Only: If the goal is purely recording, a standard 6MP turret without strobe and siren hardware will cost less. Choose the DS-2CD2366G2-ISU/SL specifically where you want the camera to react to a classified detection event with an on-site warning. Sites that need deterrence in locations without a security guard, such as after-hours yards or unattended driveways, benefit most from the built-in strobe and audio alarm combination rather than relying on monitoring centres to dispatch a response after the fact.
IR Range and Mounting Height: The 30 m IR illuminator is suited to typical residential and light commercial approaches. For longer detection distances, such as a large warehouse yard or extended driveway, consider whether 30 m IR covers the full scene or whether supplementary lighting will be required. The AcuSense classification also performs best when the camera is positioned so that people and vehicles are captured with adequate size in the frame. Mounting too high or at an acute angle to the approach path can reduce classification accuracy regardless of IR range.
Key Features & Technical Specifications
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Resolution |
6MP |
| Min. Illumination (Colour) |
0.003 Lux @ F1.6, AGC ON |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Slow Shutter |
Yes |
| Wide Dynamic Range |
120 dB true WDR |
| Day and Night |
ICR Cut |
| IR Range |
Up to 30 m |
| IR Wavelength |
850 nm |
| Smart Supplement Light |
Yes |
| Visual Alarm (Strobe) |
Yes |
| Audio |
Two-way audio: built-in microphone and speaker |
| Analytics |
AcuSense Gen 2 – human and vehicle classification via deep learning |
| IP Rating |
IP67 |
| Angle Adjustment |
Pan: 0 to 360 degrees, Tilt: 0 to 75 degrees, Rotate: 0 to 360 degrees |
| Housing Colour |
Black |
| Suitable Environment |
Outdoor |
Ideal Use Cases
Residential Driveway and Gate Coverage
Mounted on an eave or gate post, the turret housing provides flexible aiming across a 360-degree pan range. When someone approaches the property, AcuSense classifies the detection as a person and the strobe and audio alarm trigger automatically, giving homeowners an active first line of response.
Retail Shopfront and Entry Monitoring
The 120 dB WDR handles the contrast between a brightly lit interior and outdoor ambient light at a glass shopfront. AcuSense analytics produce searchable alarm events linked to person or vehicle classifications, reducing the time needed to locate a specific incident during a review.
After-Hours Warehouse Perimeter
DarkFighter low-light performance and the 30 m IR illuminator maintain usable footage in unlit yard environments. The built-in siren and strobe create an on-site deterrence response without requiring a guard on-site or relying solely on a monitoring centre dispatch.
Car Parks and Loading Areas
Vehicle classification via AcuSense allows the camera to filter alarm events specifically to vehicle detections, useful in loading dock or car park scenarios where overnight vehicle movements are a specific security concern separate from general motion.
Dark-Fascia Architectural Properties
The black housing finish is suited to properties with dark eaves, charcoal render, or timber cladding where a white camera body would stand out against the surface. The same active deterrence and 6MP performance is retained regardless of housing colour, making this variant a specification-driven choice as much as an aesthetic one.
Choosing the Right Model
- Choose this model if: You need a 6MP outdoor turret camera that actively responds to confirmed human or vehicle detections with an on-site strobe and audible alarm, and the installation site has dark fascias or surfaces where the black housing provides a better finish match.
- Choose a different model if: Your site requires IR coverage beyond 30 m, such as a long open yard or extended driveway, in which case a bullet-format camera with a longer IR throw and directional housing may be a better fit. If active deterrence is not required and the priority is purely high-resolution recording, a standard 6MP turret without the strobe and siren hardware will be a more cost-effective option.
- Choose the white variant if: The installation surfaces are light-coloured render, white fascia, or cream weatherboard, where the black housing would contrast rather than blend. The white version of this camera carries the same AcuSense Gen 2, DarkFighter, and active deterrence specifications.
FAQs
- What triggers the strobe light and audible alarm on the DS-2CD2366G2-ISU/SL?
The strobe and alarm are triggered by AcuSense-classified detection events, meaning the camera must identify the detected object as a person or vehicle before the deterrence response fires. This prevents the strobe from activating on irrelevant motion such as animals, passing shadows, or wind-blown vegetation, which distinguishes it from cameras that use generic motion-triggered alarms.
- Does this camera support two-way audio out of the box?
Yes. The DS-2CD2366G2-ISU/SL has both a built-in microphone and a built-in speaker confirmed, allowing real-time two-way voice communication without any additional hardware. Operators can speak through the camera to warn individuals on-site, and customisable pre-recorded audio warnings can also be set to play automatically when a classified detection event occurs.
- How does DarkFighter technology differ from standard IR night vision?
Standard IR night vision switches to black and white imagery in low light and relies on infrared illumination to illuminate the scene. DarkFighter uses a large 1/1.8″ CMOS sensor with a minimum illumination of 0.003 Lux to retain colour imaging in near-darkness using any ambient light available. The 30 m IR illuminator is still available when light falls below that threshold, giving the camera both colour low-light capability and conventional IR fallback.
- Is the DS-2CD2366G2-ISU/SL suitable for mounting on an exposed outdoor eave or soffit?
Yes. The IP67 rating confirms full dust exclusion and protection against water immersion, making it appropriate for exposed eave, soffit, and external wall positions. The turret housing sits flush against the mounting surface and the 360-degree pan and 75-degree tilt adjustment means the camera angle can be set precisely at installation without needing to reposition the base.
- Can the AcuSense alarm events be searched in recorded footage?
Yes. One of the practical benefits of AcuSense Gen 2 is that classified detection events are tagged in the recorded footage, making them searchable by event type. Rather than scrubbing through continuous recordings, operators can filter for person or vehicle events across a time period, which significantly reduces review time when investigating an incident after the fact.
- Why choose the black housing version over the white version?
The black and white variants carry identical specifications, including 6MP resolution, AcuSense Gen 2 analytics, DarkFighter, the strobe and audio alarm, and IP67 rating. The choice between them is determined by the mounting surface. Dark fascias, charcoal render, black cladding, and timber surfaces suit the black housing. The black variant is available through Security Wholesalers alongside the white version for installations where colour matching is a requirement.
- What is the 120 dB WDR rating useful for in practice?
120 dB true WDR allows the camera to handle scenes where bright and dark areas exist in the same frame simultaneously. At a shopfront entry, for example, the outdoor daylight behind a subject and the darker interior are both rendered usably. In a car park with overhead lights surrounded by dark surroundings, WDR prevents the lit areas from washing out while retaining shadow detail. Without WDR at this level, one area of the frame is typically overexposed or too dark to be useful for identification.
