Product SKU: Hikvision DS-2XS6K01-C36S80
Product Overview

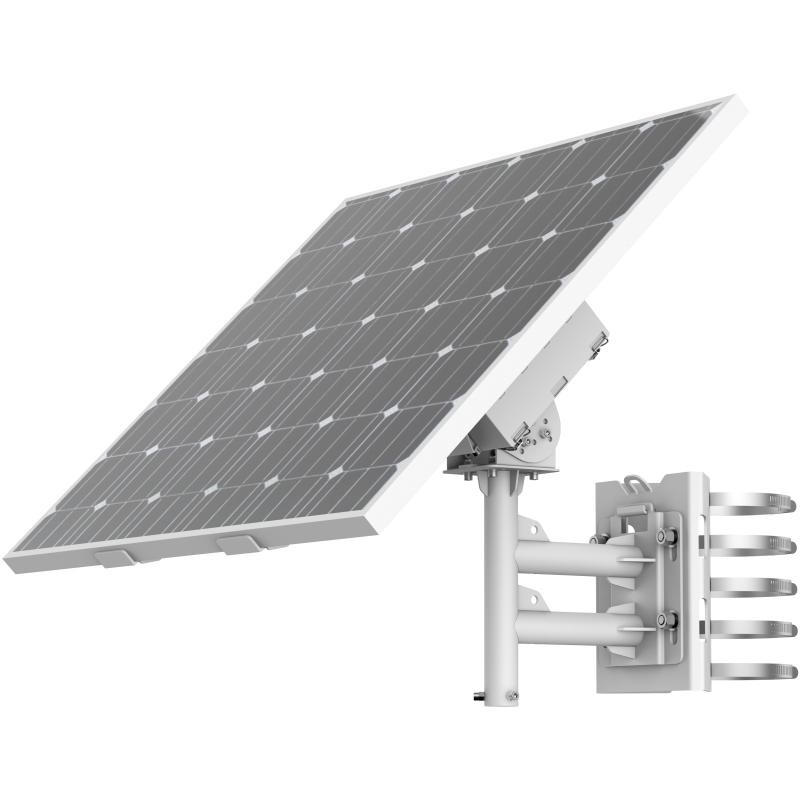

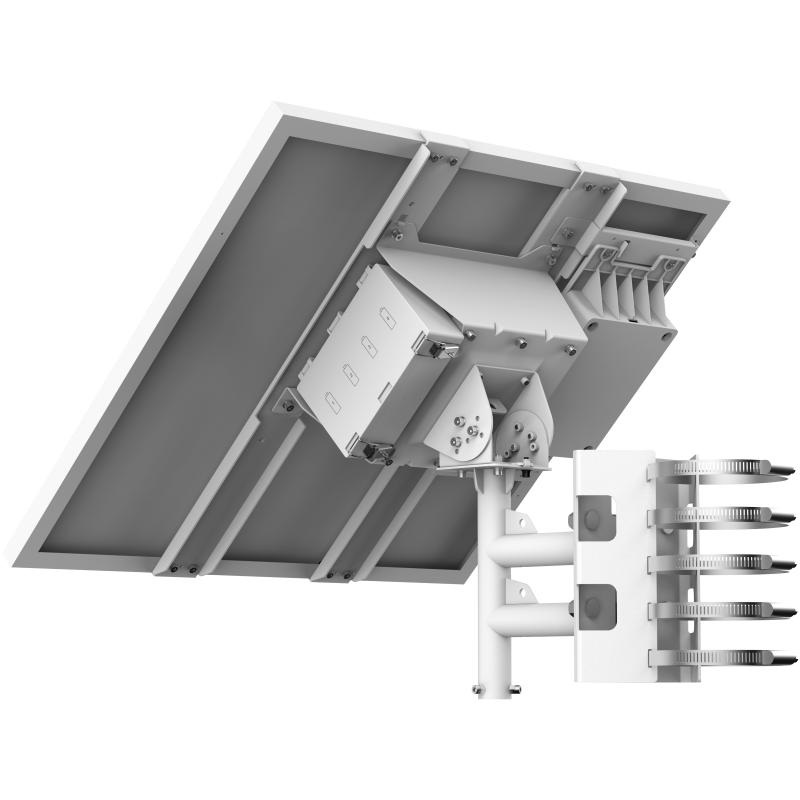

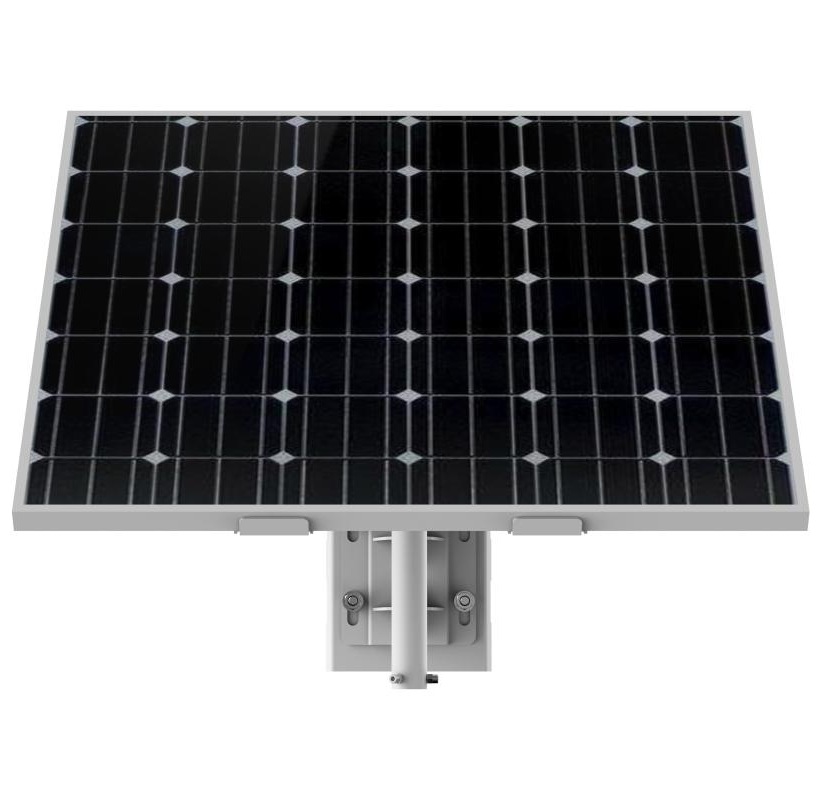

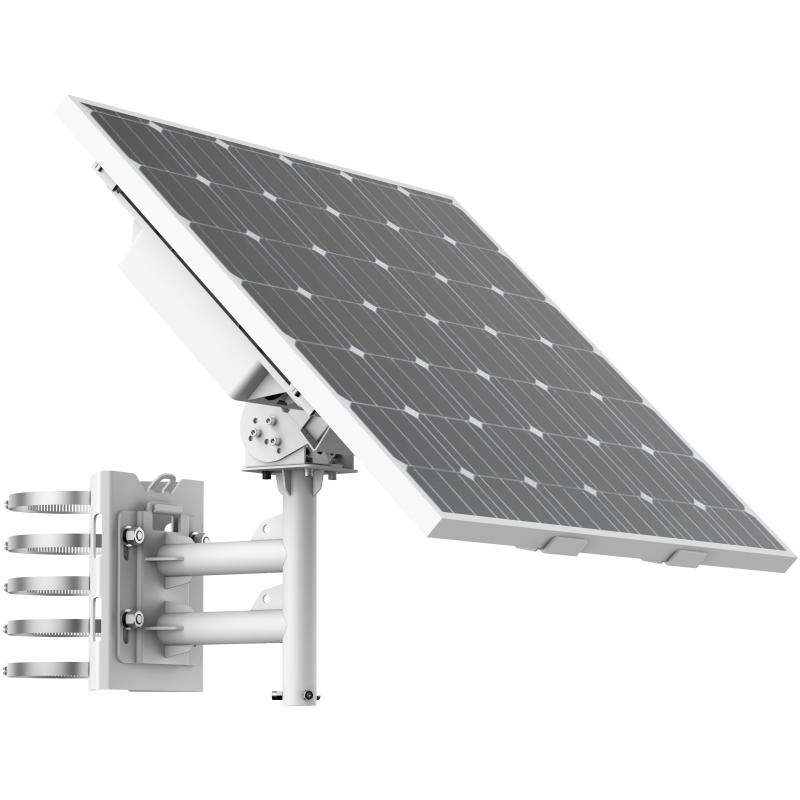

The Hikvision 80W DS-2XS6K01-C36S80 Solar Power Module is a standalone solar power kit designed to provide reliable off-grid power for compatible Hikvision solar-powered security camera installations. It combines an 80W photovoltaic panel with a 360Wh rechargeable lithium battery system, battery management, battery display, high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup support. With 9–12.6 VDC power output, dual Ø5.5mm coaxial power plugs, RS-485 communication and IP66 weather resistance, it is ideal for farms, construction sites, remote gates, outdoor yards, temporary worksites, rural properties and surveillance locations where mains power is difficult or expensive to install.
Why Choose the Hikvision DS-2XS6K01-C36S80 Solar Power Module
The Hikvision DS-2XS6K01-C36S80 is ideal for remote security deployments where stable camera power is needed without relying on fixed electrical infrastructure. Its 80W solar panel helps recharge the integrated 360Wh lithium battery during suitable sunlight conditions, while battery protection features help support safer and more reliable operation. The IP66-rated construction supports outdoor installation, and the listed wind resistance of up to 40m/s makes it suitable for demanding open-area deployments when correctly mounted. It is especially useful when paired with compatible Hikvision solar and 4G camera kits for off-grid monitoring, temporary surveillance and remote site protection.
Key Capabilities
80W Solar Charging
The integrated 80W photovoltaic panel helps recharge the battery system using sunlight, supporting off-grid camera operation in suitable outdoor locations. This is useful where running mains power is impractical, expensive or not available.
360Wh Lithium Battery
The module includes a 360Wh rechargeable lithium battery system, providing stored power for compatible camera equipment when solar input is reduced, such as overnight or during lower-light conditions.
Battery Management and Protection
Built-in battery management supports battery display, high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup, helping protect the system during changing environmental and power conditions.
Outdoor IP66 Protection
IP66 weather resistance helps protect the solar power module from dust and water exposure in outdoor installations, making it suitable for remote security sites, open yards, farms, construction projects and temporary camera deployments.
Camera Kit Integration
RS-485 half-duplex communication and dual coaxial power output support integration with compatible Hikvision Solar Power 4G Network Camera Kit deployments, helping create a cleaner off-grid surveillance power setup.
Key Features
-
80W Photovoltaic Panel: The solar power module includes an 80W photovoltaic panel designed to harvest solar energy for compatible off-grid surveillance deployments.
-
360Wh Rechargeable Lithium Battery: The built-in battery system provides 360Wh of stored energy, using four 90Wh battery units for continued operation when sunlight is not available.
-
Battery Management Support: The system supports battery management and battery display, helping users and installers monitor power status and manage off-grid camera operation more effectively.
-
Temperature Protection: High-low temperature protection helps safeguard battery operation across changing outdoor conditions, supporting more reliable performance in remote and exposed locations.
-
Charge-Discharge Protection: Charge-discharge protection helps protect the lithium battery system during charging and power delivery, supporting safer long-term operation.
-
Low-Battery Sleep Protection: Low-battery sleep protection helps reduce unnecessary battery drain when power levels are low, supporting better battery preservation in off-grid deployments.
-
Remote Wakeup: Remote wakeup support allows compatible systems to resume operation after low-power sleep conditions, helping maintain practical remote monitoring workflows.
-
9–12.6 VDC Power Output: The unit provides 9–12.6 VDC output with a maximum 30W output rating through two Ø5.5mm coaxial power plugs for compatible connected equipment.
-
IP66 Weather Resistance: IP66 protection helps the module withstand outdoor dust and water exposure when installed correctly, making it suitable for remote camera power applications.
-
Wind Resistance up to 40m/s: The listed wind resistance supports outdoor installation in exposed areas, provided the mounting structure and installation method are suitable for the site conditions.
Specifications Summary
| Feature |
Specification |
| Model |
DS-2XS6K01-C36S80 |
| Product Type |
Solar Power Module / Solar Power Kit |
| Solar Panel Output |
80W photovoltaic panel |
| Battery Capacity |
360Wh rechargeable lithium battery |
| Battery Configuration |
90Wh for each battery |
| Battery Type |
Lithium |
| Battery Voltage |
10.8V |
| Battery Life |
More than 500 cycles |
| Battery Management |
Supported |
| Battery Display |
Supported |
| Battery Protection |
High-low temperature protection, charge-discharge protection and low-battery sleep protection |
| Remote Wakeup |
Supported |
| Interface |
1 × RS-485 half-duplex interface |
| Power Output |
9 to 12.6 VDC, maximum 30W |
| Power Connectors |
2 × Ø5.5mm coaxial power plugs |
| Charging Temperature |
-20°C to 45°C |
| Discharging Temperature |
-20°C to 60°C |
| Dimensions |
640.4 × 735.9 × 760mm maximum size after complete assembly |
| Package Dimensions |
862 × 352 × 762mm |
| Weight |
Approx. 24kg |
| Packaged Weight |
Approx. 30.005kg |
| Battery Weight |
Approx. 2.74kg total; approx. 0.685kg for each battery |
| Weather Protection |
IP66 water and dust resistant |
| Wind Resistance |
Level 12, up to 40m/s wind speed resistance |
| Approvals |
CE-EMC, RCM, IC, CB, CE-RoHS, WEEE and REACH listed |
| Anti-Corrosion Level |
No specific protection listed |
| Best Use |
Remote CCTV power, solar-powered camera kits, farms, temporary worksites, construction sites, remote gates and off-grid security installations |
Power and Battery Management Details
- 80W photovoltaic panel for solar charging in suitable sunlight conditions
- 360Wh lithium battery capacity for stored off-grid camera power
- 9–12.6 VDC power output with maximum 30W output rating
- 2 × Ø5.5mm coaxial power plugs for compatible connected equipment
- Battery display and battery management support
- High-low temperature protection for outdoor battery operation
- Charge-discharge protection for battery safety and reliability
- Low-battery sleep protection and remote wakeup support
- Charging temperature range: -20°C to 45°C
- Discharging temperature range: -20°C to 60°C
Ideal Use Cases
- Remote Gates and Driveways – Suitable for powering compatible surveillance cameras at rural gates, private entries, long driveways and remote access points where mains power is unavailable.
- Farms and Rural Properties – Useful for sheds, machinery storage, fuel areas, livestock zones, paddock entries and other rural areas requiring off-grid camera power.
- Construction Sites – Practical for temporary camera deployments where the site layout changes over time or permanent power infrastructure has not yet been installed.
- Outdoor Yards and Compounds – Ideal for storage yards, depots, laydown areas, equipment compounds and commercial sites needing standalone camera power.
- Temporary Surveillance Deployments – Suitable for events, roadworks, temporary worksites and short-term monitoring where fixed electrical work is not practical.
Understanding Solar Power Module Use
The Hikvision DS-2XS6K01-C36S80 is designed to provide off-grid power for compatible Hikvision solar-powered camera deployments. The solar panel charges the internal lithium battery during suitable daylight conditions, while the battery supplies power to connected equipment when solar input is lower. Because solar performance depends heavily on sunlight, weather, installation angle, connected load and recording behaviour, the system should be sized and positioned carefully before deployment. The module is best suited to compatible low-power surveillance devices and remote camera kits where the maximum 30W output rating is appropriate.
| Solar Power Function |
What It Provides |
Best For |
| 80W Solar Panel |
Solar charging for the internal battery |
Remote outdoor locations with suitable sunlight exposure |
| 360Wh Lithium Battery |
Stored energy for camera operation when sunlight is limited |
Overnight operation, cloudy periods and off-grid deployments |
| Battery Protection |
Temperature, charge-discharge and low-battery protection |
Safer outdoor operation and long-term battery management |
| IP66 Housing |
Weather-resistant outdoor protection |
Farms, construction sites, yards, gates and temporary surveillance locations |
Tip:
Use the Hikvision DS-2XS6K01-C36S80 where a compatible Hikvision solar camera setup needs stronger off-grid power with an 80W panel and 360Wh battery. Confirm camera compatibility, total power draw, sunlight exposure, mounting structure, panel orientation, wind loading, battery runtime expectations and local weather conditions before installation.
FAQs
- What is the Hikvision DS-2XS6K01-C36S80 used for?
The DS-2XS6K01-C36S80 is used to provide solar and battery power for compatible Hikvision off-grid surveillance deployments. It is suitable for remote gates, farms, construction sites, outdoor yards, temporary worksites and other locations where mains power is difficult or expensive to install.
- How much solar panel capacity does it provide?
The module includes an 80W photovoltaic panel. Solar charging performance depends on sunlight exposure, panel angle, weather, shading, dust build-up, connected load and installation location, so positioning and power calculations should be completed before deployment.
- What battery capacity does the DS-2XS6K01-C36S80 include?
It includes a 360Wh rechargeable lithium battery system. The datasheet lists 90Wh for each battery, a 10.8V battery voltage and more than 500 battery cycles under listed conditions.
- What output does the solar power module provide?
The DS-2XS6K01-C36S80 provides 9 to 12.6 VDC output with a maximum 30W rating through two Ø5.5mm coaxial power plugs. The connected camera or equipment must be compatible with this voltage and power output.
- Does it include battery protection?
Yes, it supports battery management, battery display, high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup. These features help support safer and more reliable operation in outdoor solar deployments.
- Is the DS-2XS6K01-C36S80 suitable for outdoor use?
Yes, the module is IP66 rated for water and dust resistance. It also lists wind resistance up to 40m/s, but installation quality, mounting structure and local wind exposure must be considered carefully before deployment.
- Can it be used in coastal or corrosive environments?
The datasheet lists this model as having no specific anti-corrosion protection. For coastal, chemical or highly corrosive environments, confirm whether a more suitable corrosion-resistant solution is required before installation.
- What should be checked before installation?
Before installation, confirm camera compatibility, power draw, output voltage, solar exposure, shading, panel angle, mounting strength, wind loading, battery runtime expectation, communication requirements and whether the site needs anti-corrosion protection.
Additional Information
DS-2XS6K01-C36S80_Datasheet_20230519
