Product Overview

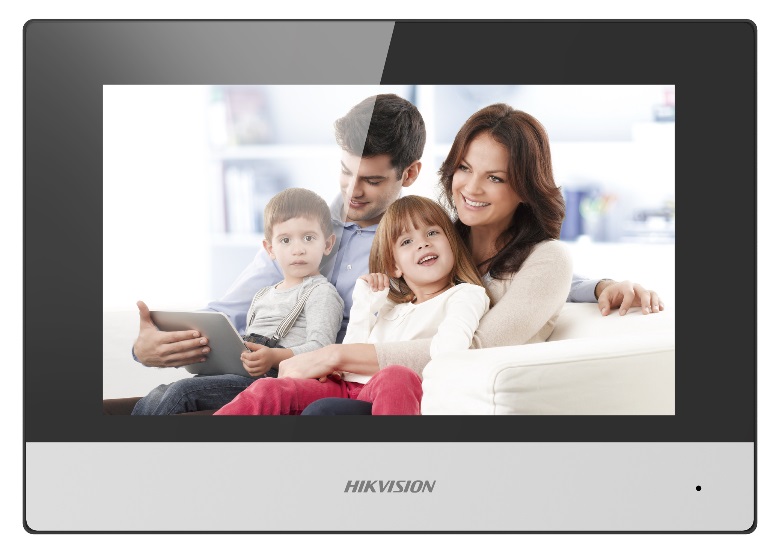

Built for reception desks, guard stations, and security management points, the DS-KC001 is a 7-inch Android touchscreen tablet monitor designed to work alongside Hikvision video intercom and temperature screening systems. Featuring a 1024×600 resolution display and Wi-Fi connectivity, it provides real-time preview of intercom activity and temperature screening data without requiring a hardwired network connection at the monitoring point. Equipped with a 32GB TF card, the DS-KC001 supports centralised data management with storage for up to 100,000 records, making it a practical option for facilities that need to log and review access or screening events over time. It is well suited to commercial buildings, healthcare facilities, schools, and any site running Hikvision intercom or thermal screening hardware that requires a portable, touchscreen-based monitoring interface at a secondary station. Note that this is a special order item and stock availability should be confirmed prior to ordering.
Key Capabilities
7-Inch Touchscreen Display
The 1024×600 resolution Android touch panel gives operators a clear, responsive interface for viewing intercom feeds and screening data at a reception desk or guard post without needing a separate monitor or keyboard.
Wi-Fi Connectivity
Built-in Wi-Fi allows the DS-KC001 to connect to the local network without a cabled Ethernet run to the monitoring point, making it straightforward to position at a desk or counter where running cable would be disruptive or impractical.
Real-Time Preview
Operators can monitor live intercom and temperature screening activity in real time, allowing immediate response to visitor calls or flagged screening results at the door without needing to access a separate PC or NVR interface.
Centralised Record Management
The 32GB TF card supports storage of up to 100,000 event records, allowing administrators to review historical access logs, temperature screening records, or intercom activity directly from the tablet interface.
Best For
- Reception and Guard Desk Monitoring: The Wi-Fi-connected touchscreen tablet sits neatly on a desk and gives front-of-house staff a live view of intercom and screening activity without a dedicated PC workstation.
- Temperature Screening Data Review: Sites using Hikvision thermal or temperature screening devices can use the DS-KC001 to check screening records and review historical data stored locally on the 32GB TF card.
- Secondary or Remote Monitoring Points: Where a primary NVR interface exists at one location, the DS-KC001 provides a portable secondary monitoring point via Wi-Fi for a security officer or supervisor at a different station on the same site.
Why Choose the DS-KC001
The DS-KC001 addresses a specific gap in Hikvision video intercom and temperature screening deployments: the need for a dedicated, portable monitoring interface at a reception or guard post that does not require a full PC setup or cabled network drop. The 7-inch Android touchscreen with 1024×600 resolution provides a purpose-built interface rather than a generic tablet, and the combination of Wi-Fi connectivity and 32GB local storage means the device can hold up to 100,000 records independently. A generic tablet running third-party software would not integrate as directly with Hikvision intercom and screening hardware for real-time preview and record management. For facilities managers and integrators working with Hikvision systems, the DS-KC001 is available at Security Wholesalers as a special order item. Confirm stock availability before specifying this unit in a project.
Buyer Decision Tips
Compatibility and Stock: The DS-KC001 is designed to integrate with Hikvision video intercom and temperature screening systems. Before ordering, confirm that it is compatible with the specific Hikvision devices already installed or planned for your site. This product is a special order item, so check current stock availability before committing it to a project timeline or tender specification.
Key Features & Technical Specifications
| Model |
DS-KC001 |
| Display Size |
7 inches |
| Display Type |
Touchscreen |
| Display Resolution |
1024 x 600 |
| Operating System |
Android |
| Connectivity |
Wi-Fi |
| Storage |
32GB TF card |
| Record Capacity |
Up to 100,000 records |
| Primary Function |
Video intercom monitoring and temperature screening data management |
| Preview Mode |
Real-time live preview |
| Data Management |
Centralised, remote records checking |
| Availability |
Special order item – check stock before ordering |
Ideal Use Cases
Healthcare Facility Reception
Hospitals and clinics using Hikvision temperature screening hardware can position the DS-KC001 at a reception desk to review screening records and monitor visitor intercom calls in real time, with up to 100,000 records stored locally.
Commercial Building Security Desk
Security officers at a guard desk benefit from the 7-inch touchscreen and Wi-Fi connectivity, giving them a live intercom monitoring interface without a cabled workstation or dedicated PC at the post.
School or Campus Entry Management
Schools running Hikvision video intercom at entry points can use the DS-KC001 at a front office counter to manage visitor calls and check entry records, with the 32GB TF card providing local data storage for audit purposes.
Supervisor Remote Monitoring Point
A site supervisor or facility manager can use the DS-KC001 as a secondary monitoring point connected via Wi-Fi to review intercom and screening activity without being tied to the primary control room or NVR station.
Choosing the Right Model
- Choose this model if: Your site runs Hikvision video intercom or temperature screening hardware and you need a dedicated Wi-Fi-connected touchscreen monitoring interface at a reception desk, guard post, or secondary management point, with local record storage for up to 100,000 events.
- Choose a different model if: You need a wired Ethernet connection at the monitoring point for a more stable network link, or if your monitoring requirements extend to full NVR playback and multi-camera review, in which case a dedicated monitor connected to a recorder would be more appropriate than this tablet-style unit.
FAQs
- What systems is the DS-KC001 designed to work with?
The DS-KC001 is designed to integrate with Hikvision video intercom and temperature screening systems. It provides real-time preview of intercom activity and temperature screening data, and supports centralised management of up to 100,000 records. Confirm compatibility with your specific installed Hikvision hardware before ordering.
- Does the DS-KC001 need a wired network connection?
No. The DS-KC001 connects to the local network via built-in Wi-Fi, which means it can be positioned at a reception desk or guard station without requiring a cabled Ethernet drop to that specific location. A stable Wi-Fi signal at the monitoring point is recommended for reliable real-time preview performance.
- How many records can the DS-KC001 store locally?
The device includes a 32GB TF card and supports storage of up to 100,000 records. This covers intercom event logs and temperature screening records, making it suitable for sites with moderate-to-high visitor throughput that need a local audit trail without relying entirely on a central server.
- Is the DS-KC001 available off the shelf?
The DS-KC001 is a special order item. Stock levels can vary, so it is important to confirm availability with Security Wholesalers before specifying this product in a project proposal or tender. Lead times should be factored into any installation schedule.
- Can the DS-KC001 be used as the only monitoring interface on a site?
It can serve as a standalone monitoring point for intercom and temperature screening systems, but it is not a replacement for a full NVR or VMS interface. Sites requiring multi-camera playback, extended footage review, or broader system management will need a dedicated recorder and monitor setup in addition to or instead of this tablet unit.
