Product SKU: DS-2CD2067G3-LI2UY-SL/DS-7604NI-M1-4P-NOHDD
Product Overview

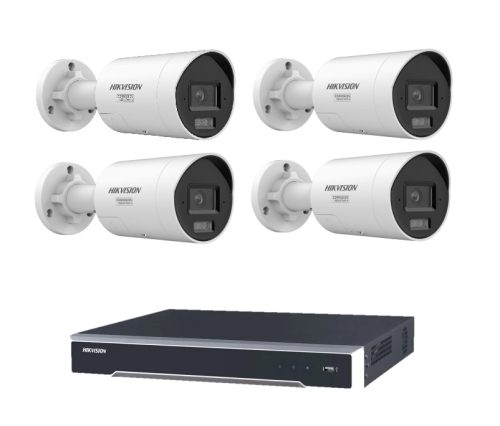

The Hikvision DS-2CD2067G3-LI2UY/SL 4 Camera Kit combines four 6MP Smart Hybrid Light fixed mini bullet cameras with the DS-7604NI-M1/4P 4-channel PoE NVR to deliver a complete IP surveillance solution for homes, offices, retail shops, warehouses, and small commercial sites. Each camera captures up to 3200 × 1800 resolution and combines 24/7 colourful imaging, Smart Hybrid Light technology, intelligent human and vehicle classification, built-in audio functions, and active warning capability for stronger day and night protection. The included PoE NVR simplifies installation by powering all four cameras directly over Ethernet while providing centralised recording in a matched four-channel system. NO HDD INCLUDED.
Why Choose the DS-2CD2067G3-LI2UY/SL 4 Camera Kit
This kit is a strong choice for users who want a higher-grade surveillance package that does more than basic video recording. The 6MP cameras offer sharper detail than standard lower-resolution systems, while Smart Hybrid Light combines IR and white light operation for more adaptable night performance. Deep learning classification helps the cameras focus on people and vehicles to reduce nuisance alarms, and built-in arrayed dual microphones, two-way audio support, strobe light, and audio alarm functions add a more proactive layer of protection. The included 4-channel PoE NVR keeps installation tidy and efficient, making this bundle ideal for users who want reliable high-quality surveillance in a straightforward four-camera layout.
Package / Kit Inclusions
Key Capabilities
6MP High-Detail Surveillance
Each camera records at up to 3200 × 1800 resolution, providing stronger image detail for identifying people, vehicles, clothing, and general scene activity. This helps improve live monitoring quality and gives users more useful recorded footage when reviewing incidents.
Smart Hybrid Light Day and Night Monitoring
The cameras integrate IR and white light with multiple supplemental lighting modes, allowing them to adapt their behaviour based on the environment. This helps maintain visibility after dark while also supporting colourful imaging and better scene awareness in changing light conditions.
Smarter Human and Vehicle Detection
Deep learning analytics help the cameras focus on people and vehicles instead of less relevant motion such as weather, shadows, or general background activity. This reduces nuisance alarms and makes the system more efficient for daily monitoring and playback searches.
Audio and Active Warning Functions
Built-in arrayed dual microphones, two-way audio capability, active strobe light, and audio alarm functions make the cameras more proactive than standard video-only models. This allows users to hear activity, communicate through the camera, and warn intruders away when required.
Simple PoE System Installation
The included 4-channel NVR has four built-in PoE ports, allowing each camera to receive power and data through a single Ethernet cable. This reduces installation complexity, keeps cabling neater, and avoids the need for a separate PoE switch in many setups.
Matched 4-Channel Recording Platform
The recorder is designed to suit the included four-camera layout, giving users a clean and efficient central recording solution. This is ideal for fixed-size systems where simplicity, reliability, and straightforward recorder-to-camera matching are important.
Key Features
-

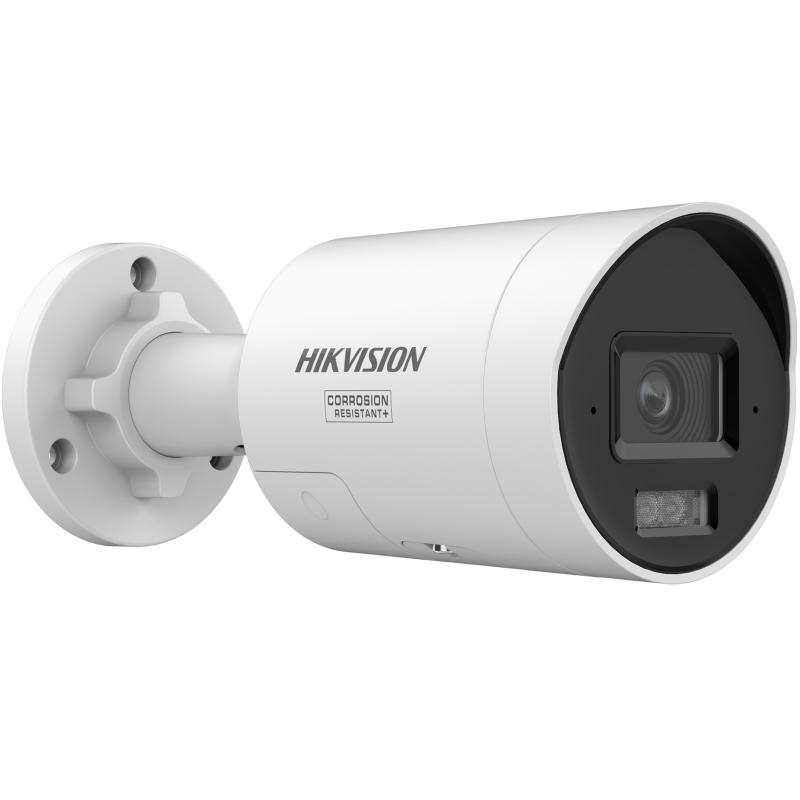

4 x 6MP Smart Hybrid Light Cameras: The kit includes four DS-2CD2067G3-LI2UY/SL mini bullet cameras that record at up to 3200 × 1800 resolution for clear, detailed footage across driveways, entries, perimeters, and other external surveillance zones.
-
24/7 Colourful Imaging: The cameras are built for colourful imaging around the clock, helping preserve more useful scene detail in darker conditions than conventional cameras that rely more heavily on black-and-white night mode.
-
Smart Hybrid Light Technology: By combining IR and white light with multiple lighting modes, the cameras can adapt to site conditions more effectively and provide a better balance between visibility, deterrence, and night-time image performance.
-
Human and Vehicle Classification: Intelligent target classification improves alert accuracy by helping the system focus on events involving people and vehicles, reducing false alarms and making video review faster and more practical.
-
Built-In Arrayed Dual Microphones: The cameras include arrayed dual microphones for improved real-time audio capture, adding more context to incidents and helping users better understand what is happening around the monitored area.
-
Two-Way Audio and Active Warning: Built-in speaker support, two-way audio, active strobe light, and audio alarm functions allow the cameras to do more than record events by also helping users communicate and respond more proactively.
-
Up to 40 Metres Supplemental Light Range: The integrated white light and IR illumination supports visibility up to 40 metres, making the cameras suitable for driveways, side paths, loading areas, yards, and perimeter monitoring after dark.
-
IP67 Outdoor Protection: The cameras are water and dust resistant and also feature an anti-corrosion design, making them suitable for long-term outdoor use in exposed residential and commercial environments.
-

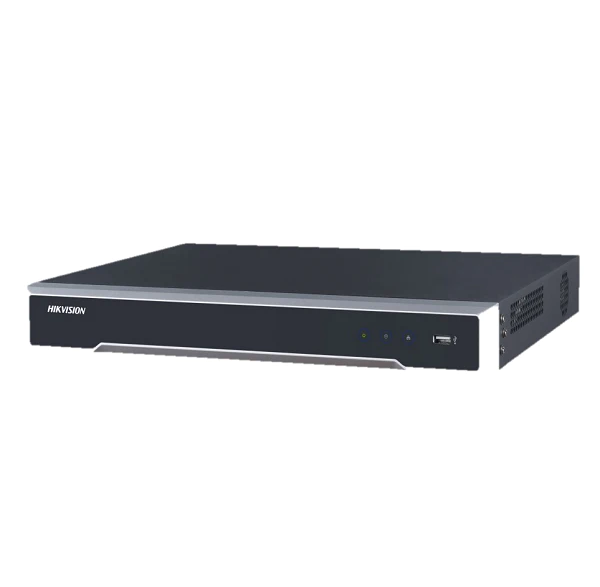

4-Channel 4 PoE NVR: The included DS-7604NI-M1/4P recorder supports up to four IP camera inputs and includes four built-in PoE interfaces, making it a practical and space-efficient recording platform for this matched four-camera kit.
-
Efficient Video Compression: The NVR supports H.265+, H.265, H.264+, and H.264 video formats, helping manage storage and bandwidth more efficiently while maintaining dependable recording performance.
-
Single SATA Storage Bay: The recorder supports one SATA hard drive bay with capacity up to 16 TB, giving users the flexibility to select storage based on site requirements and retention needs.
-
NO HDD INCLUDED: This kit is supplied without a hard drive, allowing you to choose the storage capacity that best suits your budget, recording retention period, and site usage requirements.
Add HDD
Specifications Summary
-
Camera Model: DS-2CD2067G3-LI2UY/SL
-
NVR Model: DS-7604NI-M1/4P
-
Camera Quantity: 4
-
Camera Resolution: 3200 × 1800 (6MP)
-
Camera Lens Options: 2.8 mm or 4 mm fixed lens
-
2.8mm Field of View: Horizontal 108.8°, vertical 56.4°, diagonal 134.3°
-
4mm Field of View: Horizontal 93.3°, vertical 47.2°, diagonal 114.2°
-
Camera Aperture: F1.0
-
Supplement Light Type: White light and IR
-
Supplement Light Range: Up to 40 m
-
Camera Audio: Built-in arrayed dual-microphone and built-in speaker
-
On-Board Camera Storage: microSD/microSDHC/microSDXC up to 512 GB
-
Camera Protection: IP67
-
NVR Channels: 4-channel IP recorder
-
PoE Interfaces: 4 x RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
-
NVR Incoming Bandwidth: Up to 40 Mbps
-
NVR Outgoing Bandwidth: 80 Mbps
-
Video Formats: H.265+, H.265, H.264+, H.264
-
NVR Storage Bays: 1 SATA interface
-
Maximum HDD Capacity: Up to 16 TB for each HDD
-
HDD Supplied: NO HDD INCLUDED
Ideal Use Cases
- Homes and Driveways – Ideal for front boundaries, garages, side access points, and entryways where colourful night imaging, audio coverage, and active warning features can improve security awareness.
- Retail Stores – Useful for shopfronts, delivery points, rear access areas, and customer-facing exteriors where intelligent person and vehicle alerts help reduce nuisance notifications.
- Warehouses and Workshops – A practical option for roller doors, yards, loading bays, and perimeter areas where long-range supplemental lighting and PoE installation simplify deployment.
- Small Commercial Sites – Well suited to offices, clinics, workshops, and business premises that want a complete four-camera IP system with centralised recording and professional image quality.
Choosing Between the 2.8mm and 4mm Lens
The DS-2CD2067G3-LI2UY/SL cameras are available with 2.8mm and 4mm fixed lens options so you can better match the kit to your site layout. The 2.8mm lens provides a wider field of view and is ideal for broader coverage of driveways, open yards, walkways, and general perimeter zones where seeing more of the scene is the priority. The 4mm lens offers a narrower and more focused view, making it better for entrances, gates, side access points, or areas where you want tighter framing and more concentrated detail. The best choice depends on whether you prioritise wider coverage or a more focused view of a specific target area.
FAQs
- Does this kit include a hard drive for recording?
No, this kit is supplied with NO HDD INCLUDED. The recorder supports one SATA hard drive with capacity up to 16 TB, so you can choose the storage size that best matches your recording retention requirements and budget before putting the system into service.
- Can these cameras record audio as well as video?
Yes, the cameras include built-in arrayed dual microphones and a built-in speaker. This allows the system to capture real-time audio and also support two-way audio functions, adding more context and interaction capability than standard video-only cameras.
- What makes Smart Hybrid Light useful for night monitoring?
Smart Hybrid Light combines IR and white light operation so the cameras can adapt their lighting behaviour to different site conditions. This helps balance visibility, image clarity, and deterrence, making the system more flexible than cameras that rely on only one type of night illumination.
- Is this a good kit for outdoor installation?
Yes, the cameras are designed for outdoor use with IP67 protection and an anti-corrosion design. This makes them suitable for exposed residential and commercial areas where weather resistance and long-term reliability are important.
- Can I add extra cameras to this recorder later?
This kit includes a 4-channel NVR and four cameras, so all available recorder channels are already allocated. If you need more than four cameras in the future, you would generally need to move to a larger NVR rather than simply adding more cameras to this recorder.
Additional Information
DS-2CD2067G3-LI2UY_SLRB_Datasheet_20241126
Datasheet-of-DS-7604NI-M1_4P
