Product SKU: Hikvision DS-2XT6645G0-LIZS-C15
Product Overview

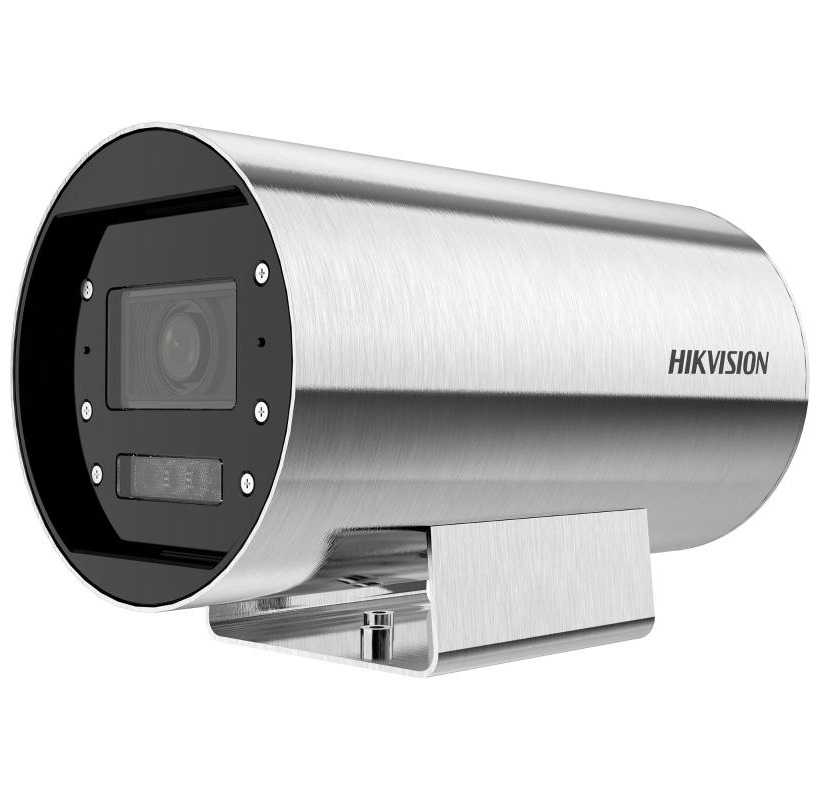

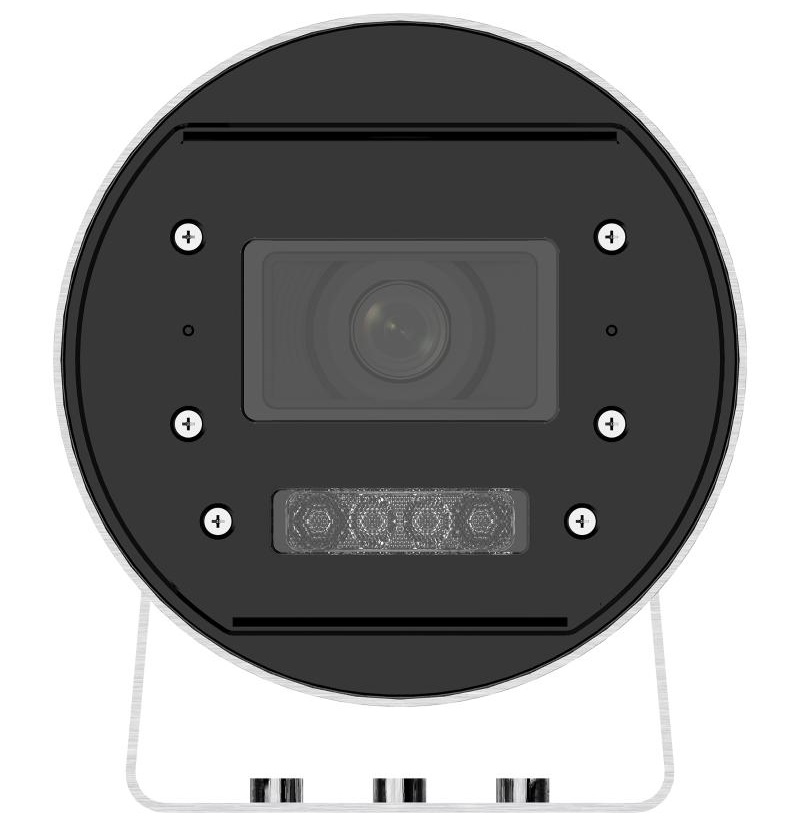

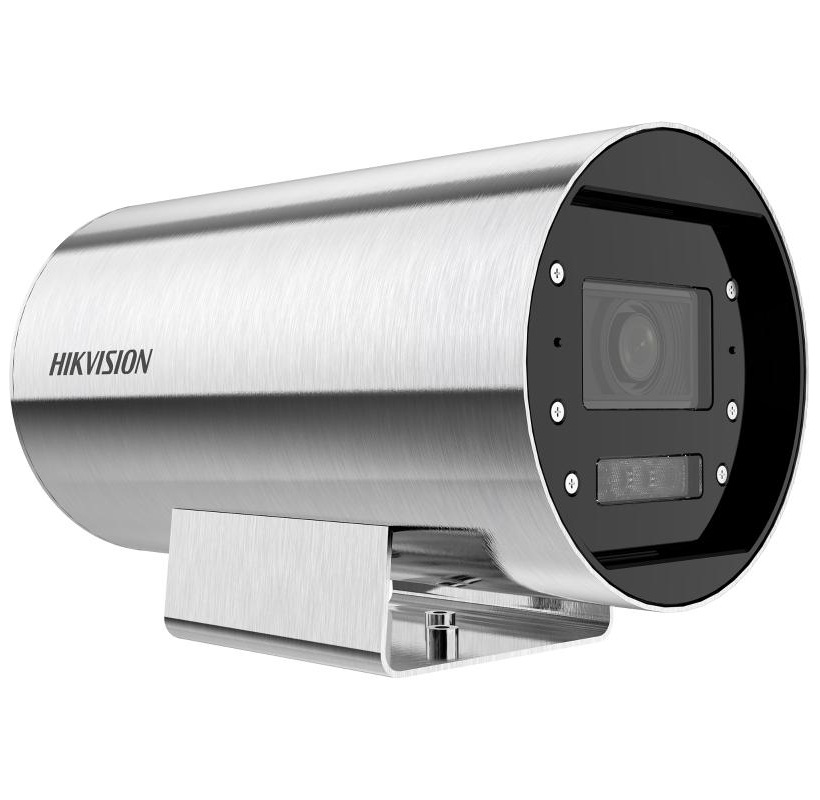

The Hikvision 4MP Special Series DS-2XT6645G0-LIZS/C15 High Temperature Bullet Camera is a professional IP camera designed for demanding industrial environments where elevated heat, dust, water exposure and challenging lighting conditions may make standard CCTV unsuitable. It features 4MP resolution, a 2.8–12mm motorised varifocal lens, 120dB WDR, IR illumination up to 30m, white light up to 20m, H.265+ compression, perimeter protection and people or vehicle classification. With an air-cooling double-layer 304 stainless steel protective cover, high-temperature resistance below 150°C and IP68 protection, it is ideal for manufacturing plants, foundry-style environments, industrial workshops, process areas, warehouses, production lines and specialist high-temperature monitoring applications.
Why Choose the Hikvision DS-2XT6645G0-LIZS/C15
The Hikvision DS-2XT6645G0-LIZS/C15 is ideal for sites where heat-resistant surveillance is required without sacrificing image quality or smart detection. Its double-layer 304 stainless steel protective cover and air-cooling design support operation in environments below 150°C, making it suitable for harsh industrial areas. The 2.8–12mm varifocal lens gives installers flexibility to frame either wider views or narrower target areas, while 120dB WDR helps maintain clearer footage in high-contrast lighting. IR, white light, H.265+, microSD support, PoE, alarm I/O, audio I/O and smart perimeter detection make it suitable for both process monitoring and security surveillance.
Key Capabilities
High Temperature Operation
The DS-2XT6645G0-LIZS/C15 is built for high-temperature environments below 150°C, using an air-cooling double-layer 304 stainless steel protective cover. This makes it suitable for industrial areas where ordinary cameras may not be reliable.
4MP Industrial Video Monitoring
The camera captures up to 2688 × 1520 resolution, helping provide useful detail for production lines, process zones, machinery areas, loading spaces, access points and operational safety monitoring.
2.8–12mm Varifocal Lens
The motorised varifocal lens allows installers to adjust the viewing angle from wide coverage to a narrower view with greater reach. This supports flexible positioning in industrial and high-temperature camera layouts.
IR and White Light Illumination
IR illumination up to 30m and white light up to 20m support visibility in low-light scenes, helping the camera capture usable footage in dim production areas, workshops, warehouses and outdoor industrial zones.
Smart Perimeter Protection
People and vehicle classification helps improve perimeter protection and reduce irrelevant alerts. This is useful for gates, restricted areas, industrial yards, loading docks and secure zones where smart event filtering is needed.
Key Features
-
4MP High-Resolution Video: The DS-2XT6645G0-LIZS/C15 captures up to 2688 × 1520 resolution, providing detailed video for high-temperature work areas, industrial sites, process monitoring and security surveillance.
-
High Temperature Bullet Design: The air-cooling double-layer 304 stainless steel protective cover helps the camera operate in environments below 150°C, making it suitable for heat-prone industrial spaces.
-
2.8–12mm Motorised Varifocal Lens: The adjustable lens provides flexible framing, from a wider 105.4° horizontal view to a narrower 34.3° horizontal view for more targeted monitoring.
-
120dB Wide Dynamic Range: 120dB WDR helps improve visibility in scenes with strong backlight, mixed lighting or harsh industrial contrast, such as factory doors, bright work zones and shadowed areas.
-
IR up to 30m and White Light up to 20m: Dual supplement lighting supports both low-light monitoring and colour visibility, helping the camera capture clearer footage in dark or poorly lit areas.
-
Smart People and Vehicle Classification: Perimeter protection with people and vehicle classification helps reduce false alarms from irrelevant motion and supports more meaningful security alerts.
-
Efficient H.265+ Compression: H.265+ helps reduce bandwidth and storage use while preserving useful image quality, making it practical for industrial CCTV systems.
-
HEOP and Edge Expansion Support: Hikvision Embedded Open Platform support with 1.5 TOPS computing power allows compatible third-party application deployment for specialised site requirements.
-
Audio, Alarm and Storage Support: Audio I/O, alarm interfaces and microSD support provide flexible options for event response, local storage and integration with wider security workflows.
-
IP68 Protection: IP68 protection supports demanding water and dust exposure when installed correctly, making the camera suitable for harsh industrial and outdoor-style environments.
Specifications Summary
| Feature |
Specification |
| Model |
DS-2XT6645G0-LIZS/C15 |
| Product Type |
4MP High Temperature Bullet Network Camera |
| Series |
Hikvision Special Series |
| Camera Resolution |
4MP |
| Maximum Resolution |
2688 × 1520 |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Minimum Illumination |
Colour: 0.005 lux @ F1.2, AGC on; black and white: 0.001 lux @ F1.2, AGC on; 0 lux with IR |
| Lens |
2.8–12mm motorised varifocal lens |
| Field of View |
Horizontal 105.4° to 34.3°, vertical 56.1° to 19.3°, diagonal 125.8° to 39.3° |
| Aperture |
F1.2 |
| Focus |
Auto, semi-auto and manual focus |
| Supplement Light |
IR and white light |
| IR Range |
Up to 30m |
| White Light Range |
Up to 20m |
| Wide Dynamic Range |
120dB WDR |
| Image Enhancements |
EIS, BLC, HLC, 3D DNR and defog |
| Video Compression |
H.265+, H.265, H.264+, H.264 and MJPEG support |
| Smart Detection |
Perimeter protection with people and vehicle classification |
| Platform Support |
Hikvision Embedded Open Platform with 1.5 TOPS computing power |
| Local Storage |
microSD storage support |
| Audio |
Audio input and output support |
| Alarm |
Alarm input and output support |
| Network / Power |
PoE support |
| Protective Cover |
Air-cooling double-layer 304 stainless steel protective cover |
| High Temperature Resistance |
Designed for high-temperature environments below 150°C |
| Weather Protection |
IP68 water and dust resistant |
| Best Use |
High-temperature industrial environments, manufacturing plants, process areas, warehouses, workshops and specialist security monitoring |
Available Lens and DORI Options
- 2.8–12mm varifocal lens – 105.4° to 34.3° horizontal field of view
- Vertical field of view – 56.1° to 19.3°
- Diagonal field of view – 125.8° to 39.3°
- DORI detection range – 63.4m to 180.6m
- DORI observation range – 25.2m to 71.7m
- DORI recognition range – 12.7m to 36.1m
- DORI identification range – 6.3m to 18.1m
- IR range – up to 30m
- White light range – up to 20m
High Temperature and Industrial Monitoring Notes
- Designed for high-temperature environments below 150°C.
- Air-cooling double-layer 304 stainless steel protective cover supports heat-prone applications.
- IP68 protection supports demanding water and dust exposure when correctly installed.
- PoE, audio I/O, alarm I/O and microSD support provide flexible security system integration.
- Confirm site temperature, mounting position, airflow, lens view, power design and cable protection before installation.
Ideal Use Cases
- Manufacturing Plants – Suitable for production lines, process zones, machinery spaces and work areas where standard cameras may not tolerate elevated temperatures.
- High-Temperature Workshops – Useful for heated workshops, foundry-style environments, process spaces and industrial locations requiring continuous CCTV monitoring.
- Industrial Warehouses – Practical for warehouses, logistics zones and storage areas where heat, dust, mixed lighting and operational activity require durable monitoring.
- Process Monitoring Areas – Ideal for supervising production processes, equipment status, safety workflows and staff movement in demanding high-temperature spaces.
- Perimeter and Restricted Zones – Suitable for gates, boundaries and restricted areas where people and vehicle classification can improve event filtering.
Understanding High Temperature Bullet Camera Use
The Hikvision DS-2XT6645G0-LIZS/C15 is designed for environments where elevated temperatures make ordinary CCTV cameras unsuitable. Its air-cooling double-layer 304 stainless steel protective cover helps support use in heat-prone industrial areas, while the 4MP sensor, varifocal lens, WDR, IR and white light provide practical video monitoring performance. The camera also supports smart perimeter detection, PoE, audio I/O, alarm I/O and local storage, allowing it to operate as both a process-monitoring camera and a security camera in suitable deployments.
| Camera Function |
What It Provides |
Best For |
| High Temperature Design |
Operation in environments below 150°C using air-cooling double-layer 304 stainless steel cover |
Industrial sites, workshops, production lines and heat-prone process areas |
| 4MP Varifocal Monitoring |
2688 × 1520 video with 2.8–12mm adjustable lens |
Flexible framing, process review, equipment monitoring and security coverage |
| IR and White Light |
Up to 30m IR and up to 20m white light |
Low-light industrial spaces, warehouses, yards and dim work areas |
| Perimeter Protection |
People and vehicle classification for smarter event detection |
Restricted zones, gates, boundaries, loading areas and industrial yards |
Tip:
Use the Hikvision DS-2XT6645G0-LIZS/C15 where elevated temperature makes a standard bullet camera unsuitable. Confirm ambient temperature, airflow, mounting distance from heat sources, lens framing, cable protection, PoE capacity, alarm/audio wiring and NVR/VMS compatibility before installation.
FAQs
- What is the Hikvision DS-2XT6645G0-LIZS/C15 used for?
The DS-2XT6645G0-LIZS/C15 is used for video surveillance in high-temperature industrial environments where standard cameras may not be suitable. It is designed for manufacturing plants, process areas, warehouses, heated workshops and specialist security applications requiring durable monitoring under elevated temperature conditions.
- What resolution does this camera provide?
The camera provides 4MP resolution with a maximum image size of 2688 × 1520. This supports detailed monitoring for process supervision, security review, machinery areas, staff movement and operational visibility in demanding environments.
- What lens does the DS-2XT6645G0-LIZS/C15 use?
The camera uses a 2.8–12mm motorised varifocal lens. This provides a flexible horizontal field of view from 105.4° to 34.3°, allowing installers to adjust the camera for either wide area coverage or narrower targeted monitoring.
- How does the camera handle high temperatures?
The DS-2XT6645G0-LIZS/C15 uses an air-cooling double-layer 304 stainless steel protective cover and is designed for high-temperature environments below 150°C. Installation should still be checked carefully against actual site temperature, airflow and heat-source proximity.
- Does the camera have night illumination?
Yes, the camera supports IR illumination up to 30m and white light up to 20m. This helps provide usable footage in dark or low-light areas, such as workshops, warehouses, process rooms and industrial yards.
- Does it support smart detection?
Yes, the camera supports perimeter protection and people or vehicle classification. This helps focus alerts on more relevant events and can reduce unnecessary notifications from non-security movement in industrial or perimeter applications.
- Is the DS-2XT6645G0-LIZS/C15 suitable for harsh environments?
Yes, the camera has an IP68 rating and a double-layer 304 stainless steel protective cover. This makes it suitable for demanding water, dust and high-temperature environments when correctly installed and maintained.
- What should be checked before installation?
Before installation, confirm ambient temperature, heat-source distance, airflow, lens view, PoE power budget, cable protection, alarm and audio wiring requirements, storage design, mounting method and recording system compatibility.
Additional Information
DS-2XT6645G0-LIZS_C15_Datasheet_20240816
