Product Overview

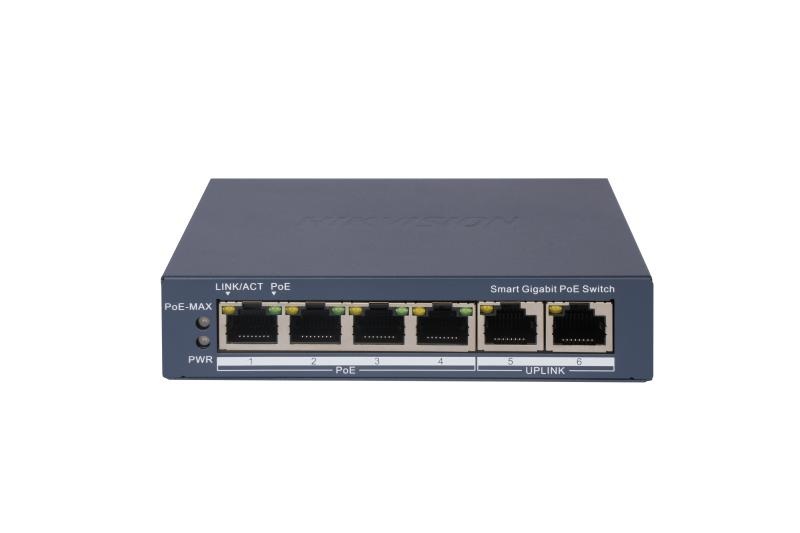

For compact IP surveillance networks that need more than a basic unmanaged switch, the DS-3E1506P-EI delivers smart-managed PoE switching in a desktop-sized metal enclosure. Featuring 4 Gigabit PoE ports and 2 Gigabit RJ45 uplink ports, it powers compatible IP cameras over standard Ethernet cabling while maintaining a 45W total PoE budget with up to 30W per port under IEEE 802.3af/at standards. Built with PoE watchdog for automatic camera recovery, 802.1Q VLAN segmentation supporting up to 32 VLANs, STP/RSTP loop prevention, cable detection, and long-range PoE transmission up to 300m on ports 1 to 4, this switch brings meaningful management capability to small CCTV installations. Hik-Partner Pro remote management allows installers to monitor PoE usage, port rates, topology, and device health without attending site, while 6kV surge protection helps safeguard equipment in environments where electrical surge risk is a consideration.
Key Capabilities
PoE Watchdog Auto-Recovery
PoE watchdog monitors cameras on ports 1 to 4 and automatically cycles power on any port where a connected device stops responding. This reduces manual resets and avoids unnecessary site visits in professional camera installations.
45W PoE Budget with 30W Per Port
A 45W total PoE budget with up to 30W available per port under IEEE 802.3af/at standards supports multiple PoE cameras in a compact switch format. Confirming the draw of each connected camera before deployment helps avoid budget overrun.
Long-Range PoE up to 300m
Ports 1 to 4 support long-range PoE transmission up to 300m, giving installers more flexibility for camera runs that would otherwise require intermediate network equipment. Actual performance depends on cable quality, camera model, and installation conditions.
802.1Q VLAN and Network Segmentation
IEEE 802.1Q VLAN support with configurable IDs from 1 to 4094, Trunk and Access port modes, and up to 32 VLANs allows CCTV traffic to be separated from general network traffic. Port isolation on ports 1 to 4 adds an additional layer of segmentation for security-focused deployments.
Hik-Partner Pro Remote Management
One-click activation and remote management through Hik-Partner Pro lets installers view port rate, bandwidth utilisation, PoE power usage, network topology, alarm status, and perform remote upgrades and restarts without needing physical access to the switch.
Best For
- Small IP Camera Clusters: 4 Gigabit PoE ports with a 60W budget make this switch suited to compact camera systems in homes, small offices, and retail environments where separate power supplies are impractical.
- Long Cable Run Installations: Long-range PoE mode on ports 1 to 4 supports runs up to 300m, practical for warehouses, driveways, or larger properties where cameras cannot be installed close to a switch or NVR.
- Professionally Managed CCTV Networks: VLAN segmentation, loop prevention, cable detection, and PoE watchdog make this switch more suitable for professional installations than a basic unmanaged alternative.
- Remote-Managed Deployments: Hik-Partner Pro support allows ongoing remote monitoring and troubleshooting, reducing the need for on-site attendance after initial setup in attended and unattended locations alike.
Why Choose the DS-3E1506P-EI
The DS-3E1506P-EI sits in a practical position between a basic plug-and-play unmanaged switch and a full rack-mounted managed switch. Where a simpler switch would offer no automatic recovery from a locked-up camera, no VLAN segmentation, no loop protection, and no remote visibility, this unit delivers all of these through a compact metal housing that fits on a desk or mounts to a wall. The 14Gbps switching capacity and 10.42Mpps forwarding rate comfortably handle small Gigabit camera networks, while the static link aggregation option adds uplink redundancy where needed. 6kV surge protection provides a meaningful level of electrical resilience that basic PoE switches typically omit. For installers and integrators specifying small managed PoE switches for CCTV applications, the DS-3E1506P-EI is available through Security Wholesalers as part of the Hikvision networking range, backed by confirmed specifications from the manufacturer.
Buyer Decision Tips
PoE Budget Planning: The DS-3E1506P-EI has a total PoE budget of 45W shared across all 4 PoE ports. If connecting cameras that draw 12W to 15W each, the budget comfortably supports 4 devices. Cameras with heaters, PTZ motors, or active deterrence features can draw more. Add up the confirmed PoE draw for every planned device before finalising the design, and avoid assuming the full 30W per port is available when other ports are also active.
Long-Range PoE Mode Considerations: Long-range PoE transmission up to 300m is supported on ports 1 to 4, but this mode operates at reduced link speed and requires good-quality cabling throughout the run. Confirm that the camera model connected is compatible with long-range PoE mode and that the cable run is a single, unjointed length of appropriate Cat cable. Do not assume standard PoE performance at extended distances without verifying the specific camera and cable combination.
Key Features & Technical Specifications
| Model |
DS-3E1506P-EI |
| Product Type |
4-Port Gigabit Smart PoE Switch |
| PoE Ports |
4 x Gigabit PoE (ports 1 to 4) |
| Uplink Ports |
2 x Gigabit RJ45 |
| Total Ports |
6 Gigabit RJ45 |
| PoE Standard |
IEEE 802.3af and IEEE 802.3at |
| Total PoE Budget |
60W |
| Maximum Power Per Port |
30W |
| Switching Capacity |
14Gbps |
| Packet Forwarding Rate |
10.42Mpps |
| VLAN |
IEEE 802.1Q, VLAN ID 1-4094, Trunk and Access modes, up to 32 VLANs |
| Loop Prevention |
IEEE 802.1D STP and IEEE 802.1w RSTP |
| Long-Range PoE |
Up to 300m on ports 1 to 4 (subject to camera model and cable condition) |
| PoE Watchdog |
Auto-detects and restarts unresponsive devices on ports 1 to 4 |
| Remote Management |
Hik-Partner Pro (one-click activation, PoE monitoring, topology, remote restart) |
| Surge Protection |
6kV |
| Power Supply |
54VDC, 1.2A |
| Maximum Power Consumption |
65W |
| Operating Temperature |
0 degrees C to 40 degrees C |
| Dimensions |
121.1 x 27.6 x 83.1mm |
| Net Weight |
Approx. 0.27kg |
| Installation |
Desk-mounted or wall-mounted |
| Shell Material |
Metal |
Ideal Use Cases
Small Business CCTV Systems
With 4 Gigabit PoE ports and 2 Gigabit uplinks, the DS-3E1506P-EI suits small office and shopfront camera systems where cameras connect directly to the switch and the uplinks feed an NVR or router.
Retail Store Surveillance
Port isolation and VLAN segmentation help keep camera traffic separate from point-of-sale or guest networks in retail environments, while PoE watchdog reduces disruption from cameras that may lock up unexpectedly.
Home Security Upgrades
For residential IP camera installations moving beyond basic PoE injectors, the DS-3E1506P-EI provides a compact managed option with automatic camera recovery and remote monitoring through Hik-Partner Pro.
Warehouse and Workshop Entry Points
Long-range PoE transmission up to 300m on ports 1 to 4 is practical for camera clusters around roller doors, loading docks, and perimeter entry points where cable runs exceed standard PoE distance limits.
Installer-Managed Remote Sites
Hik-Partner Pro remote management allows installers to check PoE power draw, port status, bandwidth utilisation, and perform device restarts from off-site, reducing call-outs for routine troubleshooting at unattended locations.
Choosing the Right Model
- Choose this model if: your installation requires up to 4 PoE cameras with smart management features such as PoE watchdog, VLAN segmentation, loop prevention, long-range PoE up to 300m, and Hik-Partner Pro remote monitoring in a compact desktop or wall-mount form factor.
- Choose a different model if: you need more than 4 PoE ports, a higher total PoE budget to support cameras with greater power draw, or a rackmount switch for integration into a larger network cabinet. A switch with a higher port count or expanded PoE budget would be more appropriate for those scenarios.
FAQs
- How many cameras can the DS-3E1506P-EI power at once?
The switch has 4 Gigabit PoE ports and a 45W total PoE budget. In practice, the number of cameras it can power depends on the confirmed PoE draw of each connected device. Cameras drawing around 12W to 15W each allow all 4 ports to be used comfortably. Cameras with higher draw will reduce the number of simultaneous devices the budget supports.
- Can the DS-3E1506P-EI automatically restart a camera that has locked up?
Yes. PoE watchdog on ports 1 to 4 monitors connected devices and cycles PoE power on any port where the connected device stops responding. This happens automatically without manual intervention, which is useful in installations where a technician cannot attend site quickly.
- What is the maximum PoE cable distance supported?
Ports 1 to 4 support long-range PoE transmission up to 300m. This mode operates at a reduced link speed compared to standard Gigabit PoE. Actual performance depends on cable quality, cable length, and the connected camera model. A continuous, unjointed run of appropriate Cat cable is recommended for long-range mode to perform as intended.
- What VLAN features does this switch include?
The DS-3E1506P-EI supports IEEE 802.1Q VLAN with configurable VLAN IDs from 1 to 4094, Trunk and Access port modes, and up to 32 simultaneous VLANs. Ports 1 to 4 also support port isolation mode, which can be used to prevent direct communication between camera ports on the same switch.
- How does Hik-Partner Pro remote management work with this switch?
After one-click activation, the DS-3E1506P-EI can be managed remotely through Hik-Partner Pro. Supported functions include viewing port rate, bandwidth utilisation, PoE power consumption per port, network topology, alarm notifications, remote firmware upgrades, and remote device restarts. This reduces the need for on-site visits during ongoing maintenance.
- Does the switch need to be installed indoors?
The DS-3E1506P-EI is designed for indoor installation, with an operating temperature range of 0 degrees C to 40 degrees C and operating humidity of 5% to 95% with no condensation. It is not rated for outdoor installation. It can be desk-mounted or wall-mounted depending on the installation layout.
- Where can I get the DS-3E1506P-EI and its datasheet in Australia?
The DS-3E1506P-EI is part of the Security Wholesalers Hikvision networking range. The manufacturer datasheet is linked in the Additional Information section of this page and covers confirmed specifications for PoE budget, switching capacity, VLAN support, long-range PoE, and physical dimensions. Review the datasheet alongside your planned camera power draw and cable design before ordering.
