Product Overview

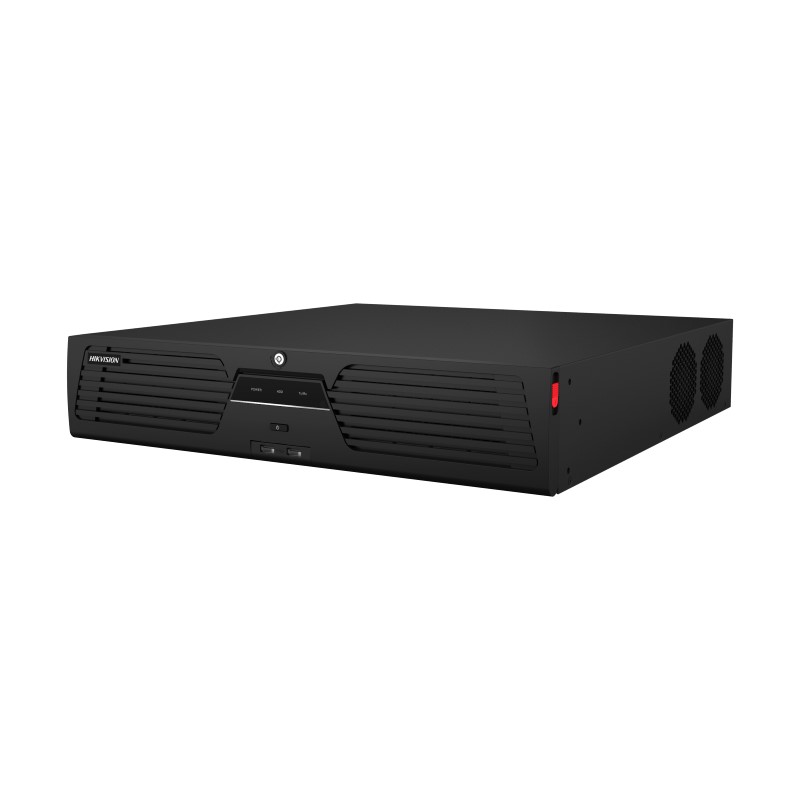

Built for commercial and enterprise CCTV installations that outgrow smaller PoE NVRs, the DS-9632NI-M8 is a 32-channel rack-mounted NVR from Hikvision’s M-Series, designed to sit at the core of a professionally structured camera network. Featuring 320 Mbps incoming bandwidth and 8 SATA bays supporting up to 16 TB per drive, this unit is sized for deployments where resolution, retention, and storage resilience all need to be planned carefully. Equipped with dual HDMI and dual VGA outputs capable of 8K or dual 4K display, it suits control room and operations centre environments where multiple monitors are part of the workflow. It also supports advanced camera types including ANPR, fisheye, and people-counting cameras, making it a capable backbone for complex Hikvision deployments. This model ships without hard drives and without built-in PoE, requiring external PoE switching as part of the broader system design.
Key Capabilities
32-Channel IP Recording
Supports up to 32 IP camera inputs with 320 Mbps incoming and 400 Mbps outgoing bandwidth. This headroom allows systems to run multiple high-resolution streams simultaneously without compromising recording integrity across all channels.
8K and Dual 4K Display Output
Two HDMI and two VGA interfaces allow flexible monitor configurations, with HDMI 1 capable of 8K output. This suits control rooms and large-format monitoring setups where operators need to view multiple cameras at full detail simultaneously.
High-Throughput Decoding
Decoding capacity scales from 2 channels at 32 MP down to 32 channels at 1080p, with intermediate options at 24 MP, 12 MP, 8 MP, and 4 MP. This makes live viewing and playback of mixed-resolution systems far more manageable than entry-level recorders allow.
8-Bay SATA Storage with RAID
Eight SATA interfaces support drives up to 16 TB each, providing up to 128 TB raw capacity. RAID modes including RAID 0, 1, 5, 6, 10, and N+M hot spare give installers the option to configure storage for resilience rather than raw capacity alone.
Advanced Camera Type Support
Compatible with specialised Hikvision camera types including ANPR, fisheye, and people-counting cameras. This makes the DS-9632NI-M8 suited to projects that need more than standard motion-triggered recording from fixed cameras.
Network-First Architecture
Without built-in PoE, the DS-9632NI-M8 is designed to operate within a structured network using external PoE switches. This enables longer cable runs, fibre uplinks between buildings, cleaner rack layouts, and better separation between the camera network and other IT infrastructure.
Best For
- Large Commercial Sites: 32 camera inputs and 320 Mbps bandwidth handle high-resolution deployments across offices, factories, and multi-zone facilities without bottlenecking recording performance.
- Control Room and Operations Centre Installations: Dual HDMI and dual VGA outputs with 8K capability allow operators to drive large-format displays or multiple monitors from a single recorder.
- Sites Using Specialised Camera Types: ANPR, fisheye, and people-counting cameras are natively supported, making this NVR suitable for retail analytics, car park management, and access monitoring projects.
- Structured Network Deployments: The absence of built-in PoE suits systems designed around managed PoE switches, fibre links, and distributed camera infrastructure across multiple buildings or floors.
- Long-Retention Commercial Recording: Eight SATA bays with up to 16 TB per drive and RAID support allow storage to be sized and protected according to the retention requirements of the site.
Why Choose the DS-9632NI-M8
The DS-9632NI-M8 occupies a distinct position in the Hikvision NVR lineup: it is a high-bandwidth, large-storage recorder built specifically for professionally structured camera networks rather than plug-and-play PoE deployments. Where a standard 32-channel PoE NVR limits camera connectivity to its own switch fabric, this model connects entirely via external network infrastructure, giving installers full control over PoE budgeting, cable run length, and network segmentation. The 320 Mbps incoming bandwidth handles mixed high-resolution streams without throttling, and the 8-bay SATA configuration with RAID 0, 1, 5, 6, 10, and N+M hot spare allows storage to be designed with genuine redundancy. The 8K HDMI output and dual display configuration add capability that simpler recorders cannot match. Available through Security Wholesalers, the DS-9632NI-M8 is suited to installers who need a recorder that can scale to the demands of the project rather than adapt the project to the recorder.
Buyer Decision Tips
PoE Switching is Required: The DS-9632NI-M8 has no built-in PoE ports. Every camera must be powered and connected through an external PoE switch or structured network. Before finalising your recorder choice, confirm your camera count, total PoE power draw, and whether cameras will be distributed across multiple PoE switches or connected via a single aggregated uplink. This also affects cable run planning: remote PoE switches or fibre uplinks may be needed for cameras located far from the communications room.
Calculate Storage Before Ordering HDDs: With 8 bays and RAID options available, storage planning for this unit is worth doing carefully. Total usable capacity depends on your chosen RAID mode: RAID 5 and RAID 6 sacrifice one or two drives respectively for parity, while RAID 1 and 10 halve usable capacity. Factor in camera resolution, bitrate settings, whether recording is continuous or event-based, and your minimum retention period before selecting drive sizes. This NVR supports up to 16 TB per drive across all 8 bays.
Key Features & Technical Specifications
| Model |
DS-9632NI-M8 |
| Series |
M-Series |
| Channel Count |
32 channels |
| Incoming Bandwidth |
320 Mbps |
| Outgoing Bandwidth |
400 Mbps |
| Decoding Capacity |
2-ch @ 32 MP / 2-ch @ 24 MP / 4-ch @ 12 MP / 8-ch @ 8 MP / 16-ch @ 4 MP / 32-ch @ 1080p |
| Video Output |
2x HDMI, 2x VGA |
| Maximum Display Resolution |
8K (HDMI 1), dual 4K |
| HDD Bays |
8x SATA |
| Maximum HDD Capacity |
Up to 16 TB per HDD |
| Maximum Raw Storage |
Up to 128 TB (8 bays x 16 TB, pre-RAID) |
| RAID Support |
RAID 0, 1, 5, 6, 10, N+M hot spare |
| Built-in PoE |
No – requires external PoE switching |
| Special Camera Support |
ANPR, fisheye, people counting |
| Form Factor |
3RU rack-mounted |
| HDD Included |
No HDD included |
Ideal Use Cases
Warehouses and Industrial Sites
Large sites with cameras spread across loading docks, yard areas, factory floors, and entry points benefit from the 32-channel capacity and 320 Mbps bandwidth, which handles high-resolution streams from diverse camera locations without degrading throughput.
Multi-Building Commercial Campuses
The absence of built-in PoE is an advantage here: cameras across separate buildings can connect through remote PoE switches and fibre uplinks to a central rack, keeping all recording centralised without the constraints of a fixed-port PoE recorder.
Retail and Shopping Centre Monitoring
Support for people-counting, fisheye, and ANPR cameras alongside standard fixed cameras allows a single DS-9632NI-M8 installation to handle a mixed camera deployment covering entry points, floor areas, car parks, and point-of-sale zones.
Schools and Education Facilities
Long retention requirements and multi-zone coverage across classrooms, corridors, car parks, and perimeter areas are well served by the 8-bay storage configuration and RAID support, which allow storage to be sized and protected appropriately for the site.
Apartment Buildings and Body Corporates
Lobbies, lifts, car parks, common areas, and perimeter entries can all be recorded across 32 channels, with RAID options providing storage resilience for sites where continuous long-term recording is expected and interruptions are unacceptable.
Control Rooms and Operations Centres
Dual HDMI outputs with 8K capability and dual VGA outputs give operators flexibility to drive large monitors or multiple display screens simultaneously, making this NVR a practical fit for sites where live monitoring is a core part of daily operations.
Choosing the Right Model
- Choose this model if: Your system requires 32 channels with high bandwidth headroom (320 Mbps), large SATA storage capacity, RAID redundancy, 8K display output, and a network-first architecture using external PoE switching. It suits commercially structured installations with cameras distributed across a managed network.
- Choose a different model if: You need a simpler setup where cameras plug directly into the recorder via built-in PoE ports. A PoE NVR with fewer channels would be easier to deploy for smaller sites where a structured network and external PoE switches are not part of the design.
- Choose a different model if: You only need 8 or 16 channels and do not require RAID storage or 8K display output. A lower-channel recorder would reduce cost and complexity for smaller single-building deployments.
FAQs
- Does the DS-9632NI-M8 have built-in PoE ports?
No. This model does not include built-in PoE. All cameras must be powered and connected through external PoE switches or a structured network. This is intentional for commercial deployments where cameras are distributed across multiple network segments, floors, or buildings and where dedicated PoE switching infrastructure is already part of the system design.
- What is the maximum storage capacity this NVR can support?
The DS-9632NI-M8 has 8 SATA bays, each supporting up to 16 TB drives. This provides a maximum raw storage capacity of up to 128 TB before RAID configuration. The actual usable capacity will be lower if RAID 1, 5, 6, or 10 is enabled, as those modes use drive space for parity or mirroring.
- Which RAID modes does the DS-9632NI-M8 support?
This NVR supports RAID 0, 1, 5, 6, 10, and N+M hot spare. Each mode offers a different trade-off between usable capacity, read/write performance, and fault tolerance. For commercial installations where footage continuity is critical, RAID 5 or RAID 6 with a hot spare is commonly used to protect against single or dual drive failure.
- What display outputs does this NVR support, and can it drive two monitors at once?
The DS-9632NI-M8 has 2 HDMI outputs and 2 VGA outputs. HDMI 1 supports 8K output, and the unit can drive dual 4K simultaneously. This makes it suitable for control rooms where operators need to split camera views across multiple large-format displays without relying on a separate video wall controller.
- Can the DS-9632NI-M8 work with ANPR or fisheye cameras?
Yes. The NVR natively supports special camera types including ANPR (number plate recognition), fisheye, and people-counting cameras. These can be mixed with standard fixed cameras across the 32 available channels, making it suitable for projects that combine vehicle monitoring, crowd analytics, and general surveillance within a single system.
- Is this NVR suitable for an installation where cameras are in multiple buildings connected by fibre?
Yes, and this is one of the scenarios where the DS-9632NI-M8 is a strong fit. Because cameras connect via the network rather than built-in PoE ports, you can use remote PoE switches at each building with fibre uplinks back to the communications room where the NVR is racked. This topology is straightforward to design and scale, and is available through Security Wholesalers as part of a broader Hikvision system build.
- Does this NVR ship with hard drives included?
No. The DS-9632NI-M8 is listed as a No HDD unit. Hard drives must be sourced and installed separately. Storage sizing should be calculated before selecting drives, taking into account the number of cameras, resolution, bitrate, frame rate, recording mode (continuous or event-based), and required retention period. Using Hikvision’s storage calculator or consulting with your installer before ordering is recommended for commercial deployments.
