Product SKU: Hikvision DS-2XE2705-M04-316L
Product Overview

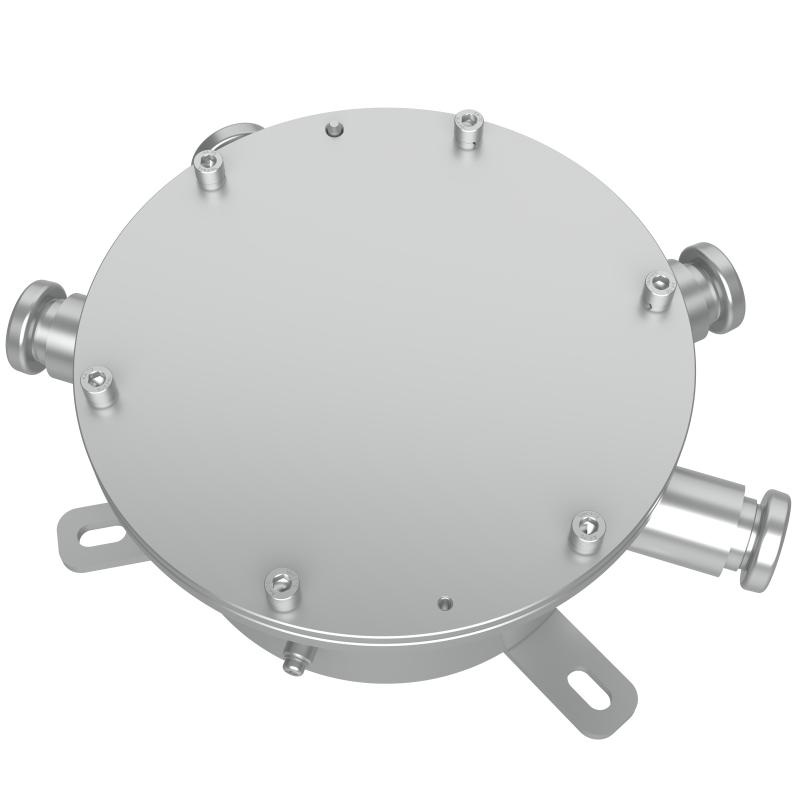

The Hikvision 316L DS-2XE2705-M04(316L) Explosion-Proof Junction Box is a robust stainless steel junction box designed for hazardous, corrosive and demanding security installation environments. Built from 316L stainless steel with anti-corrosion surface spray treatment, it provides strong durability for compatible Hikvision explosion-proof and anti-corrosion camera systems. The junction box features 4 cable outlets, ATEX and IECEx certified explosion-proof performance and IP68 ingress protection, helping support safe and reliable cable connection in environments where gas, dust, moisture, corrosion or harsh operating conditions may be present. It is ideal for industrial sites, chemical facilities, ports, energy infrastructure, mining sites, marine environments, oil and gas facilities and hazardous-area CCTV installations.
Why Choose the Hikvision DS-2XE2705-M04(316L)
The Hikvision DS-2XE2705-M04(316L) is ideal for installations where standard junction boxes are not suitable due to explosion-risk environments, corrosive materials or harsh outdoor exposure. Its 316L stainless steel construction provides high resistance to corrosion, making it suitable for demanding industrial and marine-style environments. The 4 cable outlets support flexible cable routing for compatible explosion-proof camera installations, while ATEX and IECEx certification helps meet hazardous-area deployment requirements when installed correctly. IP68 protection also helps prevent water and dust ingress, supporting long-term reliability in outdoor and wash-down-prone locations.
Key Capabilities
Explosion-Proof Installation Support
The DS-2XE2705-M04(316L) is designed for use with compatible Hikvision explosion-proof and anti-corrosion surveillance installations, supporting safer cable connection in hazardous areas where certified equipment is required.
316L Stainless Steel Construction
The 316L stainless steel housing helps resist corrosion in harsh environments such as industrial plants, marine facilities, chemical processing areas, ports and outdoor sites exposed to corrosive materials.
4 Cable Outlets
Four cable outlets provide practical cable-routing flexibility for compatible camera and system wiring, helping installers manage multiple cable paths within a certified junction box design.
ATEX and IECEx Certified
ATEX and IECEx certified explosion-proof performance supports hazardous-area compliance requirements where equipment must be suitable for gas or dust-risk environments.
IP68 Ingress Protection
IP68 ingress protection helps defend against water and dust entry, making the junction box suitable for demanding outdoor, industrial and wash-down-prone environments when installed correctly.
Key Features
-
316L Stainless Steel Housing: The DS-2XE2705-M04(316L) uses 316L stainless steel to provide strong resistance against corrosion, making it suitable for industrial, coastal, chemical and harsh outdoor environments.
-
Anti-Corrosion Surface Treatment: Anti-corrosion surface spray treatment helps protect the junction box from environmental damage caused by corrosive materials, moisture and harsh operating conditions.
-
Explosion-Proof Performance: ATEX and IECEx certification supports deployment in hazardous environments where certified explosion-proof accessories are required as part of the complete camera installation.
-
4 Cable Outlets: Four cable outlets allow installers to route multiple cables through the junction box, supporting flexible wiring layouts for compatible explosion-proof and anti-corrosion camera systems.
-
IP68 Ingress Protection: IP68 protection helps prevent dust and water ingress, supporting reliable installation in demanding outdoor or industrial environments when sealed and installed correctly.
-
Hazardous-Area Camera Accessory: The junction box is designed as an accessory for Hikvision explosion-proof and anti-corrosion camera installations, helping keep cable connections protected and suitable for certified system designs.
-
Wide Working Temperature: A listed working temperature range of -40°C to 60°C supports use in demanding climates, industrial environments and exposed security installations.
-
Professional Cable Termination: The junction box supports secure cable termination and routing, helping installers create cleaner, safer and more maintainable explosion-proof surveillance system connections.
-
Suitable for Corrosive Environments: The 316L stainless steel design makes it suitable for environments where corrosion resistance is important, such as marine facilities, chemical plants and industrial processing areas.
-
Designed for System Safety: Correct installation, grounding and tightening torque are important for maintaining explosion-proof performance and user safety in hazardous areas.
Specifications Summary
| Feature |
Specification |
| Model |
DS-2XE2705-M04(316L) |
| Product Type |
Explosion-Proof Junction Box |
| Material |
316L stainless steel |
| Surface Treatment |
Anti-corrosion surface spray treatment |
| Cable Outlets |
4 cable outlets |
| Explosion-Proof Certification |
ATEX and IECEx certified explosion-proof performance |
| Ingress Protection |
IP68 |
| Working Temperature |
-40°C to 60°C |
| Working Humidity |
10% to 90% |
| Atmospheric Pressure |
86 to 110 KPa |
| Installation Altitude |
Within 2000m above sea level |
| Cable Compression Nut Torque |
36 N·m |
| Explosion-Proof Screw Torque |
10 N·m |
| Grounding |
Internal grounding connection to M4 × 10 screw inside device housing |
| Application |
Compatible Hikvision explosion-proof and anti-corrosion camera installations |
| Best Use |
Hazardous areas, industrial sites, chemical facilities, oil and gas environments, ports, marine environments and corrosion-prone CCTV installations |
Installation and Safety Notes
- Designed for hazardous-area installations requiring explosion-proof junction box performance.
- Installation environment must meet the requirements of the device and certified hazardous-area system design.
- Cable compression nut tightening torque is listed as 36 N·m.
- Explosion-proof screw tightening torque is listed as 10 N·m.
- Internal grounding should be connected to the grounding point inside the device housing.
- Use appropriate certified cable glands, sealing and installation practices for the specific hazardous-area deployment.
Ideal Use Cases
- Oil and Gas Facilities – Suitable for camera junction and cable termination in hazardous areas where explosion-proof equipment is required.
- Chemical Processing Sites – Useful for corrosive and hazardous industrial environments where 316L stainless steel and certified equipment are important.
- Marine and Port Environments – Practical for coastal, port and marine-style installations where corrosion resistance and IP68 protection help support long-term reliability.
- Industrial Manufacturing Plants – Ideal for demanding factory environments, process areas and hazardous zones requiring robust cable connection accessories.
- Mining and Energy Infrastructure – Suitable for harsh industrial sites where surveillance accessories need to withstand dust, moisture, corrosion and certified installation requirements.
Understanding Explosion-Proof Junction Box Use
The Hikvision DS-2XE2705-M04(316L) is used to protect and manage cable connections in compatible explosion-proof and anti-corrosion camera installations. In hazardous environments, standard cable junction accessories may not provide the required level of mechanical strength, sealing, corrosion resistance or certified explosion-proof performance. This junction box helps installers create a safer and more durable connection point when used as part of a correctly designed and certified hazardous-area CCTV system.
| Feature |
What It Provides |
Best For |
| 316L Stainless Steel |
Strong corrosion resistance and robust housing construction |
Chemical sites, marine environments, industrial plants and harsh outdoor locations |
| 4 Cable Outlets |
Flexible cable routing and termination options |
Explosion-proof camera cabling, multiple cable paths and professional system wiring |
| ATEX and IECEx Certification |
Certified explosion-proof performance for hazardous-area designs |
Gas-risk, dust-risk and regulated industrial environments |
| IP68 Protection |
Strong dust and water ingress protection |
Outdoor, wash-down, wet, dusty and demanding industrial installations |
Tip:
Use the Hikvision DS-2XE2705-M04(316L) only as part of a properly designed hazardous-area surveillance installation. Confirm camera compatibility, hazardous zone classification, cable gland certification, grounding requirements, cable outlet layout, sealing method and installer certification before deployment.
FAQs
- What is the Hikvision DS-2XE2705-M04(316L) used for?
The DS-2XE2705-M04(316L) is used as an explosion-proof junction box for compatible Hikvision explosion-proof and anti-corrosion camera installations. It provides a robust cable connection point for hazardous and corrosive environments where standard junction boxes are not suitable.
- What material is the DS-2XE2705-M04(316L) made from?
The junction box is made from 316L stainless steel with anti-corrosion surface spray treatment. This makes it suitable for demanding environments where corrosion resistance is important, including chemical, marine, industrial and outdoor installations.
- How many cable outlets does this junction box have?
The DS-2XE2705-M04(316L) has 4 cable outlets. This gives installers cable-routing flexibility when connecting compatible explosion-proof camera equipment and managing cable paths within a hazardous-area surveillance installation.
- Is the DS-2XE2705-M04(316L) certified for explosion-proof use?
Yes, Hikvision lists the DS-2XE2705-M04(316L) with ATEX and IECEx certified explosion-proof performance. The complete installation must still be designed and installed according to the applicable hazardous-area requirements and local regulations.
- What ingress protection rating does it have?
The DS-2XE2705-M04(316L) has an IP68 ingress protection rating. This helps protect the internal cable connection area against dust and water ingress when the junction box is installed and sealed correctly.
- Where is this junction box typically installed?
It is typically installed in hazardous or corrosive locations such as industrial plants, oil and gas facilities, chemical processing areas, ports, marine environments, mining sites and energy infrastructure where explosion-proof and anti-corrosion camera accessories are required.
- Does installation require special care?
Yes, explosion-proof equipment must be installed carefully to preserve safety and certification performance. The installer should confirm the hazardous-area classification, cable glands, sealing, grounding, torque specifications and compatibility with the complete camera system before installation.
- What working temperature is listed for this junction box?
The installation guide lists a working environment temperature of -40°C to 60°C. This supports use in demanding outdoor and industrial environments, provided the complete installation meets the required safety and environmental conditions.
