2 Megapixel PTZ Cameras, Hikvision PTZ Cameras

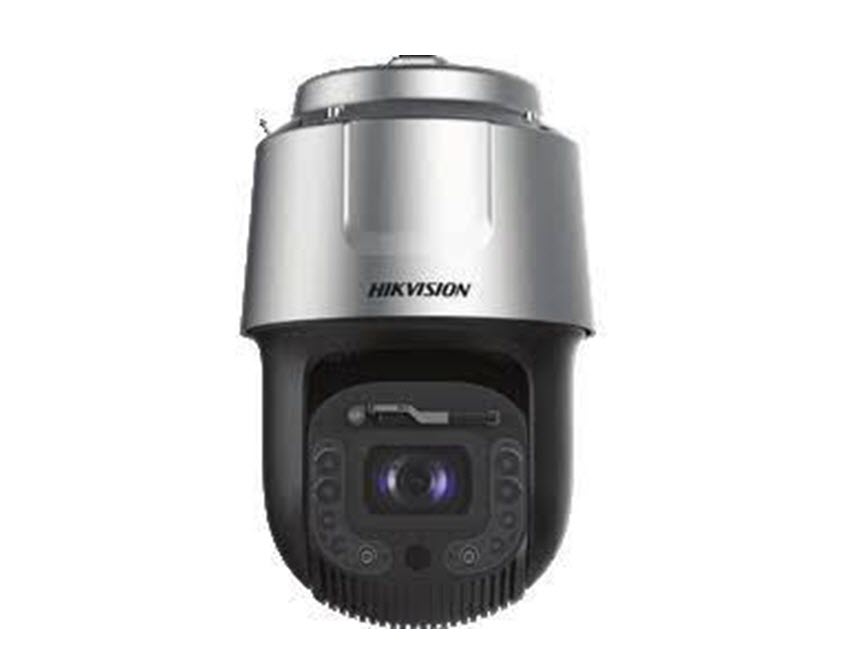

Hikvision DS-2DF8C448I5XG-ELW 8-inch 4MP 48X DarkFighter 500m Laser Network Speed Dome

1/1.2″ progressive scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with DarkFighter technology
48× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 500 m laser distance
Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
Supports face capture to detect, capture, grade, and select faces in motion
Supports road traffic to detect vehicles
Smart Pan-Tilt Correction
6 week lead time on this product

Datasheet-of-DS-2DF8C448I5XG-ELW_V5.8.0_20220919

$6,975.00 inc GST +3 Year Warranty & Support

Description
Specification

Note – this camera is a late model so there aren’t many videos documenting it.

Thus below are some videos related to older models.

Camera

Image Sensor

1/1.2″ progressive scan CMOS

Min. Illumination

Color: 0.002 Lux @ (F1.6, AGC ON), B/W: 0.0002 Lux @ (F1.6, AGC ON)0 Lux with Laser

Shutter Speed

1/1 s to 1/30,000 s

Slow Shutter

Day & Night

IR cut filter

48x optical, 16x digital

Max. Resolution

2560 × 1440

Lens

Focus

Auto, semi-auto, manual, rapid focus

Focal Length

6.0 to 288 mm

Zoom Speed

Approx. 7.8 s

Horizontal field of view: 61.0° to 1.7° (wide-tele), Vertical field of view: 35.9° to 1.0° (wide-tele), Diagonal field of view: 68.5° to 1.9° (wide-tele)

Aperture

Max. F1.6

Illuminator

Supplement Light Type

Laser

Supplement Light Range

Laser Distance: up to 500 m

Smart Supplement Light

PTZ

Movement Range (Pan)

360°,Smart Pan-Tilt Correction

Movement Range (Tilt)

-20° to 90° (auto flip),Smart Pan-Tilt Correction

Pan Speed

Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s

Proportional Pan

Presets

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Park Action

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

PTZ Status Display

Preset Freezing

Scheduled Task

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

SKU: DS-2DF8C448I5XG-ELW Categories: 2 Megapixel PTZ Cameras, Hikvision PTZ Cameras

Camera
Image Sensor:		1/1.8″ progressive scan CMOS
Effective Pixels:		1920(H)x1080(V)
Signal System:		PAL/NTSC
Minimum Illumination:		Color: 0.002 Lux @(F1.5, AGC ON) B/W: 0.0002 Lux @(F1.5, AGC ON) 0 Lux with laser
White Balance:		Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC:		Auto/Manual
HLC:		Support
WDR:		120dB
Shutter Time:		1/1 s to 1/30,000 s
Day& Night:		ICR
Digital Zoom:		16x
Privacy Mask:		24 programmable privacy masks; optional multiple colors and mosaics
Auto Focus:		Auto / Semi-automatic / Manual
Rapid Focus:		Yes

Lens
Focal Length:		5.7 mm to 205.2 mm, 36× Optical
Zoom Speed:		Approx. 4.4 s (optical lens, wide-tele)
Field of View:		Horizontal field of view: 59.8° to 2.0° (wide-tele) Vertical field of view: 33.6° to 1.1° (wide-tele) Diagonal field of view: 68.6° to 2.3° (wide-tele)
Minimum Working Distance:		10 mm to 1500 mm (wide-tele)
Aperture Range:		F1.5~F4.5

Pan & Tilt
Pan Range:		360°endless
Pan Speed:		Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
Tilt Range:		-20°~90°(Auto Flip)
Tilt Speed:		Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
Proportional Zoom:		Yes
Number of Preset:		300
Patrol:		8 patrols, up to 32 presets per patrol
Pattern:		4 pattern scans, record time over 10 minutes for each scan
Power-off Memory:		Support
Park Action:		Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
Smart-tracking:		Manual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking
Wiper:		Support

Infrared
Laser Distance:		500 m

Alarm
Alarm Input:		7 Inputs
Alarm Output:		2
Alarm Linkage:		Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Input & Output
Audio Input:		1-ch audio input
Audio Output:		1 Audio output interface Line level, impedance: 600Ω

Network
Max.Image Resolution:		1920×1080
Main Stream:		50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:		50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
Third Stream:		50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288)
Video Compression:		Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
Audio Compression:		G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols:		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View:		Up to 20 channels
Three-Stream:		Support
Storage:		Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
User/Host:		Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures:		User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering

Client GUI
Client:		iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser:		IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+

General
RS-485 Protocols:		HIKVISION, Pelco-P, Pelco-D, self-adaptive
Language:		32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Consumption:		24 V, 3.0 A, 50/60Hz, AC (Max. 60 W, including max. 18 W for IR and max. 12 W for heater) Hi-PoE, 42.5 to 57 V,1.41 A (Max. 50 W, including max. 18 W for IR and max. 12 W for heater)
Working Temperature/Humidity:		-40°C to 70°C (-40°F to 158°F)
Protection Level:		IP67 Standard, 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions:		Φ 266.6 mm × 410 mm (Φ 10.50″ × 16.14″)
Weight (approx.):		Approx. 8 kg (17.64 lb)
