Product Overview

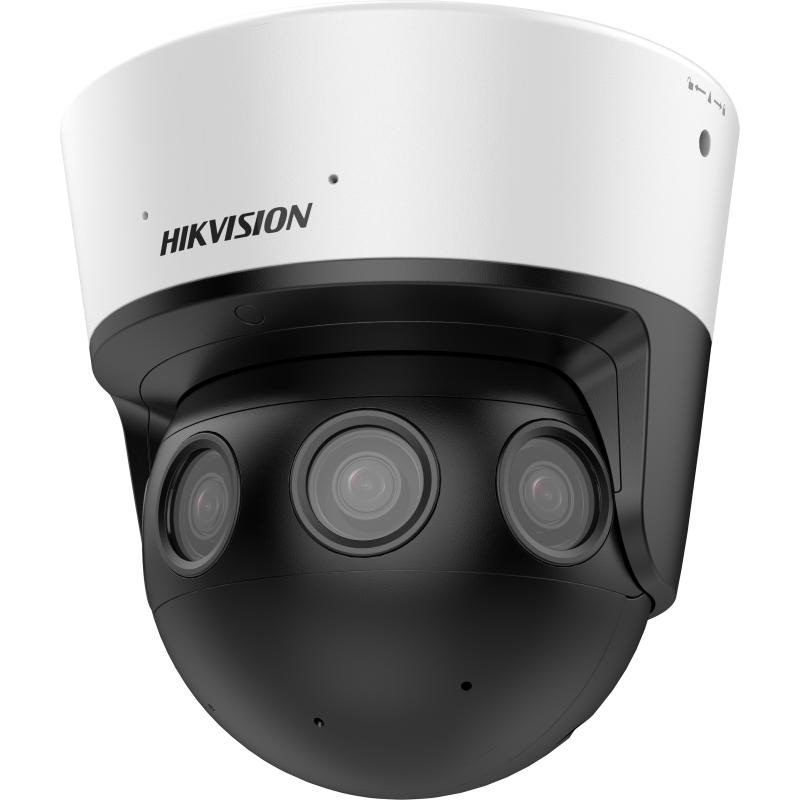

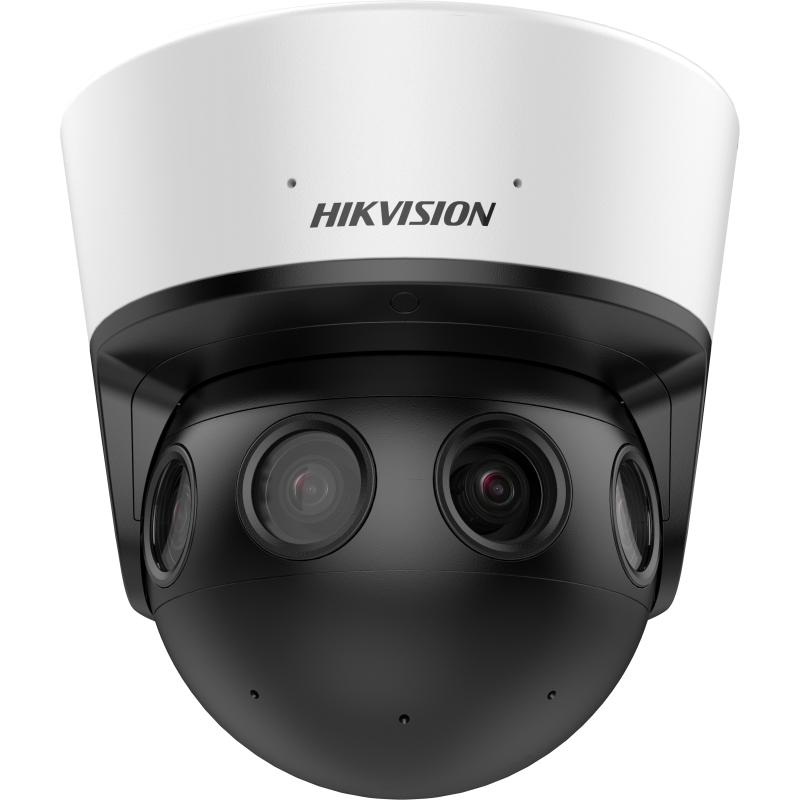

Wide-area monitoring across large commercial spaces often requires either multiple cameras or a compromise on detail. The DS-2CD6944G1-IHS/UY addresses this by combining a 16MP multi-sensor panoramic turret design with a 180-degree stitched view, allowing a single camera position to cover broad scenes that would otherwise need several standard fixed units. Featuring a 2.8mm fixed lens and up to 20m IR illumination, this Hikvision panoramic turret camera suits ceiling-mounted installations in lobbies, retail floors, warehouse aisles, school corridors, commercial entrances, and open facility monitoring zones. The stitched panoramic output gives operators a wide, joined scene rather than a narrow frame, making it practical for overviewing foot traffic patterns, entry points, and large interior spaces where situational awareness across the full width of a room is the priority.
Key Capabilities
16MP Panoramic Resolution
At 16MP total, this panoramic camera captures broad scenes with enough image detail for post-event review across a wide field. High resolution matters in panoramic applications where the frame is stretched across a large area.
180-Degree Stitched View
The stitched panoramic output joins multiple sensor views into one continuous wide scene. This allows a single camera to cover wide entry points, open floors, or corridor intersections without leaving gaps between narrower camera zones.
2.8mm Fixed Lens
The 2.8mm lens provides a wide viewing angle suited to open spaces and broad monitoring scenes. It is a fixed focal length, making framing decisions at installation time important for ensuring the required coverage area is captured correctly.
20m IR Illumination
Built-in infrared illumination extends usable monitoring into low-light and night-time conditions up to 20m. This is useful for 24-hour sites such as warehouses, car parks, or commercial premises where lighting is inconsistent or absent after hours.
Turret Form Factor for Ceiling Mounting
The turret housing offers a compact ceiling-mount profile that suits commercial interiors. Unlike a dome, the turret ball-and-socket design makes angle adjustment straightforward during installation, which is helpful when aligning a panoramic sensor accurately across a wide scene.
Best For
- Reducing Camera Count in Open Areas: The 180-degree stitched view allows one camera to cover wide scenes where multiple standard cameras would otherwise be needed, helping simplify cabling and recorder channel use.
- Retail and Commercial Floor Monitoring: Suited to shop floors, showrooms, and open-plan commercial spaces where broad situational awareness of customer movement and staff activity is required from a ceiling position.
- Lobbies, Entrances, and Reception Areas: Practical for wide entry points where a panoramic view captures the full width of foot traffic, visitor movement, and access patterns in a single stitched frame.
- Warehouses and Operational Facilities: Useful for monitoring wide aisles, loading zones, and dispatch areas where scene width makes standard narrow-view cameras insufficient for full coverage without multiple units.
Why Choose the DS-2CD6944G1-IHS/UY
The DS-2CD6944G1-IHS/UY is a purpose-built panoramic turret camera for sites where one wide stitched view provides more practical value than a narrow single-sensor fixed camera. The 16MP resolution delivers meaningful image detail across a 180-degree scene, something a lower-resolution panoramic unit struggles to maintain once the frame is stretched across a large area. The turret housing keeps installation straightforward in commercial ceilings, while the 20m IR extends coverage into lower-light environments without requiring supplementary lighting. A standard fixed turret camera covering the same area would need several units and additional cabling, whereas this model handles it from one mounting point. Available through Security Wholesalers, the DS-2CD6944G1-IHS/UY should be specified after confirming scene width, mounting height, NVR compatibility, storage capacity, and bandwidth requirements, as 16MP panoramic streams carry a heavier network and storage load than standard single-sensor cameras.
Buyer Decision Tips
Coverage Planning Tip: The 180-degree stitched view on the DS-2CD6944G1-IHS/UY is fixed at 2.8mm, so there is no optical zoom or adjustable focal length. Before installing, walk the scene and confirm that the intended mounting height and horizontal distance to the far edges of the coverage zone fall within the camera’s field of view. Panoramic cameras work best when mounted centrally above or adjacent to the area being monitored, not at an extreme angle to one side.
Bandwidth and Storage Tip: A 16MP panoramic stream generates significantly more data than a standard 2MP or 4MP camera. Before deploying multiple units of this model, confirm that the NVR supports the resolution and stream rate, that the network switch has adequate throughput, and that the storage configuration accounts for the higher bitrate. Running this camera at reduced sub-stream settings may compromise the resolution advantage that justifies its selection.
Key Features & Technical Specifications
| Model |
DS-2CD6944G1-IHS/UY |
| Product Type |
Panoramic turret network camera |
| Camera Series |
Hikvision PanoVu Panoramic Series |
| Resolution |
16MP |
| View Type |
180-degree stitched panoramic view |
| Lens |
2.8mm fixed lens |
| IR Range |
Up to 20m |
| Camera Housing |
Turret |
| Camera Interface |
IP network camera |
| Typical Applications |
Lobbies, retail floors, warehouses, corridors, entrances, car parks, schools, open commercial and facility monitoring zones |
| Installation Type |
Ceiling, soffit, or wall mount using compatible mounting hardware |
| Primary Use Case |
Wide-area panoramic surveillance, 180-degree fixed coverage, camera count reduction in open scenes |
| Installation Considerations |
Confirm scene width, mounting height, viewing distance, lighting conditions, IR reflection risk, NVR compatibility, network bandwidth, and storage capacity before installation |
Ideal Use Cases
Commercial Building Entrances
The 180-degree stitched view covers the full width of wide entry foyers and reception areas in a single frame, capturing visitor movement and access patterns without leaving gaps at the edges of the scene.
Retail Floor and Showroom Monitoring
Open retail spaces benefit from the broad overview the DS-2CD6944G1-IHS/UY provides. The 16MP resolution retains enough detail across the wide stitched scene for post-event review of activity across the floor.
Warehouse and Dispatch Areas
Wide operational areas such as warehouse aisles and loading zones are practical fits for this camera. The 20m IR supports monitoring after hours when ambient lighting in these spaces is reduced or switched off.
School Common Areas and Corridors
Wide corridors, assembly areas, and common spaces in schools are well suited to panoramic fixed coverage. One camera mounted centrally can reduce the number of units required to achieve full scene awareness in these high-traffic zones.
Car Parks and Open Facility Zones
The 180-degree stitched view and 20m IR make this camera a practical ceiling or soffit-mounted option for covered car parks and open facility monitoring zones where wide-angle fixed overview is the primary requirement.
Choosing the Right Model
- Choose this model if: The site requires a single ceiling-mounted camera to deliver 180-degree panoramic coverage with 16MP resolution across a wide open area, and the NVR and network infrastructure can support the higher bandwidth and storage demands of a 16MP panoramic stream.
- Choose a different camera type if: The site needs optical zoom, long-range subject identification beyond 20m, narrow corridor focus, PTZ tracking capability, active deterrence, or a lower-bandwidth solution where a standard single-sensor fixed camera is a better fit for available network resources.
- Check before ordering: Confirm NVR compatibility with 16MP panoramic streams, available storage capacity, network switch bandwidth, mounting height and position relative to the required coverage zone, and whether the 2.8mm fixed focal length provides the correct field of view for the scene.
FAQs
- What does the 180-degree stitched view mean in practical terms for installation planning?
The 180-degree stitched view means the camera joins its sensor coverage into one continuous wide panoramic frame. For installation planning, this means the camera should be positioned centrally above or adjacent to the area being monitored. Mounting it too close to one edge of the scene will leave the opposite side under-covered, as the lens is fixed at 2.8mm with no optical adjustment.
- How many cameras can the DS-2CD6944G1-IHS/UY replace in a typical open commercial space?
This depends on the scene dimensions and the coverage requirement. In open retail floors, lobbies, or warehouse aisles, one unit of the DS-2CD6944G1-IHS/UY can sometimes replace 3 or 4 standard fixed cameras that would otherwise be needed to eliminate blind spots across the same width. Site layout should be evaluated individually before finalising camera positions.
- What resolution does the DS-2CD6944G1-IHS/UY deliver across the full panoramic view?
The camera provides 16MP total across its 180-degree stitched scene. Because this resolution is spread across a wide panoramic field rather than concentrated on a narrow zone, per-area pixel density is lower than a 16MP standard single-sensor camera focused on a smaller target. This trade-off is typical of all panoramic multi-sensor cameras.
- How does the 20m IR perform in a wide panoramic camera?
The 20m IR illumination supports low-light and night-time monitoring within that range. In wide panoramic scenes, even IR coverage across the full 180-degree field depends on mounting height, scene geometry, and the absence of reflective surfaces directly in front of the camera. Actual performance should be tested at the installation site during commissioning.
- Is the lens adjustable on this camera?
No. The DS-2CD6944G1-IHS/UY uses a 2.8mm fixed lens. The focal length cannot be changed after manufacture. This means framing decisions are made entirely through camera positioning and mounting angle. There is no motorised zoom or manual varifocal adjustment available on this model.
- What NVR or recorder is needed to support this camera?
The recorder must support the camera’s IP network stream and be capable of handling 16MP resolution input. High-resolution panoramic cameras place a greater load on recorder processing, storage throughput, and hard drive capacity than standard fixed cameras. Confirm NVR channel compatibility, maximum supported resolution per channel, and available storage before deploying this model.
- Where is the DS-2CD6944G1-IHS/UY best positioned within a site?
Central ceiling positions above open areas give the 180-degree stitched view its best coverage. Wide entry foyers, the centre of retail floors, mid-points of warehouse aisles, and intersections of wide corridors are all practical positions. For installations supplied through Security Wholesalers, placement should be mapped against the full scene width and confirmed with the NVR channel and storage plan before cabling commences.
