-18%

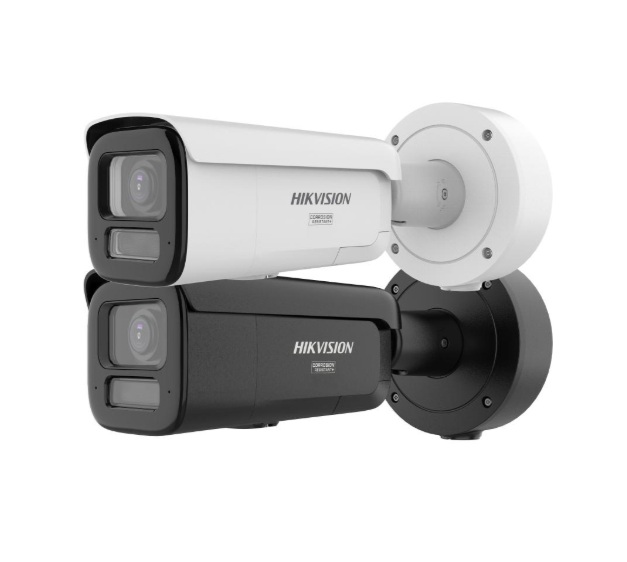

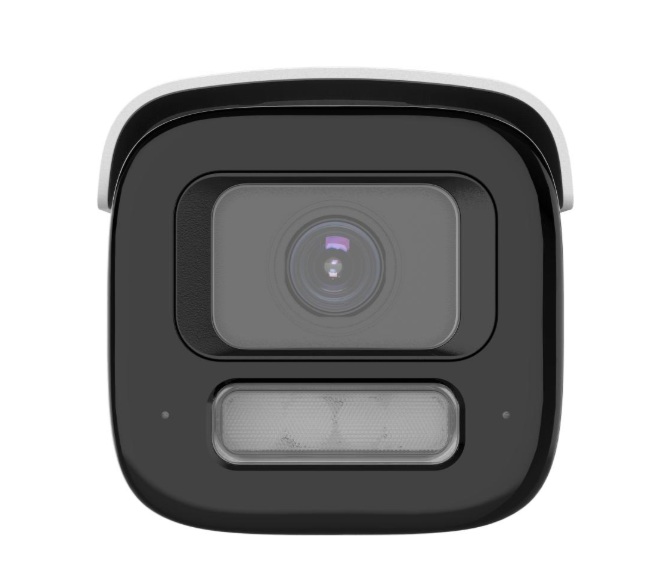

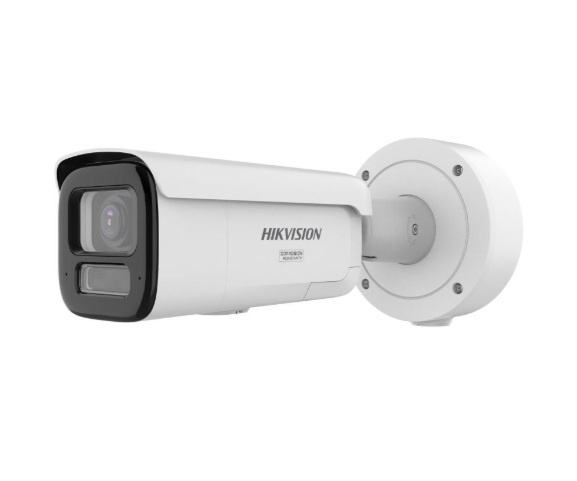

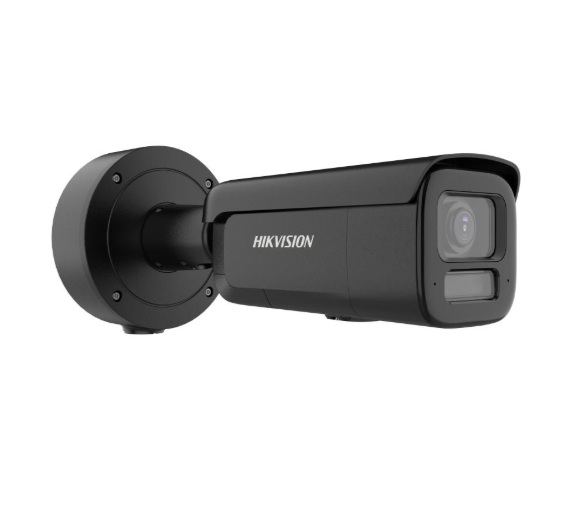

Hikvision 12MP DeepinView DS-2CD36C7G3-LIZSU/SL(Y) Dual Illumination Motorised Varifocal Bullet Camera

$1,016.12$1,239.17

SAVE $223.05FREE DELIVERYWARRANTY GUARANTEED

✔ Dedicated 5★ Customer Care Team ✔ Fast & Responsive Tech Support

Hikvision DS-2CD36C7G3-LIZSU/SL(Y) | 12MP DeepinView | Dual Illumination | Motorised Varifocal | Active Deterrence

The DS-2CD36C7G3-LIZSU/SL(Y) delivers a 12MP DeepinView dual illumination bullet camera designed for high-detail surveillance across homes, businesses, warehouses, car parks and commercial premises. Featuring Smart Hybrid Light with combined IR and white light modes, HIK AI-ISP noise reduction and deep learning person and vehicle classification, it provides flexible day and night monitoring for demanding security scenes. It also includes built-in dual microphones, two-way audio, motorised varifocal lens adjustment and active strobe and audio alarm for real-time deterrence. With IP67 weather resistance, IK10 vandal resistance and NEMA 4X anti-corrosion design, this camera suits robust indoor and outdoor installations.

Key Features

12MP Ultra HD Imaging: Captures highly detailed video for sites needing stronger image clarity and digital zoom performance.
Smart Hybrid Light: Combines IR and white light modes to support flexible night-time monitoring in different environments.
Deep Learning Detection: Focuses on person and vehicle classification to help reduce irrelevant motion alerts.
Two-Way Audio: Includes built-in dual microphones and a speaker for real-time communication and security response.
Motorised Varifocal Lens: Allows remote lens adjustment for easier framing across entrances, yards, car parks and larger areas.
Rugged Outdoor Design: Provides IP67 weather resistance, IK10 vandal resistance and NEMA 4X anti-corrosion protection.

Additional Information

DS-2CD36C7G3-LIZSU/SL(Y) Datasheet

$1,016.12 ~~$1,239.17~~ inc GST +3 Year Warranty & Support

Description

Product Overview

For commercial perimeters, vehicle gates and industrial yards where both image detail and active deterrence matter, the Hikvision DS-2CD36C7G3-LIZSU/SL(Y) delivers 12MP DeepinView imaging in a rugged outdoor bullet housing. Built around a 1/1.8″ Progressive Scan CMOS sensor with a maximum resolution of 4608 x 2592, it pairs a 2.7-13.5mm motorised varifocal lens with Smart Hybrid Light combining IR and white light up to 60m, giving installers flexibility in both framing and night-time coverage. Featuring 130dB scene-adaptive WDR, HIK AI-ISP noise reduction and deep learning person and vehicle classification, the camera focuses perimeter event alerts on targets that matter. Built-in arrayed dual microphones, a built-in speaker and two-way audio support real-time audio response, while an active strobe light and audio alarm add a visible and audible deterrent layer. IP67, IK10 and NEMA 4X anti-corrosion protection suit exposed outdoor locations across a wide range of operating conditions.

Key Capabilities

12MP Ultra High Definition

At 4608 x 2592 resolution on a 1/1.8″ Progressive Scan CMOS sensor with an F1.2 aperture, this camera captures the fine scene detail needed for reviewing vehicle movements, identifying persons and supporting digital zoom at perimeter distances.

Smart Hybrid Light Dual Illumination

Integrating both IR and white light modes into a single unit, Smart Hybrid Light provides up to 60m supplemental lighting range. The three switchable modes allow the installer to select the most appropriate night-time output for the specific scene, including full-colour white light for colour-critical areas.

Motorised Varifocal Lens

The 2.7-13.5mm motorised varifocal lens spans a horizontal field of view from 102° down to 44°, allowing the installer to frame the scene from the NVR interface during commissioning. This is particularly useful across varied perimeter approaches, long driveways and vehicle entry points where fixed lenses require guesswork.

Deep Learning Person and Vehicle Classification

AI-driven classification filters perimeter events by person and vehicle targets for line crossing, intrusion, region entrance and region exiting. This reduces alert noise from general motion triggers such as animals, vegetation or lighting changes, making event review more focused for commercial sites.

Active Strobe and Audio Alarm

A built-in active strobe light and audio alarm trigger on compatible perimeter events to provide an immediate on-site deterrence response. Combined with built-in dual microphones and a built-in speaker supporting two-way audio, the camera supports both automated and operator-initiated responses at the installation point.

Industrial-Grade Protection

IP67 weather resistance, IK10 vandal resistance and NEMA 4X anti-corrosion protection give this bullet camera the physical durability for fence lines, loading docks and exposed outdoor walls operating from -30°C to 60°C. The combination of all three ratings in a single unit reduces the need for additional protective housings.

Best For

Commercial Perimeter Monitoring: The directional bullet housing and 60m Smart Hybrid Light range suit fence lines, building approaches and boundary walls where long-reach coverage is required.
Vehicle Gate and Entry Point Coverage: The 12MP sensor and motorised varifocal lens allow precise framing across vehicle entry lanes, with person and vehicle classification helping focus event alerts on relevant targets.
After-Hours Deterrence Zones: The active strobe light, audio alarm and two-way audio make this camera suited to locations where a visible and audible deterrent response is needed after hours or during an event trigger.
Warehouse and Loading Dock Walls: IP67, IK10 and NEMA 4X protection, combined with 12MP resolution and motorised zoom, suit high-activity outdoor service areas where image detail and durability both matter.
High-Detail Evidence Capture: At 4608 x 2592 with a DORI detect range of up to 79.2m in tele mode, the camera is suited to sites where reviewable footage quality is a priority for incident investigation.

Why Choose the DS-2CD36C7G3-LIZSU/SL(Y)

The DS-2CD36C7G3-LIZSU/SL(Y) occupies a specific position in the Hikvision bullet camera range: a 12MP DeepinView unit that combines a large 1/1.8″ sensor, an F1.2 aperture and 130dB WDR for demanding lighting conditions, with motorised varifocal framing flexibility and an active deterrence layer that simpler bullet cameras do not include. The dual illumination Smart Hybrid Light adds practical night-time versatility not found on single-illumination models, while deep learning person and vehicle classification reduces the event management burden on site staff. Built-in dual microphones, built-in speaker and two-way audio support real-time operator intervention without requiring additional audio hardware. The on-board microSD slot supports up to 512GB for edge storage. Available at Security Wholesalers, this model suits commercial and industrial installations where a single outdoor bullet camera needs to handle high-resolution capture, AI-filtered perimeter events and active deterrence in one unit.

Buyer Decision Tips

Buyer Tip: At 12MP with H.265+ compression, this camera will consume more storage and bandwidth than lower-resolution models. Before deployment, confirm your NVR supports 12MP channel recording, that your PoE switch or injector meets IEEE 802.3at Class 4 at up to 22W, and that the hard drive capacity and recording schedule are sized for the bitrate. Sites running 4 or more of these cameras at full resolution should plan NVR storage carefully.

Buyer Tip: The active strobe and audio alarm functions require compatible event configuration in the NVR or VMS. Confirm that the management platform supports AI event triggers linked to deterrence output actions before relying on automated deterrence at the installation. Manual two-way audio response through the built-in speaker and microphones is available separately through supported Hikvision interfaces.

Key Features & Technical Specifications

Product Type	12MP dual illumination strobe light and audible warning motorised varifocal bullet network camera.
Model	DS-2CD36C7G3-LIZSU/SL(Y).
Brand	Hikvision.
Image Sensor	1/1.8″ Progressive Scan CMOS.
Maximum Resolution	4608 x 2592.
Resolution Class	12MP Ultra High Definition.
Minimum Illumination	Colour: 0.0008 Lux @ F1.2, AGC ON; 0 Lux with supplemental light.
Lens	2.7-13.5mm motorised varifocal lens.
Aperture	Maximum F1.2.
Field of View	Horizontal 102° to 44°, vertical 54° to 25°, diagonal 123° to 51°.
Supplement Light	Smart Hybrid Light with IR and white light; up to 60m range.
IR Wavelength	850nm.
WDR	130dB scene-adaptive WDR.
Video Compression	H.265+, H.265, H.264+, H.264 on main stream; additional stream support varies by stream.
Main Stream Frame Rate	Up to 20fps at 4608 x 2592; up to 25fps or 30fps at lower supported resolutions depending on 50Hz/60Hz settings.
DORI Distance	Wide: Detect 66.6m, Observe 26.4m, Recognise 13.3m, Identify 6.7m. Tele: Detect 79.2m, Observe 31.4m, Recognise 15.8m, Identify 7.9m.
AI Functions	Person and vehicle classification for line crossing, intrusion, region entrance and region exiting. Face capture supported.
Audio	Built-in arrayed dual microphone, built-in speaker, line input and line output. Two-way audio supported.
Active Deterrence	Active strobe light and audio alarm for on-site warning on compatible event triggers.
Alarm Interface	2 inputs, 2 outputs; maximum 24VDC/24VAC, 1A.
On-Board Storage	microSD/microSDHC/microSDXC slot; up to 512GB.
Network Interface	1 x RJ45 10M/100M self-adaptive Ethernet port.
Power	12VDC ±25%, 1.4A, max. 18W; PoE IEEE 802.3at Class 4, max. 22W.
Protection Rating	IP67 weather resistance, IK10 vandal resistance.
Anti-Corrosion	NEMA 4X moderate anti-corrosion protection.
Operating Temperature	-30°C to 60°C; humidity 95% or less, non-condensing.

Ideal Use Cases

Industrial Yard Perimeters

Mounted on warehouse walls or boundary poles, the bullet housing provides directional long-range coverage with Smart Hybrid Light up to 60m. Person and vehicle classification keeps perimeter alerts focused on relevant targets across large outdoor areas.

Vehicle Entry Gates

The motorised varifocal lens allows precise framing across vehicle lanes from wide angle to narrower tele during commissioning, while 12MP resolution supports detailed vehicle review. DORI tele detection reaches 79.2m, supporting early identification of approaching vehicles.

Loading Docks and Service Areas

The 130dB WDR manages the high-contrast lighting common at loading docks where bright overhead lights meet shadowed vehicle bays. Built-in two-way audio and audio alarm add an active response capability without requiring separate audio hardware at the location.

After-Hours Deterrence Zones

Active strobe and audio alarm functions triggered by perimeter intrusion or line crossing events make this camera suited to car parks, vacant lots and building exteriors where a visible deterrent response after hours is part of the security plan.

Coastal and Corrosive Environments

NEMA 4X anti-corrosion protection combined with IP67 sealing and IK10 impact resistance extends the usable life of this camera in coastal installations, chemical storage areas or sites with exposure to moisture, salt air or cleaning agents.

Long Driveway and Approach Monitoring

Installed at the entrance to a long private or commercial driveway, the 2.7-13.5mm motorised varifocal lens can be tightened to the tele end to extend identification range, supported by the 60m supplemental light reach and face capture capability.

Choosing the Right Model

Choose this model if: The site requires a 12MP outdoor bullet camera with motorised varifocal framing, Smart Hybrid Light dual illumination, AI person and vehicle classification, and built-in active deterrence including strobe and audio alarm from a single unit.
Choose a fixed-lens model if: The mounting position and viewing angle are fixed and will not change after installation. A fixed-lens bullet camera at the same resolution will typically cost less where remote lens adjustment is not needed.
Choose a turret or dome format if: The mounting location requires a lower-profile or ceiling-flush housing rather than the extended directional bullet body. Turret and dome formats can be less visually prominent on soffit or ceiling mounts.
Check PoE switch class before ordering: This camera draws up to 22W via PoE IEEE 802.3at Class 4. Standard 802.3af switches at 15.4W will not power it correctly. Confirm switch or injector specifications before installation.
Check NVR and storage capacity: 12MP recording at up to 20fps requires more storage capacity and bandwidth headroom than 4MP or 8MP cameras on the same NVR. Confirm channel licensing, codec support and drive size before commissioning.

FAQs

What does the DeepinView designation mean for this camera?
DeepinView is Hikvision’s classification for cameras built around larger sensors with enhanced low-light performance. The DS-2CD36C7G3-LIZSU/SL(Y) uses a 1/1.8″ Progressive Scan CMOS sensor with an F1.2 aperture, which captures more light than smaller sensors at the same resolution class. This contributes to the 0.0008 Lux minimum illumination in colour mode and supports usable colour imaging in challenging outdoor lighting conditions.
How does Smart Hybrid Light differ from standard IR illumination?
Standard IR illumination produces monochrome night-time footage. Smart Hybrid Light integrates both IR and white light into the one camera, allowing the installer or system to select between IR-only for monochrome coverage, white light for full-colour night imaging, or a combined adaptive mode. This gives a single outdoor bullet camera the flexibility to match the night-time monitoring requirement of the specific site without needing separate supplemental lighting.
Is the motorised varifocal lens adjusted remotely or physically at the camera?
The 2.7-13.5mm motorised varifocal lens is adjusted remotely through a compatible Hikvision NVR or configuration interface. The installer does not need to physically access the lens or housing to change the zoom or focus, which simplifies commissioning at height or in difficult-to-reach mounting positions such as high perimeter walls or poles.
What PoE specification does this camera require?
The DS-2CD36C7G3-LIZSU/SL(Y) requires PoE IEEE 802.3at Class 4 at a maximum of 22W when powered by PoE. Standard 802.3af switches supply a maximum of 15.4W, which is insufficient. Confirm that the switch port or PoE injector is 802.3at rated before deployment. Alternatively, the camera can be powered by 12VDC at up to 18W using a separate power supply.
Does the active strobe and audio alarm trigger automatically?
Yes, when configured with compatible AI event rules such as intrusion or line crossing, the camera can automatically activate the strobe light and audio alarm when a classified person or vehicle target triggers the rule. Configuration is managed through the NVR or camera interface. Confirm that your NVR or VMS supports linking AI perimeter events to the camera’s deterrence output actions during setup.
Can this camera record to a local memory card without an NVR?
Yes. The camera includes a microSD/microSDHC/microSDXC slot supporting cards up to 512GB for local edge recording. This can function as standalone recording or as a backup to NVR-based recording. Card recording behaviour, such as overwrite settings and event-based capture, is configured through the camera’s interface or compatible software.
What AI detection events are supported?
The camera supports line crossing, intrusion, region entrance and region exiting, each with alarm filtering by person and vehicle target classification. Face capture is also supported. These functions help reduce the volume of irrelevant perimeter alerts triggered by general motion, making event-based monitoring more manageable for commercial and industrial sites.
What should I confirm before purchasing this camera?
Confirm that your NVR supports 12MP IP channel recording and has the correct firmware for compatibility with this model. Check that your PoE switch or injector meets IEEE 802.3at Class 4. Plan recording storage to accommodate 12MP bitrates across all channels. Verify the mounting position and lighting conditions suit the 2.7-13.5mm varifocal range and 60m illumination reach. Security Wholesalers supplies this model for Hikvision IP CCTV systems requiring high-resolution outdoor coverage with integrated deterrence.

Additional Information

DS-2CD36C7G3-LIZSU_SLY_Datasheet_20250828

SKU: DS-2CD36C7G3‌-LIZSUY-SL Categories: Hikvision 12MP Cameras, Hikvision Bullet Cameras, Hikvision CCTV Security Cameras, Hikvision Varifocal Cameras
