Product Overview
For sites that demand broad coverage across multiple access points, entrances, and outdoor zones, this Hikvision 10 Camera 6MP Security Kit brings together ten DS-2CD2066G2H-IU fixed mini bullet cameras and the DS-7616NI-M2/16P 16-channel 16 PoE 8K NVR into a single, deployable IP surveillance system. Each camera records at up to 3200 x 1800 resolution using a 1/2.4″ sensor with an F1.0 aperture, DarkFighter low-light technology, AcuSense human and vehicle classification, and a built-in microphone for audio recording alongside video. Up to 40 metres of IR illumination supports after-dark coverage across driveways, yards, perimeter walls, and loading zones. The included NVR powers all connected cameras directly over Cat cable via 16 built-in PoE ports, simplifying runs and centralising recording. With 6 spare channels remaining after the initial ten cameras, the system has room to grow. No HDD is included with this kit.
Key Capabilities
10-Camera Perimeter Coverage
Ten 6MP mini bullet cameras recording at up to 3200 x 1800 give this system enough camera positions to cover multiple gates, entrances, side access points, driveways, loading zones, and yard areas simultaneously, reducing blind spots across larger sites.
AcuSense Human and Vehicle Classification
Deep learning analytics help each camera focus alerts on people and vehicles rather than background movement such as rain, shadows, or vegetation. This reduces notification noise and makes playback searches faster and more targeted during incident review.
DarkFighter Low-Light Performance
Powered-by-DarkFighter technology combined with the F1.0 aperture and up to 40 metres of IR illumination allows each camera to maintain usable detail after dark across driveways, side lanes, storage areas, and building perimeters where light levels are inconsistent.
Built-In Microphone Audio Recording
Each camera includes a built-in microphone, adding an audio layer to recorded footage across all ten positions. This provides additional context when reviewing incidents at entrances, access points, or work areas where audio detail can help clarify what occurred.
16-Port PoE NVR Simplifies Deployment
The DS-7616NI-M2/16P delivers power and data to each camera through a single Ethernet cable per position, removing the need for a separate PoE switch. All 16 ports are built in, keeping the installation tidy and the equipment count lower on larger projects.
Six Spare Channels for Future Expansion
With the NVR supporting 16 IP camera inputs and this kit using 10, there are 6 available channels for additional cameras as site requirements grow. This makes the system a practical starting point for users who anticipate expanding coverage over time.
Best For
- Large Residential Properties: Ten camera positions cover front boundaries, driveways, rear yards, side access, sheds, and garages with 6MP detail and audio recording at each point.
- Commercial and Industrial Sites: Warehouses, workshops, and commercial premises benefit from the wide camera count, PoE simplicity, AcuSense detection, and the ability to add more cameras without replacing the recorder.
- Retail and Hospitality Premises: Shopfronts, rear access, loading docks, and car parks are well suited to the DarkFighter low-light capability and human and vehicle classification for more focused alert management.
- Users Who Want to Expand Later: Six spare PoE channels on the included NVR allow the system to grow without upgrading the recorder, making this kit suitable for staged rollouts and growing sites.
Why Choose the DS-2CD2066G2H-IU 10 Camera Kit
This kit separates itself from simpler multi-camera bundles through the combination of AcuSense classification, DarkFighter low-light capability, and built-in microphone recording across all 10 camera positions. The DS-2CD2066G2H-IU cameras use an F1.0 aperture and 0.001 Lux colour sensitivity to maintain image detail in genuinely dark conditions, where standard-aperture cameras at the same resolution would struggle. AcuSense classification at every camera position means detection events are tied to actual people and vehicles, not background movement, which improves the usefulness of alerts across a busy outdoor site. The 16-channel PoE NVR consolidates power and recording into one platform, and the 6 remaining channels give buyers real flexibility to extend the system without additional infrastructure. Available through Security Wholesalers, this kit suits buyers who need a structured, expandable IP system with audio and intelligent detection built in from the outset.

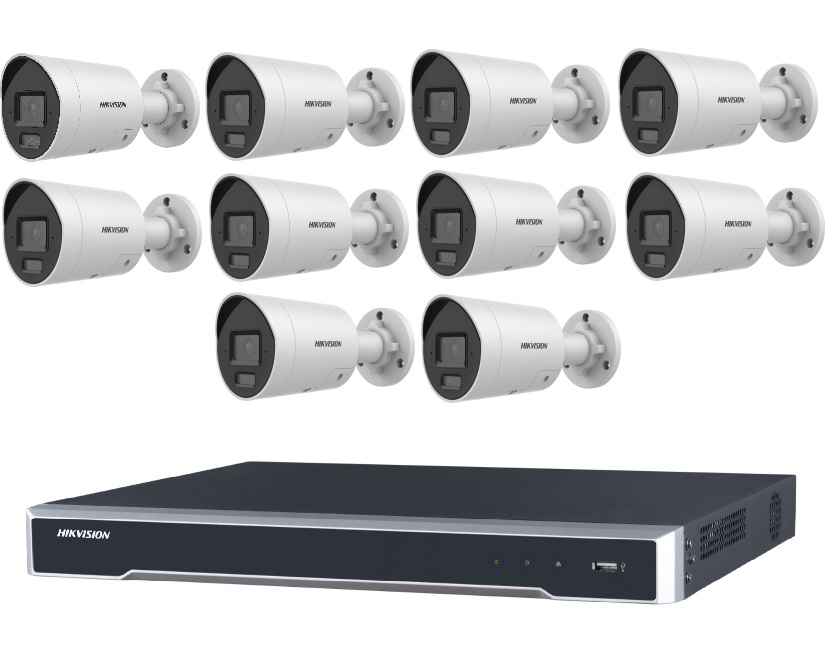

Package Inclusions

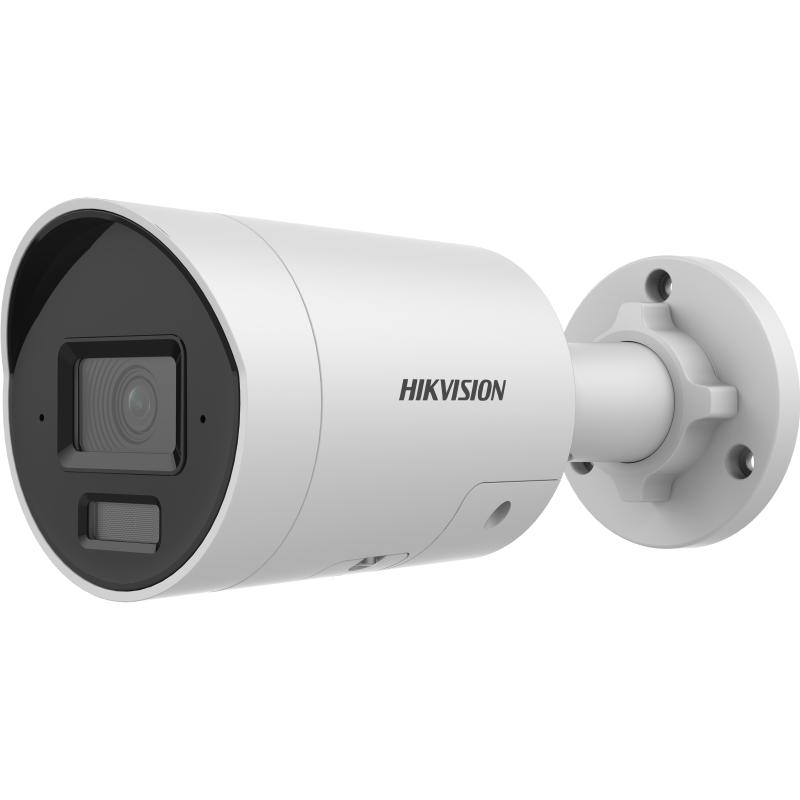

- 10 x Hikvision DS-2CD2066G2H-IU 6MP AcuSense Fixed Mini Bullet Cameras (2.8mm or 4mm fixed lens, Powered by DarkFighter, built-in microphone, human and vehicle detection, up to 40m IR, IP67)
- 1 x Hikvision DS-7616NI-M2/16P 16-Channel 16 PoE 8K NVR
- NO HDD INCLUDED – please select a storage option separately
Buyer Decision Tips
HDD Sizing: The DS-7616NI-M2/16P supports 2 SATA drives at up to 16 TB each. With 10 cameras recording continuously at 6MP using H.265+ compression, storage consumption adds up quickly. For sites requiring 30 days of retention, a 6 TB or 8 TB drive is a practical starting point. Users who need longer retention or plan to add more cameras should consider a higher-capacity drive from the outset rather than replacing storage later.
Lens Selection – 2.8mm vs 4mm: The 2.8mm lens provides a 114.8° horizontal field of view, suited to open driveways, front yards, car parks, and wide perimeter zones where broader scene capture is the priority. The 4mm lens narrows to 94° horizontal, making it more appropriate for entrances, gates, side access points, and corridors where tighter framing and more concentrated subject detail are needed. For a 10-camera site, many installers use a mix of both focal lengths to match coverage to each specific position.
Key Features & Technical Specifications
| Camera Model |
DS-2CD2066G2H-IU |
| NVR Model |
DS-7616NI-M2/16P |
| Camera Quantity |
10 |
| Camera Resolution |
Up to 3200 x 1800 (6MP) |
| Image Sensor |
1/2.4″ Progressive Scan CMOS |
| Aperture |
F1.0 |
| Lens Options |
2.8mm or 4mm fixed lens |
| Field of View – 2.8mm |
Horizontal 114.8°, vertical 60°, diagonal 143.5° |
| Field of View – 4mm |
Horizontal 94°, vertical 50.2°, diagonal 112° |
| Minimum Illumination |
Colour 0.001 Lux (F1.0, AGC ON), B/W 0 Lux with IR |
| IR Range |
Up to 40m |
| WDR |
120 dB |
| Camera Audio |
Built-in microphone |
| On-Board Camera Storage |
microSD/microSDHC/microSDXC up to 512 GB |
| Weather Rating |
IP67 |
| NVR Channels |
Up to 16 IP camera inputs |
| PoE Interfaces |
16 x RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| NVR Bandwidth |
256 Mbps incoming / 256 Mbps outgoing |
| HDMI Output |
Up to 8K (7680 x 4320) at 30 Hz |
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| SATA Interfaces |
2 |
| Maximum HDD per Disk |
Up to 16 TB |
| HDD Supplied |
No HDD included |
Ideal Use Cases
Large Residential Properties
Ten camera positions cover front gates, driveways, side access, rear yards, garages, and outbuildings with 6MP detail and audio recording at each point, supported by DarkFighter performance after dark.
Warehouses and Storage Yards
The F1.0 aperture and 40m IR range handle the uneven lighting typical of large sheds, roller door entries, and open yard areas, while AcuSense classification helps separate people and vehicles from irrelevant background motion.
Retail and Shopfront Sites
Shopfronts, rear access points, loading docks, and customer car parks benefit from human and vehicle detection, audio recording, and 6MP detail that supports clear identification of activity during incidents.
Commercial Offices and Business Premises
Businesses needing a structured IP camera system with centralised PoE recording, built-in audio at every camera, and room to expand to 16 total cameras will find the DS-7616NI-M2/16P a practical long-term platform.
Farms and Rural Properties
IP67-rated cameras with 40m IR illumination and DarkFighter low-light performance are well matched to the exposed, low-light conditions common across farm entries, machinery sheds, fuel storage areas, and paddock access points.
Choosing the Right Model
- Choose this model if: You need 10 camera positions across a large residential, commercial, or industrial site, want AcuSense classification and built-in microphone audio at every camera, value DarkFighter low-light performance with an F1.0 aperture, and want 6 spare channels to expand the system later without replacing the recorder.
- Choose a different model if: Your site needs fewer than 10 cameras and a smaller-channel recorder would better match your layout and budget. Alternatively, if you need PTZ coverage, motorised zoom, or wide-angle panoramic capture across large open areas, a different camera type would be more appropriate than fixed mini bullet cameras.
FAQs
- Does this kit come with a hard drive included?
No. This kit is supplied without a hard drive. The DS-7616NI-M2/16P supports 2 SATA interfaces with up to 16 TB capacity per disk, so you can select the storage size that matches your expected retention period and budget. Surveillance-rated drives such as WD Purple or Seagate Skyhawk are recommended for continuous recording use.
- How many cameras can be added to this system after the initial 10?
The DS-7616NI-M2/16P supports up to 16 IP camera inputs. With 10 cameras used in this kit, there are 6 remaining PoE-powered channels available for future expansion. Each additional camera can be connected directly to the NVR using a single Cat cable without requiring a separate PoE switch.
- Do the cameras support audio recording?
Yes. Each DS-2CD2066G2H-IU camera includes a built-in microphone, so all 10 cameras in this kit record audio alongside video. This adds context to recorded incidents at entrances, driveways, loading areas, and other monitored positions. Note that a built-in speaker is not confirmed on these cameras, so two-way communication is not a feature of this kit.
- What does AcuSense classification do in this system?
AcuSense uses deep learning to distinguish people and vehicles from other motion sources such as rain, wind, leaves, or shadows. In practical use across a 10-camera outdoor system, this means event notifications are tied to genuine activity rather than environmental movement, which reduces nuisance alerts and speeds up footage review when looking for specific incidents.
- How does the DarkFighter technology improve night-time performance?
The DS-2CD2066G2H-IU cameras use an F1.0 aperture lens, which allows significantly more light to reach the sensor compared to a standard F1.6 or F2.0 lens. Combined with DarkFighter processing and up to 40 metres of IR illumination, the cameras can maintain usable colour and detail at very low light levels, reaching 0.001 Lux in colour mode and 0 Lux in B/W with IR active.
- Should I choose the 2.8mm or 4mm lens for this kit?
The 2.8mm lens delivers a 114.8° horizontal field of view and suits wide-open areas such as driveways, yards, and front approaches where capturing a broad scene is the priority. The 4mm lens provides a 94° horizontal field of view and is better suited to entrances, gates, side access points, and narrower zones where a tighter, more detailed frame is preferred. Many installers mix both across a 10-camera layout to match the lens choice to each specific position. Contact Security Wholesalers if you need guidance on lens selection for your site plan.
- Is the NVR compatible with third-party IP cameras?
The DS-7616NI-M2/16P is designed to work natively with Hikvision IP cameras and supports ONVIF-compliant third-party devices. However, AcuSense intelligent detection features, including human and vehicle classification, will only function fully when the NVR is paired with compatible Hikvision cameras such as the DS-2CD2066G2H-IU cameras included in this kit.
Cabling Considerations
- Cable Type: Cat 5e or Cat 6 UTP or shielded cable recommended for each camera run. Use outdoor-rated or direct-burial cable where runs are exposed to weather or UV.
- Maximum PoE Cable Run: Up to 100 metres per camera position from the NVR PoE port. For longer runs, a PoE extender or intermediate switch will be required.
- Single-Cable Installation: Each camera receives both power and data over a single Ethernet cable connected to the NVR’s built-in PoE ports, removing the need for a separate power supply or PoE injector at each camera location.
- Wiring Tips: Plan cable routes before installation and protect exposed runs in conduit where possible. Label each cable at both the camera end and the NVR end to simplify troubleshooting and future expansion across the 16-port platform.
Additional Information
Product SKU: DS-2CD2066G2H-IU/DS-7616NI-M2/16P-NOHDD
